Abstract
The utility model relates to the technical field of grinding machines, in particular to a goods shelf processing bracket end surface grinding device, which solves the defects of low efficiency and incapability of grinding a plurality of surfaces simultaneously in the prior art, and comprises a base, wherein one side of a transmission rod is engaged and connected with a worm wheel which is arranged inside a box body, one side of the worm wheel is welded with a first beating block, the inside of the box body is connected with a guide frame through a screw, a screw rod is arranged in the guide frame in a rotating way, a symmetrically arranged moving block is sleeved outside the screw rod, a chuck is welded on the moving block, a turntable is welded at one end of the screw rod, a second beating block is welded at one side of the turntable, and when a user rotates the transmission rod, the moving seat is driven to move towards the middle simultaneously, and two end surfaces can be processed simultaneously, the processing time is saved, and the repeated clamping operation is omitted.
Description
Technical Field
The utility model relates to a grinding machine technical field especially relates to a goods shelves processing support terminal surface grinding device.
Background
Along with the development of science and technology, grinding device is more and more wide in the application in the part production field, and the smooth finish of terminal surface is especially important to the part that needs the butt joint, and in order to improve the efficiency of processing big batch work piece, more and more special type grinding device has appeared on the production line.
In the prior art, a grinding device needs to clamp a workpiece firstly and then adjust the position of a grinding wheel to grind, so that the grinding device has more steps and low efficiency, only one surface can be ground, and the grinding device needs to clamp again when the other surface is ground.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects of low efficiency and incapability of polishing a plurality of surfaces simultaneously in the prior art and providing a polishing device for the end face of a shelf processing bracket.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a goods shelf processing support end face polishing device comprises a base, wherein the inner wall of the base is connected with a guide rail through a screw, the outer part of the guide rail is connected with a moving seat in a sliding mode, a motor shell is welded on the moving seat, a motor is installed inside the motor shell, and the output end of the motor is connected with a grinding wheel through a coupler;
the inside of base is rotated and is provided with the transfer line, the transfer line cover is established in the inside that removes the seat, one side meshing of transfer line is connected with the worm wheel, the worm wheel is installed in the inside of box, one side welding of worm wheel has the first piece of beating, there is the leading truck in the inside of box through the screw connection, the inside rotation of leading truck is provided with the screw rod, the outside cover of screw rod is equipped with the movable block of symmetrical arrangement, the welding has the chuck on the movable block, the one end welding of screw rod has the carousel, the welding of one side of carousel has the second to beat the piece.
Preferably, a first bearing is installed inside the base, and the transmission rod is sleeved inside the first bearing.
Preferably, a first threaded hole is formed in the movable seat, and the transmission rod is sleeved in the first threaded hole.
Preferably, the two sides of the box body are equally provided with a first through hole and a second through hole respectively, the transmission rod and the guide rail respectively penetrate through the first through hole and the second through hole, one side of the box body is provided with a second bearing, the screw rod is sleeved inside the second bearing, the top of the box body is provided with a rectangular through hole, and the moving block is in sliding connection with the rectangular through hole.
Preferably, a third bearing is installed inside the guide frame, the screw rod is sleeved inside the third bearing, a second threaded hole is formed inside the moving block, and the screw rod is sleeved inside the second threaded hole.
Preferably, a spring is welded on one side of the first beating block, and one end of the spring is welded with the second beating block.
The utility model has the advantages that:
1. the utility model discloses in through the setting of box, transfer line, worm wheel, carousel isotructure, when the user rotates the transfer line, the tight work piece of clamp about the drive movable block, can also make the emery wheel be close to the work piece simultaneously and polish, saved the step of operation, improved the efficiency of processing.
2. The utility model discloses in through transfer line, guide rail, the setting of removing seat, motor casing isotructure, when the user rotates the transfer line, the drive removes the seat and removes to the centre simultaneously, can two terminal surfaces of simultaneous processing, has saved process time, has saved the operation of repeated clamping.
Drawings

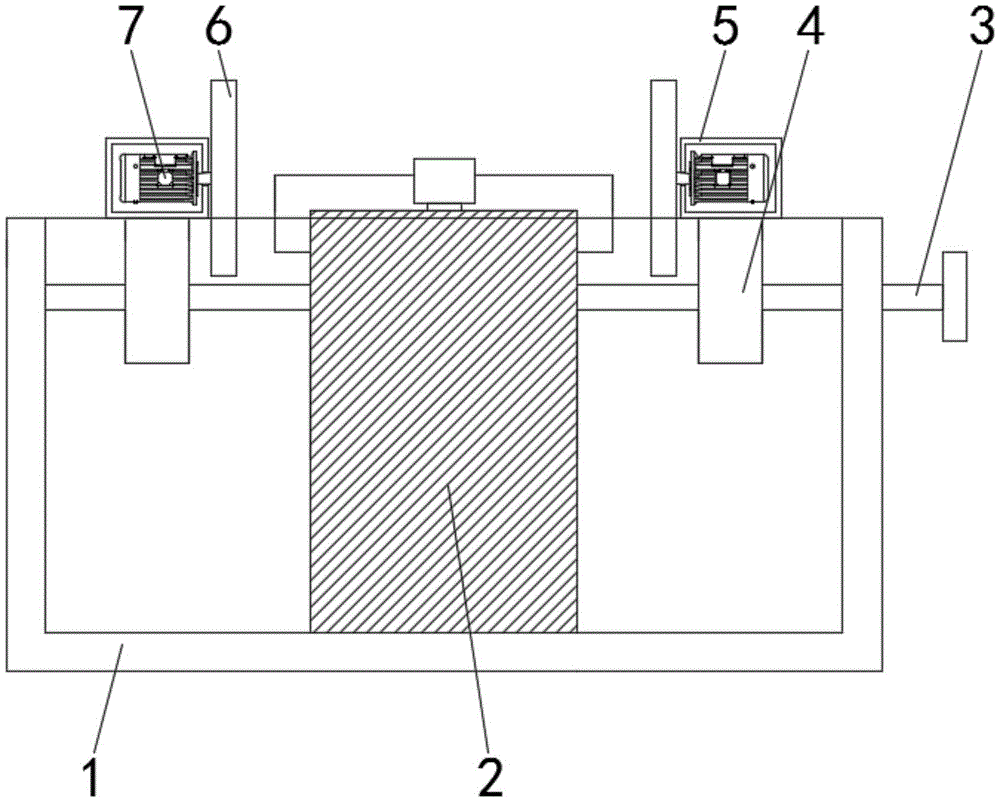

Fig. 1 is a top view of a shelf processing bracket end surface grinding device provided by the utility model;
fig. 2 is a front view of a shelf processing bracket end surface polishing device provided by the utility model;
fig. 3 is a side view of the box body according to the present invention;
fig. 4 is a side view of the worm wheel according to the present invention.
In the figure: the device comprises a base 1, a box 2, a transmission rod 3, a movable seat 4, a motor shell 5, a grinding wheel 6, a motor 7, a guide rail 8, a guide frame 9, a screw rod 10, a movable block 11, a workpiece 12, a clamping block 13, a rotary table 14, a worm wheel 15, a first beating block 16, a spring 17 and a second beating block 18.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-4, a goods shelf processing bracket end surface grinding device comprises a base 1 and a box body 2, wherein the inner wall of the base 1 is connected with a guide rail 8 through a screw, the outer part of the guide rail 8 is connected with a movable seat 4 in a sliding manner, a motor shell 5 is welded on the movable seat 4, a motor 7 is installed inside the motor shell 5, the output end of the motor 7 is connected with a grinding wheel 6 through a coupler, a transmission rod 3 is rotatably arranged inside the base 1, the transmission rod 3 is sleeved inside the movable seat 4, one side of the transmission rod 3 is connected with a worm wheel 15 in a meshing manner, the worm wheel 15 is installed inside the box body 2, a first forging block 16 is welded on one side of the worm wheel 15, a guide frame 9 is connected inside the box body 2 through a screw, a screw rod 10 is rotatably arranged inside the guide frame 9, symmetrically-arranged movable blocks 11 are, a second knock-out block 18 is welded to one side of the turntable 14.
Wherein, through box 2, transfer line 3, worm wheel 15, the setting of carousel 14 isotructure, when the user rotates transfer line 3, it presss from both sides tight work piece 12 from top to bottom to drive movable block 11, simultaneously can also make emery wheel 6 be close to work piece 12 and polish, the step of operation has been saved, the efficiency of processing has been improved, through transfer line 3, guide rail 8, remove seat 4, the setting of motor casing 5 isotructure, when the user rotates transfer line 3, it removes seat 4 and removes to the centre simultaneously to drive, can process two terminal surfaces simultaneously, the process time has been saved, the operation of repeated clamping has been saved.
Further, a first bearing is installed inside the base 1, the transmission rod 3 is sleeved inside the first bearing, a first threaded hole is formed inside the movable seat 4, the transmission rod 3 is sleeved inside the first threaded hole, a first through hole and a second through hole are respectively formed in two sides of the box body 2, the transmission rod 3 and the guide rail 8 respectively penetrate through the first through hole and the second through hole, a second bearing is installed on one side of the box body 2, the screw 10 is sleeved inside the second bearing, a rectangular through hole is formed in the top of the box body 2, the movable block 11 is slidably connected with the rectangular through hole, a third bearing is installed inside the guide frame 9, the screw 10 is sleeved inside the third bearing, a second threaded hole is formed inside the movable block 11, the screw 10 is sleeved inside the second threaded hole, a spring 17 is welded on one side of the first beating block 16, and one end of the spring 17 is welded with the second beating block.
In this embodiment, when a user clamps a workpiece 12 on the upper surface of the box 2, the transmission rod 3 is rotated, the middle of the transmission rod 3 has spiral teeth matched with the worm wheel 15 to drive the worm wheel 15 to rotate, the first beating block 16 is driven to rotate, the spring 17 pushes the second beating block 18 to drive the turntable 14 to rotate, the screw rod 10 is driven to rotate, the screw rod 10 has two sections of symmetrical threads with opposite rotation directions, so the moving block 11 moves towards the middle together, the chuck 13 clamps the workpiece 12, when the workpiece 12 is clamped, the turntable 14 cannot rotate, but the worm wheel 15 can rotate again because the spring 17 is compressed, so the transmission rod can continue to rotate, meanwhile, the threads on the transmission rod 3 can drive the moving seat 4 to move, so that the motor shell 5 can be slightly driven to move after the workpiece 12 is clamped, the motor shell 5 drives the grinding wheel 6 to process, and the efficiency is improved, the cost is reduced.
Further, 3 both ends of transfer line possess two sections symmetries and revolve to opposite screw, and when rotating transfer line 3, remove 4 one ends of seat and slide in guide rail 8 department, the screw of the other end will drive and remove seat 4, moves to the centre simultaneously, removes seat 4 and drives motor casing 5 and remove, drives emery wheel 6 and moves to the centre simultaneously, accomplishes the processing of two terminal surfaces, has saved the step of the clamping of turning round, raises the efficiency.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. The grinding device for the end face of the shelf processing bracket comprises a base (1) and a box body (2), and is characterized in that the inner wall of the base (1) is connected with a guide rail (8) through a screw, the outer part of the guide rail (8) is connected with a movable seat (4) in a sliding manner, a motor shell (5) is welded on the movable seat (4), a motor (7) is installed inside the motor shell (5), and the output end of the motor (7) is connected with a grinding wheel (6) through a coupling;
the inside of base (1) is rotated and is provided with transfer line (3), the inside of removing seat (4) is established in transfer line (3) cover, one side meshing of transfer line (3) is connected with worm wheel (15), the inside at box (2) is installed in worm wheel (15), one side welding of worm wheel (15) has first piece (16) of beating, there is leading truck (9) inside of box (2) through the screw connection, the inside rotation of leading truck (9) is provided with screw rod (10), the outside cover of screw rod (10) is equipped with symmetrical arrangement's movable block (11), the welding has chuck (13) on movable block (11), the one end welding of screw rod (10) has carousel (14), the one side welding of carousel (14) has the second to beat piece (18).
2. The shelf processing bracket end face grinding device as claimed in claim 1, wherein a first bearing is installed inside the base (1), and the transmission rod (3) is sleeved inside the first bearing.
3. The shelf processing bracket end surface grinding device as claimed in claim 1, wherein a first threaded hole is formed in the movable seat (4), and the transmission rod (3) is sleeved in the first threaded hole.
4. The shelf processing bracket end surface grinding device according to claim 1, wherein a first through hole and a second through hole are respectively formed in both sides of the box body (2), the transmission rod (3) and the guide rail (8) respectively penetrate through the first through hole and the second through hole, a second bearing is installed on one side of the box body (2), the screw rod (10) is sleeved inside the second bearing, a rectangular through hole is formed in the top of the box body (2), and the moving block (11) is slidably connected with the rectangular through hole.
5. The shelf processing bracket end surface grinding device as claimed in claim 1, wherein a third bearing is installed inside the guide frame (9), the screw rod (10) is sleeved inside the third bearing, a second threaded hole is formed inside the moving block (11), and the screw rod (10) is sleeved inside the second threaded hole.
6. The shelf processing bracket end face grinding device as claimed in claim 1, characterized in that a spring (17) is welded on one side of the first knock-out block (16), and one end of the spring (17) is welded with the second knock-out block (18).
