CN212545965U

CN212545965U - A back umbrella for mothers

Info

Publication number: CN212545965U
Application number: CN202021033487.0U
Authority: CN
Inventors: 庄玉兰; 岳翎; 吴芳珍; 林骐
Original assignee: Changzhou Vocational Institute of Engineering
Current assignee: Changzhou Vocational Institute of Engineering
Priority date: 2020-06-08
Filing date: 2020-06-08
Publication date: 2021-02-19
Anticipated expiration: 2030-06-08

Abstract

The utility model discloses a back type sunny and rainy umbrella for Baoma, which comprises an umbrella body and a back frame, the umbrella body can be inserted into the back of the back frame; the umbrella body comprises an umbrella handle, an umbrella rib and a special-shaped umbrella surface. The umbrella surface is an asymmetric setting of the umbrella surface; the back frame includes a bottom plate, a shoulder strap and a side strap, the bottom plate is the main part of the back frame, the shape of the bottom plate is set in line with the arc shape of the back of the human body, and the front of the bottom plate is provided with an umbrella handle slot, and the umbrella handle is inserted There is a buckle on the groove for fixing the umbrella handle; side straps are respectively arranged on both sides of the bottom plate, and the two side straps are overlapped together by their respective side strap joints, and the connection can be tightened and adjusted; the top of the bottom plate is provided with two shoulders The bottom ends of the shoulder straps are lapped over the side straps and the laps can be tightened and adjusted. The utility model liberates both hands, the umbrella surface adopts asymmetric special-shaped umbrella surface, which can effectively prevent side sun and side rain; , making the umbrella more stable.

Description

Back-carried umbrella for precious mothers

Technical Field

The utility model relates to an umbrella, its concretely relates to back of body formula umbrella that precious mother used.

Background

The umbrella is the essential instrument at home, and baby's mother also often can go out with baby in the weather, and when the adult was holding baby, one hand was holding baby, and it is more painstaking to hold the umbrella in another hand. Secondly, when two people of current umbrella used simultaneously, the baby's outside easily can be drenched by the rain or the sun shines, and thirdly, current back of the body formula umbrella easily rocks, poor stability. Therefore, various umbrellas are designed to solve the problems, but the umbrellas have single functions and cannot well meet the normal requirements of mothers.

Disclosure of Invention

Aiming at the defects and deficiencies in the prior art, the utility model aims to provide a back-type sun-rain umbrella for a baby mother, which adopts a back type, liberates both hands, adopts an asymmetric special-shaped umbrella surface, increases 10cm in front of the umbrella surface, and effectively prevents side sunning and side rain; the back frame adopts a human body arc structure, so that the comfort of the back is improved; and a multiple fixing mode is adopted, so that the umbrella is more stable. Meanwhile, the invention has simple structure, easy production and high reliability and can be produced in large batch.

The technical scheme of the utility model as follows:

a back-carried umbrella for mothers comprises an umbrella body and a back frame, wherein the umbrella body can be inserted into the back of the back frame; the umbrella body comprises an umbrella handle, umbrella ribs and a special-shaped umbrella cover, wherein the special-shaped umbrella cover is arranged in an asymmetric mode; the back frame comprises a bottom plate, shoulder straps and side straps, the bottom plate is a main body part of the back frame, the shape of the bottom plate is in accordance with the back arc of a human body, an umbrella handle slot is arranged on the front side of the bottom plate, and a hasp is arranged on the umbrella handle slot and used for fixing an umbrella handle; two sides of the bottom plate are respectively provided with a side belt, the two side belts are lapped together through respective side belt joints, and the joint can be tightened and adjusted; the top of the bottom plate is provided with two shoulder belts, the bottom ends of the shoulder belts are lapped on the side belts, and the lapping positions can be tightened and adjusted.

Further, the special-shaped umbrella cover: the distance between the extending end of the connecting line between the farthest end of the umbrella surface and the center of the umbrella surface on the umbrella surface and the center of the umbrella surface is about 10cm longer than the distance between the center of the umbrella surface and the farthest end of the umbrella surface.

Furthermore, the bottom of the front surface of the bottom plate is also provided with an umbrella support baffle which is arranged below the umbrella handle slot.

Further, the shoulder straps and the side straps are connected in the form of adhesive buttons.

Furthermore, the bottom plate is made of ABS plastic; the main body part of the shoulder strap is made of cotton interlock cloth, and the bottom end of the shoulder strap is made of barbed cloth; the main body of the side belt is made of cotton interlock, and the side belt joint is made of barbed cloth.

The utility model discloses the beneficial effect who has as follows: the umbrella of the utility model adopts a back type, thereby liberating both hands; the umbrella cover is an asymmetric special-shaped umbrella cover, one side of the umbrella cover is enlarged by 10cm (the common umbrella adopts the mode of enlarging the umbrella area to prevent side sunning and side rain, but the weight of the umbrella is increased by increasing the umbrella area), and the side sunning and the side rain are effectively prevented; the back frame adopts a human body arc structure, so that the comfort of the back is improved; multiple fixing modes are adopted between the umbrella body and the back frame, so that the umbrella is more stable; to sum up, the utility model discloses simple structure, easily production, it is with low costs, can mass production.

Drawings

FIG. 1 is a side view of a shaped umbrella;

FIG. 2 is a top view of the special-shaped umbrella;

FIG. 3 is a schematic view of a harness;

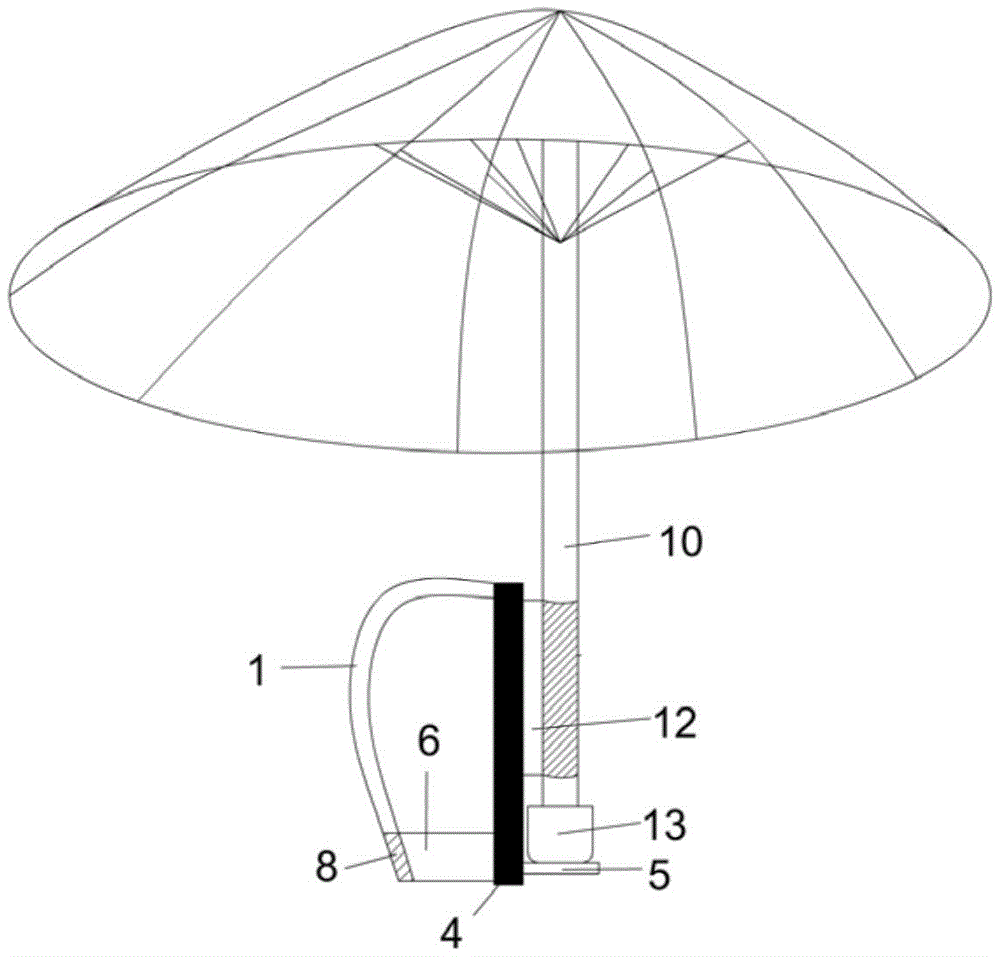

FIG. 4 is a side view of the umbrella of the present invention;

FIG. 5 is a lap joint view of the front body side strap and the shoulder strap;

FIG. 6 is a schematic view of a body front shoulder belt joint;

wherein, 1-shoulder strap, 2-umbrella handle slot, 3-hasp, 4-ABS plastic bottom plate, 5-umbrella support baffle, 6-side strap, 7-side strap lap joint, 8-shoulder strap and side strap lap joint, 9-side strap joint, 10-umbrella handle, 12-joint and 13-umbrella support.

Detailed Description

The present invention will be further described with reference to the accompanying drawings and examples.

Referring to fig. 1 to 6, the backpack-type sun/rain umbrella for mothers of this embodiment includes an umbrella body and a back frame, and the umbrella body can be inserted into the back of the back frame.

As for the umbrella body, as shown in figures 1 and 2, the umbrella body is composed of an umbrella handle, umbrella ribs and a special-shaped umbrella cover, the special-shaped umbrella cover is arranged asymmetrically, namely the umbrella cover, a part a in figure 1 is about 10cm longer than a part b, the umbrella cover is arranged asymmetrically, the area of the umbrella on one side of the umbrella can be increased, and the outer side of a baby can be prevented from being exposed to the sun and being drenched from the side.

The back frame comprises a bottom plate, shoulder straps 1 and side straps 6, the bottom plate is the main body part of the back frame and is made of ABS plastic materials (namely ABS plastic bottom plate 4), and the comfort of the back is improved by adopting a human body arc-shaped structure.

The middle of the front of the bottom plate is provided with an umbrella handle slot 2, the slot is provided with two hasps 3 for fixing an umbrella handle, the bottom of the front of the bottom plate is also provided with an umbrella support baffle 5, and the umbrella support baffle 5 is arranged below the umbrella handle slot 2, so that the stability of the umbrella on a back frame is ensured.

Be equipped with two baldrics 1 on the back of the body frame, the top setting of baldric 1 is at the top of bottom plate, and the material of baldric 1 is the cloth of taking elasticity, can be according to people's height, fat thin regulation when using. The bottom end of the shoulder strap 1 is provided with a barbed cloth so as to be overlapped with the side strap 6. The two sides of the bottom plate are respectively provided with a side belt 6, and the two side belts 6 are connected together through respective side belt joints 9 (the joint is a side belt lap joint 7, as shown in fig. 5 and 6). The bottom ends of the two shoulder straps 1 are connected to the side straps 6, the shoulder straps 1 are connected with the side straps 6 through the fastening straps (the connection part is the lap joint part 8 of the shoulder straps and the side straps, as shown in fig. 5), one end of the side straps 6 is provided with the cotton interlock cloth, and the other end is provided with the belt thorn cloth. This ensures stability of the back rest on the human body.

When in use, the special-shaped umbrella surface is opened, the umbrella handle is inserted into the umbrella handle slot 2, the umbrella support is placed on the umbrella support baffle 5, and the umbrella body is fixed by the two hasps 3. The length of the side belt 6 is adjusted and the side belt 6 is tied well according to the fatness and thinness of the human body; the shoulder straps 1 are worn and connected with the side straps 6. Therefore, the baby can be easily got out with both hands, and the baby is not worried about being exposed to the sun and rain.

The above description is only a preferred embodiment of the present invention, and does not limit the scope of the present invention. Any modification, equivalent replacement, and improvement made within the spirit and principle of the present invention should be included in the protection scope of the claims of the present invention.

Claims

1. a kind of back type sunny umbrella for Bao Ma, it is characterized in that, described sunny umbrella comprises umbrella body and back frame, umbrella body can be inserted into the back of back frame; Described umbrella body comprises umbrella handle, umbrella rib and Special-shaped umbrella surface, the special-shaped umbrella surface is an asymmetric setting of the umbrella surface; the back frame includes a bottom plate, shoulder straps and side straps, the bottom plate is the main part of the back frame, the shape of the bottom plate conforms to the arc of the back of the human body, and the front of the bottom plate is provided with an umbrella handle insert The slot of the umbrella handle is provided with a hasp for fixing the umbrella handle; the two sides of the bottom plate are respectively provided with side straps, and the two side straps are lapped together through their respective side strap joints, and the connection can be tightened and adjusted; There are two shoulder straps at the top, the bottom ends of the shoulder straps overlap the side straps and the overlap can be tightened and adjusted.

2. a kind of back type umbrella for Bao Ma as claimed in claim 1, is characterized in that, described special-shaped umbrella surface: the extension end of the connecting line between the farthest end of the umbrella surface and the center of the umbrella surface on the umbrella surface is the same as that of the umbrella surface. The distance between the center of the umbrella surface is about 10cm longer than the distance between the center of the umbrella surface and the farthest end of the umbrella surface.

3. A kind of back-type umbrella for Bao Ma as claimed in claim 1 or 2, characterized in that, the bottom of the front of the bottom plate is also provided with an umbrella support baffle, and the umbrella support baffle is arranged on the umbrella below the handle slot.

4. A back umbrella for mothers according to claim 1 or 2, characterized in that the shoulder straps and the side straps are connected in the form of adhesive buckles.

5. The back-type umbrella for a treasure mother as claimed in claim 1 or 2, wherein the bottom plate adopts ABS plastic material; the main part of the shoulder strap adopts cotton wool cloth, and the bottom end adopts a barbed cloth; the main part of the side belt adopts cotton wool cloth, and the side belt joint adopts barbed cloth.
