Abstract
本实用新型公开了一种牛肉除水设备，包括支撑架、上滑槽、下滑槽、前皮带机、后皮带机、紧固孔、紧固槽、安装螺栓、安装螺母、排料口、工作部分，所述支撑架呈长架状，且材质为不锈钢，所述支撑架左右两部各贯穿有一水平的上滑槽和下滑槽。本实用新型设计合理，操作简单，通过简单的机械和电器结构就能够实现对需要进行沥水的不同大小的牛肉进行除水处理，且除水过程中产生的废水能够快速的排出，减少对设备和牛肉的污染，而毛刷压辊和梳板的设计使得其在对牛肉进行除水的同时又能够对传送带进行一定的清洁，从而能够减少人为清洗的频率，继而能够保证在对牛肉安全加工的同时又能够加快加工速度，提高生产效率。
The utility model discloses a beef dewatering equipment, comprising a support frame, an upper chute, a lower chute, a front belt conveyor, a rear belt conveyor, a fastening hole, a fastening groove, mounting bolts, mounting nuts, a discharge port, a working Part of the support frame is in the shape of a long frame, and the material is stainless steel, and a horizontal upper chute and a lower chute run through each of the left and right parts of the support frame. The utility model has reasonable design and simple operation, and can realize water removal treatment for beef of different sizes that need to be drained through simple mechanical and electrical structures, and the waste water generated during the water removal process can be quickly discharged, reducing the need for equipment and equipment. Beef contamination, and the design of the brush roller and comb plate enables it to clean the conveyor belt while removing water from the beef, thereby reducing the frequency of manual cleaning and ensuring the safe processing of beef. At the same time, it can speed up the processing speed and improve the production efficiency.
Description
Technical Field
The utility model relates to a dewatering equipment especially relates to a beef dewatering equipment.
Background
In the current beef food processing technology field, beef cooking processing is mainly to continuously cook beef for a period of time through boiling water, after cooking is completed, the beef needs to be tiled to drain the surface moisture components, then cutting and other processing operations are carried out, and in the tiling process, some equipment needs to be used for dewatering the drained beef, equipment for dewatering the beef in the process is inconvenient to drain, and the problem that dewatering equipment is difficult to clean is easy to occur after drainage is completed, so that the defects of the traditional beef dewatering equipment are highlighted.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a beef dewatering equipment to solve above-mentioned technical problem.
In order to realize the purpose, the utility model adopts the following technical scheme:
a beef dewatering device comprises a support frame, an upper chute, a lower chute, a front belt conveyor, a rear belt conveyor, fastening holes, fastening grooves, mounting bolts, mounting nuts, a discharge opening and a working part, wherein the support frame is in a long frame shape and is made of stainless steel, the left part and the right part of the support frame are respectively penetrated with a horizontal upper chute and a horizontal lower chute, the support frame is provided with a vertical front belt conveyor and a vertical rear belt conveyor, the left end and the right end of the bottoms of the front belt conveyor and the rear belt conveyor are respectively penetrated with a horizontal fastening hole, the left end and the right end of the middle parts of the front belt conveyor and the rear belt conveyor are respectively penetrated with a vertical fastening groove, the fastening holes and the fastening grooves are internally inserted with a horizontal mounting bolt, the mounting bolts in the fastening holes are inserted with the lower chutes, the mounting bolts in the fastening grooves are inserted with the upper chutes, and the mounting nuts on the mounting bolts are connected with two levels by screw, preceding belt feeder and back belt feeder bottom right part run through and have a vertical bin outlet, install a work portion on preceding belt feeder and the back belt feeder.
On the basis of the technical scheme, the working part comprises a conveying belt, a main large belt wheel, a motor, a reduction gearbox, small belt wheels, mounting seats, bearings, a brush press roller, a brush strip, an auxiliary large belt wheel, mounting grooves, a comb plate, a cleaning pipe and a cleaning hole, wherein a vertical conveying belt is mounted in the middle of the front belt wheel and the rear belt wheel, a horizontal main large belt wheel is fixed on a rotating shaft at the right part of the front belt wheel and the rear belt wheel respectively, a vertical motor and a horizontal reduction gearbox are fixed on the right part of the front end of the front belt wheel and the right part of the rear end of the rear belt wheel respectively, rotating shafts of the two motors are fixed with an input shaft of the reduction gearbox, a horizontal small belt wheel is fixed on an output shaft of the two motors respectively, a horizontal mounting seat is fixed at each of the upper end and the lower end of the right part of the front belt wheel and the rear belt wheel, the cleaning device is characterized in that a vertical brush press roller is inserted into bearings on the front belt conveyor and the rear belt conveyor respectively, a plurality of vertical brush strips are fixed on the outer circumferential wall of the brush press roller respectively, a horizontal secondary large belt wheel is fixed on the upper portion of the brush press roller, a vertical mounting groove is communicated with the left portion of the mounting seat, a vertical comb plate is fastened in the mounting groove of the front belt conveyor and the rear belt conveyor respectively through nuts, a vertical cleaning pipe is fixed on the right portion of the mounting seat respectively, and a plurality of horizontal cleaning holes are penetrated through the back portion of the cleaning pipe.
On the basis of the technical scheme, the mounting bolts in the fastening grooves can be fastened at different positions of the upper sliding groove by rotating the mounting nuts, the mounting bolts in the fastening holes can be fastened at different positions of the lower sliding groove by rotating the mounting nuts, the two comb plates can be fastened at different positions of the mounting grooves by manually rotating the nuts, the main large belt wheel, the small belt wheel and the auxiliary large belt wheel on the front belt conveyor and the rear belt conveyor are connected through V-shaped belts, the two motors can drive the conveying belts to move left and right through the V-shaped belts after being electrified and can simultaneously drive the hairbrush compression rollers to horizontally rotate through the bearings, and the two cleaning pipes are externally connected with cleaning water with pressure.
Compared with the prior art, the utility model has the advantages of it is following: the utility model relates to a rationally, the operation is thus simple, can realize just through simple machinery and electrical apparatus structure that the beef of equidimension not of waterlogging caused by excessive rainfall carries out the dewatering to needs and handles, and the discharge that the waste water that the dewatering in-process produced can be quick, reduce the pollution to equipment and beef, and the design of brush compression roller and comb board makes it carry out certain cleanness to the conveyer belt again when carrying out the dewatering to beef, thereby can reduce artificial abluent frequency, can guarantee then to accelerate process speed again when processing beef safety, and the production efficiency is improved.
Drawings

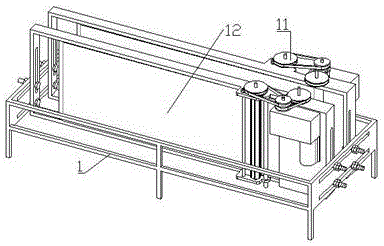

Fig. 1 is a schematic structural diagram of the present invention.
Fig. 2 is a schematic structural diagram of the motor and the reduction gearbox of the present invention.
Fig. 3 is a schematic view of the mounting bolt and the mounting nut of the present invention.
Fig. 4 is an installation schematic diagram of the brush compression roller of the present invention.
Fig. 5 is a schematic structural view of the front belt conveyor and the rear belt conveyor of the present invention forming an acute angle.
In the figure: 1. the support frame, 2, go up the spout, 3, lower spout, 4, preceding belt feeder, 5, back belt feeder, 6, fastening hole, 7, fastening groove, 8, construction bolt, 9, mounting nut, 10, bin outlet, 11, work portion, 12, conveyer belt, 13, main big band pulley, 14, motor, 15, reducing gear box, 16, little band pulley, 17, mount pad, 18, bearing, 19, brush compression roller, 20, brush strip, 21, vice big band pulley, 22, mounting groove, 23, comb plate, 24, wash pipe, 25, wash bowl.
Detailed Description
The invention is explained in further detail below with reference to the figures and the embodiments.
As shown in fig. 1-4, a beef dewatering device comprises a support frame 1, an upper chute 2, a lower chute 3, a front belt conveyor 4, a rear belt conveyor 5, fastening holes 6, fastening grooves 7, mounting bolts 8, mounting nuts 9, a discharge opening 10 and a working part 11, wherein the support frame 1 is in a long frame shape and is made of stainless steel, the left part and the right part of the support frame 1 are respectively penetrated with the horizontal upper chute 2 and the horizontal lower chute 3, the support frame 1 is provided with the vertical front belt conveyor 4 and the vertical rear belt conveyor 5, the left end and the right end of the bottom of the front belt conveyor 4 and the bottom of the rear belt conveyor 5 are respectively penetrated with a horizontal fastening hole 6, the left end and the right end of the middle part of the front belt conveyor 4 and the middle part of the rear belt conveyor 5 are respectively penetrated with a vertical fastening groove 7, a horizontal mounting bolt 8 is inserted in each fastening hole 6 and each fastening groove 7, the mounting bolt 8 in each fastening hole 6 is inserted, mounting bolts 8 in the fastening grooves 7 are inserted into the upper sliding grooves 2, two horizontal mounting nuts 9 are connected to the mounting bolts 8 in a threaded mode, a vertical discharge hole 10 penetrates through the right portion of the bottom ends of the front belt conveyor 4 and the rear belt conveyor 5, and a working portion 11 is mounted on the front belt conveyor 4 and the rear belt conveyor 5.
The working part 11 comprises a conveying belt 12, a main large belt wheel 13, a motor 14, a reduction gearbox 15, a small belt wheel 16, a mounting seat 17, a bearing 18, a brush press roller 19, a brush strip 20, an auxiliary large belt wheel 21, a mounting groove 22, a comb plate 23, a cleaning pipe 24 and a cleaning hole 25, wherein a vertical conveying belt 12 is mounted at the middle parts of the front belt machine 4 and the rear belt machine 5, a horizontal main large belt wheel 13 is fixed on a rotating shaft at the right parts of the front belt machine 4 and the rear belt machine 5 respectively, a vertical motor 14 and a horizontal reduction gearbox 15 are fixed at the right parts of the front end and the rear end of the front belt machine 4 respectively, the rotating shafts of the two motors 14 are fixed with an input shaft of the reduction gearbox 15, a horizontal small belt wheel 16 is fixed on output shafts of the two motors 14 respectively, and a horizontal mounting seat 17 is fixed at the upper end and the lower end of the right parts of the front belt machine 4 and the rear, a vertical bearing 18 is inserted in the middle of each mounting seat 17, a vertical brush press roller 19 is inserted in each bearing 18 on the front belt conveyor 4 and the rear belt conveyor 5, a plurality of vertical brush strips 20 are fixed on the outer circumferential walls of the two brush press rollers 19 respectively, a horizontal large auxiliary belt wheel 21 is fixed on the upper portions of the two brush press rollers 19, a vertical mounting groove 22 is penetrated through the left portion of each mounting seat 17, a vertical comb plate 23 is fastened in each mounting groove 22 on the front belt conveyor 4 and the rear belt conveyor 5 through nuts, a vertical cleaning pipe 24 is fixed on the right portion of each mounting seat 17, and a plurality of horizontal cleaning holes 25 penetrate through the back portions of the two cleaning pipes 24.
As shown in fig. 5, the mounting bolts 8 in the fastening grooves 7 can be fastened to different positions of the upper chute 2 by rotating the mounting nuts 9, the mounting bolts 8 in the fastening holes 6 can be fastened to different positions of the lower chute 3 by rotating the mounting nuts 9, the two comb plates 23 can be fastened to different positions of the mounting grooves 22 by manually rotating the nuts, the main large belt pulley 13, the small belt pulley 16 and the auxiliary large belt pulley 21 on the front belt conveyor 4 and the rear belt conveyor 5 are connected by V-belts, the two motors 14 can drive the conveyor belt 12 to move left and right by the V-belts after being energized, and can simultaneously drive the brush press roller 19 to horizontally rotate through the bearings 18, and cleaning water with pressure is externally connected to the two cleaning pipes 24.
The utility model discloses a theory of operation: the mounting bolts 8 in the fastening grooves 7 can be fastened at different positions of the upper chute 2 by rotating the mounting nuts 9, the mounting bolts 8 in the fastening holes 6 can be fastened at different positions of the lower chute 3 by rotating the mounting nuts 9, so that the included angle between the front belt conveyor 4 and the rear belt conveyor 5 can be adjusted, and then the beef with different sizes can be driven and transported, the two comb plates 23 can be fastened at different positions of the mounting grooves 22 by manually rotating the nuts, so that the horizontal distance between the two comb plates 23 and the brush strip 20 can be adjusted, and the brush strip 20 can be effectively and reasonably cleaned, the main large belt wheel 13, the small belt wheel 16 and the auxiliary large belt wheel 21 on the front belt conveyor 4 and the rear belt conveyor 5 are connected through V-shaped belts, and the two motors 14 can drive the conveyor belt 12 to move left and right through the V-shaped belts after being electrified, and can drive brush compression roller 19 simultaneously and carry out the horizontal rotation through each bearing 18 to the realization can carry out certain cleanness to conveyer belt 12 when driving the transportation to beef right, and the moisture in the in-process beef that drives the transportation at beef can break away from beef under the effect of gravity, and can accelerate the discharge of moisture under the extrusion of two conveyer belts 12, can discharge through two rows of material mouths 10 when beef follows conveyer belt 12 and removes the right-hand member of two conveyer belts 12, two the scavenge pipe 24 external connection has the clean water of pressure, then clean water can be discharged through purge hole 25, supplementary cleaning to the conveyer belt then.
The foregoing is a preferred embodiment of the present invention, and for those skilled in the art to understand the teaching of the present invention, the changes, modifications, replacements and variations to the embodiments will still fall within the protection scope of the present invention without departing from the principle and spirit of the present invention.
Claims (3)
1. The utility model provides a beef dewatering equipment, includes support frame (1), last spout (2), lower spout (3), preceding belt feeder (4), back belt feeder (5), fastening hole (6), fastening groove (7), construction bolt (8), mounting nut (9), bin outlet (10), working portion (11), its characterized in that: the support frame (1) is in a long frame shape and made of stainless steel, a horizontal upper chute (2) and a horizontal lower chute (3) are respectively penetrated through the left part and the right part of the support frame (1), a vertical front belt conveyor (4) and a vertical rear belt conveyor (5) are installed on the support frame (1), a horizontal fastening hole (6) is respectively penetrated through the left end and the right end of the bottoms of the front belt conveyor (4) and the rear belt conveyor (5), a vertical fastening groove (7) is respectively penetrated through the left end and the right end of the middle part of the front belt conveyor (4) and the rear belt conveyor (5), a horizontal mounting bolt (8) is inserted into each fastening hole (6) and each fastening groove (7), a mounting bolt (8) in each fastening hole (6) is inserted into each lower chute (3), a mounting bolt (8) in each fastening groove (7) is inserted into each upper chute (2), and each mounting bolt (8) is in threaded connection with two horizontal mounting nuts (9), preceding belt feeder (4) and back belt feeder (5) bottom right part run through and have a vertical bin outlet (10), install a work portion (11) on preceding belt feeder (4) and back belt feeder (5).
2. The beef dewatering apparatus of claim 1, further comprising: the working part (11) comprises a conveying belt (12), a main large belt wheel (13), a motor (14), a reduction gearbox (15), a small belt wheel (16), a mounting seat (17), a bearing (18), a brush press roller (19), a brush strip (20), an auxiliary large belt wheel (21), a mounting groove (22), a comb plate (23), a cleaning pipe (24) and a cleaning hole (25), wherein a vertical conveying belt (12) is mounted in the middle of the front belt conveyor (4) and the rear belt conveyor (5), a horizontal main large belt wheel (13) is respectively fixed on the rotating shafts of the right parts of the front belt conveyor (4) and the rear belt conveyor (5), a vertical motor (14) and a horizontal reduction gearbox (15) are respectively fixed on the right parts of the front end of the front belt conveyor (4) and the rear end of the rear belt conveyor (5), and the rotating shafts of the motor (14) are fixed with an input shaft of the reduction gearbox (15), a horizontal small belt wheel (16) is respectively fixed on output shafts of the two motors (14), horizontal mounting seats (17) are respectively fixed at the upper and lower ends of the right parts of the front belt conveyor (4) and the rear belt conveyor (5), a vertical bearing (18) is inserted in the middle of each mounting seat (17), a vertical brush press roller (19) is respectively inserted in the bearings (18) on the front belt conveyor (4) and the rear belt conveyor (5), a plurality of vertical brush strips (20) are respectively fixed on the outer circumferential wall of each brush press roller (19), a horizontal auxiliary large belt wheel (21) is fixed on the upper part of each brush press roller (19), a vertical belt conveyor mounting groove (22) is communicated at the left part of each mounting seat (17), and a vertical comb plate (23) is respectively fastened in the mounting grooves (22) on the front belt conveyor (4) and the rear belt conveyor (5) through nuts, a vertical cleaning pipe (24) is fixed at the right part of each mounting seat (17), and a plurality of horizontal cleaning holes (25) penetrate through the back parts of the two cleaning pipes (24).
3. The beef dewatering apparatus of claim 2, further comprising: the mounting bolts (8) in the fastening grooves (7) can be fastened to different positions of the upper chute (2) by rotating the mounting nuts (9), the mounting bolts (8) in the fastening holes (6) can be fastened to different positions of the lower chute (3) by rotating the mounting nuts (9), the two comb plates (23) can be fastened to different positions of the mounting grooves (22) by manually rotating the nuts, the main large belt wheel (13), the small belt wheel (16) and the auxiliary large belt wheel (21) on the front belt conveyor (4) and the rear belt conveyor (5) are connected through V-shaped belts, the two motors (14) can drive the conveying belt (12) to move left and right through the V-shaped belts after being electrified, and can drive the brush press roll (19) to horizontally rotate through each bearing (18) at the same time, and cleaning water with pressure is externally connected with the two cleaning pipes (24).
