Abstract
本实用新型公开了花纸绿色印刷色层厚度控制系统，包括支撑柱，支撑柱的内侧表面之间装配有传送带，传送带通过电机进行驱动，支撑柱的顶端装配有支撑架，支撑架的上表面装配有可以以控制色层厚度的刷色装置，使用时，将花纸固定在传送带上，启动电动伸缩杆使其带动支撑板、出墨盒和收墨盒向下移动，当出墨的下表面与花纸接触时停止电动伸缩杆伸缩，此时启动抽墨泵将存墨罐中的墨抽取到出墨盒中流出对花纸进行印刷，此时启动电机，电机带动传送带运动从而带动花纸向左侧移动，出墨盒的底部对花纸上表面的墨进行刮平印刷，涂刷时，启动第二抽墨泵，涂刷多余的墨会被抽取至收墨盒中，在经出料管被抽取去第二存墨盒中，结束后，将花纸取下即可。
The utility model discloses a green printing color layer thickness control system for decals, which comprises a support column, a conveyor belt is arranged between the inner surfaces of the support column, the conveyor belt is driven by a motor, the top of the support column is equipped with a support frame, and the upper surface of the support frame is provided with a support frame. It is equipped with a color brushing device that can control the thickness of the color layer. When in use, fix the decal paper on the conveyor belt, and start the electric telescopic rod to drive the support plate, the ink box and the ink box to move down. When the lower surface of the ink outlet is in line with the When the flower paper is in contact, the electric telescopic rod is stopped from stretching. At this time, the ink pump is started to extract the ink from the ink storage tank into the ink cartridge and flow out to print the flower paper. At this time, the motor is started, and the motor drives the conveyor belt to move the flower paper to the left. The ink on the upper surface of the decal paper is scraped and printed at the bottom of the ink box. When painting, the second ink pump is started, and the excess ink will be pumped into the ink box, and then pumped through the discharge pipe. Go to the second storage cartridge, and after the end, remove the flower paper.
Description
Technical Field
The utility model relates to a chromatograph thickness accuse technical field specifically is green printing chromatograph thickness control system of stained paper.
Background
In the spot color matching process, in order to check whether the color of a certain pigment can achieve the expected effect, a color sample strip with certain ink layer thickness needs to be manufactured so as to observe the effect of the ink layer color. At present, the ink color sample is scraped manually by a doctor blade commonly used in printing production, the subjective factor influence is large, the control is difficult, the precision of manual operation is poor, time and labor are wasted, and the printing process is inconvenient.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a green printing colour layer thickness control system of stained paper to solve the problem of proposing among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: green printing colour layer thickness control system of stained paper, including the support column, be equipped with the conveyer belt between the inboard surface of support column, the conveyer belt drives through the motor, the top of support column is equipped with the support frame, the upper surface of support frame is equipped with the brush look device that can control colour layer thickness.
Preferably, the brushing device includes electric telescopic handle, electric telescopic handle's lower surface is equipped with the backup pad, the lower surface of backup pad is equipped with out the ink horn, the upper surface that goes out the ink horn runs through the backup pad and the support frame is equipped with the inlet pipe, the feed end of inlet pipe is equipped with the ink pump, the ink pump assembly is at the upper surface of backup pad, and the feed end of ink pump is connected with and deposits the china ink jar.
Preferably, the outer surface of the electric telescopic rod is carved with length marks.
Preferably, the lower surface of the supporting plate is provided with an ink collecting box, the ink collecting box is arranged on the left side of the ink outlet box, the upper surface of the ink collecting box penetrates through the supporting plate and the supporting frame to be provided with a discharging pipe, the discharging end of the discharging pipe is provided with a second ink pumping pump, and the ink outlet end of the second ink pumping pump is connected with a second ink storage tank.
Preferably, the ink outlet box and the ink receiving box are both fixed on the lower surface of the supporting plate through bolts.
Preferably, go out the ink horn and all seted up the draw-in groove with the front and back surface of receiving the ink horn, all the joint is equipped with the baffle in the draw-in groove.
Compared with the prior art, the beneficial effects of the utility model are that: the utility model discloses be provided with second and take out china ink pump, inlet pipe and backup pad, receive the ink horn through the lower surface assembly of backup pad, can retrieve remaining china ink when printing, prevent unrestrained extravagant, the utility model discloses be provided with out the ink horn, all set up the draw-in groove through the front and back surface receiving the ink horn and going out the ink horn, and the assembly baffle in the draw-in groove, can shelter from the flow direction of remaining china ink, prevent that remaining china ink from unrestrained to cause the waste.
Drawings

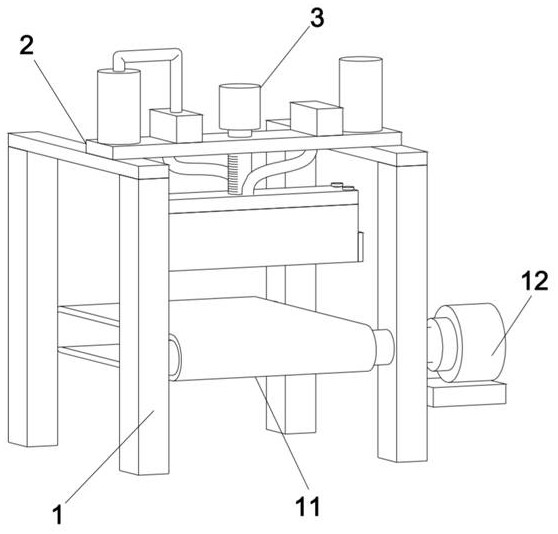

Fig. 1 is a schematic structural diagram of the present invention.
Fig. 2 is a schematic diagram of the explosion structure of the present invention.
In the figure: 1. the support column, 11, conveyer belt, 12, the motor, 2, the support frame, 3, the device of brushing look, 31, electric telescopic handle, 32, the backup pad, 33, go out the ink horn, 34, the inlet pipe, 35, the ink pump, 36, deposit the ink jar, 37, receive the ink horn, 38, the discharging pipe, 39, the second is taken out the ink pump, 391, the second is deposited the ink jar, 4, the bolt, 5, the draw-in groove, 6, the baffle.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-2, the present invention provides a technical solution: a thickness control system for a green printing color layer of stained paper comprises a support column 1, a conveyor belt 11 is assembled between the inner side surfaces of the support column 1, the conveyor belt 11 is driven by a motor 12, a support frame 2 is assembled at the top end of the support column 1, a color brushing device 3 capable of controlling the color layer thickness is assembled on the upper surface of the support frame 2, when the system is used, the stained paper is fixed on the upper surface of the conveyor belt 11 by means of an external adhesive transfer tape, an electric telescopic rod 31 is started to drive a support plate 32, an ink outlet box 33 and an ink receiving box 37 to move downwards, when the lower surface of the ink outlet box 33 is contacted with the stained paper, the electric telescopic rod 31 is stopped to stretch, an ink pump 35 is started to pump ink in an ink storage tank 36 into the ink outlet box 33, the ink is coated on the stained paper through an ink outlet of the ink outlet box 33, the motor 12 is started at the moment, the motor 12 drives the conveyor belt 11 to move, when painting, the second ink pump 39 is started, the extra ink for painting is pumped into the ink receiving box 37, and is pumped into the second ink storage box 391 through the discharge pipe 38, and after printing is finished, the stained paper is taken down from the left side of the conveyor belt 11.
Specifically, the brushing device 3 includes an electric telescopic rod 31, a supporting plate 32 is assembled on the lower surface of the electric telescopic rod 31, an ink box 33 is assembled on the lower surface of the supporting plate 32, a feeding pipe 34 (the feeding pipe 34 is a pipe made of a telescopic material) is assembled on the upper surface of the ink box 33 by penetrating through the supporting plate 32 and the supporting frame 2, an ink suction pump 35 is assembled at the feeding end of the feeding pipe 34, the ink suction pump 35 is assembled on the upper surface of the supporting plate 32, the feeding end of the ink suction pump 35 is connected with an ink storage tank 36, and ink in the ink storage tank 36 is injected into the ink box 33 by the ink suction pump 35 and the.
Specifically, the outer surface of the electric telescopic rod 31 is engraved with a length mark, and the distance between the bottom of the ink box 33 and the stained paper is adjusted according to the length mark, so that the thickness of the printed color layer is controlled.
Specifically, the lower surface of the supporting plate 32 is equipped with the ink collecting box 37, the ink collecting box 37 is equipped on the left side of the ink outlet box 33, the upper surface of the ink collecting box 37 penetrates through the supporting plate 32 and the supporting frame 2 and is equipped with the discharging pipe 38 (the discharging pipe 38 is a pipe made of a telescopic material), the discharging end of the discharging pipe 38 is equipped with the second ink suction pump 39, the ink discharging end of the second ink suction pump 39 is connected with the second ink storage tank 391, and the second ink suction pump 39 is used for sucking redundant ink into the second ink storage tank 391.
Specifically, the ink outlet box 33 and the ink receiving box 37 are fixed on the lower surface of the supporting plate 32 through the bolts 4, so that the ink outlet box 33 and the ink receiving box 37 can be conveniently and periodically detached for cleaning, and the printing quality is ensured.
Particularly, go out ink horn 33 and all seted up draw-in groove 5 with the front and back surface of receiving ink horn 37, all the joint is equipped with baffle 6 in draw-in groove 5, can shelter from unnecessary ink flow direction through baffle 6, prevents that surplus ink from spilling.
The working principle is as follows: when the ink box is used, stained paper is fixed on the upper surface of the conveyor belt 11 through the external adhesive tape, the electric telescopic rod 31 is started to drive the support plate 32, the ink outlet box 33 and the ink receiving box 37 to move downwards, when the lower surface of the ink outlet box 33 is in contact with the stained paper, the electric telescopic rod 31 is stopped to stretch, the ink pump 35 is started to pump ink in the ink storage tank 36 into the ink outlet box 33 at the moment, the stained paper is coated on the stained paper through an ink outlet of the ink outlet box 33, the motor 12 is started at the moment, the conveyor belt 11 is driven by the motor 12 to move so as to drive the stained paper to move towards the left side, the ink on the upper surface of the stained paper is scraped and printed at the bottom of the ink outlet box 33, when the ink is coated, the second ink pump 39 is started, the coated redundant ink can be pumped into the ink receiving box 37, the stained paper is pumped into the second ink storage box 391 through the discharge pipe 38.
