CN212497082U - Diversified grinding device of zinc alloy extruded article - Google Patents
Diversified grinding device of zinc alloy extruded article Download PDFInfo
- Publication number
- CN212497082U CN212497082U CN202020645144.3U CN202020645144U CN212497082U CN 212497082 U CN212497082 U CN 212497082U CN 202020645144 U CN202020645144 U CN 202020645144U CN 212497082 U CN212497082 U CN 212497082U
- Authority
- CN
- China
- Prior art keywords
- zinc alloy
- grinding device
- rack
- azimuth
- grinding
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Finish Polishing, Edge Sharpening, And Grinding By Specific Grinding Devices (AREA)
Abstract
本实用新型公开了一种锌合金挤压件的多方位打磨装置，具体涉及锌合金打磨技术领域，包括台架，所述台架上侧连接有转环，所述转环上滑动连接有滑块，且滑块上侧加工有轮齿，所述轮齿上侧设置有圆形齿轮，且圆形齿轮与轮齿啮合连接，所述圆形齿轮通过转杆转动连接在转环上，所述滑块内侧面镶嵌固定有电动机，所述电动机内侧的输出轴上套接有打磨砂轮，所述台架内底部设置有液压缸，所述液压缸上侧固定连接有夹紧盘，所述夹紧盘位于台架内部。本实用新型实现了对锌合金进行多方位打磨的目的，且提高了打磨的稳定性以及准确性，提高了良品率，无需频繁拆装，工作效率高。
The utility model discloses a multi-directional grinding device for a zinc alloy extrusion piece, in particular to the technical field of zinc alloy grinding, comprising a table frame, a swivel ring is connected to the upper side of the table frame, and a sliding ring is slidably connected to the swivel ring. The upper side of the slider is machined with gear teeth, the upper side of the gear teeth is provided with circular gears, and the circular gears are meshed and connected with the gear teeth, and the circular gears are rotated and connected to the swivel through the rotating rod, so A motor is inlaid and fixed on the inner side of the slider, a grinding wheel is sleeved on the output shaft on the inner side of the motor, a hydraulic cylinder is arranged at the inner bottom of the stand, and a clamping disc is fixedly connected to the upper side of the hydraulic cylinder. The clamping disc is located inside the gantry. The utility model achieves the purpose of multi-directional grinding of the zinc alloy, improves the stability and accuracy of grinding, improves the yield, does not require frequent disassembly and assembly, and has high work efficiency.
Description
Technical Field
The utility model relates to a zinc alloy extruded article technical field that polishes, more specifically says, the utility model relates to a diversified grinding device of zinc alloy extruded article.
Background
The zinc alloy is an alloy formed by adding other elements on the basis of zinc. The common alloy elements comprise low-temperature zinc alloy such as aluminum, copper, magnesium, cadmium, lead, titanium and the like. The zinc alloy has low melting point, good fluidity, easy fusion welding, brazing and plastic processing, corrosion resistance in the atmosphere and convenient recovery and remelting of residual wastes; however, the creep strength is low, and dimensional change due to natural aging is likely to occur. Preparing by a melting method, and die-casting or pressure processing into a material.
Among the prior art, current zinc alloy extruded piece is when polishing, generally fix the zinc alloy on the platen, and carry polisher department with the zinc alloy extruded piece through conveyor on the platen, and polish the zinc alloy extruded piece through the polisher, lead to polishing the one side of zinc alloy extruded piece only, the scope of polishing is lower, surely when carrying out the multiaspect and polishing, need frequent carry out the dismouting to the zinc alloy extruded piece, the operation is complicated, the error rate of polishing has been reduced, work efficiency is low.
SUMMERY OF THE UTILITY MODEL
In order to overcome the above defects of the prior art, the embodiment of the utility model provides a diversified grinding device of zinc alloy extruded article, the technical problem that the invention will solve is: the problem that the existing polishing device is inconvenient to polish the zinc alloy extrusion piece in multiple directions is solved.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a diversified grinding device of zinc alloy extruded article, includes the rack, the rack upside is connected with the change, sliding connection has the slider on the change, and slider upside processing has the teeth of a cogwheel, the teeth of a cogwheel upside is provided with circular gear, and circular gear is connected with the meshing of the teeth of a cogwheel, circular gear passes through the bull stick and rotates to be connected on the change, the slider medial surface is inlayed and is fixed with the motor, the emery wheel of polishing has been cup jointed on the inboard output shaft of motor, the bottom is provided with the pneumatic cylinder in the rack, pneumatic cylinder upside fixedly connected with presss from both sides tight dish, it is located inside the rack to.
The zinc alloy extrusion piece is fixed on the clamping disc on the upper side of the hydraulic cylinder and extends out of the upper side of the rack, and then the sliding block is driven to move inwards by the rotation of the circular gear, then the motor and the grinding wheel are driven to move inwards and contact with the zinc alloy extrusion piece, then the grinding wheel is driven to rotate by the running of the motor and the zinc alloy extrusion piece is ground, the zinc alloy extrusion piece is driven to move up and down by the operation of the hydraulic cylinder and moves in the annular chute by the slide bar, thereby driving the grinding wheel to rotate stably by the rotation of the rotating ring, realizing the aim of multi-directional grinding, and the purpose of stable polishing is realized by rotating and moving the polishing grinding wheel and stably moving the zinc alloy extrusion piece up and down, the zinc alloy extrusion piece does not need to be frequently disassembled and assembled, the operation is simple, the yield is high, and the working efficiency is improved.
In a preferred embodiment, a guide pipe is embedded and fixed in the middle of the rack, and the guide pipe is positioned right above the clamping disc, so that the guide pipe guides the movement of the zinc alloy extrusion part.
In a preferred embodiment, the annular side surface of the clamping disk is connected with more than two locking bolts through threads, so that the zinc alloy extrusion part can be clamped and fixed conveniently.
In a preferred embodiment, the side processing has annular spout on the rack, the inside two slide bars that are provided with of annular spout, two the slide bar bilateral symmetry is fixed at the swivel downside, removes in annular spout through the slide bar, has realized driving the swivel and has carried out steady rotation.
In a preferred embodiment, open grooves are formed in the left side and the right side of the swivel, and sliding blocks are connected to the open grooves in a sliding manner, so that the sliding blocks can move in the open grooves in a guiding manner.
In a preferred embodiment, the front side and the rear side of the opening groove are integrally connected with guide grooves, the front side and the rear side of the sliding block are integrally connected with convex strips, and the convex strips are slidably connected on the guide grooves, so that the moving stability of the sliding block is improved.
In a preferred embodiment, the slider is internally provided with a through hole, so that a wire can conveniently pass through the through hole on the slider and be communicated with the motor, and the purpose of conveniently arranging the wire on the motor is achieved.
In a preferred embodiment, a bottom plate is fixedly connected to the inner bottom of the platform frame, and the hydraulic cylinder is fixed to the middle of the bottom plate, so that the hydraulic cylinder can be stably placed and fixed.
The utility model discloses a technological effect and advantage:
1. the utility model is provided with the hydraulic cylinder, the clamping disc, the rotating ring, the sliding block, the circular gear, the motor and the grinding wheel, the grinding wheel is driven to move axially through the rotation of the rotating ring, the zinc alloy extrusion piece is driven to move up and down through the operation of the hydraulic cylinder, the purpose of grinding the zinc alloy in multiple directions is realized, the grinding stability and accuracy are improved, the yield is improved, frequent disassembly and assembly are not needed, and the working efficiency is high;
2. the utility model discloses a be equipped with open slot, the teeth of a cogwheel, slide bar and annular spout, be favorable to carrying out steady removal and swivel to the slider and carry out steady rotation, be convenient for polish the zinc alloy extruded article of unidimensional not, application scope, the stability in use is high.
Drawings

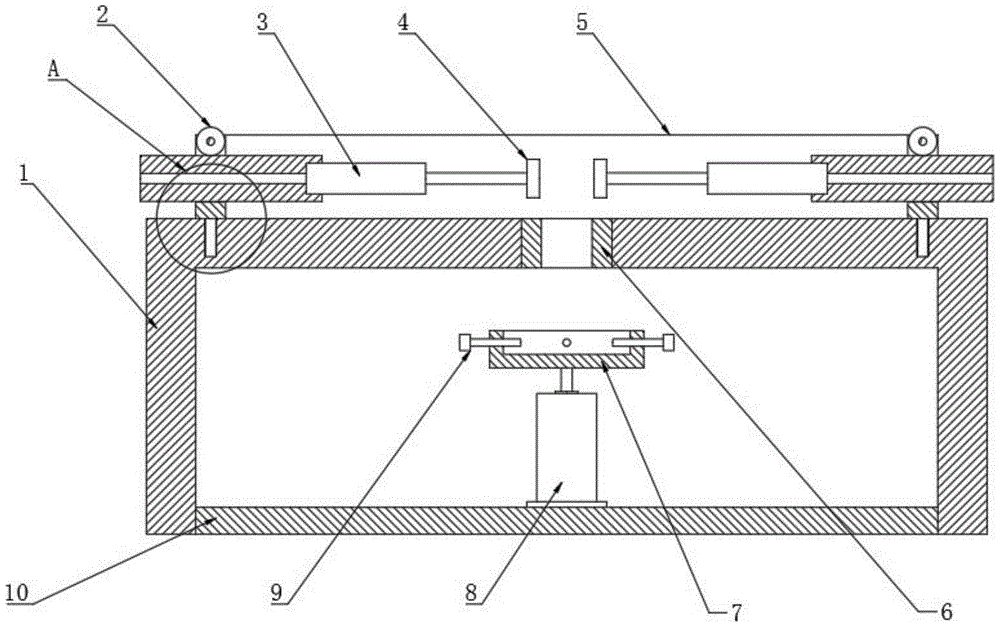

Fig. 1 is a schematic view of the overall structure of the present invention.
Fig. 2 is a left side view of the rotary ring and the circular gear of the present invention.
Fig. 3 is a schematic top view of the middle rotating ring and the circular gear of the present invention.
Fig. 4 is a schematic view of the overall structure of the middle slider of the present invention.
Fig. 5 is a partially enlarged schematic view of a portion a in fig. 1 according to the present invention.
The reference signs are: 1 rack, 2 round gears, 3 motors, 4 grinding wheels, 5 rotating rings, 6 guide pipes, 7 clamping discs, 8 hydraulic cylinders, 9 locking bolts, 10 bottom plates, 11 sliding blocks, 12 gear teeth, 13 convex strips, 14 through holes and 15 sliding rods.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
The utility model provides a diversified grinding device of zinc alloy extruded article, including rack 1, 1 upside of rack is connected with change 5, sliding connection has slider 11 on change 5, and 11 upside processing of slider have the teeth of a cogwheel 12, the 12 upsides of the teeth of a cogwheel are provided with circular gear 2, and circular gear 2 is connected with the meshing of the teeth of a cogwheel 12, circular gear 2 rotates through the bull stick and connects on change 5, 11 medial surfaces of slider are inlayed and are fixed with motor 3, the emery wheel 4 of polishing has been cup jointed on the output shaft of motor 3 inboard, the bottom is provided with pneumatic cylinder 8 in the rack 1, 8 upside fixedly connected with of pneumatic cylinder press from both sides tight dish 7, press from both sides tight dish 7 and.
The side processing has annular spout on the rack 1, and annular spout is inside to be provided with two slide bars 15, and two slide bars 15 bilateral symmetry fix at the 5 downside of swivel.
Open slots are processed on the left side and the right side of the rotating ring 5, and a sliding block 11 is connected to the open slots in a sliding mode.
The front side and the rear side of the opening groove are uniformly connected with guide grooves, the front side and the rear side of the sliding block 11 are uniformly connected with convex strips 13, and the convex strips 13 are connected on the guide grooves in a sliding mode.
The bottom of the rack 1 is fixedly connected with a bottom plate 10, and a hydraulic cylinder 8 is fixed in the middle of the bottom plate 10
As shown in fig. 1 to 5, the embodiment specifically is: the zinc alloy extrusion part is placed on the clamping disc 7 by a user, the upper part of the zinc alloy extrusion part penetrates through the rack 1 and extends out of the upper side of the rack 1, then the user operates the motor 3, the motor 3 drives the grinding wheel 4 to rotate, then the user rotates the circular gear 2, the circular gear 2 rotates to drive the sliding block 11 to move inwards under the action of the gear teeth 12, so that the motor 3 and the grinding wheel 4 are driven to move inwards, the grinding wheel 4 is contacted with the zinc alloy extrusion part and is ground, then the sliding rod 15 moves stably in the annular sliding groove, the rotating ring 5 is driven to rotate stably, the sliding block 11, the motor 3 and the grinding wheel 4 are driven to rotate axially, the peripheral surface of the zinc alloy extrusion part is ground, then the hydraulic cylinder 8 is operated, so that the zinc alloy extrusion part is driven to move up and down, thereby enlarged the scope of polishing to the zinc alloy extruded article, realized carrying out the purpose of diversified polishing to the zinc alloy extruded article, and through the steady rotation of change 5, then realized carrying out the purpose of steadily polishing to the zinc alloy extruded article, improved the degree of accuracy of polishing, and need not to carry out frequent dismouting to the zinc alloy extruded article, easy operation, work efficiency is high, and the yields is high.
The middle part in the rack 1 is embedded and fixed with a guide pipe 6, and the guide pipe 6 is positioned right above the clamping disc 7.
The annular side of the clamping disk 7 is connected with more than two locking bolts 9 through threads.
As shown in fig. 1, the embodiment specifically includes: the user places zinc alloy extruded part afterbody in pressing from both sides tight dish 7 to pass the zinc alloy extruded part pipe 6, realized leading the removal of zinc alloy extruded part through pipe 6, then rotate locking bolt 9, locking bolt 9 rotates and inwards moves under the screw thread effect, realized pressing from both sides tight fixedly to the zinc alloy extruded part, improved the stability that the zinc alloy extruded part reciprocated
The slider 11 is internally processed with a through hole 14.
As shown in fig. 4, the embodiment specifically includes: the electric wires on the motor 3 pass through the through holes 14 on the sliding block 11 and are communicated with an external power supply, so that the electric wires are conveniently arranged.
The points to be finally explained are: first, in the description of the present application, it should be noted that, unless otherwise specified and limited, the terms "mounted," "connected," and "connected" should be understood broadly, and may be a mechanical connection or an electrical connection, or a communication between two elements, and may be a direct connection, and "upper," "lower," "left," and "right" are only used to indicate a relative positional relationship, and when the absolute position of the object to be described is changed, the relative positional relationship may be changed;
secondly, the method comprises the following steps: in the drawings of the disclosed embodiments of the present invention, only the structures related to the disclosed embodiments are referred to, and other structures can refer to the common design, and under the condition of no conflict, the same embodiment and different embodiments of the present invention can be combined with each other;
and finally: the above description is only for the preferred embodiment of the present invention and should not be taken as limiting the invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (8)
1. The utility model provides a diversified grinding device of zinc alloy extruded article, includes rack (1), its characterized in that: the improved grinding machine is characterized in that a rotary ring (5) is connected to the upper side of the rack (1), a sliding block (11) is connected to the rotary ring (5) in a sliding mode, gear teeth (12) are machined on the upper side of the sliding block (11), a circular gear (2) is arranged on the upper side of the gear teeth (12), the circular gear (2) is meshed with the gear teeth (12) and connected to the rotary ring (5) in a rotating mode through a rotary rod, a motor (3) is embedded and fixed to the inner side of the sliding block (11), a grinding wheel (4) is sleeved on an output shaft of the inner side of the motor (3), a hydraulic cylinder (8) is arranged at the bottom of the rack (1), a clamping disc (7) is fixedly connected to the upper side of the hydraulic cylinder (8), and the clamping disc (7).
2. The multi-azimuth grinding device for the zinc alloy extrusion part as claimed in claim 1, wherein: a guide pipe (6) is embedded and fixed in the middle of the inside of the rack (1), and the guide pipe (6) is positioned right above the clamping disc (7).
3. The multi-azimuth grinding device for the zinc alloy extrusion part as claimed in claim 1, wherein: the annular side surface of the clamping disc (7) is connected with more than two locking bolts (9) through threads.
4. The multi-azimuth grinding device for the zinc alloy extrusion part as claimed in claim 1, wherein: the side processing has annular spout on rack (1), annular spout inside is provided with two slide bars (15), two slide bar (15) bilateral symmetry fixes swivel (5) downside.
5. The multi-azimuth grinding device for the zinc alloy extrusion part as claimed in claim 1, wherein: open slots are machined in the left side and the right side of the rotating ring (5), and sliding blocks (11) are connected to the open slots in a sliding mode.
6. The multi-azimuth grinding device for the zinc alloy extrusion part as claimed in claim 5, wherein: open slot front side and rear side homogeneous body are connected with the guide slot, slider (11) front side and rear side homogeneous body are connected with sand grip (13), sand grip (13) sliding connection is on the guide slot.
7. The multi-azimuth grinding device for the zinc alloy extrusion part as claimed in claim 1, wherein: a through hole (14) is machined in the sliding block (11).
8. The multi-azimuth grinding device for the zinc alloy extrusion part as claimed in claim 1, wherein: the bottom fixedly connected with bottom plate (10) in rack (1), middle part on bottom plate (10) is fixed in pneumatic cylinder (8).
