Abstract
本实用新型公开了一种机械零部件用抛光打磨装置，涉及机械零部件加工领域，包括加工台，所述加工台的下端外表面设置有支腿与粉尘收集箱，所述支腿均位于粉尘收集箱的四周。本实用新型所述的一种机械零部件用抛光打磨装置，通过粉尘收集箱、挡围板与清理口的设置，粉尘收集箱、挡围板与清理口在使用时有益于对打磨产生的碎屑进行清理，能够防止碎屑进行飞溅，在使用时能够保障工作环境的整洁，通过磁性吸盘与旋转托板的设置，磁性吸盘在使用时可方便对机械零部件进行固定吸附，在使用时较为稳定，且方便拆装，旋转托板在使用时可便于对机械零部件进行旋转，在进行抛光打磨时更加方便快捷，使用的效果相对于传统方式更好。
The utility model discloses a polishing and grinding device for mechanical parts, which relates to the field of mechanical parts processing. around the collection box. The polishing and grinding device for mechanical parts according to the utility model, through the arrangement of the dust collection box, the baffle plate and the cleaning port, the dust collection box, the baffle plate and the cleaning port are beneficial to the dust collection box, the baffle plate and the cleaning port when they are in use. The cleaning of debris can prevent debris from splashing, and can ensure the cleanliness of the working environment during use. Through the setting of the magnetic chuck and the rotating pallet, the magnetic chuck can easily fix and adsorb the mechanical parts during use, which is relatively easy to use. It is stable and easy to disassemble and assemble. The rotating pallet can facilitate the rotation of mechanical parts when in use, which is more convenient and quicker when polishing and grinding, and the effect of use is better than the traditional method.
Description
Technical Field
The utility model relates to a machine parts processing field, concretely relates to machine parts is with polishing grinding device.
Background
The mechanical parts are basic elements forming the machine and are non-detachable single parts forming the machine and the machine, and the mechanical parts are subjects for researching and designing mechanical basic parts in various devices and are also general names of parts and components.
The polishing and grinding device for the mechanical parts is generally required to be polished and ground in the machining process of the mechanical parts, but the existing polishing and grinding device is inconvenient to use and fix and inconvenient to operate during grinding, a large amount of dust is generated during use of the existing polishing and grinding device, and the existing polishing and grinding device is difficult to clean.
SUMMERY OF THE UTILITY MODEL
The utility model discloses a main aim at provides a machine is polishing grinding device for spare part can effectively solve the problem in the background art.
In order to achieve the above purpose, the utility model adopts the following technical scheme: a polishing and grinding device for mechanical parts comprises a processing table, wherein the outer surface of the lower end of the processing table is provided with supporting legs and a dust collecting box, the supporting legs are all positioned around the dust collecting box, the outer surface of the upper end of the processing table is provided with a supporting rod, a baffle plate and a supporting rotating rod, the supporting rod is positioned on two sides of the baffle plate, the baffle plate is positioned around the supporting rotating rod, the outer surface of the upper end of the supporting rod is provided with a top plate, the outer surface of the lower end of the top plate is provided with a fixed block, the outer surfaces of two sides of the dust collecting box are provided with fixed lugs, the middle part of the processing table is provided with a cleaning opening, the outer surface of one side of the fixed block is provided with a hook, the outer surface of the lower end of the fixed block, the outer surface of the lower end of the connecting block is provided with a hand grinder, the outer surface of one end of the hand grinder is provided with a grinding wheel, the outer surface of one end of the supporting rotating rod is provided with a rotating supporting plate, and the outer surface of one end of the rotating supporting plate is provided with a magnetic chuck.
Preferably, a cross bolt is arranged between the processing table and the baffle plate, the outer surface of the upper end of the processing table is fixedly connected with the outer surface of the lower end of the baffle plate through the cross bolt, the processing table and the cleaning opening are formed through machining, and the cleaning opening penetrates through the processing table.
Preferably, the outer surfaces of two sides of the dust collecting box are connected with the outer surface of one side of the fixed hanging lugs in a welding mode, the number of the fixed hanging lugs is two, the outer surface of the upper end of the dust collecting box is detachably connected with the outer surface of the lower end of the processing table through the fixed hanging lugs, and the dust collecting box is located below the cleaning opening.
Preferably, a hexagon bolt is arranged between the processing table and the supporting rotating rod, the outer surface of the upper end of the processing table is detachably connected with the outer surface of the other end of the supporting rotating rod through the hexagon bolt, a sliding groove is formed between the supporting rotating rod and the rotating supporting plate, and the outer surface of one end of the supporting rotating rod is detachably connected with the outer surface of the other end of the rotating supporting plate through the sliding groove.
Preferably, a fixing groove is formed between the rotating supporting plate and the magnetic suckers, the outer surface of one end of the rotating supporting plate is detachably connected with the outer surface of one end of each magnetic sucker through the fixing groove, and the number of the magnetic suckers is five.
Preferably, the outer surface of one side of fixed block and the one end surface welded connection of couple, be provided with the buckle between fixed block and the elasticity rope, the lower extreme surface of fixed block passes through the buckle and can dismantle with the other end surface of elasticity rope and be connected.
Preferably, be provided with the rivet between elasticity rope and the connecting block, the upper end surface fixed connection of rivet and connecting block is passed through to the one end surface of elasticity rope, be provided with rice word screw between connecting block and the link, one side surface of connecting block can be dismantled through rice word screw and one side surface of link and be connected.
Compared with the prior art, the utility model discloses following beneficial effect has: this a machine is polishing grinding device for spare part, through the dust collecting box, keep off the setting of bounding wall and clearance mouth, the dust collecting box, keep off the bounding wall and be favorable to clearing up the piece that produces of polishing when using with the clearance mouth, can prevent that the piece from splashing, can ensure operational environment's clean and tidy when using, setting through magnetic chuck and rotatory layer board, magnetic chuck can conveniently fix the absorption to machine spare part when using, it is comparatively stable when using, and make things convenient for the dismouting, rotatory layer board can be convenient for rotate machine spare part when using, more convenient and fast when polishing and polishing, the effect of use is better for traditional mode.
Drawings

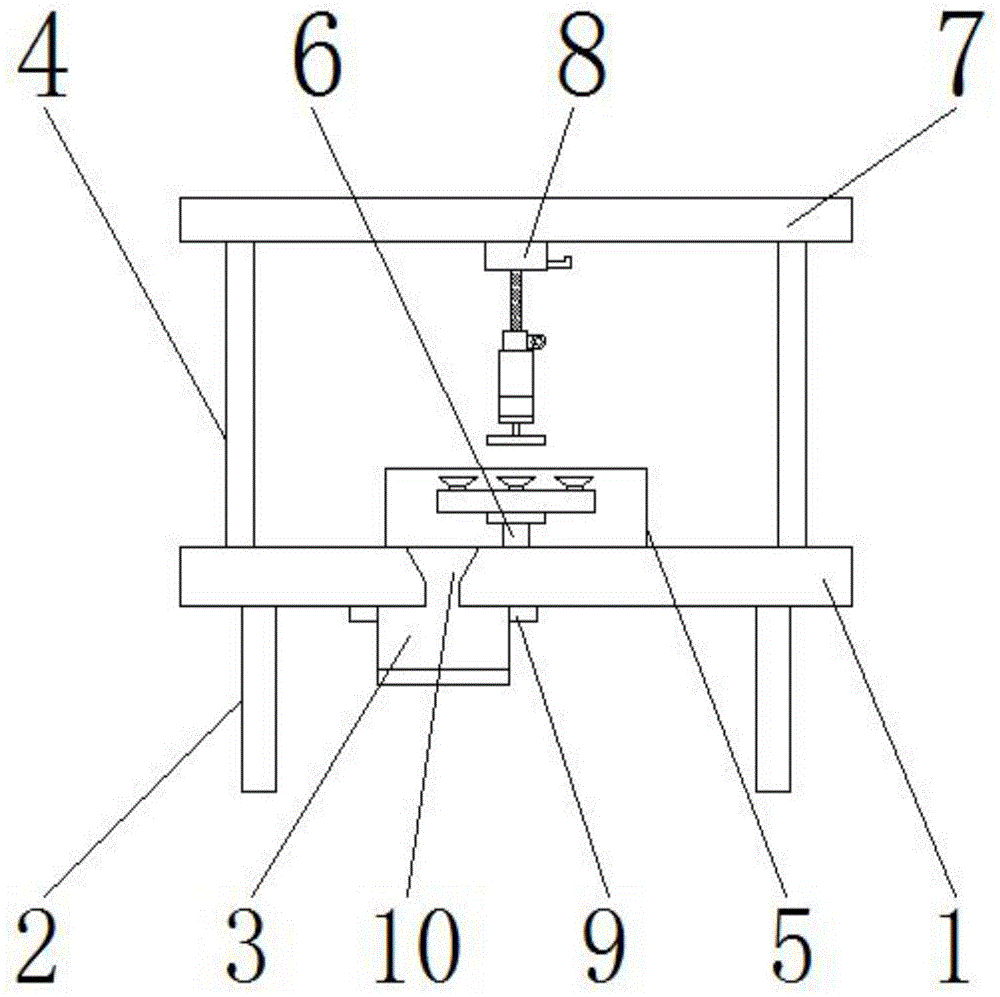

Fig. 1 is a schematic view of the overall structure of a polishing and grinding device for mechanical parts of the present invention;
fig. 2 is a structural diagram of a fixed block 8 of the polishing and grinding device for mechanical parts of the present invention;
fig. 3 is a structural diagram of a rotary supporting plate 17 of the polishing and grinding device for mechanical parts of the present invention;
fig. 4 is a top view of the polishing and grinding device processing table 1 for mechanical parts of the present invention.
In the figure: 1. a processing table; 2. a support leg; 3. a dust collection box; 4. a support bar; 5. a baffle plate; 6. Supporting the rotating rod; 7. a top plate; 8. a fixed block; 9. fixing the hangers; 10. cleaning the opening; 11. hooking; 12. An elastic cord; 13. connecting blocks; 14. hanging a ring; 15. a hand mill; 16. grinding the wheel; 17. rotating the supporting plate; 18. magnetic chuck.
Detailed Description
In order to make the technical means, the creation features, the achievement purposes and the functions of the present invention easy to understand, the present invention will be further explained below with reference to the following embodiments and the accompanying drawings, but the following embodiments are only the preferred embodiments of the present invention, and not all embodiments are included. Based on the embodiments in the implementation, other embodiments obtained by those skilled in the art without any creative work belong to the protection scope of the present invention.
Specific embodiments of the present invention will be described below with reference to the accompanying drawings.
As shown in fig. 1-4, a polishing and grinding device for mechanical parts comprises a processing table 1, wherein the outer surface of the lower end of the processing table 1 is provided with supporting legs 2 and a dust collecting box 3, the supporting legs 2 are all positioned around the dust collecting box 3, the outer surface of the upper end of the processing table 1 is provided with a supporting rod 4, a baffle plate 5 and a supporting rotating rod 6, the supporting rod 4 is positioned at two sides of the baffle plate 5, the baffle plate 5 is positioned around the supporting rotating rod 6, the outer surface of the upper end of the supporting rod 4 is provided with a top plate 7, the outer surface of the lower end of the top plate 7 is provided with a fixed block 8, the outer surfaces of two sides of the dust collecting box 3 are provided with fixed lugs 9, the middle part of the processing table 1 is provided with a cleaning opening 10, the outer surface of one side of the fixed block 8 is provided with a hook 11, the outer, the outer surface of the lower end of the connecting block 13 is provided with a hand grinder 15, the outer surface of one end of the hand grinder 15 is provided with a grinding wheel 16, the outer surface of one end of the supporting rotating rod 6 is provided with a rotating supporting plate 17, and the outer surface of one end of the rotating supporting plate 17 is provided with a magnetic chuck 18.
Further, processing platform 1 and fender are provided with the cross bolt between bounding wall 5, and the upper end surface of processing platform 1 passes through the cross bolt and is connected with the lower extreme external surface fixed connection that keeps off bounding wall 5, and processing platform 1 is seted up through machining with clearance mouth 10 and is formed, and clearance mouth 10 runs through processing platform 1, and clearance mouth 10 is favorable to clearing up the piece that produces polishing when using, keeps off bounding wall 5 and can prevent that the piece from splashing when using.
Further, the both sides surface of dust collecting box 3 and one side surface welded connection of fixed hangers 9, the quantity of fixed hangers 9 is two sets of, and the upper end surface of dust collecting box 3 can be dismantled through the lower extreme surface of fixed hangers 9 with processing platform 1 and be connected, and dust collecting box 3 is in the below of clearance mouth 10, and dust collecting box 3 is favorable to collecting the piece that produces the polishing when using, can ensure operational environment's clean and tidy when using.
Further, be provided with hexagon bolt between processing platform 1 and the support bull stick 6, the upper end surface of processing platform 1 can be dismantled through hexagon bolt and the other end surface that supports bull stick 6 and be connected, is provided with the spout between support bull stick 6 and the rotatory layer board 17, and the one end surface that supports bull stick 6 can be dismantled through the spout and the other end surface of rotatory layer board 17 and be connected, and rotatory layer board 17 mainly used rotates mechanical parts when using.
Further, be provided with the fixed slot between rotatory layer board 17 and the magnetic chuck 18, the one end surface of rotatory layer board 17 can be dismantled through the one end surface of fixed slot and magnetic chuck 18 and be connected, the quantity of magnetic chuck 18 is five groups, magnetic chuck 18 can conveniently fix the absorption to mechanical parts when using, it is comparatively stable when using, and make things convenient for the dismouting, rotatory layer board 17 can be convenient for rotate mechanical parts when using, more convenient and fast when polishing and polishing.
Further, one side surface of fixed block 8 and the one end surface welded connection of couple 11 are provided with the buckle between fixed block 8 and the elasticity rope 12, and the lower extreme surface of fixed block 8 can be dismantled through the buckle and the other end surface of elasticity rope 12 and be connected, and couple 11 is favorable to being connected with link 14 when using.
Further, be provided with the rivet between elasticity rope 12 and the connecting block 13, the upper end surface fixed connection of rivet and connecting block 13 is passed through to the one end surface of elasticity rope 12, is provided with the rice word screw between connecting block 13 and the link 14, and one side surface of connecting block 13 can be dismantled through the rice word screw and one side surface of link 14 and be connected, and couple 11 and link 14 are favorable to accomodating the placing in hand grinder 15 when using.
It should be noted that, the utility model relates to a machine parts uses polishing grinding device, when using, can fix the machine parts that need polishing and grinding through magnetic chuck 18 and adsorb, can pass handheld hand mill 15, start hand mill 15 and make it drive grinding wheel 16 to rotate, thus accomplish the polishing and grinding treatment to machine parts, when polishing and grinding, can rotate rotary supporting plate 17, make it drive machine parts to rotate, can conveniently carry out all-round polishing and grinding to machine parts, baffle plate 5 can prevent the piece that produces of grinding from splashing when grinding, can grind the piece that produces and clear up to dust collecting box 3 through clearance mouth 10, dust collecting box 3 is after using a period, can dismantle through fixed hangers 9, can do further processing to the piece, when finishing grinding, the hand grinder 15 can be stored and placed through the hook 11 and the hanging ring 14, and is practical.
The foregoing shows and describes the general principles, essential features, and advantages of the invention. It should be understood by those skilled in the art that the present invention is not limited by the above embodiments, and the description in the above embodiments and the description is only preferred examples of the present invention, and is not intended to limit the present invention, and that the present invention can have various changes and modifications without departing from the spirit and scope of the present invention, and these changes and modifications all fall into the scope of the claimed invention. The scope of the invention is defined by the appended claims and equivalents thereof.
Claims (7)
1. The utility model provides a machine is polishing grinding device for spare part, includes processing platform (1), its characterized in that: the outer surface of the lower end of the processing table (1) is provided with supporting legs (2) and a dust collecting box (3), the supporting legs (2) are located on the periphery of the dust collecting box (3), the outer surface of the upper end of the processing table (1) is provided with a supporting rod (4), a baffle plate (5) and a supporting rotating rod (6), the supporting rod (4) is located on two sides of the baffle plate (5), the baffle plate (5) is located on the periphery of the supporting rotating rod (6), the outer surface of the upper end of the supporting rod (4) is provided with a top plate (7), the outer surface of the lower end of the top plate (7) is provided with a fixed block (8), the outer surfaces of two sides of the dust collecting box (3) are provided with fixed lugs (9), the middle of the processing table (1) is provided with a cleaning opening (10), the outer surface of one side of the fixed block (8) is provided with a hook, the one end surface of elasticity rope (12) is provided with connecting block (13), one side surface of connecting block (13) is provided with link (14), the lower extreme surface of connecting block (13) is provided with hand mill (15), the one end surface of hand mill (15) is provided with grinding wheel (16), the one end surface of supporting bull stick (6) is provided with rotatory layer board (17), the one end surface of rotatory layer board (17) is provided with magnetic chuck (18).
2. The polishing and grinding device for machine parts according to claim 1, characterized in that: the processing platform is characterized in that a cross bolt is arranged between the processing platform (1) and the baffle plate (5), the outer surface of the upper end of the processing platform (1) is fixedly connected with the outer surface of the lower end of the baffle plate (5) through the cross bolt, the processing platform (1) and the cleaning port (10) are formed by machining, and the cleaning port (10) penetrates through the processing platform (1).
3. The polishing and grinding device for machine parts according to claim 1, characterized in that: the outer surfaces of two sides of the dust collecting box (3) are connected with the outer surface of one side of the fixed hanging lugs (9) in a welding mode, the number of the fixed hanging lugs (9) is two, the outer surface of the upper end of the dust collecting box (3) is detachably connected with the outer surface of the lower end of the processing table (1) through the fixed hanging lugs (9), and the dust collecting box (3) is located below the cleaning port (10).
4. The polishing and grinding device for machine parts according to claim 1, characterized in that: processing platform (1) and support and be provided with the hex bolts between bull stick (6), the upper end surface of processing platform (1) can be dismantled through the hex bolts and the other end surface that supports bull stick (6) and be connected, it is provided with the spout to support between bull stick (6) and rotatory layer board (17), the one end surface that supports bull stick (6) can be dismantled through the spout and be connected with the other end surface of rotatory layer board (17).
5. The polishing and grinding device for machine parts according to claim 1, characterized in that: a fixing groove is formed between the rotating supporting plate (17) and the magnetic suckers (18), the outer surface of one end of the rotating supporting plate (17) is detachably connected with the outer surface of one end of each magnetic sucker (18) through the fixing groove, and the number of the magnetic suckers (18) is five.
6. The polishing and grinding device for machine parts according to claim 1, characterized in that: the utility model discloses a fixing block, including fixed block (8), the one side surface of fixed block (8) and the one end surface welded connection of couple (11), be provided with the buckle between fixed block (8) and elastic rope (12), the lower extreme surface of fixed block (8) can be dismantled through the other end surface of buckle and elastic rope (12) and be connected.
7. The polishing and grinding device for machine parts according to claim 1, characterized in that: be provided with the rivet between elasticity rope (12) and connecting block (13), the one end surface of elasticity rope (12) passes through the upper end fixed surface of rivet and connecting block (13) to be connected, be provided with rice word screw between connecting block (13) and link (14), one side surface of connecting block (13) can be dismantled through rice word screw and one side surface of link (14) and be connected.
