Abstract

The utility model discloses a face wash block integrated with rinsing and smearing, which discloses a face rinsing block integrated with rinsing and smearing by filling soap through a box to avoid soap slipping, cleaning dead corners of personnel's faces through bristles. It is easy to grasp and use, prevent the soap from slipping off when using soap, and can realize the integration of rinsing and application. It is characterized in that one side of the soft cover is connected to one side of the box body, the other side and both sides of the soft cover are recessed inward to form a plurality of finger grooves, and the two sides of the box body are inward. The depression forms a plurality of finger grooves, and three brushes are placed at the three corners inside the box body one by one, the ends of the brushes extend out of the box body, and the ends of the brushes are provided with bristles, and the water pipes are placed in the box. At another corner inside the body, the water pipe is communicated with the inside of the soft jacket, a sealing ring is placed between the water pipe and the box body, and the hood is placed on one end of the water pipe and is located outside the box. There are many small holes in the head.

Description

Wash and paint integration face washing piece

Technical Field

The utility model relates to a wash and paint integration face washing piece relates to a face washing is with washing face piece, belongs to the articles for daily use field. In particular to a face washing block which is used for filling soap through a box body, avoiding the soap from sliding off, cleaning dead corners of the face of a person through brush hair, washing and smearing.

Background

In daily life, directly grab soap and paint when using soap to wash face or wash the health, and because soap is whole smooth, easily slippage from the hand when paining, use the moist face of clear water or health earlier and make the soap surface can fully dissolve conveniently paint in addition during the use for wash and paint the action and part, lead to the inconvenience of using.

Notice No. CN103892754A discloses a novel anti-skidding soap cover that has anti-skidding function, on the basis of current fertile soap box, utilize the extension size of slider control soap, supporting spring passes through the screw and is connected with upper and lower lid with the slider to the slider can slide in the groove between upper cover and lower lid, with the length that control soap in use stretched out, this soap cover can only be convenient for personnel and paint the action, can't assist when paining and spray water moist body surface.

Notice No. CN202981791U discloses an antiskid soap cover, including the soap body, the periphery in the middle of the soap cup is equipped with the antiskid cover, antiskid cover internal surface is equipped with triangle thorn, and triangle thorn pierces the soap body surface, and this antiskid soap cover can't spray water when paining the use moist, can't wash people face bridge of the nose position of death when using simultaneously.

Disclosure of Invention

In order to improve the condition, the utility model relates to a wash and paint integration face washing piece provides one kind and loads soap through the box body, avoids the soap landing, washs personnel face dead angle through the brush hair to wash the face washing piece of painting the integration. The soap holder is convenient to grasp and use, prevents the soap from slipping when the soap is used, and can realize the integration of washing and smearing.

The utility model relates to a wash and paint integration face washing piece is realized like this: the utility model relates to a wash and paint integration face washing piece comprises soft cover, magnetic path, water pipe, water fluffy head, lid, froth net, brush, finger recess, box body and staple, and a side of soft cover and a side of box body are laminated mutually and are connected, soft cover another side and both sides limit inwards cave in and form a plurality of finger recesses, the both sides limit of box body inwards cave in and form a plurality of finger recesses, three brushes one-to-one are arranged in the three corners of box body inside, the brush tip extends the box body, and the brush tip has been put with the brush hair, and the water pipe is arranged in another corner of box body inside, the water pipe is linked together with soft cover inside, the sealing washer is arranged between water pipe and the box body, water fluffy head is arranged on one end of water pipe, and is located outside the box body, water fluffy overhead a plurality of apertures that open, the lid overlaps on the another side of box body, the lid middle part is, the two fixing nails are in threaded connection with two side edges of the box body, the magnetic blocks are respectively arranged at the top and the bottom of the box body, the metal blocks corresponding to the magnetic blocks are arranged on the cover, the soft sleeve is made of rubber materials, and the guide pipes are arranged at positions corresponding to the hairbrush and the water shower head on the cover.

Has the beneficial effects.

The soap holder is convenient to hold and use, prevents soap from slipping when the soap is used, and can realize washing and smearing integration.

And secondly, the small brush can clean the dead angle position of the human body.

Thirdly, the carrying is convenient, and the use and the operation are convenient.

Drawings

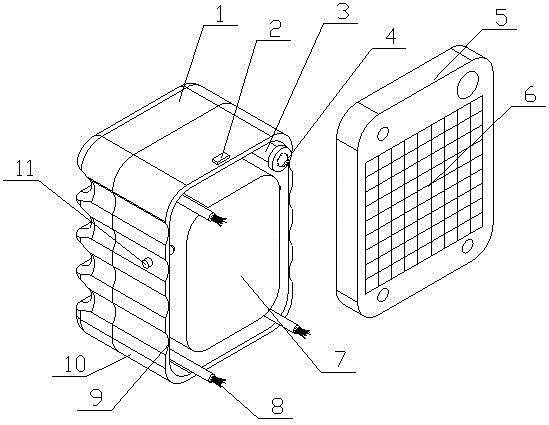

Fig. 1 is a three-dimensional structure diagram of an integrated face washing block for washing and smearing.

Fig. 2 the utility model relates to a wash and paint the structural sketch map of integration face washing piece.

Fig. 3 is a three-dimensional structure view of the back of the integrated face washing block for washing and smearing.

In the attached drawings

Wherein the method comprises the following steps: the soap box comprises a soft sleeve 1, a magnetic block 2, a water pipe 3, a water spray head 4, a cover 5, a foaming net 6, soap 7, a brush 8, a finger groove 9, a box body 10 and fixing nails 11.

The specific implementation mode is as follows:

the utility model relates to a wash and smear integration face washing piece is realized like this, by soft cover 1, magnetic path 2, water pipe 3, water fluffy head 4, lid 5, froth net 6, brush 8, finger recess 9, box body 10 and staple 11 constitution, a side of soft cover 1 and a side of box body 10 are laminated mutually and are connected, soft cover 1 another side and both sides limit inwards cave in and form a plurality of finger recesses 9, the both sides limit inwards cave in and form a plurality of finger recesses 9 of box body 10, three brush 8 one-to-one is arranged in the three corners of box body 10 inside, brush 8 tip extends box body 10, and brush 8 tip has been put the brush hair, and water pipe 3 is arranged in another corner of box body 10 inside, water pipe 3 and soft cover 1 are inside to be linked together, the sealing washer has been put between water pipe 3 and the box body 10, water fluffy head 4 is arranged in one end of water pipe 3, and is located outside box body 10, the water spray head 4 is provided with a plurality of small holes, the cover 5 is sleeved on the other side face of the box body 10, the middle part of the cover 5 is provided with a foaming net 6, two fixing nails 11 are screwed on two side edges of the box body 10, the top and the bottom of the box body 10 are respectively provided with a magnetic block 2, the cover 5 is provided with a metal block corresponding to the magnetic block 2, the soft sleeve 1 is made of rubber material, and the positions corresponding to the hairbrush 8 and the water spray head 4 are covered with guide pipes;

when the soap box is used, a person firstly takes the water filling shower head 4, fills water into the soft sleeve 1 through the water pipe 3, opens the cover 5, puts soap 7 into the box body 10, screws the fixing nails 11 inwards to fix the soap 7, and then closes the cover 5 to prevent the soap 7 from sliding off during cleaning;

when a user needs to wash the face, the user holds the soft sleeve 1, the foaming net 6 on the cover 5 is attached to and rubbed with the face of the user, the foaming net 6 increases friction with the soap 7 to generate foam, meanwhile, the user extrudes the soft sleeve 1, so that water in the soft sleeve 1 is sprayed outwards through the water pipe 3 and the water spray heads 4 to moisten the face of the user, the user can wash small parts such as dead corners of the bridge of the nose, the back roots of the ears and the like through the hairbrush 8, and the face cleaning effect is good; the magnetic block 2 is matched with a metal block on the cover 5 to perform auxiliary adsorption and fixation on the cover 5; the design that a plurality of small holes are formed in the water spray head 4 can limit water flow, and the influence on the comfort level of people due to overlarge water flow is avoided; the finger grooves 9 are designed to facilitate the holding of the fingers of a person and avoid falling off; the soft sleeve 1 is made of rubber materials, has certain elasticity, is convenient for personnel to extrude, and is convenient for the soft sleeve 1 to reset after extrusion; a sealing ring is arranged between the water pipe 3 and the box body 10, so that the water pipe 3 and the box body 10 are sealed;

the aims of filling the soap 7 through the box body 10, avoiding the soap 7 from sliding off, cleaning dead corners of the face of a person through the bristles, and washing and smearing the dead corners are fulfilled.

The above embodiments are the preferred embodiments of the present invention, and are not intended to limit the scope of the present invention. Any person skilled in the art can make some modifications without departing from the scope of the invention, i.e. all equivalent modifications made according to the invention are intended to be covered by the scope of the invention.

It should also be noted that, unless otherwise specifically stated or limited, the terms "disposed on," "mounted on," "connected to" and "connected to" are to be construed broadly and may include, for example, a fixed connection such as a crimped connection, a riveted connection, a pinned connection, an adhesive connection, a welded connection, a removable connection such as a threaded connection, a snap connection, a hinged connection, an integral connection, an electrical connection, a direct connection, an indirect connection through an intermediate medium, and a communication between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.

Claims (5)

1. The utility model provides a wash and paint integration washing face piece, characterized by: by soft cover, magnetic path, water pipe, the fluffy head of water, lid, froth net, brush, finger recess, box body and staple constitution, a side of soft cover and a side of box body are laminated mutually and are connected, and the inside three corner of box body is arranged in to three brush one-to-one, the brush tip extends the box body, and the brush tip has put the brush hair, and another corner of box body inside is arranged in to the water pipe, water pipe and the inside of soft cover are linked together, and one of water pipe is arranged in to the fluffy head of water, and outside being located the box body, the fluffy overhead a plurality of apertures that open of water, the lid cover is arranged in on the another side of box body, the lid middle part is the froth net, and two staple spiro unions are arranged.

2. The washing and smearing integrated face washing block as claimed in claim 1, wherein the other side surface and the two side edges of the soft sleeve are recessed inwards to form a plurality of finger grooves, and the two side edges of the box body are recessed inwards to form a plurality of finger grooves.

3. The integrated washing and smearing block as claimed in claim 1, wherein a sealing ring is arranged between the water pipe and the box body.

4. The integrated face washing block for washing and smearing according to claim 1, wherein the top and the bottom of the box body are respectively provided with a magnet, and the cover is provided with a metal block corresponding to the magnet.

5. The integrated washing and smearing block as claimed in claim 4, wherein the cover is provided with guide tubes corresponding to the positions of the brush and the water nozzle.
