CN212466494U

CN212466494U - an assisted delivery device

Info

Publication number: CN212466494U
Application number: CN202020362740.0U
Authority: CN
Inventors: 王君
Original assignee: Panzhihua Central Hospital
Current assignee: Panzhihua Central Hospital
Priority date: 2020-03-20
Filing date: 2020-03-20
Publication date: 2021-02-05
Anticipated expiration: 2030-03-20

Abstract

The utility model discloses an auxiliary childbirth device, which relates to the field of childbirth. A fixing ring is arranged on one side, a supporting leg is arranged on one side of the fixing ring, a supporting bed is arranged on the outer surface of the lower end of the supporting leg, and a foot pad is arranged on the outer surface of one side of the supporting bed. The outer surface of the lower end is provided with a delivery main board, and the outer surface of the front end of the delivery main board is provided with a controller. The utility model discloses an auxiliary childbirth device, which is easy to operate during use. Pregnant women lie on the device to improve their own strength with the help of the device, which is convenient for childbirth. A fixing ring at the lower end fixes the waist of the pregnant woman, which increases the force exerting effect of the waist of the pregnant woman and strengthens the The effect of the operation of the medical staff, the support leg raises the legs of the pregnant woman, the lower part exerts force and the medical staff observes, it has a better prospect for use.

Description

Auxiliary delivery device

Technical Field

The utility model relates to a childbirth field specifically is an auxiliary delivery device.

Background

Delivery refers to the period and process during which the fetus leaves the mother and becomes an independent individual. The delivery is a period and a process in which a fetus is separated from a mother body and becomes an independent individual, the whole process of the delivery is divided into 3 stages, namely 3 delivery stages, the first delivery stage is an palace dilatation stage, the second delivery stage is a fetus delivery stage, the third delivery stage is a placenta delivery stage, the delivery is divided into natural vagina delivery and caesarean delivery, the pain caused by uterine contraction during the delivery can run through the whole delivery process, in the process of the gynecological delivery, in order to ensure the smooth descent of the baby, the abdominal muscle of the pregnant woman needs to ensure enough strength to ensure enough abdominal pressure, and the existing auxiliary delivery device is insufficient in auxiliary force and causes the pressure increase of the pregnant woman.

When the conventional auxiliary delivery device is installed and used, the auxiliary force is insufficient, the physical consumption of pregnant women is increased, the supporting and acting points of the device are insufficient, the workload of medical workers is increased, and the auxiliary delivery device is provided.

SUMMERY OF THE UTILITY MODEL

Solves the technical problem

The utility model provides a to prior art not enough, the utility model provides an auxiliary delivery device has that the device strong point is many, and the security is stable and high and alleviate the characteristics of pregnant woman and medical personnel pressure, to prior art not enough, realizes that the device strong point is many, and the security is stable and the advantage that alleviates pregnant woman and medical personnel pressure can effectively solve the problem in the background art.

Technical scheme

In order to achieve the purpose, the utility model adopts the technical scheme that the device for assisting delivery comprises a pillow cushion, one side of the pillow cushion is provided with a shoulder support, one side of the shoulder support is provided with an arm support handrail, one side of the arm support handrail is provided with a fixing ring, one side of the fixing ring is provided with a supporting leg, the lower end surface of the supporting leg is provided with a supporting bed board, one side surface of the supporting bed board is provided with a foot pad, the lower end surface of the fixing ring is provided with a delivery mainboard, the front end surface of the delivery mainboard is provided with a controller, the lower end surface of the delivery mainboard is provided with a mainframe box, the lower end surface of the mainframe box is provided with a base, and the lower end surface of the shoulder support is.

Preferably, the supporting leg includes rubber leather packing, bent plate, telescopic link and locating lever, the lower extreme surface of rubber leather packing is provided with the bent plate, the lower extreme surface of bent plate is provided with the telescopic link, the lower extreme surface of telescopic link is provided with the locating lever.

Preferably, the elastic support comprises a connecting flat plate, a fixed elbow, an elastic component and a spiral ring interface, the fixed elbow is arranged on the outer surface of the lower end of the connecting flat plate, the elastic component is arranged on the outer surface of the lower end of the fixed elbow, and the spiral ring interface is arranged on the outer surface of the lower end of the elastic component.

Preferably, be equipped with the fixed glue between rubber leather packing and the bent plate, and the lower extreme surface of rubber leather packing is connected through the upper end external surface fixed connection of fixed glue with the bent plate, be equipped with the spiral bolt between bent plate and the telescopic link, and the lower extreme surface of bent plate is connected through the upper end surface rotation of spiral bolt and telescopic link.

Preferably, be equipped with the welding piece between connection flat board and the fixed elbow, and the lower extreme surface of connecting the flat board passes through the upper end external surface fixed connection of welding piece and fixed elbow, be equipped with the lift post between fixed elbow and the elastic component, and the lower extreme surface of fixed elbow passes through lift post and elastic component's upper end surface swing joint.

Preferably, be equipped with the activity groove between childbirth mainboard and the arm brace handrail, and the lower extreme surface sliding connection of upper end surface through activity groove and arm brace handrail of childbirth mainboard, the callus on the sole with support and be equipped with the carriage release lever between the bed board, and the lower extreme surface of callus on the sole passes through the carriage release lever and supports the upper end surface swing joint of bed board.

Advantageous effects

Compared with the prior art, the utility model provides an auxiliary delivery device possesses following beneficial effect:

1. this supplementary childbirth device, the height and the elasticity of pillow pad can be adjusted to the elastic support, reduce the pressure of pregnant woman head, it links to each other with the pillow pad to connect the flat board, height-adjusting and elasticity come through the lift post among fixed elbow and the elastic component, the spiro interface and the childbirth mainboard connection of lower extreme, strengthen stabilization effect, the supporting leg makes things convenient for medical personnel's operation, also make things convenient for the pregnant woman to send forth effort, the inside rubber leather pad that is provided with of supporting leg strengthens frictional force, the bent plate laminates with shank muscle, the telescopic link height-adjusting, the suitability of different size pregnant women has been increased, the locating lever increases supporting effect, it has better prospect to use.

2. This supplementary childbirth device, easy operation during the use, the pregnant woman lies and improves self strength with the help of the device on the device, makes things convenient for childbirth, and the solid fixed ring of lower extreme is fixed with the waist of pregnant woman, increases the effect of exerting oneself of pregnant woman's waist, has strengthened the effect of medical personnel's operation, and the supporting leg is raised pregnant woman's both legs, and lower part is exerted oneself and medical personnel observes, uses to get up and has better prospect.

Drawings

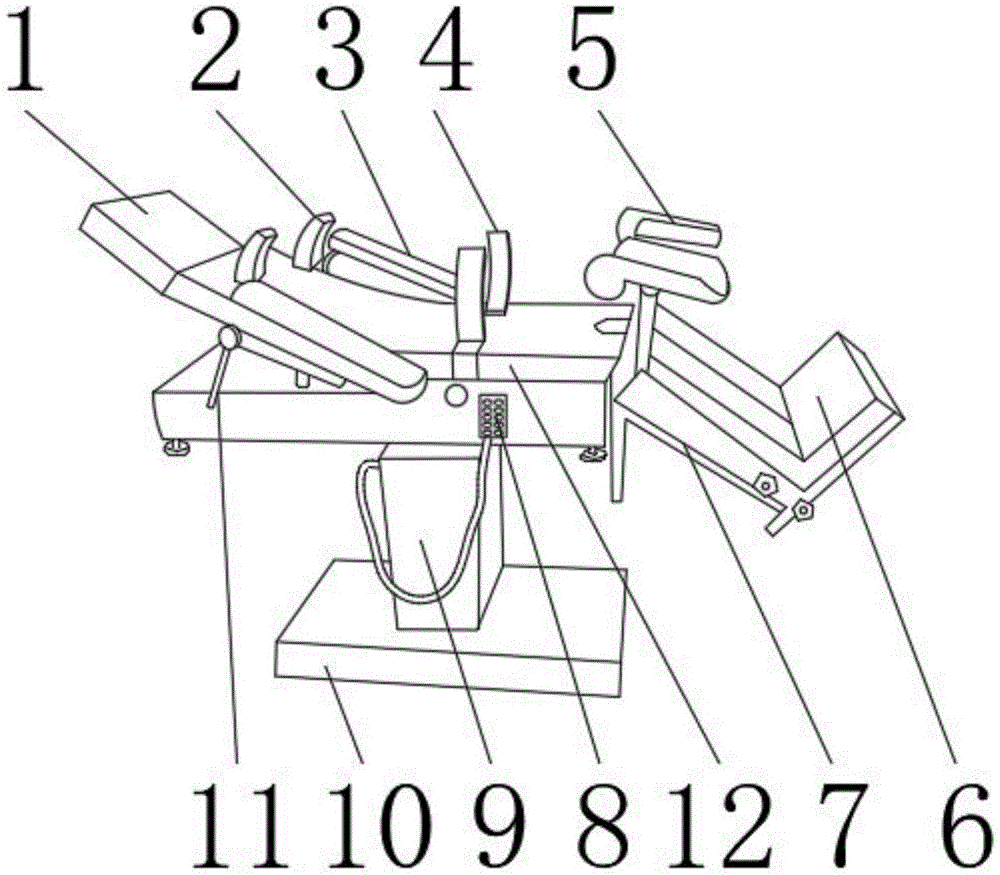

Fig. 1 is a schematic view of the overall structure of the device for assisting childbirth.

Fig. 2 is a schematic structural view of a support leg in the childbirth assisting device of the present invention.

Fig. 3 is a schematic structural view of an elastic support in the device for assisting childbirth of the present invention.

In the figure: 1. a pillow pad; 2. shoulder bracing; 3. an arm support handrail; 4. a fixing ring; 5. supporting legs; 6. a foot pad; 7. supporting the bed plate; 8. a controller; 9. a main chassis; 10. a base; 11. an elastic support; 12. a delivery main board; 501. a rubber leather pad; 502. bending a plate; 503. a telescopic rod; 504. positioning a rod; 1101. connecting the flat plates; 1102. fixing the elbow; 1103. an elastic component; 1104. a spiral interface.

Detailed Description

In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand, the present invention is further described below with reference to the following embodiments.

As shown in fig. 1-3, an auxiliary childbirth device, including pillow 1, one side of pillow 1 is provided with shoulder brace 2, one side of shoulder brace 2 is provided with arm brace handrail 3, one side of arm brace handrail 3 is provided with solid fixed ring 4, gu fixed ring 4 one side is provided with supporting leg 5, the lower extreme surface of supporting leg 5 is provided with supports bed board 7, one side surface that supports bed board 7 is provided with callus on the sole 6, gu fixed ring 4's lower extreme surface is provided with childbirth mainboard 12, the front end surface of childbirth mainboard 12 is provided with controller 8, the lower extreme surface of childbirth mainboard 12 is provided with mainframe box 9, the lower extreme surface of mainframe box 9 is provided with base 10, the lower extreme surface of shoulder brace 2 is provided with elastic support 11.

Further, supporting leg 5 includes rubber leather packing 501, bent plate 502, telescopic link 503 and locating lever 504, and rubber leather packing 501's lower extreme surface is provided with bent plate 502, and the lower extreme surface of bent plate 502 is provided with telescopic link 503, and the lower extreme surface of telescopic link 503 is provided with locating lever 504, is favorable to strengthening supporting leg 5's practicality, strengthens user experience's effect.

Further, the elastic support 11 comprises a connection flat plate 1101, a fixed elbow 1102, an elastic component 1103 and a spiral joint 1104, the fixed elbow 1102 is arranged on the outer surface of the lower end of the connection flat plate 1101, the elastic component 1103 is arranged on the outer surface of the lower end of the fixed elbow 1102, and the spiral joint 1104 is arranged on the outer surface of the lower end of the elastic component 1103, so that the stability of the elastic support 11 is facilitated, and the safety is enhanced.

Further, be equipped with the fixed glue between rubber leather pad 501 and the bent plate 502, and the lower extreme surface of rubber leather pad 501 is connected with the upper end external surface fixed of bent plate 502 through fixed glue, is equipped with the spiral between bent plate 502 and the telescopic link 503 and ties, and the lower extreme surface of bent plate 502 is connected through the upper end surface rotation of spiral bolt and telescopic link 503, has improved the security of bent plate 502, improves work efficiency.

Furthermore, a welding block is arranged between the connection flat plate 1101 and the fixed elbow 1102, the outer surface of the lower end of the connection flat plate 1101 is fixedly connected with the outer surface of the upper end of the fixed elbow 1102 through the welding block, a lifting column is arranged between the fixed elbow 1102 and the elastic component 1103, the outer surface of the lower end of the fixed elbow 1102 is movably connected with the outer surface of the upper end of the elastic component 1103 through the lifting column, and the functionality of the connection flat plate 1101 is enhanced.

Further, be equipped with the activity groove between childbirth mainboard 12 and the arm brace handrail 3, and the lower extreme surface sliding connection of childbirth mainboard 12's upper end surface through activity groove and arm brace handrail 3 is equipped with the carriage release lever between callus on the sole 6 and the support bed board 7, and the lower extreme surface of callus on the sole 6 passes through the carriage release lever and the upper end surface swing joint who supports bed board 7, strengthens childbirth mainboard 12's fastness.

The working principle is as follows: the device is installed by a worker, a pregnant woman lying in labor lies on the device, the pregnant woman rests on the pillow pad 1, the lower end of the pillow pad 1 is provided with the elastic support 11 which can adjust the height and the elasticity of the pillow pad 1 and reduce the pressure of the head of the pregnant woman, the connecting flat plate 1101 is connected with the pillow pad 1, the height and the elasticity are adjusted through the fixed elbow 1102 and a lifting column in the elastic assembly 1103, the spiral interface 1104 at the lower end is connected with the delivery mainboard 12 to enhance the stabilizing effect, the shoulder support 2 is fixed at the shoulder position of the pregnant woman and reduce the pressure, the arm support armrest 3 at one side provides support, the waist of the pregnant woman is fixed through the fixing ring 4 at the lower end to enhance the force exerting effect of the waist of the pregnant woman, the thigh is placed on the supporting leg 5 to facilitate the operation of medical personnel and facilitate the force exerting of the pregnant woman, the rubber pad 501 is arranged inside the supporting leg 5 to enhance the, the telescopic link 503 height-adjusting has increased the suitability of different size pregnant women, and locating lever 504 increases the support effect, and holistic stability is strengthened to the base 10 of device lower extreme, uses to get up and has better prospect.

It is noted that, herein, relational terms such as first and second (a, b, etc.) and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.

The basic principles and the main features of the invention and the advantages of the invention have been shown and described above. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.

Claims

1. An auxiliary childbirth device, includes pillow pad (1), its characterized in that: one side of pillow pad (1) is provided with the shoulder and props (2), the shoulder is propped one side of (2) and is provided with arm and props handrail (3), one side that the arm propped handrail (3) is provided with solid fixed ring (4), gu fixed ring (4) one side is provided with supporting leg (5), the lower extreme surface of supporting leg (5) is provided with supports bed board (7), the one side surface that supports bed board (7) is provided with callus on the sole (6), the lower extreme surface of solid fixed ring (4) is provided with childbirth mainboard (12), the front end surface of childbirth mainboard (12) is provided with controller (8), the lower extreme surface of childbirth mainboard (12) is provided with mainframe box (9), the lower extreme surface of mainframe box (9) is provided with base (10), the lower extreme surface that the shoulder propped (2) is provided with elastic.

2. An assisted birth control device as claimed in claim 1, wherein: the supporting leg (5) comprises a rubber leather pad (501), a bent plate (502), an expansion rod (503) and a positioning rod (504), wherein the outer surface of the lower end of the rubber leather pad (501) is provided with the bent plate (502), the outer surface of the lower end of the bent plate (502) is provided with the expansion rod (503), and the outer surface of the lower end of the expansion rod (503) is provided with the positioning rod (504).

3. An assisted birth control device as claimed in claim 1, wherein: the elastic support (11) comprises a connecting flat plate (1101), a fixed elbow (1102), an elastic component (1103) and a spiral ring interface (1104), wherein the fixed elbow (1102) is arranged on the outer surface of the lower end of the connecting flat plate (1101), the elastic component (1103) is arranged on the outer surface of the lower end of the fixed elbow (1102), and the spiral ring interface (1104) is arranged on the outer surface of the lower end of the elastic component (1103).

4. An assisted birth control device as claimed in claim 2, wherein: be equipped with the fixed glue between rubber leather pad (501) and bent plate (502), and the lower extreme surface of rubber leather pad (501) is connected through the upper end external surface fixed of fixed glue with bent plate (502), be equipped with the spiral between bent plate (502) and telescopic link (503) and tie, and the lower extreme surface of bent plate (502) is tied through the spiral and is connected with the upper end surface rotation of telescopic link (503).

5. A childbirth aid device according to claim 3, wherein: be equipped with the welding piece between connection flat board (1101) and fixed elbow (1102), and the lower extreme surface of connecting flat board (1101) passes through the upper end outer surface fixed connection of welding piece and fixed elbow (1102), be equipped with the lift post between fixed elbow (1102) and elastic component (1103), and the lower extreme surface of fixed elbow (1102) passes through the upper end outer surface swing joint of lift post and elastic component (1103).

6. An assisted birth control device as claimed in claim 1, wherein: childbirth mainboard (12) and arm prop and are equipped with the activity groove between handrail (3), and the upper end surface of childbirth mainboard (12) props the lower extreme surface sliding connection of handrail (3) through activity groove and arm, callus on the sole (6) and support are equipped with the carriage release lever between bed board (7), and the lower extreme surface of callus on the sole (6) passes through the carriage release lever and supports the upper end surface swing joint of bed board (7).
