Abstract

The utility model provides a novel medical care bed that recovered branch of academic or vocational study was used, it includes the sick bed body, can expand or folding meal board component, the sick bed body includes main bed board, main bed board up end one end is fixed to be provided with the headstock, the other end is provided with the tailstock, meal board component sets up on the up end of headstock and initial condition is fold condition, meal board component includes the meal board of rectangle and is used for connecting the flexible supporting component of meal board and headstock, flexible supporting component is located meal board and headstock up end and is close to between tailstock one side edge, flexible supporting component is including mutual nestification and constitute slide guide complex outer pole and interior pole, the outer pole is hollow structure and one end and meal board fixed connection, interior pole pegs graft in the outer pole and deviate from meal board one end opening part by the outer pole and extend, the one end that interior pole extends is close to tailstock edge with headstock up end and is connected and should articulated the articulated shaft that constitutes of In the longitudinal direction of the tube.

Description

Novel medical care bed that recovered branch of academic or vocational study was used
Technical Field
The utility model relates to the technical field of medical equipment, concretely relates to novel medical care bed that recovered branch of academic or vocational study was used.
Background
The rehabilitation department is generally used for accommodating patients undergoing rehabilitation therapy, the patients accumulating in various departments do not have the problem of rehabilitation therapy needing to be bedridden for a long time, investigation finds that two problems of bedridden patients need to be solved in time and bother medical care personnel all the time, one problem is the dining problem of the patients, a dining plate is not arranged on a common sickbed, and accompanying personnel need to feed the patients, so that the labor intensity of accompanying personnel is increased, in the feeding process, the dishes are easy to fall on bedding and cause pollution, the other problem is the resting problem of the accompanying personnel, as the common sickbed is a single bed, the accompanying personnel cannot have normal sleep at night, the health condition of the accompanying personnel is gradually increased due to the lack of sleep for a long time, the life health of the accompanying personnel is damaged, in order to solve the above problems, it is necessary to provide a novel medical nursing bed for rehabilitation department with ingenious structure, simple principle and convenient operation and use, the bed is provided with a dinning board component to facilitate the patients to sit and stand on the bed for dining, and the bed is provided with a simple bed board and is convenient for the accompanying personnel to have a rest at night.
SUMMERY OF THE UTILITY MODEL
1. Technical problem to be solved
The problem of the rest problem of the attendant who exists among the prior art, the utility model aims to provide a novel medical care bed that recovered branch of academic or vocational study used that the structure is ingenious, the principle is simple, the operation is convenient, it is provided with the dinner plate component and does benefit to the patient and sits to sit and stand and have dinner on the bed, it is provided with simple and easy bed board and has made things convenient for attendant's rest at night, it has solved the problem of having dinner of patient in the bed, has also solved attendant's rest problem at night.
2. Technical scheme
In order to solve the above problems, the utility model adopts the following technical proposal.
A novel medical care bed for rehabilitation department comprises a sickbed body and a deployable or foldable dining plate component, wherein the sickbed body comprises a main bedplate for lying for a patient, bed legs are arranged on the lower end surface of the main bedplate, a rectangular headstock is fixedly arranged at one end of the upper end surface of the main bedplate, a tailstock is fixedly arranged at the other end of the upper end surface of the main bedplate, the dining plate component is arranged on the upper end surface of the headstock and is in a folded state in an initial state, the dining plate component comprises a rectangular dining plate and a telescopic supporting component for connecting the dining plate with the headstock, the dining plate is tightly attached to the upper end surface of the headstock in the initial state, the length direction of the dining plate is parallel to the length direction of the headstock, the width direction of the dining plate is parallel to the width direction of the headstock, the telescopic supporting component is positioned between the dining plate and the upper end surface of the headstock and is close to one side edge of the tailstock, the two telescopic supporting components are symmetrically arranged along the length direction of the, the telescopic supporting component comprises an outer rod and an inner rod which are mutually nested and form sliding guide fit, the outer rod is of a hollow structure, one end of the outer rod is fixedly connected with the dinning board, the inner rod is inserted into the outer rod and extends out from an opening of one end of the outer rod, which deviates from the dinning board, one end of the inner rod, which extends out, is hinged with the upper end face of the headstock, which is close to the edge of the tailstock, and a hinge shaft formed by the hinged position is axially parallel to the length direction of the headstock.
Preferably, the upper end face of the dinner plate when unfolded is provided with a first circular groove and a second strip-shaped groove, the first groove is used for placing bowls and chopsticks, and the upper end face of the dinner plate when unfolded is in a shallow groove shape.
Preferably, the lower end surface of the dinner plate when unfolded is provided with a storage lattice, and the storage lattice is arranged into a box body structure with an opening arranged towards the hinge shaft.
Preferably, the rectangle that follows width direction of main bed board seted up one side along width direction accomodates the groove with the adaptation, accomodate the inslot and slide and be provided with the simple and easy bed board rather than the adaptation, the fixed support column that is provided with in one side of width direction of terminal surface edge under the bed board, the support column is provided with two and one of them is close to the headstock and arranges, another is close to the tailstock and arranges, and the lower terminal surface fixed mounting of support column has the universal wheel of self-locking type, accomodate the notch department in groove and set up the breach that runs through downwards, the breach is corresponding and the one-to-one matching arranges with the support column, the simple and easy bed board is close.
Preferably, the bedside cabinet with a single cabinet door is arranged at each of two ends of the bedside cabinet in the length direction, a push-pull type drawer is arranged in the middle of the bedside cabinet close to one end face of the tailstock, a plurality of drawers are stacked up and down, and the drawers are located between the two cabinets.
3. Has the advantages that:
1. the utility model has the advantages of ingenious structure and simple principle, the dining board component is favorable for patients to sit and stand on the bed for dining, the simple bed board is arranged, and the rest of the accompanying and attending personnel at night is facilitated,
2. the utility model discloses the operation is convenient, and folding structure is all set to the dinner plate component and simple and easy bed board, when idle, can fold and accomodate.
Drawings

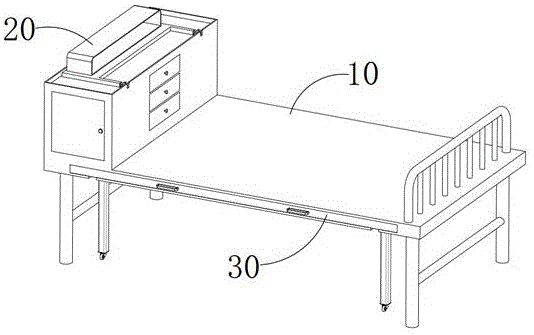

Fig. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of the unfolded structure of the dining board member;
fig. 3 is a schematic structural view of the simple bed board in unfolding;
fig. 4 is a schematic structural view of a hospital bed body;
FIG. 5 is a schematic view of the folded structure of the dining board member;
FIG. 6 is a schematic view of the unfolded structure of the dining board member;
fig. 7 is a schematic structural view of the simple bed plate;
the reference numbers in the figures illustrate:
10. a sickbed body; 11. a main bed board; 12. bed legs; 13. a headstock; 14. a bed tail frame; 15. a cabinet; 16. a drawer; 17. a receiving groove; 18. a notch; 20. a dinning plate member; 21. A dinning board; 22. a telescopic support assembly; 22a, an outer rod; 22b, an inner rod; 23. a first groove; 24. A second groove; 25. a storage grid; 30. a simple bed board; 31. a support pillar; 32. a universal wheel; 33. A handle.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the mechanism or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention.
As shown in fig. 1-7, a novel medical care bed for rehabilitation department comprises a bed body 10 and a foldable dining plate member 20, wherein the bed body 10 comprises a main bed plate 11 for lying on a patient, bed legs 12 are arranged on the lower end surface of the main bed plate 11, a rectangular headstock 13 is fixedly arranged on one end of the upper end surface of the main bed plate 11, a tailstock 14 is fixedly arranged on the other end of the upper end surface of the headstock 13, the dining plate member 20 is arranged on the upper end surface of the headstock 13 and is in a folded state in an initial state, the dining plate member 20 comprises a rectangular dining plate 21 and a telescopic support assembly 22 for connecting the dining plate 21 with the headstock 13, the dining plate 21 is closely attached to the upper end surface of the headstock 13 in the initial state, the length direction of the dining plate is parallel to the length direction of the headstock 13, the width direction of the headstock 13 is parallel to the width direction, the telescopic support assembly 22 is positioned between the dining plate 21 and the upper end surface of the headstock 13 and the side close to the tailstock 14, the telescopic supporting component 22 is provided with two parts and is symmetrically arranged along the length direction of the main bed board 11, the telescopic supporting component 22 comprises an outer rod 22a and an inner rod 22b which are nested with each other and form sliding guide fit, the outer rod 22a is of a hollow structure, one end of the outer rod 22a is fixedly connected with the meal board 21, the inner rod 22b is inserted in the outer rod 22a and extends out from an opening of one end of the outer rod 22a, which is far away from the meal board 21, the extending end of the inner rod 22b is hinged with the upper end face of the bed head box 13, which is close to the edge of the tailstock 14, and a hinge shaft formed by the hinge joint is axially parallel to the length direction of the bed head box 13, during the use process, the meal board component 20 is switched to the unfolding state by rotating the meal board 21 by one hundred eighty degrees around the hinge shaft between the inner rod 22b and the bed head box 13 and then sliding the inner rod 22b towards the outside of the outer rod 22a, a gap is formed between the, the patient can sit in the vacancy, and the accompanying person places the bowls and chopsticks on the dining plate 21, so that the patient can have a dinner by himself.
Referring to fig. 6, as the utility model discloses the scheme of more optimizing, for the convenience of the stability that the meal board 21 placed bowls and chopsticks, circular shape recess two 23, the recess two 24 of rectangular shape are seted up to the up end when meal board 21 expandes, and recess one 23 is used for placing the bowl utensil, and recess two 24 are used for placing chopsticks, and the up end when meal board 21 expandes sets up to shallow groove form, and the meaning of this scheme of adoption lies in, and the patient of being convenient for has dinner, keeps placing stability of bowls and chopsticks, and simultaneously, meal board 21 sets up to shallow groove form and can effectively avoid the hot water to spill to the bed clothes.
Referring to fig. 6, as the utility model discloses the scheme that optimizes more, for the convenience of strengthening the storing ability of meal board 21, lower terminal surface when meal board 21 expandes is provided with matter storage lattice 25 and sets to the box structure that the opening was arranged towards articulated axle, and private article such as patient's towel, paper handkerchief or cell-phone can be put to matter storage lattice 25, promotes the use convenience of having a dinner together.
Referring to fig. 4 and 7, in order to facilitate the rest of the accompanying person at night, a rectangular accommodating groove 17 adapted to one side of the main bed board 11 in the width direction is formed, a simple bed board 30 adapted to the accommodating groove 17 is slidably disposed in the accommodating groove 17, a support column 31 is fixedly disposed on one side of the lower end surface of the bed board 30 in the width direction, two support columns 31 are disposed, one of the two support columns is disposed near the headstock 13, the other support column is disposed near the tailstock 14, a self-locking universal wheel 32 is fixedly mounted on the lower end surface of the support column 31, in order to avoid the support column 31 and enable the simple bed board 30 to be completely retracted into the accommodating groove 17, a notch 18 penetrating downwards is formed in the accommodating groove 17, the notches 18 correspond to the support columns 31 and are arranged in a one-to-one matching manner, in order to facilitate the simple bed board 30 to be pulled out from the accommodating groove 17, one end of the simple bed board 30 near, the simple bed board 30 is pulled out and unfolded from the storage groove 17 by pulling the handle 33, and at night, the simple bed board 30 is folded and hidden in the storage groove 17 by pulling the simple bed board 30 from the storage groove 17 to supply the rest of the accompanying person, and the simple bed board 30 is hidden in the storage groove 17 in the daytime.
Referring to fig. 4, in order to facilitate the storage of private articles of patients and accompanying persons, the two ends of the bedside box 13 along the length direction are provided with cabinets 15 with single cabinet doors, the middle position of the bedside box 13 close to one end face of the tailstock 14 is provided with a push-pull drawer 16, the drawers 16 are stacked up and down, and the drawer 16 is located between the two cabinets 15.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims (5)

1. A novel medical care bed that recovered branch of academic or vocational study was used which characterized in that: the sickbed comprises a sickbed body (10) and a deployable or foldable dinner plate component (20), wherein the sickbed body (10) comprises a main bedplate (11) for lying for a patient, bed legs (12) are arranged on the lower end surface of the main bedplate (11), one end of the upper end surface of the main bedplate (11) is fixedly provided with a rectangular headstock (13), the other end of the upper end surface of the main bedplate is fixedly provided with a tailstock (14), the dinner plate component (20) is arranged on the upper end surface of the headstock (13) and is in a folded state in an initial state, the dinner plate component (20) comprises a rectangular dinner plate (21) and a telescopic supporting component (22) for connecting the dinner plate (21) with the headstock (13), the dinner plate (21) is tightly attached to the upper end surface of the headstock (13) in the initial state, the length direction of the dinner plate is parallel to the length direction of the headstock (13), and the width direction of the dinner plate is parallel to the width direction of the headstock (13), the telescopic supporting component (22) is located between the edge of one side of a meal plate (21) and the edge of the upper end face of a bed head box (13) close to a bed tail frame (14), the telescopic supporting component (22) is provided with two parts and is symmetrically arranged along the length direction of a main bed plate (11), the telescopic supporting component (22) comprises an outer rod (22a) and an inner rod (22b) which are nested with each other and form sliding guide fit, the outer rod (22a) is of a hollow structure, one end of the outer rod is fixedly connected with the meal plate (21), the inner rod (22b) is inserted into the outer rod (22a) and extends out from an opening of one end of the meal plate (21) through the outer rod (22a), one end of the inner rod (22b) extending out and the edge of the bed tail frame (14) close to the upper end face of the bed head box (13) are hinged and a hinge shaft formed by the hinged position is axially parallel.
2. The novel medical care bed for the rehabilitation department according to claim 1, characterized in that: a first circular groove (23) and a second strip-shaped groove (24) are formed in the upper end face of the meal plate (21) when the meal plate is unfolded, the first groove (23) is used for placing bowls, the second groove (24) is used for placing chopsticks, and the upper end face of the meal plate (21) when the meal plate is unfolded is in a shallow groove shape.
3. The novel medical care bed for the rehabilitation department according to claim 2, characterized in that: the lower end face of the dinning plate (21) when unfolded is provided with storage lattices (25), and the storage lattices (25) are arranged into a box body structure with an opening arranged towards the hinge shaft.
4. The novel medical care bed for the rehabilitation department according to claim 1, characterized in that: the rectangle that follow width direction of main bed board (11) one side seted up with the adaptation accomodates groove (17), accomodate and slide in groove (17) and be provided with simple and easy bed board (30) rather than the adaptation, fixed support column (31) that is provided with in one side of width direction of terminal surface edge under bed board (30), support column (31) are provided with two and one of them is close to headstock (13) and arranges, another is close to tailstock (14) and arranges, and the lower terminal surface fixed mounting of support column (31) has universal wheel (32) of self-locking type, accomodate notch department of groove (17) and offer breach (18) that run through downwards, breach (18) are corresponding and the one-to-one matching with support column (31) and arrange, simple and easy bed board (30) are close to the one end of accomodating groove (17) notch department and fix and set up in.
5. The novel medical care bed for rehabilitation department according to any one of claims 1 to 4, characterized in that: the bed head box (13) is provided with cabinets (15) with single cabinet doors at two ends along the length direction, a push-pull type drawer (16) is arranged in the middle of one end face of the bed head box (13) close to the tailstock (14), a plurality of drawers (16) are stacked up and down, and the drawer (16) is positioned between the two cabinets (15).
