CN212465820U - A vibrating cleanser for cleaning the brush head - Google Patents
A vibrating cleanser for cleaning the brush head Download PDFInfo
- Publication number
- CN212465820U CN212465820U CN202020992323.4U CN202020992323U CN212465820U CN 212465820 U CN212465820 U CN 212465820U CN 202020992323 U CN202020992323 U CN 202020992323U CN 212465820 U CN212465820 U CN 212465820U
- Authority
- CN
- China
- Prior art keywords
- cleaning brush
- cleaning
- brush head
- upper casing
- vibration
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Brushes (AREA)
Abstract
本实用新型公开一种振动洁面仪清洁刷头，包括上壳体和下壳体，上壳体和下壳体为固定连接，上壳体和下壳体之间形成腔体，所述腔体内设置有振动装置和驱动装置；所述振动装置包括振动马达，所述振动马达的一端设置有输出轴，所述输出轴远离所述振动马达的一端连接有偏心轮；所述上壳体的底部设置有振动马达安装槽；本实用新型所提供的一种振动洁面仪清洁刷头，采用声波振动，既能对人体面部带来较好的清洁效果，而且不会对皮肤造成伤害；清洁刷通过安装在清洁刷安装槽内，可拆卸更换，节省成本；在驱动装置的带动下，因为限位孔的限制，清洁内圈会进行往复运动，具有更好的清洁效果。
The utility model discloses a cleaning brush head of a vibrating face cleaning instrument, which comprises an upper casing and a lower casing, the upper casing and the lower casing are fixedly connected, a cavity is formed between the upper casing and the lower casing, and a cavity is formed inside the cavity. A vibration device and a drive device are provided; the vibration device includes a vibration motor, one end of the vibration motor is provided with an output shaft, and an end of the output shaft away from the vibration motor is connected with an eccentric; the bottom of the upper casing A vibration motor installation groove is provided; the cleaning brush head of a vibration cleansing instrument provided by the utility model adopts sound wave vibration, which can not only bring a better cleaning effect to the human face, but also will not cause damage to the skin; the cleaning brush passes through Installed in the cleaning brush installation groove, it can be disassembled and replaced, saving cost; driven by the driving device, due to the limitation of the limit hole, the cleaning inner ring will reciprocate, which has a better cleaning effect.
Description
Technical Field
The utility model relates to a beauty apparatus technical field especially relates to a clean brush head of clean face appearance of vibration.
Background
The face cleaning instrument is an emerging face cleaning instrument in recent years. When the general face cleaning instrument is used, the face cleaning instrument is matched with face cleaning emulsion to achieve better effect of cleaning facial grease and cutin. The vibration of the face cleaning instrument can help the face cleaning emulsion to form high-density uniform foam, can also massage the face and achieve the effects of beauty and health care. The face cleaning instrument is divided into a host machine and a cleaning brush head, and the host machine provides power to drive the cleaning brush head to vibrate, so that the face of a human body is effectively cleaned.
Some cleaning brushes in the market clean the face through rotary mechanical motion, but the rotary mechanical motion has large friction to the skin, and the skin is hurt after long-term frequent use, especially the skin on the cheek of a human is thin, and the use of the face cleaning instrument is easy to cause cell damage of partial skin and damage to the face. And the cleaning brush on the cleaning brush head can not be disassembled, so that the whole cleaning brush head needs to be replaced when the bristles are damaged due to long-time use, and the use cost is increased.
Therefore, there is a need for further research and practice of the above-mentioned technical problems.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
The technical problem to be solved by the utility model is to provide a cleaning brush head of a vibration face cleaning instrument, which can bring better cleaning effect to the face of a human body and can not cause damage to the skin by adopting sound wave vibration; the cleaning brush can be detached and replaced, and the use cost is reduced.
(II) technical scheme
The utility model provides a technical scheme that above-mentioned problem adopted is:
a cleaning brush head of a vibration face cleaning instrument comprises an upper shell and a lower shell which are fixedly connected, a cavity is formed between the upper shell and the lower shell, and a vibration device and a driving device are arranged in the cavity;
the vibration device comprises a vibration motor, an output shaft is arranged at one end of the vibration motor, and an eccentric wheel is connected to one end, far away from the vibration motor, of the output shaft;
a vibration motor mounting groove is formed in the bottom of the upper shell, and the vibration motor is fixedly arranged in the vibration motor mounting groove; the top of going up the casing is provided with the cleaning brush mounting groove, be provided with the cleaning brush in the cleaning brush mounting groove.
In the technical scheme, the eccentric wheel is driven to rotate by the high-speed operation of the vibration motor, the cleaning brush head is highly vibrated under the action of the eccentric wheel to generate mechanical motion, namely sound wave vibration; the sound wave vibration is adopted, so that a better cleaning effect can be brought to the face of a human body, and the skin cannot be damaged; the cleaning brush can be disassembled and replaced by installing the cleaning brush in the cleaning brush installation groove, so that the cost is saved.
Further, the cleaning brush comprises a cleaning outer ring and a cleaning inner ring, and the cleaning inner ring is connected with the driving device.
Among the above-mentioned technical scheme, the cleaning brush divide into clean inner circle and clean outer lane, and through linking to each other clean inner circle with drive arrangement and drive clean inner circle and rotate, can reach better clean effect.
Further, the driving device comprises a driving motor and a transmission mechanism connected with the driving motor, and the driving motor and the transmission mechanism are matched with each other; the transmission mechanism comprises two transmission shafts, and a fixing sheet is connected between the two transmission shafts.
Among the above-mentioned technical scheme, driving motor and transmission structure mutually support, and drive through driving motor and change the motion of transmission mechanism.
Furthermore, a limiting hole is formed in the upper shell, and the transmission shaft penetrates through the limiting hole and is connected with the cleaning inner ring.
In the technical scheme, the transmission shaft is connected with the cleaning inner ring through the limiting hole in the upper shell, the cleaning inner ring is driven to rotate by the driving motor, and the cleaning inner ring can reciprocate due to the limiting hole in the upper shell; has better cleaning effect and can not cause damage to the skin.
Further, a drainage tube is arranged on the lower shell along the axial direction, a through hole is formed in the corresponding position of the upper shell, and the drainage tube penetrates through the through hole and is flush with the bottom surface of the cleaning brush mounting groove.
Among the above-mentioned technical scheme, clean emulsion accessible drainage tube passes lower casing and last casing in proper order, under the vibration of clean brush head, can help clean face emulsion to form the even foam of high density, reaches deep cleanness.
Further, still include the safety cover, the safety cover setting is in the top of last casing.
Among the above-mentioned technical scheme, protect the cleaning brush through the safety cover, avoid the cleaning brush to receive the damage.
Further, the upper shell comprises a first surface and a second surface, and the protective cover is tightly attached to the first surface and the second surface.
Furthermore, a clamping block is arranged on the first surface of the upper shell; a clamping groove corresponding to the clamping block is formed in the inner wall of the protective cover; the upper shell is connected with the protective cover in a clamping mode through the clamping block on the upper shell and the clamping groove on the protective cover.
Among the above-mentioned technical scheme, safety cover and last casing joint.
Further, the bottom of lower casing is provided with brush first connecting portion, brush first connecting portion are provided with the card pin.
(III) advantageous effects
Compared with the prior art, the technical scheme of the utility model have following advantage:
(1) the cleaning brush head of the vibration face cleaning instrument provided by the utility model adopts sound wave vibration, which can bring better cleaning effect to the face of human body and can not hurt the skin;
(2) the cleaning brush head of the vibrating face cleaning instrument provided by the utility model has the advantages that the cleaning brush is arranged in the mounting groove of the cleaning brush, can be disassembled and replaced, and saves the cost;
(3) the utility model provides a clean brush head of clean face appearance of vibration, under drive arrangement's drive, because the restriction in spacing hole, reciprocating motion can be carried out to clean inner circle, has better clean effect, and can not cause the injury to skin.
Drawings

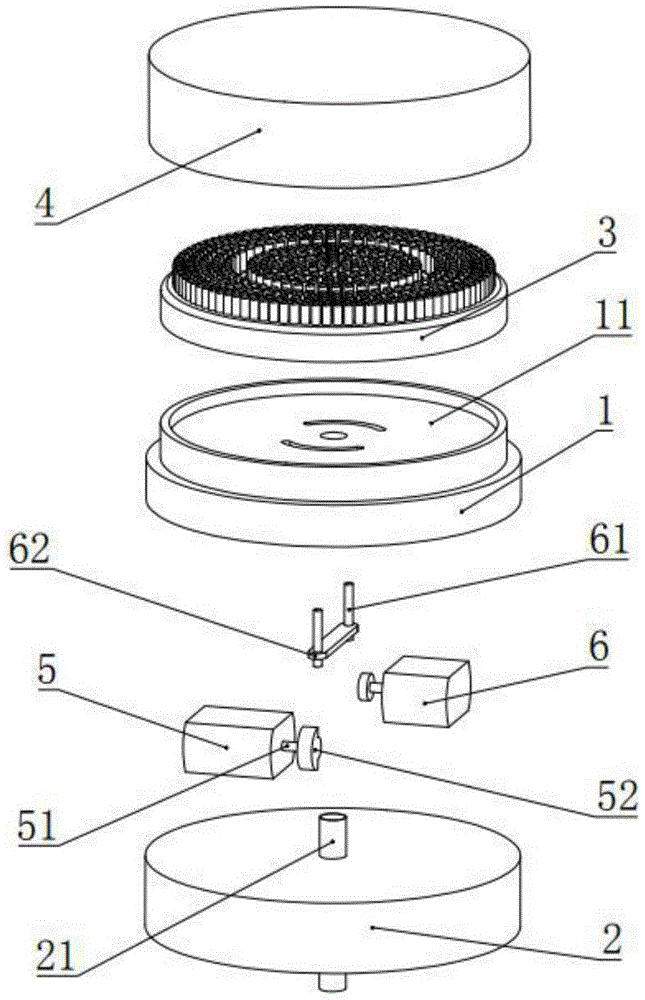

Fig. 1 is a schematic structural diagram of an embodiment of the present invention;
fig. 2 is a schematic structural view of an upper housing according to an embodiment of the present invention;
FIG. 3 is a schematic structural view of a cleaning brush according to an embodiment of the present invention;
fig. 4 is a schematic structural diagram of the housing according to the embodiment of the present invention.
Wherein: an upper shell 1, a cleaning brush mounting groove 11, a limiting hole 12, a through hole 13, a first surface 14, a second surface 15, a lower shell 2, a drainage tube 21, a clamping pin 22, a cleaning brush 3, a cleaning inner ring 31, a cleaning outer ring 32, a protective cover 4, a vibration motor 5, an output shaft 51, an eccentric wheel 52, a driving motor 6, a transmission shaft 61 and a fixing piece 62.
Detailed Description
The following detailed description of the embodiments of the present invention is provided with reference to the accompanying drawings and examples. The following examples are intended to illustrate the invention, but are not intended to limit the scope of the invention.
Examples
The cleaning brush head of the vibration facial cleaning instrument shown in fig. 1-4 comprises an upper shell 1, a lower shell 2 and a protective cover, wherein the upper shell 1 and the lower shell 2 are fixedly connected, a cavity is formed between the upper shell 1 and the lower shell 2, and a vibration device and a driving device are arranged in the cavity; the vibration device comprises a vibration motor 5, an output shaft 51 is arranged at one end of the vibration motor 5, and an eccentric wheel 52 is connected to one end, far away from the vibration motor 5, of the output shaft 51; a vibration motor mounting groove is formed in the bottom of the upper shell 1, and the vibration motor 5 is fixedly arranged in the vibration motor mounting groove; a cleaning brush installation groove 11 is formed in the top of the upper shell 1, a cleaning brush 3 is arranged in the cleaning brush installation groove 11, the protective cover 4 is arranged above the upper shell 1, the cleaning brush 3 is protected by the protective cover 4, and the cleaning brush 3 is prevented from being damaged; the eccentric wheel 52 is driven to rotate by the high-speed running of the vibrating motor 5, and the cleaning brush head is highly vibrated under the action of the eccentric wheel 52 to generate mechanical motion, namely sound wave vibration; the sound wave vibration is adopted, so that a better cleaning effect can be brought to the face of a human body, and the skin cannot be damaged; the cleaning brush 3 can be disassembled and replaced by being installed in the cleaning brush installation groove 11, and cost is saved.
The cleaning brush 3 comprises a cleaning outer ring 32 and a cleaning inner ring 31, the cleaning inner ring 31 is connected with the driving device, and the cleaning inner ring 31 is connected with the driving device to drive the cleaning inner ring 31 to rotate, so that a better cleaning effect can be achieved; the driving device comprises a driving motor 6 and a transmission mechanism connected with the driving motor 6, and the driving motor 6 and the transmission mechanism are mutually matched; the transmission mechanism comprises two transmission shafts 61, a fixing sheet 62 is connected between the two transmission shafts 61, the driving motor 6 is matched with the transmission structure, the transmission mechanism is driven to move by the driving motor 6, a limiting hole 12 is formed in the upper shell 1, the transmission shaft 61 penetrates through the limiting hole 12 and is connected with the cleaning inner ring 31, the transmission shaft 61 is connected with the cleaning inner ring 31 through the limiting hole 12 in the upper shell 1, the cleaning inner ring 31 is driven to rotate by the driving motor 6, and the cleaning inner ring 31 can reciprocate due to the limiting hole 12 formed in the upper shell 1; has better cleaning effect and can not cause damage to the skin.
The upper casing 2 is provided with a drainage tube 21 along the axial direction, a through hole 13 is formed in the corresponding position of the upper casing 1, the drainage tube 21 penetrates through the through hole 13 and is flush with the bottom surface of the cleaning brush mounting groove 11, the cleaning emulsion can sequentially penetrate through the lower casing 2 and the upper casing 1 through the drainage tube 21, and the cleaning emulsion can be helped to form high-density uniform foam under the vibration of the cleaning brush head, so that deep cleaning is achieved.
The upper shell 1 comprises a first surface 14 and a second surface 15, the protective cover 4 is tightly attached to the first surface 14 and the second surface 15, and the first surface 14 on the upper shell 1 is provided with a clamping block; a clamping groove corresponding to the clamping block is formed in the inner wall of the protective cover 4; go up casing 1 with safety cover 4 through last joint piece on casing 1 with joint groove joint on the safety cover 4, the bottom of casing 2 is provided with first connecting portion of brush down, first connecting portion of brush are provided with card pin 22.
The cleaning brush head of the vibration face cleaning instrument provided by the utility model adopts sound wave vibration, which can bring better cleaning effect to the face of human body and can not hurt the skin; the cleaning brush is detachably replaced by being arranged in the cleaning brush mounting groove, so that the cost is saved; under drive arrangement's drive, because the restriction in spacing hole, clean inner circle can carry out reciprocating motion, has better clean effect.
As described above, the above embodiments are not limiting embodiments of the present invention, and modifications or equivalent variations made by those skilled in the art based on the substance of the present invention are within the technical scope of the present invention.
