Abstract
本实用新型公开了一种管教谈话一体化终端设备，主显示屏、副显示屏、人脸识别模块、虹膜识别模块、智能卡读写模块、指纹采集模块、内置拾音器均连接于控制主板，电源模块通过电源开关电性连接于所述控制主板，并为控制主板供电；主显示屏和副显示屏分设于所述外壳体的正面和背面，所述人脸识别模块和虹膜识别模块设于所述外壳体的正面，所述指纹采集模块和智能卡读写模块设于所述外壳体的背面；所述内置拾音器设于所述外壳体内，所述外壳体上设有拾音口。本实用新型能够切实提高管教民警的工作效率，降低民警的劳动力，同时也为高质量的谈话提供了依据，真正实现了智慧监管的建设。
The utility model discloses an integrated terminal device for discipline and conversation. A main display screen, a secondary display screen, a face recognition module, an iris recognition module, a smart card reading and writing module, a fingerprint collection module and a built-in microphone are all connected to a control main board, and a power supply module is connected to a control main board. It is electrically connected to the control main board through a power switch and supplies power to the control main board; the main display screen and the auxiliary display screen are respectively arranged on the front and back of the outer casing, and the face recognition module and the iris recognition module are arranged on the The front side of the outer casing, the fingerprint collecting module and the smart card reading and writing module are arranged on the back of the outer casing; the built-in pickup is arranged in the outer casing, and the outer casing is provided with a sound pickup port. The utility model can effectively improve the work efficiency of disciplinary police, reduce the labor force of the police, and also provides a basis for high-quality conversation, and truly realizes the construction of intelligent supervision.
Description
Technical Field
The utility model relates to a public security supervision equipment technical field, concretely relates to management and education conversation integration terminal equipment who uses in public security supervision place.
Background
Public security supervision places have always been the most important in public security work. For a long time, public security supervision places have been burdened with the important roles of armed guard, accommodation, custody, detention, education and safety guarantee for escort personnel by law, and undertake the smooth execution of the work of ensuring investigation, criminal litigation, administrative law enforcement and judgment.
In public security supervision places, the traditional management and education conversation mode is that policemen conduct management and education conversation on escorting personnel according to crime characteristics, daily performance, psychological and mental states and the like of the escorting personnel on laws, forms, supervision and regulation, behavior regulation, labor, life sanitation, life future and the like, and the escorting personnel answer questions faithfully according to the questions of the policemen. Meanwhile, according to the conversation content, the content of the conversation needs to be recorded in detail by the administrative staff. Under the traditional form, generally be the record that the policeman carried out the paper, the paper record is lost easily, is damaged, and the handwriting is easy fuzzy, is unfavorable for seeking and the persistence of record. With the information construction of supervision places in various places, a form of recording conversation contents combined with a PC (personal computer) appears, and characters are only input and stored on a desktop computer, so that the working efficiency of the supervised civil police cannot be improved, and the identity of the supervised civil police and the identity of escorting personnel cannot be effectively verified.
SUMMERY OF THE UTILITY MODEL
To the not enough of prior art, the utility model aims at providing an integrated terminal equipment of pipe education conversation.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a kind of management, education and conversation integrated terminal equipment, including the outer shell, main display screen, auxiliary display screen, face recognition module, iris recognition module, intelligent card read-write module, fingerprint collection module, built-in pickup, power module and power switch; the main display screen, the auxiliary display screen, the face recognition module, the iris recognition module, the smart card reading and writing module, the fingerprint acquisition module and the built-in pickup are all connected to the control mainboard, and the power supply module is electrically connected to the control mainboard through a power switch and supplies power to the control mainboard; the main display screen and the auxiliary display screen are respectively arranged on the front side and the back side of the outer shell, the face recognition module and the iris recognition module are arranged on the front side of the outer shell, and the fingerprint acquisition module and the smart card reading and writing module are arranged on the back side of the outer shell; the built-in sound pickup is arranged in the outer shell, and a sound pickup opening is formed in the outer shell.
Furthermore, the device also comprises a USB interface; the USB interface is in communication connection with the control mainboard and is arranged on the side surface of the outer shell.
Further, the device also comprises an RJ45 network port; and the RJ45 network port is in communication connection with the control main board and is arranged on the side surface of the outer shell.
Furthermore, the equipment also comprises a microphone and a built-in sound box, wherein the microphone is arranged outside the outer shell, the built-in sound box is arranged inside the outer shell, the microphone and the built-in sound box are both electrically connected to the control mainboard, and an output port of the microphone is connected to an input port of the built-in sound box; the surface of the outer shell is provided with a playing port.
The beneficial effects of the utility model reside in that:
1. by adopting the biological characteristic identification technology, the policeman can check the identity through the iris and the face identification mode on the main display screen, and the escorting personnel on the auxiliary display screen can verify the identity through the fingerprint and the intelligent card identification mode, so that the effective identity verification of the policeman and the escorting personnel can be realized, and the reasonable and compliant conversation can be ensured.
2. The content of the managed education conversation can be recorded in real time and quickly, so that a foundation is provided for automatically converting conversation voice into text.
The utility model discloses can improve the work efficiency of the civil police of management and education conscientiously, reduce the labour of civil police, also provide the basis for high-quality conversation simultaneously, really realize the construction of wisdom supervision.
Drawings
FIG. 1 is a structural diagram of an appearance of one side of an apparatus in embodiment 1 of the present invention;
FIG. 2 is a structural view of the other side of the apparatus in embodiment 1 of the present invention;

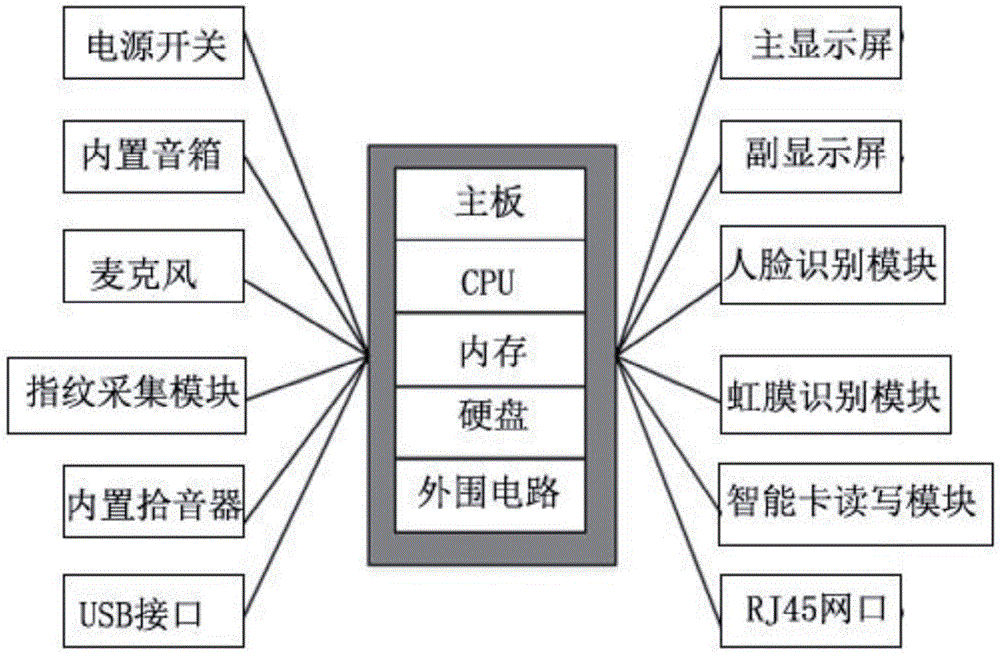

fig. 3 is a schematic diagram of the connection of the components in embodiment 1 of the present invention.
Detailed Description
The present invention will be further described with reference to the accompanying drawings, and it should be noted that the present embodiment is based on the technical solution, and the detailed embodiments and the specific operation processes are provided, but the protection scope of the present invention is not limited to the present embodiment.
Some of the technical terms are first briefly described below.
The escort personnel: people in custody in a supervision place. Namely: a detention officer. According to the law of criminal action of the people's republic of China and other related laws, criminals arrested and restrained by law, criminals who are judged to have futures or are restrained for less than three months or have remaining criminals for less than three months and are inconvenient to send to prisons can be supervised by a guard.
The custody policemen: the policeman specially engaged in supervision, education and feeling of escort personnel in the public security supervision place. Is responsible for supervising indoor affair arrangement, sanitary cleaning and queue training of each supervision room; the system carries out daily supervised and taught conversation on escorting personnel, handles dispute contradiction among the escorting personnel, monitors emergency events in a room and the like.
Example 1
The embodiment provides an integrated terminal device for pipe education and conversation, which comprises an outer shell 1, a main display screen 2, an auxiliary display screen 3, a face recognition module 4, an iris recognition module 5, a smart card read-write module 6, a fingerprint acquisition module 7, a built-in sound pickup, a power supply module and a power supply switch 8, as shown in fig. 1-3; the main display screen 2, the auxiliary display screen 3, the face recognition module 4, the iris recognition module 5, the smart card reading and writing module 6, the fingerprint acquisition module 7 and the built-in pickup are all connected to a control mainboard, and the power supply module is electrically connected to the control mainboard through a power switch and supplies power to the control mainboard; the main display screen 2 and the auxiliary display screen 3 are respectively arranged on the front side and the back side of the outer shell 1, the face recognition module 4 and the iris recognition module 5 are arranged on the front side of the outer shell 1, and the fingerprint acquisition module 7 and the smart card reading and writing module 6 are arranged on the back side of the outer shell 1; the built-in sound pickup is arranged in the outer shell 1, and a sound pickup opening is formed in the outer shell 1.
In this embodiment, the device further includes a USB interface 9; the USB interface 9 is in communication connection with the control mainboard and is arranged on the side surface of the outer shell 1.
In this embodiment, the apparatus further includes an RJ45 port 10; the RJ45 network port 10 is connected to the control main board in communication mode and is arranged on the side face of the outer shell 1.
In this embodiment, the apparatus further includes a microphone 11 and a built-in speaker, the microphone 11 is disposed outside the outer housing 1, the built-in speaker is disposed inside the outer housing 1, the microphone 11 and the built-in speaker are both electrically connected to the control motherboard, and an output port of the microphone 11 is connected to an input port of the built-in speaker; the surface of the outer shell 1 is provided with a playing port. The pickup port and the playing port can be realized by adopting the same structure.
Example 2
The embodiment provides an integrated terminal device for pipe education and conversation, and on the basis of the device described in embodiment 1, in the embodiment, the control main board is composed of a processor, a main board and a peripheral circuit, wherein the processor adopts quad-core Cortex-a17, the working main frequency is up to 1.6GHz, the main board selects JWS 3399 and carries a rayleigh core micro RK3399 chip, and meanwhile, the main board, a sub-display screen, a face recognition module, an iris recognition module, an intelligent card read-write module, a fingerprint acquisition module, a built-in sound pickup, an RJ45 internet access, a USB interface, a microphone, a built-in sound box and the like are used for connection and data communication. The control main board further comprises a KVR13S9S6 DDR 31333 MHz 2G memory, a Kingston SSD and a power supply management module, and the KVR13S9S6 DDR 31333 MHz 2G memory, the Kingston SSD and the power supply management module are all arranged on the main board and connected with the processor.
The KVR13S9S6 DDR 31333 MHz 2G memory has the advantages of high reading and writing speed, high integration level, stable performance and the like, and has great promotion effects on functions of voice transcription aging improvement, biological feature recognition speed and the like in the managed education conversation.
The Kingston SSD has the storage capacity of 240G, and has the advantages of high read-write speed, large storage capacity, stable performance, silence, no noise, low failure rate, small size and the like.
The power management module is used for supplying power and protecting power of the processor and the mainboard, and the mainboard and the peripheral circuit are used for supplying power and transmitting power for equipment such as a main display screen, an auxiliary display screen, a face recognition module, an iris recognition module, an intelligent card reading and writing module, a fingerprint acquisition module, a built-in sound pick-up, a microphone, a built-in sound box and the like.
In addition, in the embodiment, the iris identification module adopts a binocular iris identification terminal of love philosophy technology, and is internally provided with infrared supplementary lighting so as to be suitable for the environment with low illuminance; the remote identification can be supported, and the iris image can be simply and quickly captured; the size is small, and the lens can automatically incline to meet the requirements of people with different heights.
In the embodiment, the face recognition module selects FAM520, has 200 ten thousand pixels, integrates a face algorithm encryption chip, can support visible light and near infrared face acquisition, and can realize capture and recognition of high-quality wide dynamic face portrait;
in the embodiment, the fingerprint identification module is FS2002 and is internally provided with the ultrathin capacitive collecting head, so that the fingerprint image can be collected quickly and accurately;
in this embodiment, the smart card read-write module adopts the SI4463S4S-V1 model of the SILIC0NLBAS, and the built-in wireless identification module has the advantages of high sensitivity and low power consumption, and can realize intelligent and rapid verification of personnel identity.
Example 3
The embodiment provides a working method of the integrated terminal device for the managed education and conversation as described in embodiment 1, which specifically includes the following steps:
after the power supply is switched on, the main display screen, the auxiliary display screen, the face recognition module, the iris recognition module, the smart card reading and writing module and the fingerprint acquisition module are automatically started;
before the managed education conversation starts, on one side of the main display screen, the managed education policeman inputs own face information and iris information through the face recognition module and the iris recognition module, and controls the main board to carry out face comparison and iris comparison.
On one side of the auxiliary display screen, the escort personnel participating in the managed education conversation inputs the information of the intelligent card at the intelligent card reading and writing module, inputs the fingerprint of the escort personnel through the fingerprint inputting module, and the control main board can match and compare the information of the intelligent card and the fingerprint information.
After the identity verification of the supervised police and the escort personnel is passed, the supervised education conversation is started;
the supervised policeman inputs a control instruction for starting the conversation recording by clicking a control interface on the main display screen; the control mainboard starts the sound pick-up after receiving the control instruction, starts to pick up the talk record and transmits the talk record to the control mainboard for storage; the main control board carries out voice recognition on the conversation recording, converts the conversation recording into texts to be displayed on the main display screen and the auxiliary display screen, and generates and stores the texts.
Specifically, when needs utilized the microphone, the operation control interface on the main display screen is clicked to the civil education police, opens microphone and built-in audio amplifier, and the sound of civil education police is broadcast after passing through microphone and built-in audio amplifier this moment for can hear more clearly at escort personnel.
More specifically, the external storage device can be accessed into the control mainboard through the USB interface, and text documents and audio files of the managed education conversation can be downloaded through clicking the control interface.
More specifically, a network cable can be connected through an RJ45 network port, and the network can be accessed through the network cable. Through accessing the network, cloud backup, remote transmission and other operations can be carried out on the data stored in the equipment.
The content displayed on the main display and the secondary display is synchronized.
Various corresponding changes and modifications can be made by those skilled in the art according to the above technical solutions and concepts, and all such changes and modifications should be included in the protection scope of the present invention.
Claims (4)
