Abstract
本实用新型公开了一种双面电脑提花机卷布机构，包括支撑盘和卷布辊，所述支撑盘左上侧与架体固定连接，且支撑盘右上侧与第一固定架固定连接，同时第一固定架上侧安装有第二固定架，并且支撑盘中部与支撑柱固定连接，架体上安装有抚平辊，且架体右侧安装有左安装条和右安装条，同时左安装条内部开设有开孔，左安装条内壁上侧开设有上滑槽，且左安装条内壁下侧开设有下滑槽，同时左安装条内部安装有轴杆，架体上侧与加固梁固定连接；所述卷布辊安装在轴杆上。该双面电脑提花机卷布机构，即使缠满布料的卷布辊移动至两组安装条的右端，也可保证左安装条、右安装条在工作时候的稳定性。
The utility model discloses a cloth winding mechanism for a double-sided computerized jacquard machine, which comprises a support plate and a cloth winding roller. The upper left side of the support plate is fixedly connected with a frame body, and the upper right side of the support plate is fixedly connected with a first fixing frame. A second fixing frame is installed on the upper side of the first fixing frame, and the middle part of the support plate is fixedly connected with the support column. The frame body is installed with a leveling roller, and the right side of the frame body is installed with a left installation strip and a right installation strip. The inside of the strip is provided with openings, the upper side of the inner wall of the left mounting strip is provided with an upper chute, and the lower side of the inner wall of the left mounting strip is provided with a sliding groove, at the same time, a shaft rod is installed inside the left mounting strip, and the upper side of the frame body is fixedly connected with the reinforcement beam ; The cloth roll is installed on the shaft. The double-sided computerized jacquard cloth rolling mechanism can ensure the stability of the left and right mounting strips during operation even if the cloth rolling roller full of cloth moves to the right end of the two sets of installation strips.
Description
Technical Field
The utility model relates to a weaving equipment technical field specifically is a two-sided computer jacquard batching mechanism.
Background
The jacquard has the advantages of more looping systems, high rotating speed, high yield, fast change of flower shapes, good quality of fabrics, less working procedures and strong adaptability of products, and is developed rapidly in the field of textiles in recent years; after the jacquard weaves the cloth, the cloth needs to be wound on a cloth roller; the common jacquard machine adopts a traction roller to send cloth to the jacquard machine for traction, and then the cloth is wound on a cloth roller through the rotation of the cloth roller; however, the traction roller will not be consistent with the rotation speed of the cloth roller due to inertia or other reasons, so that the cloth roller can not tightly wind the cloth on the cloth roller when winding the cloth, and the cloth on the cloth roller is relatively loose, in order to solve the defects, the prior art discloses (application number: CN201920350350.9) a cloth winding device of a double-sided computer jacquard, and the proposal is that "when the cloth collected on the cloth roller is more and more, the cloth on the cloth roller is thicker and thicker; the outermost side of the cloth is contacted with the smoothing roller, so that the cloth roller slides along the mounting channel; "the left end and the support body fixed connection of mounting bar, the right-hand member of mounting bar does not set up any fixing device, and when the cloth on the cloth roller was more and more, the cloth roller can remove to the right side of mounting bar, because the right-hand member of mounting bar does not install fixing device, the right-hand member atress of mounting bar can take place to incline, splits even, structural defect.
In order to solve the defects in the market at present, a cloth rolling mechanism of a double-sided computer jacquard is provided to solve the problems.
SUMMERY OF THE UTILITY MODEL
The utility model provides a technical problem lie in overcoming the defect that mentions in the background art, provide a two-sided computer jacquard batching mechanism. Left side mounting bar, right mounting bar, first mount and second mount have even twine the cloth roller of full cloth and move to the right-hand member of two sets of mounting bars, also can guarantee the characteristics of left mounting bar, right mounting bar stability at the operating time and wait.
In order to achieve the above object, the utility model provides a following technical scheme: a cloth rolling mechanism of a double-sided computer jacquard comprises a supporting disk and a cloth rolling roller, wherein the left upper side of the supporting disk is fixedly connected with a frame body, the right upper side of the supporting disk is fixedly connected with a first fixing frame, a second fixing frame is arranged on the upper side of the first fixing frame, the middle part of the supporting disk is fixedly connected with a supporting column, a smoothing roller is arranged on the frame body, a left mounting bar and a right mounting bar are arranged on the right side of the frame body, an opening is formed in the left mounting bar, an upper sliding groove is formed in the upper side of the inner wall of the left mounting bar, a lower sliding groove is formed in the lower side of the inner wall of the left mounting bar, a shaft lever is arranged in;
the cloth roller is installed on the axostylus axostyle, and the upside and the last slider fixed connection of axostylus axostyle, the downside and the lower slider fixed connection of while axostylus axostyle.
Preferably, the cloth roller is arranged between the left mounting bar and the right mounting bar, the left side of the cloth roller is in contact with the smoothing roller, and the left mounting bar and the right mounting bar are internally provided with arc-shaped open holes.
Preferably, the right side end of the left mounting bar and the right mounting bar is respectively fixedly connected with the first fixing frame and the second fixing frame, and the middle parts of the left mounting bar and the right mounting bar are fixedly connected with the supporting disc through supporting columns.
Preferably, the left mounting bar is consistent with the right mounting bar in structure and size, and the length of the left mounting bar projected on the supporting disc is consistent with the length of the reinforcing beam.
Preferably, the upper ends of the first fixing frame and the second fixing frame are fixedly connected with the upper end of the frame body through a reinforcing beam.
Preferably, the upper end of the shaft lever penetrates through the right mounting bar and is fixedly connected with the limiting plate, and the lower end of the shaft lever penetrates through the left mounting bar and is fixedly connected with the driven wheel.
Preferably, the upper end and the lower end of the shaft rod are respectively fixedly connected with the upper sliding block and the lower sliding block through connecting blocks, the upper sliding block is connected inside the upper sliding groove in a sliding mode, the lower sliding block is connected inside the lower sliding groove in a sliding mode, the upper sliding groove and the lower sliding groove are arranged in an arc mode, and the upper sliding block and the lower sliding block are arranged in a spherical mode.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the upper sliding block and the lower sliding block on the shaft lever are respectively connected in the upper sliding groove and the lower sliding groove in a sliding manner, so that the shaft lever which moves in an arc shape is limited and guided;
2. the right side tip of left mounting bar, right mounting bar is fixed with first mount, second mount respectively, even twine the cloth roller of cloth and remove to the right-hand member of two sets of mounting bars, also can guarantee left mounting bar, right mounting bar stability at the operating hours.
Drawings

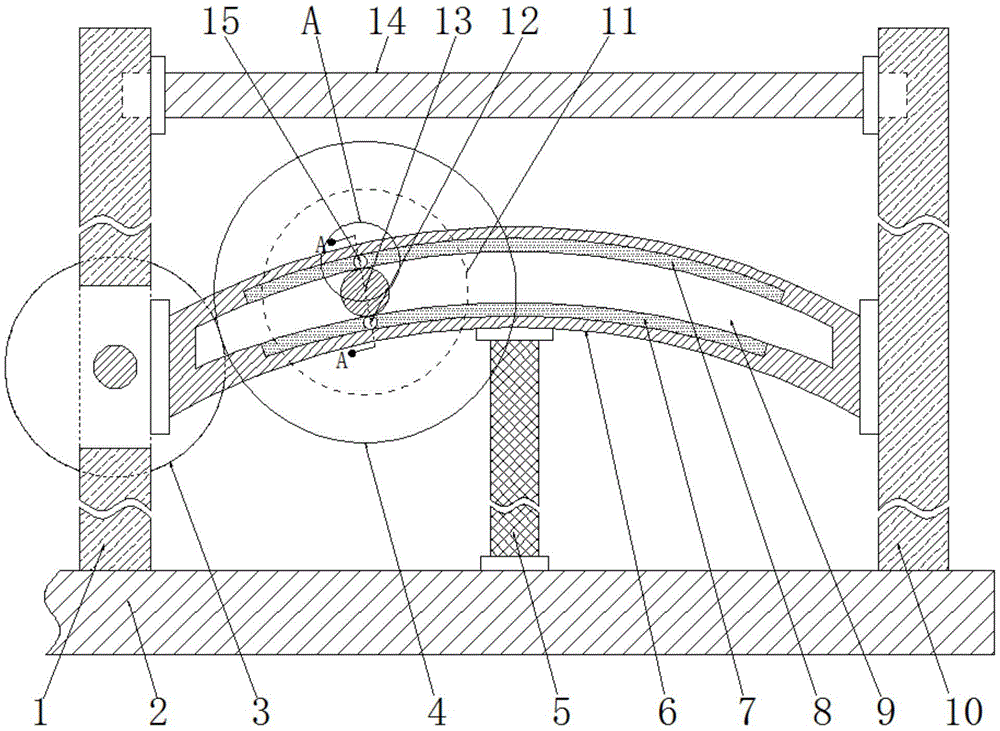

FIG. 1 is a front view of the structure of the present invention;
FIG. 2 is a top view of the present invention;
FIG. 3 is a schematic sectional view of the structure A-A of the present invention;
fig. 4 is an enlarged schematic view of the structure a of the present invention.
Reference numbers in the figures: 1. a frame body; 2. a support disc; 3. smoothing rollers; 4. a cloth roller; 5. a support pillar; 6. A left mounting bar; 7. a lower chute; 8. an upper chute; 9. opening a hole; 10. a first fixing frame; 11. a driven wheel; 12. a lower slide block; 13. a shaft lever; 14. reinforcing the beam; 15. an upper slide block; 16. a limiting plate; 17. a right mounting bar; 18. a second fixing frame; 19. and (4) connecting the blocks.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution: a cloth rolling mechanism of a double-sided computer jacquard comprises a supporting disk 2 and a cloth rolling roller 4, wherein the left upper side of the supporting disk 2 is fixedly connected with a frame body 1, the right upper side of the supporting disk 2 is fixedly connected with a first fixing frame 10, meanwhile, a second fixing frame 18 is arranged on the upper side of the first fixing frame 10, the middle part of the supporting disk 2 is fixedly connected with a supporting column 5, a smoothing roller 3 is arranged on the frame body 1, a left mounting bar 6 and a right mounting bar 17 are arranged on the right side of the frame body 1, an opening 9 is formed in the left mounting bar 6, an upper sliding chute 8 is formed in the upper side of the inner wall of the left mounting bar 6, a lower sliding chute 7 is formed in the lower side of the inner wall of the left mounting bar 6, a shaft lever 13 is; the upper end of the shaft rod 13 penetrates through the right mounting strip 17 to be fixedly connected with the limiting plate 16, and the lower end of the shaft rod 13 penetrates through the left mounting strip 6 to be fixedly connected with the driven wheel 11; the cloth roller 4 is arranged on the shaft rod 13, the upper side of the shaft rod 13 is fixedly connected with the upper sliding block 15, and the lower side of the shaft rod 13 is fixedly connected with the lower sliding block 12; the upper end and the lower end of the shaft rod 13 are respectively fixedly connected with an upper sliding block 15 and a lower sliding block 12 through connecting blocks 19, the upper sliding block 15 is connected inside the upper sliding chute 8 in a sliding manner, the lower sliding block 12 is connected inside the lower sliding chute 7 in a sliding manner, the upper sliding chute 8 and the lower sliding chute 7 are arranged in an arc manner, and the upper sliding block 15 and the lower sliding block 12 are arranged in a spherical manner; the cloth roller 4 is arranged between the left mounting strip 6 and the right mounting strip 17, the left side of the cloth roller 4 is in contact connection with the smoothing roller 3, and arc-shaped openings 9 are formed in the left mounting strip 6 and the right mounting strip 17; the right side ends of the left mounting strip 6 and the right mounting strip 17 are respectively fixedly connected with a first fixing frame 10 and a second fixing frame 18, and the middle parts of the left mounting strip 6 and the right mounting strip 17 are fixedly connected with the supporting disc 2 through a supporting column 5; the upper ends of the first fixing frame 10 and the second fixing frame 18 are fixedly connected with the upper end of the frame body 1 through a reinforcing beam 14; the left mounting bar 6 and the right mounting bar 17 are consistent in structure and size, and the length of the left mounting bar 6 projected on the supporting disc 2 is consistent with the length of the reinforcing beam 14;
as shown in fig. 1-2: the two ends of the shaft rod 13 slide on the left mounting bar 6 and the right mounting bar 17, and the upper sliding block 15 and the lower sliding block 12 on the shaft rod are respectively connected in the upper sliding chute 8 and the lower sliding chute 7 in a sliding manner, so that the shaft rod 13 which moves in an arc shape is limited and guided;
as shown in fig. 1-3: the right side end of left mounting bar 6, right mounting bar 17 is fixed with first mount 10, second mount 18 respectively, even the cloth roller 4 that twines the cloth removes the right-hand member to two sets of mounting bars, also can guarantee left mounting bar 6, right mounting bar 17 stability at the operating time.
When the cloth rolling mechanism of the double-sided computer jacquard is used, the cloth rolling roller 4 moves rightwards on the two groups of mounting strips along with the increasing rolling of the cloth on the surface of the cloth rolling roller 4, the right side end parts of the left mounting strip 6 and the right mounting strip 17 are respectively fixed with the first fixing frame 10 and the second fixing frame 18, even if the cloth rolling roller 4 wound with the cloth moves to the right end of the two groups of mounting strips, the stability of the left mounting strip 6 and the right mounting strip 17 in working time can be ensured, and meanwhile, the bottoms of the left mounting strip 6 and the right mounting strip 17 are supported by the supporting columns 5 to reinforce and support the cloth rolling roller 4; the whole process of the work of the cloth rolling mechanism of the double-sided computer jacquard machine is realized.
