本实用新型公开了一种平衡度较高的安装升降机，包括顶板和吊耳，所述顶板下方左右两侧均设置有底板，且底板顶部的前后两侧均设置有立柱，所述立柱的顶端均与顶板的底部相连接，且左右两侧相邻的立柱之间均设置有加固板，所述立柱靠近顶板中轴线的一侧均开设有滑槽，且滑槽分别与限位件相连接，所述限位件分别设置在支撑件远离顶板中轴线的一侧，且支撑件分别设置在载物板底部对角处，所述载物板后侧的左右两端均设置有滑套，且滑套分别与滑杆相连接，所述滑杆分别设置在底板的顶部后侧。该平衡度较高的安装升降机整体为分体式结构，具有较高的拆装便捷性，且通过简单的滑轮组结构可以有效提高整体在工作时的稳定性和平衡性。
The utility model discloses an installation elevator with high balance, which comprises a top plate and lifting lugs, bottom plates are arranged on the left and right sides under the top plate, and upright columns are arranged on the front and rear sides of the top of the bottom plate. They are all connected with the bottom of the top plate, and a reinforcing plate is arranged between the adjacent columns on the left and right sides. The side of the column close to the central axis of the top plate is provided with a chute, and the chute is respectively connected with the limiter. , the limiting members are respectively arranged on the side of the support member away from the central axis of the top plate, and the support members are respectively arranged at the diagonal corners of the bottom of the carrier plate, and the left and right ends of the rear side of the carrier plate are provided with sliding sleeves, The sliding sleeves are respectively connected with sliding rods, and the sliding rods are respectively arranged on the top rear side of the bottom plate. The installation lift with high balance is a split structure as a whole, which has high disassembly and assembly convenience, and the simple pulley block structure can effectively improve the overall stability and balance during work.
Description
Technical Field
The utility model relates to a lift correlation technique field specifically is a higher installation lift of equilibrium degree.
Background
An elevator, an elevating operation platform is a multifunctional elevating mechanical equipment, which can be divided into a fixed type, a movable type, a guide rail type, a crank arm type, a scissor type, a chain type, a loading and unloading platform and the like, and a fixed installation type elevator is required in a place where the elevator which is frequently used in a short period of time is required for building decoration and the like.
The elevator of the partially fixed installation type used at present is complex in structure, the connection mode between the loading platform and the fixed frame is usually a sliding connection mode, when the loading platform is unevenly stressed, the joint between the loading platform and the frame can generate transverse shearing force, and then the stability of the whole loading platform during lifting is influenced, so that inconvenience is caused when the elevator is used.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a higher installation lift of equilibrium degree to solve the lift simple structure of the part fixed mounting formula of using at present that proposes in the above-mentioned background art, and the connected mode between cargo platform and the fixed frame is the connected mode of slidingtype usually, when the cargo platform atress is inhomogeneous, junction between cargo platform and the frame can produce horizontal shearing force, and then influences the stability of cargo platform whole when going up and down, consequently there is inconvenient problem when using.
In order to achieve the above purpose, the utility model provides a technical scheme of an installation lifter with higher balance degree, which comprises a top plate and lifting lugs, wherein the left side and the right side below the top plate are both provided with bottom plates, the front side and the back side of the top of the bottom plate are both provided with upright posts, the top ends of the upright posts are both connected with the bottom of the top plate, reinforcing plates are arranged between the adjacent upright posts on the left side and the right side, one sides of the upright posts, which are close to the central axis of the top plate, are both provided with sliding grooves, the sliding grooves are respectively connected with a limiting part, the limiting parts are respectively arranged on one sides of the supporting parts, which are far away from the central axis of the top plate, and the supporting parts are respectively arranged at opposite angles at the bottom of the carrying plate, the left end and the right end of the back side of the carrying plate are both provided with, the left and right sides of the top of the object carrying plate is provided with a guardrail, the rear side of the top of the guardrail is provided with a connecting plate, the rear side of the connecting plate is provided with a shell, pulleys are arranged on the front side and the rear side of the shell, one side, close to the central axis of the shell, of each pulley is connected with a sliding rod, and the lifting lugs are arranged on the front side and the rear side of the top of the guardrail respectively.
Preferably, the bottom plate is provided with 2 about the axis of roof is the symmetry formula, and the top of every bottom plate all is the symmetry formula and is provided with 2 stands.
Preferably, the reinforcing plate is in an X-shaped structure, and the reinforcing plate is arranged between the stand columns at equal intervals.
Preferably, the limiting parts and the supporting parts are symmetrically provided with 4 parts, and the limiting parts are connected with the sliding grooves in a sliding manner.
Preferably, sliding sleeve and slide bar all are provided with 2 about the axis of carrying the thing board is the symmetry formula, and sliding sleeve, slide bar and carry the thing board and constitute sliding structure, carry the axis of thing board simultaneously and the axis of roof on same vertical straight line.
Preferably, the shell is the symmetry formula and is provided with 2, and all is the symmetry formula in every shell and is provided with 4 pulleys, and the connected mode of pulley and shell is the rotation simultaneously and is connected.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses a, device overall structure is simple, has higher dismouting convenience, and the fixed place that the convenience was used in the short term splices and dismantles, has improved overall arrangement's use convenience.
2. The utility model discloses a, be provided with gusset plate and guardrail, gusset plate and guardrail all are "X" shape structure, can form a plurality of triangle-shaped structures between two stands of gusset plate cooperation, are convenient for obtain the biggest stable effect at utilizing minimum weight, and the guardrail is convenient for provide the protection to the left and right sides of carrying the thing board, provide the ascending oblique pull of slope to the front side of carrying the thing board simultaneously, have improved stability in use.
3. The utility model discloses a, be provided with sliding sleeve, slide bar, guardrail, connecting plate, shell and pulley, provide extra safeguard effect to carrying the thing board through slide bar cooperation sliding sleeve, and the connected mode of slide bar is hugged closely to the pulley, when carrying the uneven position skew that takes place of thing board atress, the pulley can continuously keep hugging closely the slide bar with the position of difference, has improved the stability in use who carries the thing board.
Drawings

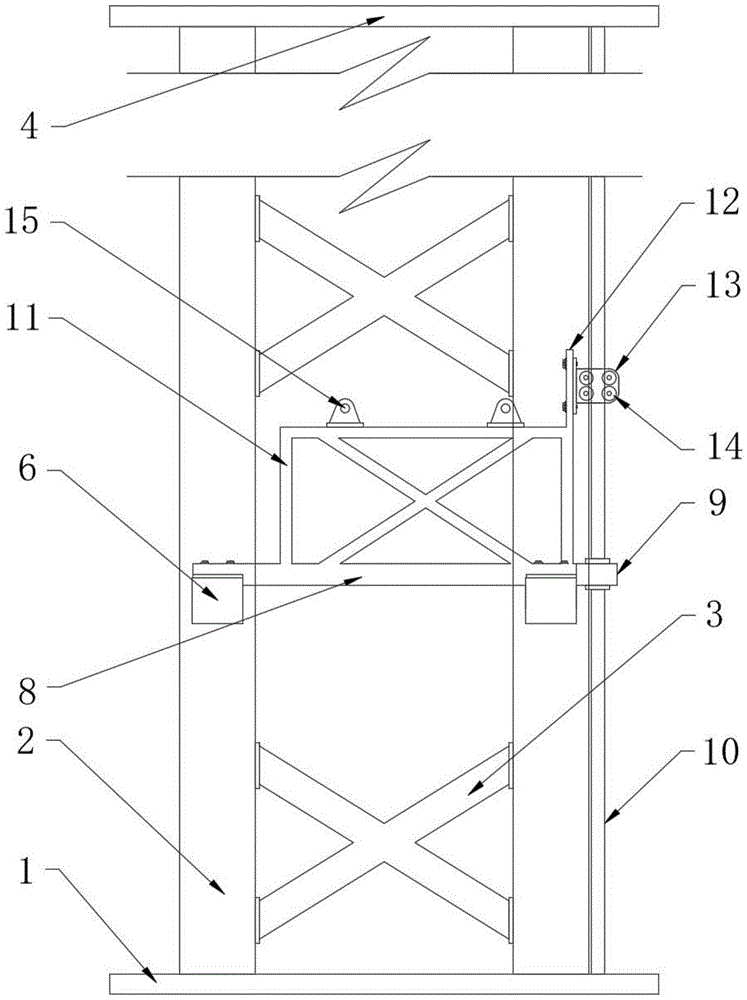

Fig. 1 is a schematic side view of the present invention;
fig. 2 is a schematic front view of the structure of the present invention;
fig. 3 is a schematic top view of the present invention;
fig. 4 is a schematic top view of the loading plate of the present invention;
fig. 5 is an enlarged schematic view of a portion a in fig. 3 according to the present invention.
In the figure: 1. a base plate; 2. a column; 3. a reinforcing plate; 4. a top plate; 5. a chute; 6. a limiting member; 7. A support member; 8. a loading plate; 9. a sliding sleeve; 10. a slide bar; 11. a guardrail; 12. a connecting plate; 13. a housing; 14. a pulley; 15. and (7) lifting lugs.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-5, the present invention provides a technical solution: an installation elevator with high balance degree comprises a top plate 4 and lifting lugs 15, wherein bottom plates 1 are arranged on the left side and the right side below the top plate 4, stand columns 2 are arranged on the front side and the rear side of the top of the bottom plate 1, the top ends of the stand columns 2 are connected with the bottom of the top plate 4, reinforcing plates 3 are arranged between the adjacent stand columns 2 on the left side and the right side, sliding grooves 5 are formed in one sides, close to the central axis of the top plate 4, of the stand columns 2, the sliding grooves 5 are respectively connected with limiting parts 6, the limiting parts 6 are respectively arranged on one sides, away from the central axis of the top plate 4, of supporting parts 7, the supporting parts 7 are respectively arranged at opposite angles of the bottom of a carrying plate 8, sliding sleeves 9 are arranged at the left end and the right end of the rear side of the carrying plate 8, the sliding sleeves 9 are respectively connected with sliding rods 10, the sliding rods, carry 8 top left and right sides of thing board and all be provided with guardrail 11, and the top rear side of guardrail 11 is provided with connecting plate 12, and the rear side of connecting plate 12 all is provided with shell 13, and both sides all are provided with pulley 14 around shell 13 is inside, and one side that pulley 14 is close to shell 13 axis all is connected with slide bar 10 simultaneously, and lug 15 sets up both sides around at guardrail 11 top respectively.
Reinforcing plate 3 is "X" shape structure, and reinforcing plate 3 is equidistant setting between stand 2, effectively improves the connection effect between stand 2 through reinforcing plate 3, improves the holistic stability of device.
Locating part 6 and support piece 7 all are provided with 4 of symmetry formula, and the connected mode of locating part 6 and spout 5 is sliding connection, cooperate support piece 7 to be connected between year thing board 8 and stand 2 through locating part 6, just.
Sliding sleeve 9 and slide bar 10 all are the symmetry formula about the axis of carrying thing board 8 and are provided with 2, and sliding sleeve 9, slide bar 10 and carry thing board 8 and constitute sliding structure, and the axis that carries thing board 8 simultaneously and roof 4 are on same vertical straight line, cooperate slide bar 10 through sliding sleeve 9 and provide extra fixed effect for carrying thing board 8, have improved stability in use.
The working principle is as follows: before the elevator with higher balance degree is installed, firstly, the whole elevator is fixed at a designated place, then, the lifting lugs 15 are respectively connected with the suspension devices of the lifting devices, when the elevator is used, an object to be lifted is moved to the top of the carrying plate 8, then, an external power supply is switched on, the lifting devices are started, the carrying plate 8 is pulled by the lifting lugs 15 to integrally start to ascend, when the carrying plate 8 ascends, the limiting piece 6 is driven by the support piece 7 to synchronously start to slide upwards along the sliding groove 5, when the position of the object to be lifted on the top of the carrying plate 8 is close to the front, gravity can drive the whole front side of the carrying plate 8 to slightly overturn downwards, because a certain gap exists between the limiting piece 6 and the sliding groove 5, the limiting piece 6 can slightly deflect in the sliding groove 5, at the moment, the guardrail 11 is matched with the connecting plate 12, the shell 13 and the protective sliding rod 10 can provide a pulling force which inclines, greatly reduced locating part 6 is at the range of deflecting of spout 5, ensures to be connected between spout 5 and the locating part 6 and remains stable, and pulley 14 in shell 13 can remain the connection between shell 13 and the slide bar 10 throughout and remain stable, ensures to carry the gliding in-process remain stable about carrying on of thing board 8 whole, above just is the working process of whole device, and wherein motor 20's model is: YE2-132S-4, and not described in detail in this specification are within the skill of those in the art.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.
