CN212450358U

CN212450358U - A kind of lifting machinery and equipment for building construction

Info

Publication number: CN212450358U
Application number: CN202020399132.7U
Authority: CN
Inventors: 林伟强
Original assignee: Huzhou Jiayuan Construction Engineering Co ltd
Current assignee: Huzhou Jiayuan Construction Engineering Co ltd
Priority date: 2020-03-25
Filing date: 2020-03-25
Publication date: 2021-02-02
Anticipated expiration: 2030-03-25

Abstract

The utility model discloses a hoisting mechanical equipment for building construction. The round pipe tongs and baffles, the lifting machinery and equipment used in the construction of the utility model, are provided with a bolt on the top of the round pipe tongs, and the bottom of the hook is provided with a threaded hole, when the round pipe needs to be hoisted during use, Screw the bolts into the threaded holes to fix the tongs on the lower part of the hook, and fix the round pipe tongs on the hook, and there are strong magnetic blocks of positive and negative poles on the lower part of the tongs, which solves the problem that the round pipes and steel pipes cannot be directly connected. Hoisting, other construction supplies can be hoisted, and round pipes can also be hoisted, the hoisting round pipes rise, the round pipe tongs will automatically adjust according to the size of the hoisted round pipes, no manual adjustment is required, and the hoisting time is reduced. The blocks are attracted to each other to prevent accidents caused by the sudden opening of the round pipe by the tongs during the hoisting process.

Description

Mechanical equipment that lifts by crane that construction was used

Technical Field

The utility model relates to a lift by crane the mechanical equipment field, specificly be a mechanical equipment that lifts by crane that construction used.

Background

During construction, a hoisting mechanical device is needed, the crane is the most common one, the crane is used for hoisting some decoration construction materials with light weight, the crane in the prior art can not directly hoist the circular pipes and the steel pipes when hoisting the circular pipes and the steel pipes, the circular pipes and the steel pipes can not be bound firstly and then hoisted, the hoisting time is prolonged, and the operation is not convenient.

SUMMERY OF THE UTILITY MODEL

To the problem, the utility model provides a mechanical equipment that lifts by crane that construction used.

In order to achieve the above purpose, the present invention is realized by the following technical solution: the utility model provides a mechanical equipment that lifts by crane that construction used, its structure includes base, first branch, second branch, connecting block, third branch, handle, steel cable, couple, motor, rope drum, pipe tongs, baffle, base upper portion is located to first branch, first branch welded connection base, base upper portion is located to second branch, second branch welded connection base and first branch, first branch and third branch are connected to the connecting block, third branch is rotatable, the handle is located the third branch outside, steel cable connection third branch and couple, the couple is fixed in the steel cable outside, base upper portion is located to the motor, the base upper portion is located to the rope drum, the motor is connected rope drum control steel cable, pipe tongs connection couple, the couple is connected to the baffle, the couple bottom is equipped with the screw hole.

Furthermore, the circular pipe hanging tongs comprise a connecting hole, a first hanging tong plate, a second hanging tong plate, a third hanging tong plate, a first hanging tong hook, a second hanging tong hook, a bolt and a strong magnetic block, wherein the connecting hole is formed in the upper portion of the circular pipe hanging tongs, the first hanging tong plate is connected with the second hanging tong plate, the third hanging tong plate and the first hanging tong hook, the second hanging tong hook is connected with the second hanging tong plate, the third hanging tong plate and the first hanging tong hook, the bolt is arranged at the top of the circular pipe hanging tongs, the bolt is connected with the circular pipe hanging tongs in a welding mode, and the strong magnetic block is provided with two blocks which are divided into an N pole and an S pole.

Furthermore, the second supporting rod is provided with two structures which have the same size and connection mode.

Furthermore, the surface of the handle is provided with anti-skid grains.

Furthermore, the base is provided with a fixing hole and fixed on the ground through a screw.

Furthermore, the base and the supporting rod are made of metal materials.

Furthermore, the inner surface of the circular tube hanging tongs is provided with anti-skid grains to prevent the circular tube from falling off in the hoisting process.

Advantageous effects

Compared with the prior art, the utility model discloses following beneficial effect has:

the utility model discloses a lifting machinery equipment for building construction, through setting up a bolt at the top of pipe hanging tong, the bottom of couple is equipped with the screw hole, when needing to hoist the pipe when using, screw in the screw hole with the bolt and fix the hanging tong in the couple lower part, fix the pipe hanging tong on the couple, and be equipped with the powerful magnetic path of positive negative pole in the lower part of hanging tong, put the pipe into two tong plates of pipe hanging tong when using, rise the height slowly, two tong hooks embrace the pipe and rise, accomplish the hoist and mount, need hoist the pipe when needing to hoist the pipe to install the pipe hanging tong and remove, dismantle when not needing to use, easy and simple to handle, solved can not directly hoist pipe, steel pipe directly, bind earlier then hoist, increase the hoist and mount time, the problem that the operation is not convenient, can hoist other construction supplies, also can hoist the pipe, the hoist pipe rises, the pipe tongs can be adjusted according to the pipe size of hoist and mount automatically, does not need manual regulation, reduces the time of hoist and mount, and two magnetic path attract each other of the in-process that rises prevent that hoist and mount in-process tongs from opening the pipe suddenly and dropping and meet accident.

Drawings

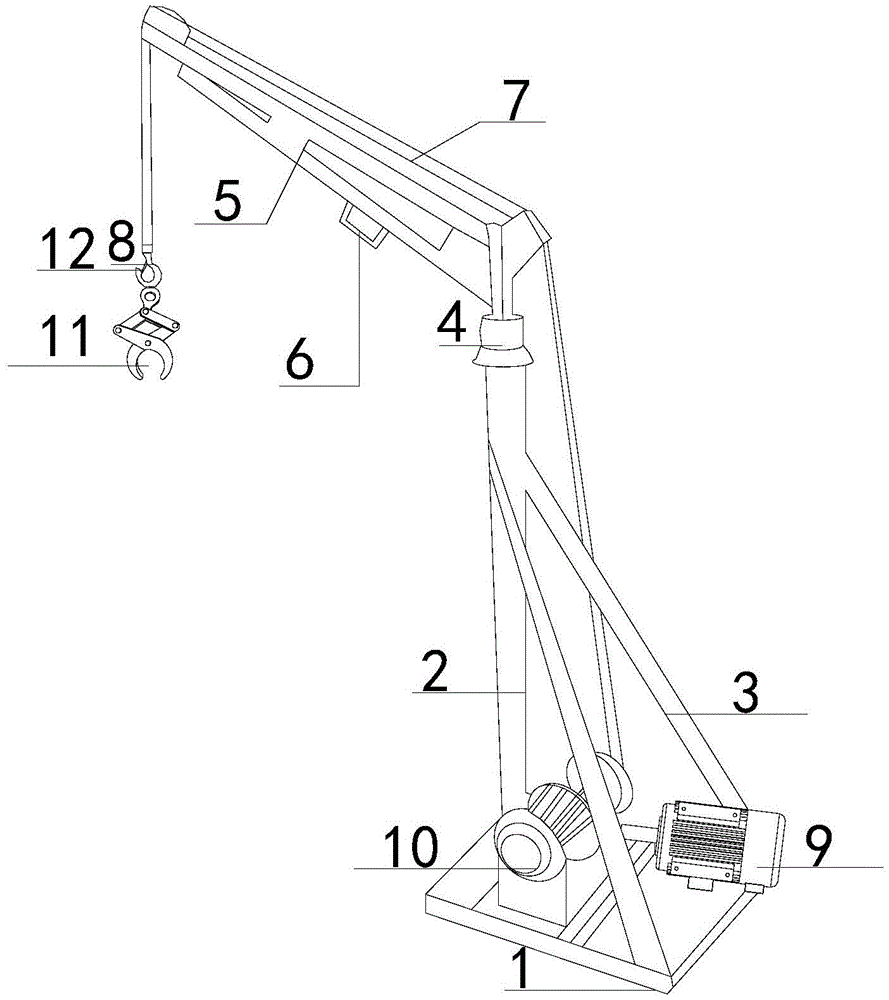

Fig. 1 is the utility model relates to a construction uses lifts by crane mechanical equipment's schematic structure.

Fig. 2 is the utility model relates to a pipe tongs structural schematic diagram of mechanical equipment that lifts by crane that construction used.

In the figure: base-1, first support rod-2, second support rod-3, connecting block-4, third support rod-5, handle-6, steel rope-7, hook-8, motor-9, rope drum-10, circular pipe hanging clamp-11, baffle-12, connecting hole-a, first hanging clamp plate-b, second hanging clamp plate-c, third hanging clamp plate-d, first hanging clamp hook-e, second hanging clamp hook-f, bolt-g and strong magnetic block-h

Detailed Description

The technical solution of the present invention will be described clearly and completely with reference to the accompanying drawings, and obviously, the described embodiments are some embodiments, not all embodiments, and all other embodiments obtained by a person of ordinary skill in the art without creative work belong to the protection scope of the present invention based on the embodiments of the present invention.

In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.

Examples

As shown in fig. 1-2, the utility model provides a mechanical equipment lifts by crane that construction used, its structure includes base 1, first branch 2, second branch 3, connecting block 4, third branch 5, handle 6, steel cable 7, couple 8, motor 9, rope drum 10, pipe hanging tong 11, baffle 12, base 1 upper portion is located to first branch 2, first branch 2 welded connection base 1, second branch 3 is located base 1 upper portion, second branch 3 welds base 1 and first branch 2, first branch 2 and third branch 5 are connected to connecting block 4, third branch 5 is rotatable, handle 6 is located the outside of third branch 5, steel cable 7 connects third branch 5 and couple 8, pipe hanging tong 11 is by connecting hole a, first hanging tong board b, second hanging tong board c, third hanging tong board d, The pipe hanging clamp comprises a first hanging clamp hook e, a second hanging clamp hook f, a bolt g and a strong magnetic block h, wherein a connecting hole a is formed in the upper portion of a circular pipe hanging clamp 11, the first hanging clamp plate b is connected with a second hanging clamp plate c, a third hanging clamp plate d and the first hanging clamp hook e, the second hanging clamp hook f is connected with the second hanging clamp plate c, the third hanging clamp plate d and the first hanging clamp hook e, the bolt g is arranged at the top of the circular pipe hanging clamp 11, the bolt g is connected with the circular pipe hanging clamp 11 in a welding mode, the strong magnetic block h is provided with two blocks which are divided into an N pole and an S pole, the second supporting rod 3 is provided with two structures which are identical in size and connection mode, the surface of the handle 6 is provided with anti-skid lines, the base 1 is provided with a fixing hole screw fixed on the ground, the base 1 and the supporting rods are made of metal, and the inner surface of the circular pipe hanging clamp.

The working principle of the present invention is explained as follows: when the hoisting mechanical equipment for building construction is used, the equipment is firstly placed in a proper position, all parts are assembled, an external power supply is switched on, hoisting is started, the operation of the hoisting equipment is controlled through external control, the operation of the motor 9 drives the rope drum 10 and the steel rope 7 to rotate, the steel rope 7 is driven to be wound and unwound, an article to be hoisted is hung at the position of the hook 8, the article is fixed and hoisted, when a round pipe or a steel pipe needs to be hoisted, the round pipe hanging tongs 11 is installed at the position of the hook 8 to be fixed, the hoisting is started after the installation is finished, the round pipe is placed inside two clamp plates of the round pipe hanging tongs when the hoisting mechanical equipment is used, the height is slowly raised, the clamp plates are pulled down by the gravity, the two clamp hooks hold the round pipe to be raised, the powerful magnetic blocks h can absorb each other in the raising process and are raised to a proper, the circular pipe can be taken out to finish the hoisting, the bolt g is arranged at the top of the circular pipe hanging clamp 11, the threaded hole is arranged at the bottom of the hook, when the circular pipe needs to be hoisted in use, the bolt is screwed into the threaded hole to fix the hanging clamp at the lower part of the hook 8, the circular pipe hanging clamp 11 is fixed on the hook 8, the lower part of the hanging clamp is provided with the positive and negative strong magnetic blocks, when the circular pipe hanging clamp is used, the circular pipe is placed into the two clamp plates of the circular pipe hanging clamp, the height is slowly raised, the two clamp hooks hold the circular pipe to rise, the hoisting is finished, the circular pipe hanging clamp 11 is installed when the circular pipe needs to be hoisted, the circular pipe hanging clamp is detached when not needed, the operation is simple, the problem that the circular pipe and the steel pipe cannot be directly hoisted is solved, the circular pipe and the steel pipe cannot be directly hoisted firstly, pipe hanging tong 11 can be adjusted according to the pipe size of hoist and mount automatically, does not need manual regulation, reduces the time of hoist and mount, and two magnetic path attract each other of the in-process that rises prevent that hoist and mount in-process hanging tong from opening the pipe suddenly and dropping and accident.

The technical features of the embodiments described above may be arbitrarily combined, and for the sake of brevity, all possible combinations of the technical features in the embodiments described above are not described, but should be considered as being within the scope of the present specification as long as there is no contradiction between the combinations of the technical features.

The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims

1. A lifting machinery and equipment for building construction, characterized in that: its structure comprises a base (1), a first support rod (2), a second support rod (3), a connecting block (4), a third support rod (5), handle (6), steel rope (7), hook (8), motor (9), rope drum (10), round pipe tongs (11), baffle plate (12), the first The rod (2) is arranged on the upper part of the base (1), the first support rod (2) is welded and connected to the base (1), the second support rod (3) is arranged on the upper part of the base (1), and the second support rod (2) is connected to the base (1). The rod (3) is welded to the base (1) and the first support rod (2), the connecting block (4) connects the first support rod (2) and the third support rod (5), and the third support rod (5) ) is rotatable, the handle (6) is arranged outside the third support rod (5), the steel wire (7) is connected to the third support rod (5) and the hook (8), and the hook (8) is fixed on the Outside the steel rope (7), the motor (9) is arranged on the upper part of the base (1), the rope drum (10) is arranged on the upper part of the base (1), and the motor (9) is connected to the rope drum (10) to control the steel The rope (7) is retractable, the round pipe tongs (11) are connected to the hook (8), the baffle plate (12) is connected to the hook (8), and the bottom of the hook (8) is provided with a threaded hole.

2. A kind of lifting machinery and equipment for building construction according to claim 1, characterized in that: the round pipe tongs (11) are composed of a connecting hole (a), a first tongs plate (b), a second tongs The tongs plate (c), the third tongs plate (d), the first tongs hook (e), the second tongs hook (f), the bolts (g), and the strong magnetic block (h) are composed. The hole (a) is arranged on the upper part of the round pipe tongs (11), and the first tongs plate (b) is connected to the second tongs plate (c), the third tongs plate (d) and the first tongs hook ( e), the second tongs hook (f) is connected to the second tongs plate (c), the third tongs plate (d) and the first tongs hook (e), the bolts (g) are arranged in the circle On the top of the pipe hanger (11), the bolts (g) are welded to connect the round pipe hanger (11), and the strong magnetic block (h) is provided with two pieces, which are divided into N pole and S pole.

3 . The hoisting mechanical equipment for building construction according to claim 1 , wherein the second support rod ( 3 ) is provided with two structures with the same size and connection method. 4 .

4 . The hoisting mechanical equipment for building construction according to claim 1 , wherein the handle ( 6 ) is provided with anti-skid lines on the surface. 5 .

5 . The lifting mechanical equipment for building construction according to claim 1 , wherein the base ( 1 ) is provided with fixing holes and screws to be fixed on the ground. 6 .
