CN212447238U

CN212447238U - A transport device for agricultural machinery

Info

Publication number: CN212447238U
Application number: CN202020260909.1U
Authority: CN
Inventors: 颜强
Original assignee: Individual
Current assignee: Qinghai Anxiu Biotechnology Group Co ltd
Priority date: 2020-03-05
Filing date: 2020-03-05
Publication date: 2021-02-02
Anticipated expiration: 2030-03-05

Abstract

The utility model discloses a transfer device for agricultural machinery, which comprises a carriage, a traction assembly is arranged on the inner wall of the bottom of the carriage, the traction assembly comprises two fixing plates, and one side outer wall of one of the fixing plates is fixedly connected with a support plate, the top outer wall of the support plate is fixedly connected with a motor, and the output shaft of the motor is fixed with a rotating shaft through a coupling, and the other end of the rotating shaft is connected to one side of the outer wall of another fixed plate through a bearing, the outer wall of the rotating shaft, etc. A traction rope loop is fixedly connected at a distance, an outer wall of one side of the compartment is connected with a compartment door through a hinge, and both ends of the top outer wall of the compartment door are fixedly connected with a chute. The utility model is provided with a traction assembly, when the agricultural machinery is transported, the machinery is moved to the top of the transfer plate, and the machinery is moved through the traction assembly, thereby reducing labor input, saving cost input, and improving the practical value of the transfer device.

Description

Transfer device for agricultural machine

Technical Field

The utility model relates to an agricultural production technical field especially relates to a transfer device for agricultural machine.

Background

Agricultural production refers to the production activities of planting crops; including the production of crops such as grains, cotton, oil, hemp, silk, tea, sugar, vegetables, tobacco, fruits, medicines, miscellaneous (other commercial crops, green manure crops, feed crops and other crops); in the agricultural production process, a plurality of large machines are needed, and the machines need to use a transfer device during transfer.

The existing transfer device for agricultural machinery has the following defects: when carrying out mechanical transportation, because machinery for the agricultural production all is that the size is comparatively huge, the labour that the manual work consumed on carrying the transport carriage with machinery is huge to need drop into a large amount of labours when leading to agricultural machine to transport, reduce this transfer device's practicality.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the defects existing in the prior art and providing a transfer device for agricultural machinery.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

the utility model provides a transfer device for agricultural machine, includes the carriage, the bottom inner wall in carriage is equipped with pulls the subassembly, it includes two fixed plates to pull the subassembly, and one side outer wall fixedly connected with backup pad of one of them fixed plate, the top outer wall fixedly connected with motor of backup pad, and the output shaft of motor is fixed with the pivot through the shaft coupling, and the other end of pivot passes through the bearing and connects in one side outer wall of another fixed plate, the outer wall equidistance fixedly connected with of pivot pulls the becket bridle.

Furthermore, the outer wall of one side of the carriage is connected with a carriage door through a hinge, and two sliding grooves are fixedly connected to two ends of the outer wall of the top of the carriage door.

Further, two the equal sliding connection of inner wall of spout has the slider, and the same transport board of top outer wall fixedly connected with of two sliders.

Further, the outer wall of one side of the transfer plate is fixedly connected with connecting blocks at equal intervals, and the other ends of the connecting blocks are fixedly connected with traction rings.

Further, the bottom outer wall fixedly connected with support frame in carriage, and the top outer wall fixedly connected with two pneumatic cylinders of support frame, two pneumatic cylinders are connected with synchronous hydraulic system.

Further, the transportation plate is close to the top outer wall fixedly connected with baffle of bottom.

Furthermore, the top outer wall of the baffle is fixedly connected with buffer springs at equal intervals, and the other ends of the buffer springs are fixedly connected with the same buffer plate.

The utility model has the advantages that:

1. through being provided with the traction assembly, when carrying out agricultural machine and transporting, move machinery to transporting the board top, carry out the removal of machinery through the traction assembly, reduce the labour and drop into, practice thrift the cost and drop into, improve this transfer device's practical value.

2. Through being provided with spout and slider, the transportation board passes through slider sliding connection in the inner wall of spout, and when carrying out mechanical movement, the slider slides at the inner wall of spout, reduces the frictional resistance that the transportation board removed the in-process, improves the translation rate.

3. Through being provided with pneumatic cylinder and support frame, when carrying out mechanical movement, through the pneumatic cylinder with railway carriage or compartment door jack-up to make railway carriage or compartment door and carriage be located same horizontal plane, reduce the degree of difficulty that pulls of pulling the subassembly.

4. Through being provided with buffer board and buffer spring, on the buffer board was fixed in the baffle through buffer spring, when carrying out mechanical transport, if haulage rope and traction ring on the subassembly drop, buffer board and buffer spring on the baffle reduce the gliding cushion of machinery, when the protection machinery, avoid the emergence of incident.

Drawings

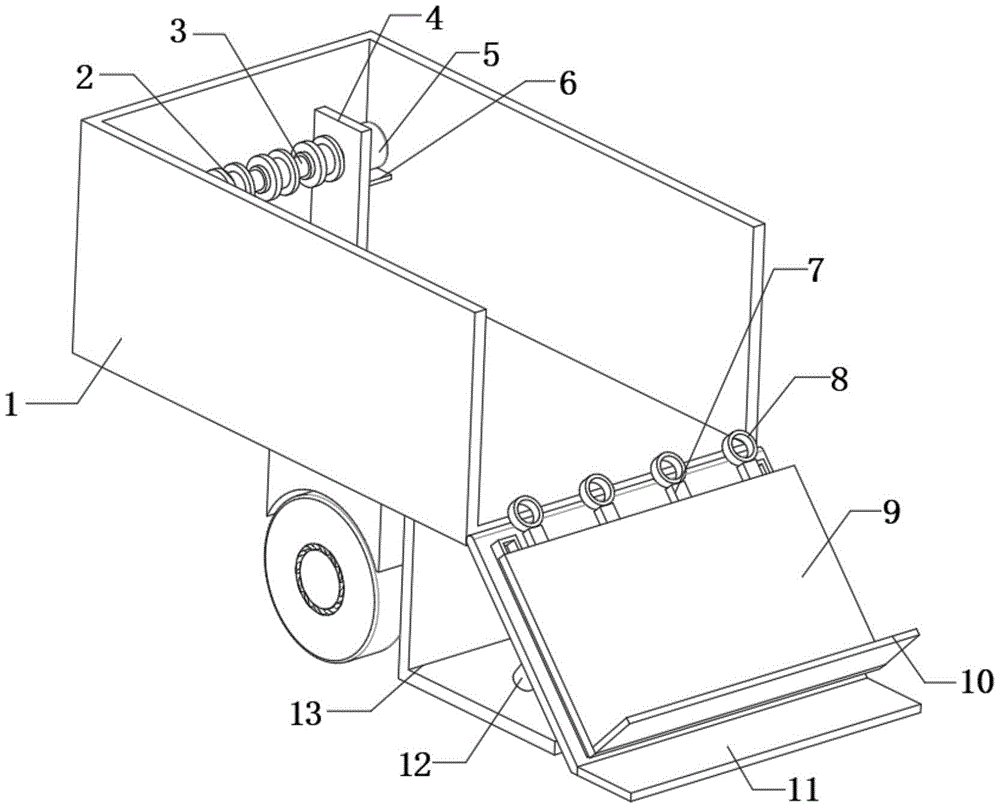

Fig. 1 is a schematic structural view of a transfer device for agricultural machinery according to the present invention;

fig. 2 is a structural side view of a transfer device for agricultural machinery according to the present invention;

fig. 3 is the utility model provides a transfer device for agricultural machine's baffle structure sketch map.

In the figure: 1-carriage, 2-traction rope ring, 3-rotating shaft, 4-fixing plate, 5-motor, 6-supporting plate, 7-connecting block, 8-traction ring, 9-transfer plate, 10-baffle, 11-carriage door, 12-hydraulic cylinder, 13-supporting frame, 14-sliding groove, 15-sliding block, 16-buffer plate and 17-buffer spring.

Detailed Description

The technical solution of the present patent will be described in further detail with reference to the following embodiments.

Reference will now be made in detail to embodiments of the present patent, examples of which are illustrated in the accompanying drawings, wherein like or similar reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the drawings are exemplary only for the purpose of explaining the present patent and are not to be construed as limiting the present patent.

In the description of this patent, it is to be understood that the terms "center," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientations and positional relationships indicated in the drawings for the convenience of describing the patent and for the simplicity of description, and are not intended to indicate or imply that the referenced devices or elements must have a particular orientation, be constructed and operated in a particular orientation, and are not to be considered limiting of the patent.

In the description of this patent, it is noted that unless otherwise specifically stated or limited, the terms "mounted," "connected," and "disposed" are to be construed broadly and can include, for example, fixedly connected, disposed, detachably connected, disposed, or integrally connected and disposed. The specific meaning of the above terms in this patent may be understood by those of ordinary skill in the art as appropriate.

Example 1

Referring to fig. 1-2, a transfer device for agricultural machine, including carriage 1, the bottom inner wall in carriage 1 is equipped with pulls the subassembly, it includes two fixed plates 4 to pull the subassembly, and one side outer wall fixedly connected with backup pad 6 of one of them fixed plate 4, the top outer wall fixedly connected with motor 5 of backup pad 6, and motor 5's output shaft is fixed with pivot 3 through the shaft coupling, the other end of pivot 3 passes through the bearing and connects in one side outer wall of another fixed plate 4, outer wall equidistance fixedly connected with of pivot 3 pulls becket bridle 2, through being provided with and pulling the subassembly, when carrying out agricultural machine and transporting, remove machinery to the transfer board 9 top, carry out mechanical removal through pulling the subassembly, reduce the labour input, practice thrift the cost input, improve this transfer device's practical value.

Wherein, there is carriage door 11 on one side outer wall of carriage 1 through hinge connection, and the equal fixedly connected with spout 14 in top outer wall both ends of carriage door 11.

Wherein, the equal sliding connection of inner wall of two spouts 14 has slider 15, and the same transport plate 9 of top outer wall fixedly connected with of two slider 15.

Wherein, the outer wall equidistance fixedly connected with connecting block 7 of one side of transport board 9, and the equal fixedly connected with traction ring 8 of the other end of a plurality of connecting blocks 7.

Wherein, the bottom outer wall fixedly connected with support frame 13 of carriage 1, and two pneumatic cylinders 12 of the top outer wall fixedly connected with of support frame 13, two pneumatic cylinders 12 are connected with synchronous hydraulic system.

Wherein, the outer wall fixedly connected with baffle 10 of top that the transportation board 9 is close to the bottom.

The working principle is as follows: during the use, open railway carriage or compartment door 11, make railway carriage or compartment door 11 and ground contact, then will transport board 9 and slide to the below, the staff moves machinery to transporting board 9 top, then will pull rope winding on the becket bridle 2 and connect on traction ring 8, then adjust pneumatic cylinder 12, pneumatic cylinder 12 is with railway carriage or compartment door 11 lifting, make railway carriage or

compartment door

11 and 1 parallel and level in carriage, then starter motor 5, motor 5 drives traction ring bridle 2 through pivot 3 and rotates, thereby it slides at the inner wall of spout 14 to drive slider 15 of transport board 9 below, it moves to carriage 1 inside to drive transport board 9, accomplish mechanical transport, and is convenient and efficient, the reduction labour drops into.

Example 2

Referring to fig. 1-3, compared with embodiment 1, the transfer device for the agricultural machine is characterized in that buffer springs 17 are fixedly connected to the outer wall of the top of a baffle 10 at equal intervals, and the other ends of the buffer springs 17 are fixedly connected with the same buffer plate 16, so that when the machine is transported, if a traction rope on a traction assembly falls off from a traction ring 8, the buffer plate 16 and the buffer springs 17 on the baffle 10 reduce the buffering force of the machine sliding, and the occurrence of safety accidents is avoided while the machine is protected.

The working principle is as follows: when the device is used, the compartment door 11 is opened to enable the compartment door 11 to be in contact with the ground, then the transfer plate 9 slides to the lowest position, a worker moves a machine to the position above the transfer plate 9, then a traction rope on the traction rope ring 2 is wound on the traction ring 8, then the hydraulic cylinder 12 is adjusted to lift the compartment door 11 through the hydraulic cylinder 12, the compartment door 11 is enabled to be flush with the compartment 1, then the motor 5 is started, the motor 5 drives the traction rope ring 2 to rotate through the rotating shaft 3, so that the sliding block 15 below the transfer plate 9 is driven to slide on the inner wall of the sliding groove 14, the transfer plate 9 is driven to move towards the inside of the compartment 1, the mechanical carrying is completed, the device is convenient and efficient, the labor input is reduced, if the traction rope and the traction ring 8 fall off in the moving process of the transfer plate 9, the machine impacts on the buffer plate 16, the buffer spring 17 reduces the impact force of the machine, the machine, the safety performance of the transfer device is improved.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. A transfer device for agricultural machinery, comprising a carriage (1), characterized in that a traction assembly is provided on the bottom inner wall of the carriage (1), the traction assembly comprises two fixing plates (4), and one of them A support plate (6) is fixedly connected to one side outer wall of the fixing plate (4), a motor (5) is fixedly connected to the top outer wall of the support plate (6), and an output shaft of the motor (5) is fixed with a coupling through a coupling. A rotating shaft (3), the other end of the rotating shaft (3) is connected to an outer wall of one side of another fixing plate (4) through a bearing, and a traction rope loop (2) is fixedly connected to the outer wall of the rotating shaft (3) at an equal distance.

2. A transfer device for agricultural machinery according to claim 1, characterized in that a door (11) is connected to one side of the outer wall of the carriage (1) through a hinge, and the top of the door (11) is connected with a door (11). Both ends of the outer wall are fixedly connected with chute (14).

3. A transport device for agricultural machinery according to claim 2, characterized in that the inner walls of the two chutes (14) are slidably connected with sliders (15), and the two sliders (15) The same transfer plate (9) is fixedly connected to the top outer wall of the .

4. A transfer device for agricultural machinery according to claim 3, characterized in that, one side outer wall of the transfer plate (9) is fixedly connected with a connecting block (7) at equal distances, and a plurality of connecting blocks (7) ) are fixedly connected with traction rings (8).

5. A transfer device for agricultural machinery according to claim 4, characterized in that a support frame (13) is fixedly connected to the bottom outer wall of the carriage (1), and a top outer wall of the support frame (13) is fixedly connected There are two hydraulic cylinders (12), and the two hydraulic cylinders (12) are connected with a synchronous hydraulic system.

6 . The transfer device for agricultural machinery according to claim 5 , wherein a baffle plate ( 10 ) is fixedly connected to the top outer wall of the transfer plate ( 9 ) near the bottom end. 7 .

7. A transport device for agricultural machinery according to claim 6, characterized in that buffer springs (17) are fixedly connected to the top outer wall of the baffle plate (10) at equal distances, and a plurality of buffer springs (17) The other end is fixedly connected with the same buffer plate (16).
