Abstract
本实用新型公开了一种机床钣金罩壳，包括机床底座、钣金罩壳本体、玻璃、矩形杆、矩形门、滑槽、滑板、丝杠、滑块、电机、磁铁、刮板、铁块、清洗喷头、矩形腔、水泵和清洗液箱。本实用新型设计合理，通过维修结构，使滑板移动到滑槽的另一侧，将电器维护口外漏，便于电器件的快速维修和保养，达到可调节位置的效果，便于机床的使用，通过观察结构，清洗液箱将随着磁铁的运动向下运动，将清洗液和玻璃上的附着的物质刮下，使玻璃的一侧壁保持洁净，防止液体和切削等物质附着在玻璃上，阻碍视线，便于对机床的工作进行实时观察，增强了实用性。
The utility model discloses a sheet metal cover of a machine tool, which comprises a machine tool base, a sheet metal cover body, glass, a rectangular rod, a rectangular door, a chute, a sliding plate, a lead screw, a sliding block, a motor, a magnet, a scraper, an iron block, cleaning nozzle, rectangular cavity, water pump and cleaning fluid tank. The utility model has a reasonable design. Through the maintenance structure, the sliding plate is moved to the other side of the chute, and the electrical maintenance port is leaked out, which is convenient for the quick repair and maintenance of the electrical components, achieves the effect of adjustable position, and is convenient for the use of the machine tool. Structure, the cleaning liquid tank will move downward with the movement of the magnet, scraping off the cleaning liquid and the adhering substances on the glass, so that one side wall of the glass is kept clean, preventing liquid and cutting substances from adhering to the glass and obstructing the line of sight. , which is convenient for real-time observation of the work of the machine tool and enhances the practicability.
Description
Technical Field
The utility model relates to a machine tool housing specifically is a machine tool panel beating housing belongs to the lathe and uses technical field.
Background
Machine tools are machines for manufacturing machines, also called machine tools or machine tools, which are conventionally referred to as machine tools for short. Generally, the machining method is divided into a metal cutting machine, a forging machine, a woodworking machine and the like. The methods for machining machine parts in modern machine manufacturing are numerous: in addition to cutting, casting, forging, welding, pressing, extruding, etc., however, in general, a part requiring high precision and fine surface roughness is finished by cutting on a machine tool. The machine tool plays an important role in the construction of national economy modernization.
In the lathe use, outside in order to prevent that smear metal and coolant liquid from scattering out of the lathe when the lathe is processing the work piece, will be provided with lathe panel beating housing, but traditional lathe panel beating housing adopts the bolt to fix the baffle, when the electrical part on the lathe is maintained to needs, need lift the baffle off, the process is loaded down with trivial details, has reduced the efficiency of its maintenance, and material such as liquid and cutting can be attached to on glass simultaneously, leads to hindering the sight, is not convenient for carry out real-time observation to the work of lathe. Therefore, a machine tool sheet metal cover is provided for solving the problems.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a lathe panel beating housing in order to solve above-mentioned problem.
The utility model discloses a following technical scheme realizes above-mentioned purpose, a lathe panel beating housing, including lathe base, maintenance structure and observation structure, install the panel beating housing body on the lathe base, install two rectangle doors through the hinge on the panel beating housing body, set up glass on the rectangle door;
the maintenance structure includes: the metal plate encloser comprises a sliding chute, a sliding plate and a screw rod, wherein the sliding chute is formed in one side wall of a metal plate encloser body, the sliding plate is installed in the sliding chute, sliding blocks are installed at the top and the bottom of the sliding plate, the inner side wall of each sliding block is in threaded connection with the annular surface of the screw rod, and one end of the screw rod is fixedly connected with a shaft lever on a motor;
the observation structure includes: rectangle pole, scraper blade and cleaning solution case, be provided with magnet on the rectangle pole, just the rectangle pole pastes and leans on glass's lateral wall, it has the scraper blade to paste to lean on glass's the inside wall, be provided with the iron plate on the scraper blade, just a lateral wall of scraper blade and a lateral wall fixed connection of cleaning solution case, the inner chamber of cleaning solution case passes through the pipe and is connected with the water inlet of water pump, the delivery port of water pump passes through the pipe and is connected with the rectangle chamber, the rectangle chamber passes through the pipe and is connected with a plurality of washing shower nozzle.
Preferably, an electrical apparatus maintenance opening is formed in one side wall of the sheet metal housing body, and the electrical apparatus maintenance opening is located on the inner side of the sliding plate.
Preferably, the motor is installed in a circular cavity through a bolt, and the circular cavity is formed in the sheet metal housing body.
Preferably, the water pump passes through wire and battery electric connection, and water pump and battery are all installed on the cleaning solution case, and are provided with on the cleaning solution case and annotate the liquid mouth.
Preferably, the cleaning spray heads are located at the lower end of the scraper and are arranged on one side wall of the cleaning liquid box.
Preferably, the rectangular door is provided with an observation port, and glass is arranged in the observation port.
The utility model provides a lathe panel beating is observation structure for housing, includes: rectangle pole, scraper blade and cleaning solution case, be provided with magnet on the rectangle pole, just the rectangle pole pastes and leans on glass's lateral wall, it has the scraper blade to paste to lean on glass's the inside wall, be provided with the iron plate on the scraper blade, just a lateral wall of scraper blade and a lateral wall fixed connection of cleaning solution case, the inner chamber of cleaning solution case passes through the pipe and is connected with the water inlet of water pump, the delivery port of water pump passes through the pipe and is connected with the rectangle chamber, the rectangle chamber passes through the pipe and is connected with a plurality of washing shower nozzle.
The utility model has the advantages that:
1. this kind of lathe panel beating housing convenient to adjusting position reasonable in design through the maintenance structure, makes the slide remove the opposite side of spout, maintains the mouth with electrical apparatus and leaks outward, and the quick maintenance and the maintenance of the electrical part of being convenient for reach adjustable position's effect, the use of the lathe of being convenient for.
2. This kind of lathe panel beating housing convenient to adjusting position reasonable in design, through observing the structure, the cleaning solution case will be along with the motion downstream of magnet, scrapes the adnexed material on washing liquid and the glass, makes a lateral wall of glass keep clean, prevents that materials such as liquid and cutting from attaching to on glass, hinders the sight, is convenient for carry out real-time observation to the work of lathe, has strengthened the practicality.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings needed to be used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to the drawings without inventive exercise.

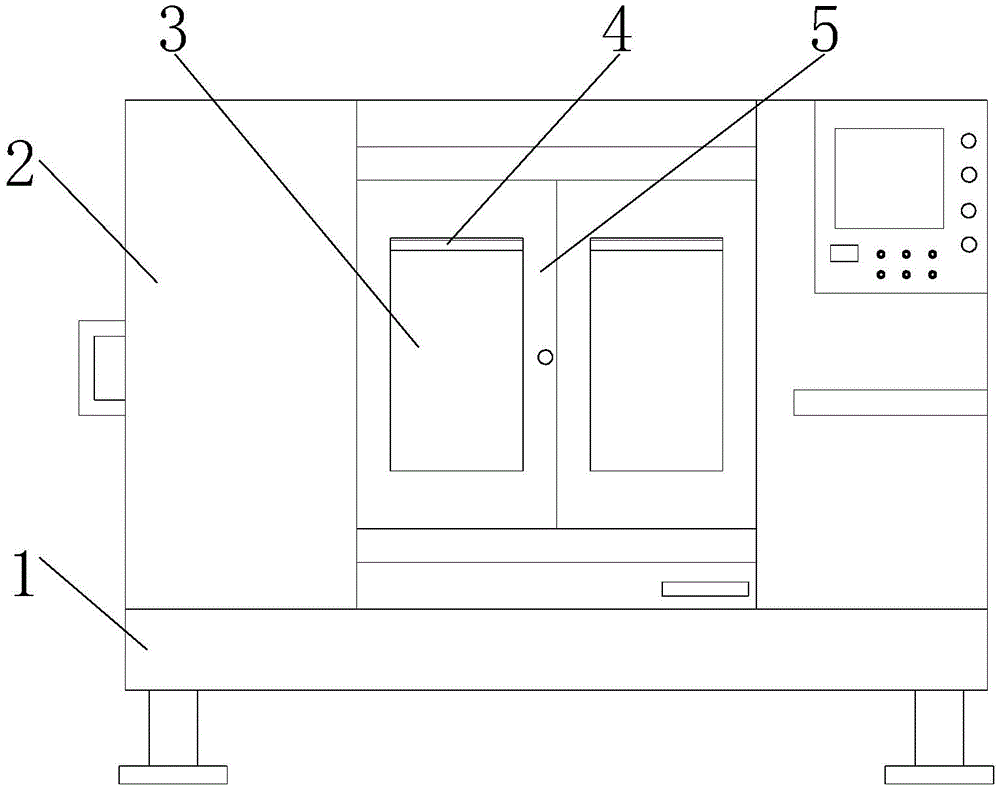

FIG. 1 is a schematic view of the connection structure of the machine tool base and the sheet metal housing body of the present invention;
FIG. 2 is a schematic view of the connection structure of the lead screw and the slide block of the present invention;
FIG. 3 is a schematic view of the connection structure of the rectangular door and the glass of the present invention;
fig. 4 is an enlarged schematic view of a portion of the structure of fig. 3 according to the present invention.
In the figure: 1. machine tool base, 2, panel beating housing body, 3, glass, 4, rectangle pole, 5, rectangle door, 6, spout, 7, slide, 8, lead screw, 9, slider, 10, motor, 11, magnet, 12, scraper blade, 13, iron plate, 14, washing shower nozzle, 15, rectangle chamber, 16, water pump, 17, washing liquid case.
Detailed Description
In order to make the objects, features and advantages of the present invention more obvious and understandable, the drawings in the embodiments of the present invention are combined below to clearly and completely describe the technical solutions in the embodiments of the present invention, and obviously, the embodiments described below are only some embodiments of the present invention, but not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts belong to the protection scope of the present invention.
The technical solution of the present invention is further explained by the following embodiments with reference to the accompanying drawings.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on those shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the present invention.
Example one
Referring to fig. 1-4, a sheet metal housing for a machine tool includes: the machine tool comprises a machine tool base 1, a maintenance structure and an observation structure, wherein a sheet metal housing body 2 is arranged on the machine tool base 1, two rectangular doors 5 are arranged on the sheet metal housing body 2 through hinges, and glass 3 is arranged on the rectangular doors 5;
the maintenance structure includes: the sheet metal housing comprises a chute 6, a sliding plate 7 and a screw rod 8, wherein the chute 6 is formed in one side wall of the sheet metal housing body 2, the sliding plate 7 is installed in the chute 6, sliding blocks 9 are installed at the top and the bottom of the sliding plate 7, the inner side wall of each sliding block 9 is in threaded connection with the screw rod 8, and one end of the screw rod 8 is fixedly connected with a shaft rod on a motor 10, so that the effect of convenience in adjustment is achieved;
the observation structure includes: rectangle pole 4, scraper blade 12 and cleaning solution case 17, be provided with magnet 11 on the rectangle pole 4, just rectangle pole 4 pastes and leans on glass 3's lateral wall, it has scraper blade 12 to paste on glass 3's the inside wall, be provided with iron plate 13 on the scraper blade 12, just a lateral wall of scraper blade 12 and a lateral wall fixed connection of cleaning solution case 17, the inner chamber of cleaning solution case 17 passes through the pipe and is connected with the water inlet of water pump 16, the delivery port of water pump 16 passes through the pipe and is connected with rectangular cavity 15, rectangular cavity 15 passes through the pipe and is connected with a plurality of washing shower nozzle 14, reaches the effect of being convenient for observe.
An electrical appliance maintenance port is formed in one side wall of the sheet metal housing body 2 and is located on the inner side of the sliding plate 7, so that electrical maintenance is facilitated; the motor 10 is arranged in a circular cavity through a bolt, and the circular cavity is formed in the sheet metal housing body 2, so that the space is reasonably utilized; the water pump 16 is electrically connected with the storage battery through a lead, the water pump 16 and the storage battery are both arranged on the cleaning liquid tank 17, and a liquid injection port is formed in the cleaning liquid tank 17, so that cleaning liquid can be conveniently injected; the cleaning spray heads 14 are all positioned at the lower end of the scraper 12, and the cleaning spray heads 14 are all arranged on one side wall of the cleaning liquid box 17, so that the glass 3 can be cleaned conveniently; the rectangular door 5 is provided with an observation port, and the observation port is internally provided with glass 3, so that the space is reasonably utilized.
When the utility model is used, firstly, all the electrical components in the device are externally connected with a control switch and a power supply, the sheet metal housing body 2 is arranged on the base 1 of the machine tool, when the electrical components on the machine tool need to be maintained, the motor 10 is started, and because the annular surface of the lead screw 8 is in threaded connection with the inner side wall of the slider 9, the slide plate 7 is moved to the other side of the chute 6, the maintenance port of the electrical components is leaked, the rapid maintenance and the maintenance of the electrical components are convenient, the effect of adjusting the position is achieved, and the use of the machine tool is convenient;
the cleaning liquid in the cleaning liquid tank 17 is conducted to the cleaning spray head 14 through the water pump 16 and then sprayed to one side wall of the glass 3 to clean and wet one side wall of the glass 3, the cleaning spray head 14 is located at the lower end of the scraper 12, the scraper 12 is provided with the iron block 13, the iron block 13 is attracted with the magnet 11, the magnet 11 is located on the rectangular rod 4, the rectangular rod 4 is located on the other side wall of the glass 3 to move the rectangular rod 4 downwards, the cleaning liquid tank 17 moves downwards along with the movement of the magnet 11 to scrape the cleaning liquid and attached substances on the glass 3, so that one side wall of the glass 3 is kept clean, and the real-time observation of the work of a machine tool is facilitated.
The motor 10 is a 35-series screw shaft motor provided by a Guangdong Kaihong motor source manufacturer, and a matched power circuit of the motor is provided by the manufacturer.
The water pump 16 is a PYP310 water pump provided by the platacademy of subfamily official flagship store, and a matching power supply circuit thereof is provided by a manufacturer.
Example two
The embodiment discloses an observation structure for a machine tool metal plate cover,
the method comprises the following steps: rectangle pole 4, scraper blade 12 and cleaning solution case 17, be provided with magnet 11 on the rectangle pole 4, just rectangle pole 4 pastes and leans on the lateral wall at glass 3, paste and lean on scraper blade 12 on glass 3's the inside wall, be provided with iron plate 13 on the scraper blade 12, just a lateral wall of scraper blade 12 and a lateral wall fixed connection of cleaning solution case 17, the inner chamber of cleaning solution case 17 passes through the pipe and is connected with the water inlet of water pump 16, the delivery port of water pump 16 passes through the pipe and is connected with rectangular cavity 15, rectangular cavity 15 passes through the pipe and is connected with a plurality of washing shower nozzle 14.
The cleaning liquid in the cleaning liquid tank 17 is conducted to the cleaning spray head 14 through the water pump 16 and then sprayed to one side wall of the glass 3 to clean and wet one side wall of the glass 3, the cleaning spray head 14 is located at the lower end of the scraper 12, the scraper 12 is provided with the iron block 13, the iron block 13 is attracted with the magnet 11, the magnet 11 is located on the rectangular rod 4, the rectangular rod 4 is located on the other side wall of the glass 3 to move the rectangular rod 4 downwards, the cleaning liquid tank 17 moves downwards along with the movement of the magnet 11 to scrape the cleaning liquid and attached substances on the glass 3, so that one side wall of the glass 3 is kept clean, and the real-time observation of the work of a machine tool is facilitated.
It is well within the skill of those in the art to implement and protect the present invention without undue experimentation and without undue experimentation that the present invention is directed to software and process improvements.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
The above embodiments are only used to illustrate the technical solution of the present invention, and not to limit the same; although the present invention has been described in detail with reference to the foregoing embodiments, it should be understood by those skilled in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some technical features may be equivalently replaced; such modifications and substitutions do not depart from the spirit and scope of the present invention in its corresponding aspects.
Claims (6)
1. The utility model provides a lathe panel beating housing which characterized in that: the machine tool comprises a machine tool base (1), a maintenance structure and an observation structure, wherein a sheet metal housing body (2) is arranged on the machine tool base (1), two rectangular doors (5) are arranged on the sheet metal housing body (2) through hinges, and glass (3) is arranged on the rectangular doors (5);
the maintenance structure includes: the metal plate encloser comprises a sliding chute (6), a sliding plate (7) and a lead screw (8), wherein the sliding chute (6) is formed in one side wall of the metal plate encloser body (2), the sliding plate (7) is installed in the sliding chute (6), sliding blocks (9) are installed at the top and the bottom of the sliding plate (7), the inner side wall of each sliding block (9) is in threaded connection with the lead screw (8), and one end of the lead screw (8) is fixedly connected with a shaft lever on a motor (10);
the observation structure includes: rectangle pole (4), scraper blade (12) and cleaning solution case (17), be provided with magnet (11) on rectangle pole (4), just rectangle pole (4) paste and lean on the lateral wall of glass (3), paste on the inside wall of glass (3) and lean on scraper blade (12), be provided with iron plate (13) on scraper blade (12), just a lateral wall of scraper blade (12) and a lateral wall fixed connection of cleaning solution case (17), the inner chamber of cleaning solution case (17) passes through the pipe and is connected with the water inlet of water pump (16), the delivery port of water pump (16) passes through the pipe and is connected with rectangle chamber (15), rectangle chamber (15) are connected with a plurality of washing shower nozzle (14) through the pipe.
2. The machine tool sheet metal housing of claim 1, wherein: an electrical appliance maintenance opening is formed in one side wall of the sheet metal housing body (2), and the electrical appliance maintenance opening is located on the inner side of the sliding plate (7).
3. The machine tool sheet metal housing of claim 1, wherein: the motor (10) is installed in a circular cavity through bolts, and the circular cavity is formed in the sheet metal housing body (2).
4. The machine tool sheet metal housing of claim 1, wherein: the water pump (16) is electrically connected with the storage battery through a wire, the water pump (16) and the storage battery are both installed on the cleaning liquid box (17), and a liquid injection port is formed in the cleaning liquid box (17).
5. The machine tool sheet metal housing of claim 1, wherein: the cleaning spray heads (14) are all positioned at the lower end of the scraper (12), and the cleaning spray heads (14) are all arranged on one side wall of the cleaning liquid box (17).
6. The utility model provides a lathe panel beating housing is with observing structure which characterized in that includes: rectangle pole (4), scraper blade (12) and cleaning solution case (17), be provided with magnet (11) on rectangle pole (4), just rectangle pole (4) paste and lean on the lateral wall of glass (3), paste on the inside wall of glass (3) and lean on scraper blade (12), be provided with iron plate (13) on scraper blade (12), just a lateral wall of scraper blade (12) and a lateral wall fixed connection of cleaning solution case (17), the inner chamber of cleaning solution case (17) passes through the pipe and is connected with the water inlet of water pump (16), the delivery port of water pump (16) passes through the pipe and is connected with rectangle chamber (15), rectangle chamber (15) are connected with a plurality of washing shower nozzle (14) through the pipe.
