Abstract
一种太阳能电池板生产废弃壳体处理设备，包括底座，支柱的上端固接有输送箱，输送轴右侧连接有破碎机构，输送箱的上端固接有破碎箱，破碎箱的内壁左右对称固接有破碎板，转动轴的后端连接有驱动机构，转动轴上固接有破碎辊，底座上端设有收集机构；本实用新型结构设计合理，通过第一配合齿和第一破碎齿配合作用，对废弃壳体进行初步破碎，通过破碎机构带动第二配合齿左右往复快速运动，通过和第二破碎齿的配合对废弃壳体进行二次粉碎，破碎更加彻底，螺旋叶片带动破碎后的废弃壳体往左输送从出料口排出，可以避免堆积堵住出口或在装置内部无法排出，通过对废弃壳体的横向压缩和竖向压缩，对废弃壳体进一步的压缩处理，方便运输和后续处理。
A solar panel production waste shell processing equipment, including a base, a conveying box is fixedly connected to the upper end of the pillar, a crushing mechanism is connected to the right side of the conveying shaft, a crushing box is fixedly connected to the upper end of the conveying box, and the inner wall of the crushing box is fixed symmetrically on the left and right. A crushing plate is connected, a driving mechanism is connected to the rear end of the rotating shaft, a crushing roller is fixedly connected to the rotating shaft, and a collecting mechanism is arranged on the upper end of the base; , Preliminary crushing of the waste shell, through the crushing mechanism, the second matching teeth are driven to reciprocate quickly left and right, and the second crushing teeth are used for secondary crushing of the waste shell, the crushing is more thorough, and the screw blade drives the crushed waste. The shell is conveyed to the left and discharged from the discharge port, which can avoid accumulation blocking the outlet or unable to discharge inside the device. Through the horizontal and vertical compression of the waste shell, the waste shell is further compressed, which is convenient for transportation and follow-up. deal with.
Description
Technical Field
The utility model relates to a solar cell panel handles technical field, specifically is a solar cell panel production abandonment casing treatment facility.
Background
The solar cell panel is a device which directly or indirectly converts solar radiation energy into electric energy through a photoelectric effect or a photochemical effect by absorbing sunlight, and most of the solar cell panels are made of silicon, but the manufacturing cost is high, so that the universal use of the solar cell panel has certain limitation. Compared with common batteries and recyclable rechargeable batteries, the solar battery belongs to a green product with more energy conservation and environmental protection. Can produce some discarded casings in solar cell panel production process, the discarded casing that has produced now piles up, leads to taking up an area of the space big, subsequent depositing and transporting of being not convenient for, said needs carry out broken handle to the discarded casing.
But current broken sieving mechanism has certain weak point, to the broken in-process of discarded object, and often only the one-level is broken, and broken thoroughly inadequately, still has a large amount of not broken complete abandonment casings after the breakage, and is not enough good to abandonment casing treatment effect, still occupies great volume after the processing to the abandonment casing after smashing causes the jam of device row material process because of constantly piling up inside export or device easily.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a solar cell panel production abandonment casing treatment facility to solve the problem that appears in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
a solar cell panel production waste shell processing device comprises a base, wherein a pillar is fixedly connected to the upper end of the base, a conveying box is fixedly connected to the upper end of the pillar, a filter plate is mounted in the middle of the upper end of the conveying box, a discharge hole is formed in the left side of the lower end of the conveying box, a conveying shaft is rotatably connected to the inside of the conveying box, spiral blades are arranged on the conveying shaft, a first motor is fixedly connected to the outer wall of the right side of the conveying box, the output end of the first motor is fixedly connected to the right end of the conveying shaft, a crushing mechanism is connected to the right side of the conveying shaft, a crushing box is fixedly connected to the upper end of the conveying box, crushing plates are fixedly connected to the left and right sides of the inner wall of the crushing box symmetrically, a plurality of groups of first crushing teeth are fixedly connected to the inner wall of the crushing plate, the outside welding of broken roller has first cooperation tooth, the middle part both sides rigid coupling of broken case has the stock guide, and the left side the rigid coupling has the fixed plate between stock guide and the delivery box, fixed plate right side rigid coupling has the broken tooth of multiunit second, broken case upper end intercommunication has the feeder hopper, the base upper end is equipped with collection mechanism.
Preferably, the crushing mechanism comprises a first bevel gear fixedly connected to the right side of the conveying shaft, the first bevel gear is in meshing transmission with a second bevel gear, a curved rod is fixedly connected to the upper end of the second bevel gear, the upper end and the lower end of the curved rod are respectively rotatably connected to the lower end of the material guide plate and the upper end of the conveying box, a connecting rod is hinged to the middle of the curved rod, a moving rod is hinged to the left end of the connecting rod, and multiple groups of second matching teeth are fixedly connected to the left end of the moving rod.
Preferably, a solar cell panel production abandonment casing treatment facility, actuating mechanism includes the second motor, second motor rigid coupling in broken case rear side outer wall, second motor output rigid coupling has first spur gear, broken case and rigid coupling are stretched out to the rear end of axis of rotation have the second spur gear, the second spur gear meshes the transmission with first spur gear.
Preferably, the collecting mechanism comprises a collecting box, the collecting box is mounted at the upper end of the base, the left end and the upper end of the collecting box are fixedly connected with a first hydraulic cylinder and a second hydraulic cylinder respectively, the output ends of the first hydraulic cylinder and the second hydraulic cylinder extend out of the collecting box and are provided with a first pressing plate and a second pressing plate respectively, the upper end of the collecting box is communicated with a receiving hopper, and the right side wall of the collecting box is hinged with a sliding door.
Preferably, the solar cell panel production abandonment casing treatment facility, the right side the equal rigid coupling in upper end of the lower extreme of stock guide and delivery box has the slide rail, sliding connection has the slider on the slide rail, both sides the slider other end rigid coupling is in the lower extreme on the carriage release lever respectively.
Preferably, the equipment for processing the waste shells in the solar cell panel production process is characterized in that the second matching teeth and the second crushing teeth are arranged in a staggered mode.
The utility model has the advantages that:
1. the utility model has the advantages of reasonable design, start the second motor and rotate and drive first straight-tooth gear to drive second straight-tooth gear and axis of rotation and rotate, the axis of rotation drives crushing roller and first cooperation tooth and rotates, through first cooperation tooth and first broken tooth cooperation, carries out preliminary breakage to abandonment casing.
2. First motor rotates through carrying the axle, first bevel gear and second bevel gear cooperation, it rotates to drive the curved bar, thereby drive articulated connecting rod reciprocating motion about the articulated, thereby drive the reciprocal rapid motion about articulated carriage release lever of connecting rod other end and the second cooperation tooth, thereby carry out the regrinding to abandonment casing through the cooperation with the broken tooth of second, it is effectual to make broken through the recrushing, can pass the filter plate until the broken abandonment casing that reaches qualified requirement, the continuation that does not reach the requirement is broken, make broken more thoroughly, avoid handling the back and have the complete abandonment casing of breakage.
3. In the complete abandonment casing of breakage entered into the transport case through the filter plate, carried the axle to rotate and drive helical blade simultaneously, helical blade drives the abandonment casing after the breakage and carries from the discharge gate discharge left, can avoid the abandonment casing after smashing to pile up and plug up the export or can't effectively discharge in the device is inside.
4. First pneumatic cylinder drives first clamp plate and moves to the right and carries out horizontal compression to abandonment casing, compresses a position after, and the second pneumatic cylinder drives the second clamp plate and moves down and carry out vertical compression to abandonment casing, and the compression is effectual, and to the further compression processing of abandonment casing, the volume of abandonment casing reduces greatly to convenient transportation and subsequent processing.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used for describing the embodiments are briefly introduced below, and for those skilled in the art, other drawings can be obtained according to the drawings without creative efforts.

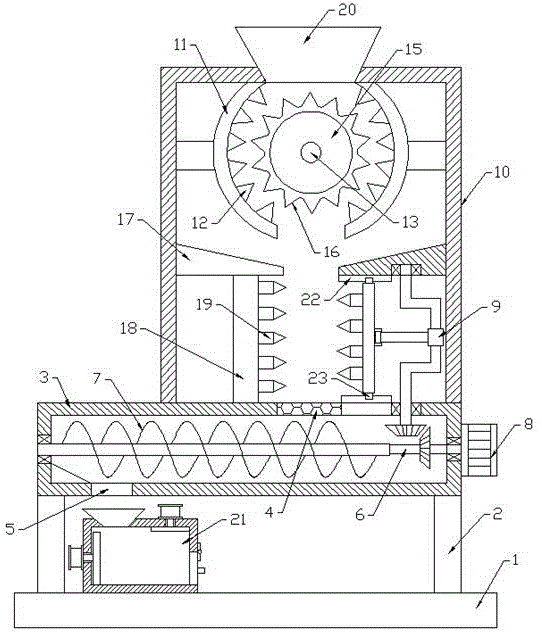

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic structural view of the crushing mechanism of the present invention;
fig. 3 is a schematic top view of the driving mechanism of the present invention;
FIG. 4 is a schematic view of the collecting mechanism of the present invention;
in the drawings, the components represented by the respective reference numerals are listed below:
1-base, 2-pillar, 3-conveying box, 4-filter plate, 5-discharge port, 6-conveying shaft, 7-helical blade, 8-first motor, 9-crushing mechanism, 901-first bevel gear, 902-second bevel gear, 903-curved bar, 904-connecting bar, 905-moving bar, 906-second matching tooth, 10-crushing box, 11-crushing plate, 12-first crushing tooth, 13-rotating shaft, 14-driving mechanism, 1402-second motor, 1402-first straight gear, 1403-second straight gear, 15-crushing roller, 16-first matching tooth, 17-guide plate, 18-fixing plate, 19-second crushing tooth, 20-feed hopper, 21-collecting mechanism, 2101-collection box, 2102-first hydraulic cylinder, 2103-second hydraulic cylinder, 2104-first press plate, 2105-second press plate, 2106-receiving hopper, 2107-sliding door, 22-sliding rail, 23-sliding block.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts belong to the protection scope of the present invention.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
Referring to fig. 1-4, the present embodiment is a solar cell panel production waste housing processing apparatus, which includes a base 1, a pillar 2 is fixedly connected to an upper end of the base 1, a conveying box 3 is fixedly connected to an upper end of the pillar 2, a filter plate 4 is installed at a middle portion of an upper end of the conveying box 3, a discharge port 5 is formed at a left side of a lower end of the conveying box 3, a conveying shaft 6 is rotatably connected to an inside of the conveying box 3, a spiral blade 7 is disposed on the conveying shaft 6, a first motor 8 is fixedly connected to an outer wall of a right side of the conveying box 3, an output end of the first motor 8 is fixedly connected to a right end of the conveying shaft 6, a crushing mechanism 9 is connected to a right side of the conveying shaft 6, a crushing box 10 is fixedly connected to an upper end of the conveying box 3, crushing plates 11 are fixedly connected to inner walls of the crushing box 10 in a bilateral symmetry manner, the rigid coupling has crushing roller 15 on the axis of rotation 13, and the outer welding of crushing roller 15 has first cooperation tooth 16, and the middle part both sides rigid coupling of broken case 10 has stock guide 17, and the rigid coupling has fixed plate 18 between left side stock guide 17 and the delivery box 3, and fixed plate 18 right side rigid coupling has the broken tooth 19 of multiunit second, and broken case 10 upper end intercommunication has feeder hopper 20, and the base 1 upper end is equipped with collection mechanism 21.
The crushing mechanism 9 comprises a first bevel gear 901, the first bevel gear 901 is fixedly connected to the right side of the conveying shaft 6, the first bevel gear 901 is in meshing transmission with a second bevel gear 902, a curved rod 903 is fixedly connected to the upper end of the second bevel gear 902, the upper end and the lower end of the curved rod 903 are respectively rotatably connected to the lower end of the material guide plate 17 and the upper end of the conveying box 3, a connecting rod 904 is hinged to the middle of the curved rod 903, a moving rod 905 is hinged to the left end of the connecting rod 904, a plurality of groups of second matching teeth 906 are fixedly connected to the left end of the moving rod 905, the first motor 8 is started to rotate to drive the conveying shaft 6 to rotate and the first bevel gear 901 to rotate, so that the second bevel gear 902 and the curved rod 903 are driven to rotate, the moving rod 905 hinged to the other end of the connecting rod 904 is driven to reciprocate leftwards and rightwards.
The driving mechanism 14 comprises a second motor 1401, the second motor 1401 is fixedly connected to the outer wall of the rear side of the crushing box 10, the output end of the second motor 1401 is fixedly connected with a first straight gear 1402, the rear end of the rotating shaft 13 extends out of the crushing box 10 and is fixedly connected with a second straight gear 1403, the second straight gear 1403 is meshed with the first straight gear 1402 for transmission, the second motor 1401 is started to rotate to drive the first straight gear 1402 to rotate, so that the second straight gear 1403 and the rotating shaft 13 are driven to rotate, the rotating shaft 13 drives the crushing roller 15 and the first matching teeth 16 to rotate, and the waste shell is preliminarily crushed through the matching effect of the first matching teeth 16 and the first crushing teeth 12.
The lower extreme of right side stock guide 17 and the upper end of delivery box 3 all the rigid coupling have slide rail 22, and sliding connection has slider 23 on slide rail 22, and the both sides slider 23 other end rigid coupling respectively in the upper and lower end of carriage release lever 905, curved bar 903 rotate can drive articulated connecting rod 904 through slider 23 along slide rail 22 reciprocating motion about, can make connecting rod 904 reciprocating motion's stability through slider 23 and slide rail 22's setting.
The second matching teeth 906 and the second crushing teeth 19 are arranged in a staggered mode, so that the waste shell can be crushed more thoroughly, and the crushing effect is good.
The utility model discloses a theory of operation does:
when the device is used, firstly, waste shells of solar panels are thrown into a crushing box 10 through a feed hopper 20, the waste shells enter between a crushing roller 15 and crushing plates 11 on two sides, meanwhile, a second motor 1401 is started to rotate to drive a first straight gear 1402 to rotate, so as to drive a second straight gear 1403 and a rotating shaft 13 to rotate, the rotating shaft 13 drives the crushing roller 15 and a first matching tooth 16 to rotate, the waste shells are primarily crushed through the matching action of the first matching tooth 16 and a first crushing tooth 12, the crushed waste enters between a second crushing tooth 19 and a second matching tooth 906 through a material guide plate 17, a conveying shaft 6 is driven to rotate through the rotation of a first motor 8, the conveying shaft 6 rotates to drive a first bevel gear 901 to rotate, so as to drive a second bevel gear 902 and a curved rod 903 to rotate, the curved rod 903 rotates to drive a hinged connecting rod 904 to reciprocate left and right along a slide rail 22 through a slide block 23, thereby drive connecting rod 904 other end articulated carriage release lever 905 reciprocating motion about, thereby drive second cooperation tooth 906 reciprocating motion about, thereby carry out the regrinding through the cooperation with the broken tooth 19 of second to abandonment casing, make broken effectual through the recrushion, the abandonment casing that reaches qualified requirement up to the breakage can pass filter plate 4, the continuation that does not reach the requirement is broken, make the breakage more thorough, it has not broken complete abandonment casing to avoid handling the back. During the complete abandonment casing of breakage entered into transport case 3 through filter plate 4, carried axle 6 to rotate and drive helical blade 7 simultaneously, helical blade 7 drives the abandonment casing after the breakage and carries from discharge gate 5 discharges toward left, can avoid the abandonment casing after smashing to pile up and block up the export or can't effectively discharge in the device is inside. From 5 exhaust abandonment casings of discharge gate can fall into and connect the hopper 2106 in the final collecting box 2101 that gets into, then start first pneumatic cylinder 2102 and drive first clamp plate 2104 and move to the right and carry out horizontal compression to abandonment casing, after compressing a certain position, start second pneumatic cylinder 2103 and drive second clamp plate 2105 and move down and carry out vertical compression to abandonment casing, it is effectual to compress, further compression treatment to abandonment casing, the volume of abandonment casing reduces greatly, thereby make things convenient for transportation and subsequent processing, the compression is accomplished the back staff accessible and is opened the rubbish after sliding door will compressing and take out subsequent processing.
The electrical components are externally connected with a power supply, and the control mode is common knowledge, so that the detailed description is omitted in the specification.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Although the present description is described in terms of embodiments, not every embodiment includes only a single embodiment, and such description is for clarity only, and those skilled in the art should be able to integrate the description as a whole, and the embodiments can be appropriately combined to form other embodiments as will be understood by those skilled in the art.
Claims (6)
1. The utility model provides a solar cell panel production abandonment casing treatment facility, includes base (1), its characterized in that: the upper end of the base (1) is fixedly connected with a strut (2), the upper end of the strut (2) is fixedly connected with a conveying box (3), the middle part of the upper end of the conveying box (3) is provided with a filter plate (4), the left side of the lower end of the conveying box (3) is provided with a discharge hole (5), the conveying box (3) is internally and rotatably connected with a conveying shaft (6), the conveying shaft (6) is provided with a helical blade (7), the outer wall of the right side of the conveying box (3) is fixedly connected with a first motor (8), the output end of the first motor (8) is fixedly connected with the right end of the conveying shaft (6), the right side of the conveying shaft (6) is connected with a crushing mechanism (9), the upper end of the conveying box (3) is fixedly connected with a crushing box (10), the left and right symmetrical inner wall of the crushing box (10) is fixedly connected with a crushing plate (11, inner wall rotates around broken case (10) and is connected with axis of rotation (13), the rear end of axis of rotation (13) is connected with actuating mechanism (14), the rigid coupling has crushing roller (15) on axis of rotation (13), the external welding of crushing roller (15) has first cooperation tooth (16), the middle part both sides rigid coupling of broken case (10) has stock guide (17), the left side the rigid coupling has fixed plate (18) between stock guide (17) and transport case (3), fixed plate (18) right side rigid coupling has broken tooth (19) of multiunit second, broken case (10) upper end intercommunication has feeder hopper (20), base (1) upper end is equipped with collection mechanism (21).
2. The solar panel production waste housing treatment apparatus of claim 1, wherein: the crushing mechanism (9) comprises a first bevel gear (901), the first bevel gear (901) is fixedly connected to the right side of the conveying shaft (6), the first bevel gear (901) is in meshing transmission with a second bevel gear (902), the upper end of the second bevel gear (902) is fixedly connected with a curved bar (903), the upper end and the lower end of the curved bar (903) are respectively and rotatably connected to the lower end of the material guide plate (17) and the upper end of the conveying box (3), a connecting rod (904) is hinged to the middle of the curved bar (903), the left end of the connecting rod (904) is hinged to a moving rod (905), and a plurality of groups of second matching teeth (906) are fixedly connected to the left end of the moving rod (905).
3. The solar panel production waste housing treatment apparatus of claim 1, wherein: the driving mechanism (14) comprises a second motor (1401), the second motor (1401) is fixedly connected to the outer wall of the rear side of the crushing box (10), a first straight gear (1402) is fixedly connected to the output end of the second motor (1401), the rear end of the rotating shaft (13) extends out of the crushing box (10) and is fixedly connected with a second straight gear (1403), and the second straight gear (1403) is in meshing transmission with the first straight gear (1402).
4. The solar panel production waste housing treatment apparatus of claim 1, wherein: the collecting mechanism (21) comprises a collecting box (2101), the collecting box (2101) is installed at the upper end of the base (1), a first hydraulic cylinder (2102) and a second hydraulic cylinder (2103) are fixedly connected to the left end and the upper end of the collecting box (2101) respectively, the output ends of the first hydraulic cylinder (2102) and the second hydraulic cylinder (2103) extend out of the interior of the collecting box (2101) and are provided with a first pressing plate (2104) and a second pressing plate (2105) respectively, the upper end of the collecting box (2101) is communicated with a receiving hopper (2106), and the right side wall of the collecting box (2101) is hinged with a sliding door (2107).
5. The solar panel production waste housing treatment apparatus of claim 2, wherein: the right side the equal rigid coupling in upper end of the lower extreme of stock guide (17) and delivery box (3) has slide rail (22), sliding connection has slider (23) on slide rail (22), both sides slider (23) other end rigid coupling respectively is in the lower extreme on carriage release lever (905).
6. The solar panel production waste housing treatment apparatus of claim 2, wherein: the second matching teeth (906) and the second crushing teeth (19) are arranged in a staggered mode.
