CN212439255U

CN212439255U - A pediatric surgical bed

Info

Publication number: CN212439255U
Application number: CN202020625518.5U
Authority: CN
Inventors: 卢璐
Original assignee: Individual
Current assignee: Individual
Priority date: 2020-04-23
Filing date: 2020-04-23
Publication date: 2021-02-02
Anticipated expiration: 2030-04-23

Abstract

The utility model discloses a pediatric surgical operating bed, which comprises a bracket. Both sides of the upper end of the bracket are rotatably connected with first electric telescopic rods, wherein the upper end of one of the first electric telescopic rods is rotatably connected with a first turret, and the other The upper end of a first electric telescopic rod is rotatably connected with a second turret, one side of the second turret is rotatably connected with a rotating shaft, and a fixing plate is jointly fixed between the opposite side walls of the first turret, so the One side of the fixed plate is rotatably connected to the other side of the rotating shaft. The utility model not only solves the problem that the existing operating bed cannot control the patient's head and limbs, but also can adjust the angle according to the needs of the operation, and facilitates quick operation through the angle adjustment, improves the operation efficiency, and at the same time of fixing the limb, it is convenient Quickly stop bleeding, reduce the work intensity of medical staff, improve the efficiency of treatment, reduce the pain of patients, and be convenient to use.

Description

Pediatric surgery operation table

Technical Field

The utility model relates to an operation equipment technical field especially relates to an operation table for pediatric surgery.

Background

An operating bed (also a called operating table) is a necessary tool for doctors in the operation process, is the most important tool for arranging patients and enabling doctors to provide operation environment more conveniently, and mainly comprises an electric operating bed and a hydraulic operating bed. According to the purpose, the multifunctional operation bed, the gynecological operation bed, the orthopedic operation bed and the like are divided into a plurality of ways.

Pediatric surgery is a young clinical subject, although clinical data of pediatric surgery diseases are recorded in all countries of the world very early, an independent pediatric surgery specialty is first appeared in European countries in the early 20 th century, and a pediatric surgical professional doctor is also found in Europe and a pediatric surgery specialty is appeared after the first world war, and then the pediatric surgery is rapidly developed, so that the pediatric surgery becomes an independent specialty after being separated from the surgery due to the pathophysiological characteristics and disease particularity of children, at present, when a pediatric surgery or debridement suture is performed on a pediatric patient, the patient needs to maintain a constant posture, the patient needs to be pressed by medical staff, particularly the pediatric patient often needs to be pressed by the medical staff, because the self-control of children is limited and the existing operation bed cannot be adjusted in angle according to the surgical needs, the work difficulty is increased for the medical staff, sometimes local anesthesia is carried out on a child patient, but other limb parts still can move disorderly, so that posture change or interference on operation of a doctor is caused, quick hemostasis, operation and suturing are not facilitated, operation efficiency is affected, and working strength of medical staff is improved.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the defects existing in the prior art and providing an operating bed for pediatric surgery.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

an operating bed for pediatric surgery comprises a support, wherein two sides of the upper end of the support are respectively and rotatably connected with a first electric telescopic rod, the upper end of one first electric telescopic rod is rotatably connected with a first rotating frame, the upper end of the other first electric telescopic rod is rotatably connected with a second rotating frame, one side of the second rotating frame is rotatably connected with a rotating shaft, a fixed plate is jointly fixed between opposite side walls of the first rotating frame, one side of the fixed plate is rotatably connected with the other side of the rotating shaft, the upper ends of the first rotating frame and the second rotating frame are jointly provided with a mattress, one side of the upper end of the mattress is provided with four grooves, a tourniquet is arranged at the bottom in each groove, one side of the upper end of the mattress is provided with four tensioners corresponding to the tourniquet, and the four tensioners are detachably connected to the mattress through four first bolts and a, one side of the upper end of the mattress is provided with a fixing device.

Preferably, fixing device all installs second electric telescopic handle on the relative lateral wall of two connecting plates including fixing the connecting plate on first revolving rack both ends lateral wall respectively, second electric telescopic handle's one end is equipped with the grip block, and two grip blocks correspond each other, upper end one side of mattress is equipped with the bleeder vent, the bleeder vent corresponds with two grip blocks, and all the cladding has the rubber pad on the relative lateral wall of two grip blocks.

Preferably, the upper end of support is fixed with two landing legs, and the upper ends of two landing legs contradict respectively in lower extreme one side of first rotating turret and second rotating turret, the third electric telescopic handle is installed to the upper end of support, the trapezoidal piece is installed to the upper end of third electric telescopic handle, and the upper end of trapezoidal piece contradicts at the lower extreme of axis of rotation.

Preferably, both sides of the upper end of the support are provided with limiting grooves, and both ends of the rotating shaft respectively extend into the two limiting grooves.

Preferably, the four tourniquets are respectively installed in the four grooves through the four second bolts and the second backing plate.

Preferably, universal wheels are installed at four corners of the lower end of the support.

Compared with the prior art, the beneficial effects of the utility model are that:

1. through the matching of the bracket, the first electric telescopic rod, the third electric telescopic rod, the rotating frame and the rotating shaft, the first electric telescopic rod is used for conveniently adjusting the angle of the upper body and the lower body of a patient, the problem that the existing operating bed cannot adjust the angle according to the operation requirement is solved, the purpose of conveniently and quickly performing an operation through angle adjustment is realized, the operation efficiency is improved, and the use is convenient;

2. through the cooperation of the first rotating frame, the air holes, the clamping plate, the second electric telescopic rod, the tourniquet and the tensioner, the head of the child can be conveniently fixed by using the second electric telescopic rod, and the hemostasis and fixation of the leg can be conveniently carried out by using the tourniquet and the tensioner, so that the problem that the head and the limb of a patient cannot be controlled by the conventional operating bed is solved, the effect of conveniently controlling the limb movement is achieved, the limb can be conveniently and quickly stopped, the working strength of medical staff is reduced, the treatment efficiency is improved, and the pain of the patient is reduced;

to sum up, the utility model discloses not only solved current operation table can not control patient's head and the problem of limbs, can also carry out angle modulation according to the operation needs to through the convenient quick operation of angle modulation, improved operation efficiency, in fixed limbs, convenient quick hemostasis has reduced medical staff's working strength, has improved treatment efficiency, has reduced the misery of disease, facilitates the use.

Drawings

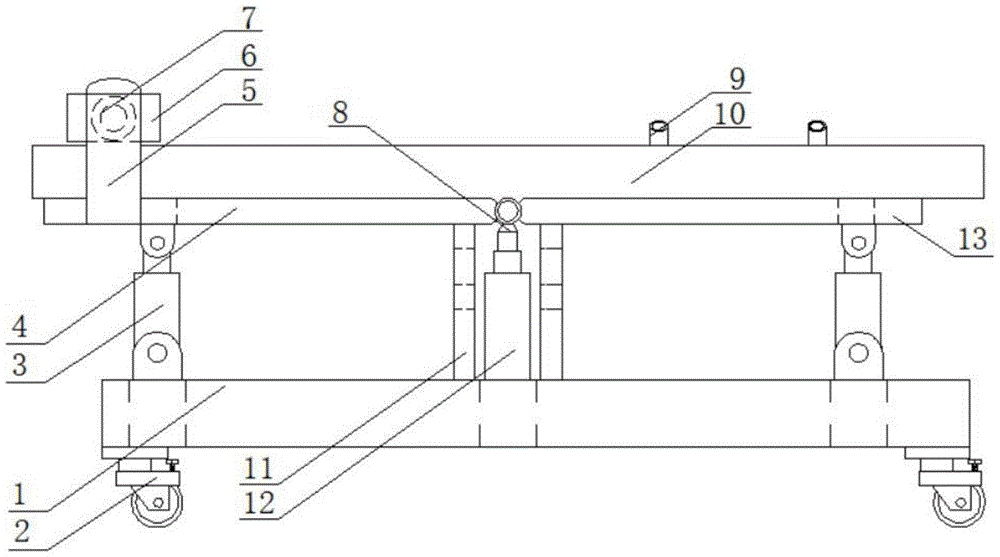

Fig. 1 is a schematic view of an internal structure of a pediatric surgical bed according to the present invention;

fig. 2 is a top view of the pediatric surgical operating bed of the present invention;

fig. 3 is an external structure view of a pediatric surgical bed according to the present invention;

fig. 4 is a schematic structural view of the first rotating frame of the pediatric surgical operating bed of the present invention.

In the figure: the tourniquet comprises a support 1, universal wheels 2, a first electric telescopic rod 3, a first rotating frame 4, a connecting plate 5, a clamping plate 6, a second electric telescopic rod 7, a trapezoidal block 8, a tensioner 9, a mattress 10, a supporting leg 11, a third electric telescopic rod 12, a second rotating frame 13, a tourniquet 14, a first bolt 15, a groove 16, air holes 17, a rubber pad 18, a limiting groove 19, a fixing plate 20, a rotating shaft 21 and a second bolt 22.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Referring to fig. 1-4, an operating table for pediatric surgery comprises a support 1, universal wheels 2 are respectively mounted at four corners of the lower end of the support 1, the operating table is moved to a proper position through the universal wheels 2 and the support 1, first electric telescopic rods 3 are respectively rotatably connected to two sides of the upper end of the support 1, a first rotating frame 4 is rotatably connected to the upper end of one first electric telescopic rod 3, a second rotating frame 13 is rotatably connected to the upper end of the other first electric telescopic rod 3, a rotating shaft 21 is rotatably connected to one side of the second rotating frame 13, when the upper half of the body needs to be operated according to the operation position of a patient, the first rotating frame 4 is driven to rotate by one first electric telescopic rod 3 when the angle of the body needs to be adjusted according to the wound, the posture of the half of the body is adjusted, when the lower limb needs to be operated, the second rotating frame 13 is driven to rotate by the other first, thereby changed the angle modulation of low limbs, conveniently adjusted the angle of operation table through two electric telescopic handle 3, convenient quick operation has improved operation efficiency, facilitates the use.

In the utility model, a fixing plate 20 is jointly fixed between the opposite side walls of a first rotating frame 4, one side of the fixing plate 20 is rotatably connected with the other side of a rotating shaft 21, a mattress 10 is jointly arranged at the upper ends of the first rotating frame 4 and a second rotating frame 13, four grooves 16 are arranged at one side of the upper end of the mattress 10, tourniquets 14 are arranged at the bottom in the grooves 16, four tensioners 9 corresponding to the tourniquets 14 are arranged at one side of the upper end of the mattress 10, when hemostasis and lower limb fixation are needed, one end of each tourniquet 14 is hung at one end of each tensioner 9, the tourniquets 14 are tensioned according to the operation and bleeding conditions, the four tensioners 9 are detachably connected on the mattress 10 through four first bolts 15 and first cushion plates, the four tourniquets 14 are all respectively installed in the four grooves 16 through four second bolts 22 and second cushion plates, a fixing device is arranged, the limbs can be conveniently controlled through the four tensioners 9, the limbs can be conveniently and quickly stopped when being fixed, the working strength of medical staff is reduced, the treatment efficiency is improved, and the pain of patients is reduced.

The utility model discloses in, fixing device is including fixing connecting plate 5 on 4 both ends lateral walls of first rotating turret respectively, all install second electric telescopic handle 7 on the relative lateral wall of two connecting plates 5, the one end of second electric telescopic handle 7 is equipped with grip block 6, two grip blocks 6 correspond each other, upper end one side of mattress 10 is equipped with bleeder vent 17, bleeder vent 17 is corresponding with two grip blocks 6, equal cladding has rubber pad 18 on the relative lateral wall of two grip blocks 6, on needs are operated the head, use second electric telescopic handle 7 to drive two grip blocks 6 and fix the head, and utilize bleeder vent 17 to conveniently breathe, the efficiency of the operation is improved.

In the utility model, two supporting legs 11 are fixed on the upper end of a bracket 1, the upper ends of the two supporting legs 11 respectively abut against one side of the lower ends of a first rotating frame 4 and a second rotating frame 13, a third electric telescopic rod 12 is arranged on the upper end of the bracket 1, a trapezoidal block 8 is arranged on the upper end of the third electric telescopic rod 12, the upper end of the trapezoidal block 8 is pressed against the lower end of the rotating shaft 21, both sides of the upper end of the bracket 1 are provided with limit grooves 19, the mattress 10 is prevented from inclining by the limiting grooves 19, the two ends of the rotating shaft 21 respectively extend into the two limiting grooves 19, when the operation is needed to be performed on the buttocks or the back of the thighs, the third electric telescopic rod 12 is used for pushing the rotating shaft 21 to move upwards, so that the rotating shaft 21 is promoted to lift up and down in the two limiting grooves 19, thereby driving the opposite ends of the first rotating frame 4 and the second rotating frame 13 to lift up and down, promoting the upwarping of the buttocks and facilitating the operation and the suture.

In the utility model, when in use, the operation bed is moved to a proper position through the universal wheel 2 and the bracket 1, when the upper half of the body needs to be operated according to the operation position of a patient, and the angle of the body needs to be adjusted according to the wound, one of the first electric telescopic rods 3 is used for pushing the first rotating frame 4 to rotate, so as to realize the adjustment of the posture of the half of the body, when the lower limb needs to be operated, the other first electric telescopic rod 3 is used for pushing the second rotating frame 13 to rotate, thereby changing the angle adjustment of the lower limb, when the lower limb needs to be stopped and fixed, one end of the tourniquet 14 is extracted and hung at one end of the device 9, according to the operation and the bleeding situation, the tourniquet 14 is tensioned, when the operation is needed to be carried out on the back of the hip or the thigh, the third electric telescopic rod 12 is used for pushing the rotating shaft 21 to move upwards, so as to make the rotating shaft 21 to ascend and descend, make the buttock perk up, conveniently operate and sew up, operate when needs to the head, use second electric telescopic handle 7 to drive two grip blocks 6 and fix the head to utilize bleeder vent 17 to conveniently breathe, improved operation efficiency, facilitate the use.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. A pediatric surgical bed, comprising a bracket (1), characterized in that: both sides of the upper end of the bracket (1) are rotatably connected with a first electric telescopic rod (3), wherein a first electric telescopic rod ( The upper end of 3) is rotatably connected with a first turret (4), and the upper end of the other first electric telescopic rod (3) is rotatably connected with a second turret (13). One side of the second turret (13) is rotatably connected. A rotating shaft (21) is rotatably connected, a fixed plate (20) is jointly fixed between the opposite side walls of the first turret (4), and one side of the fixed plate (20) is rotatably connected to the rotating shaft (21). ), the upper ends of the first turret (4) and the second turret (13) are jointly provided with a mattress (10), and four recesses are provided on one side of the upper end of the mattress (10). A groove (16), a tourniquet (14) is provided at the bottom of the groove (16), and four tensioners corresponding to the tourniquet (14) are provided on one side of the upper end of the mattress (10). (9), the four tensioners (9) are detachably connected to the mattress (10) through the four first bolts (15) and the first backing plate, and one side of the upper end of the mattress (10) is provided with There are fixtures.

2. A pediatric surgical bed according to claim 1, characterized in that: the fixing device comprises connecting plates (5) respectively fixed on the side walls of both ends of the first turret (4), and the two connecting A second electric telescopic rod (7) is installed on the opposite side walls of the plate (5), one end of the second electric telescopic rod (7) is provided with a clamping plate (6), two clamping plates (6) Corresponding to each other, the upper end side of the mattress (10) is provided with a ventilation hole (17), the ventilation hole (17) corresponds to the two clamping plates (6), and the two clamping plates (6) have a ventilation hole (17). The opposite side walls are covered with rubber pads (18).

3. A pediatric surgical bed according to claim 1, characterized in that: the upper end of the bracket (1) is fixed with two outriggers (11), and the upper ends of the two outriggers (11) are respectively in contact with the On the lower ends of the first turret (4) and the second turret (13), a third electric telescopic rod (12) is installed on the upper end of the bracket (1), and the third electric telescopic rod (12) is A trapezoidal block (8) is installed on the upper end, and the upper end of the trapezoidal block (8) abuts against the lower end of the rotating shaft (21).

4. A pediatric surgical bed according to claim 1, characterized in that: limiting grooves (19) are provided on both sides of the upper end of the bracket (1), and both ends of the rotating shaft (21) are respectively extend into the two limiting grooves (19).

5. A pediatric surgical bed according to claim 1, characterized in that: four tourniquets (14) are respectively installed in four grooves (14) through four second bolts (22) and second backing plates. 16) within.

6 . The pediatric surgical bed according to claim 1 , wherein the four corners of the lower end of the bracket ( 1 ) are equipped with universal wheels ( 2 ). 7 .
