CN212437474U - Intervene patient's trousers that patient used in perioperative period - Google Patents
Intervene patient's trousers that patient used in perioperative period Download PDFInfo
- Publication number
- CN212437474U CN212437474U CN202020944889.XU CN202020944889U CN212437474U CN 212437474 U CN212437474 U CN 212437474U CN 202020944889 U CN202020944889 U CN 202020944889U CN 212437474 U CN212437474 U CN 212437474U
- Authority
- CN
- China
- Prior art keywords
- trouser
- piece
- patient
- trouser leg
- trousers
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Professional, Industrial, Or Sporting Protective Garments (AREA)
Abstract
本实用新型公开了一种介入患者围手术期用的病员裤，包括前片裤腰、前片裤腿、后片裤腰和后片裤腿，所述前片裤腰和前片裤腿一体缝制构成前片裤体，所述后片裤腰和后片裤腿一体缝制构成后片裤体，所述前片裤腿和后片裤腿均包括左裤腿片和右裤腿片，所述左裤腿片上设有供尿管通过的门襟式开口，所述右裤腿片上开设有观察口。该病员裤可提高尿管二次固定方法的兼容性；患者下床活动时，尿管不易弯曲以及集尿袋低于耻骨联合，尿液引流通畅不易反流，降低了尿路感染机会。
The utility model discloses a patient trousers for intervening patients in the perioperative period, comprising a front trousers waist, a front trouser leg, a rear trouser waist and a rear trouser leg. The rear trouser waist and the rear trouser legs are sewn together to form the rear trouser body, the front trouser leg and the rear trouser leg both include a left trouser leg piece and a right trouser leg piece, and the left trouser leg piece is provided with a urine tube to pass through. The placket-type opening is provided, and the right trouser leg piece is provided with an observation port. The patient trousers can improve the compatibility of the secondary fixation method of the urinary catheter; when the patient gets out of bed, the urinary catheter is not easy to bend and the urine collection bag is lower than the pubic symphysis, the urine can be drained smoothly and not easy to reflux, and the chance of urinary tract infection is reduced.
Description
Technical Field
The utility model relates to a clinical medicine nursing articles for use field, concretely relates to intervene patient's trousers that patient used in perioperative period.
Background
Patient's trousers are that the patient uses a more daily clothing, and most patient's trousers are the integral type, and the patient that supplies to do the operation uses, often need the patient of urine bag to wear patient's clothes back often the urine bag is hung outside through the underpants, can let the patient produce some awkwardness like this.
After the catheter is reserved for a patient who is absolutely bedridden and has limb hemiplegia, the patient can wear and take off the trousers inconveniently, and the patient can suffer from skin problems if the patient is not replaced for a long time, so that the operation of examination and nursing in perineum and anus is inconvenient.
At present, common clinical patient trousers are pure cotton trousers, after a patient is provided with a pipeline such as a ureter, the pipeline cannot be directly extended out of the patient trousers, and the patient often wears the patient trousers below the hip to keep the ureter when lying in bed, so that the clothes are uneven and the skin pressure injury is caused; the patient usually folds the ureters out of the waistband when getting out of the bed, so that urine is easy to flow back, and the urinary tract infection chance is increased; after the ureter is fixed for the second time, the ureter comes out from the waistband and is easy to fold and bend, so that the skin is damaged by pressure of the pipeline or the urine drainage is not smooth; after the ureter is settled to the patient, often not wearing patient's trousers for the ureter is folded and is led to exposing the privacy, injures the patient and self-esteem.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a intervene patient's trousers that patient used in perioperative period, ureter and urine collecting bag can be followed and prolonged in the patient trousers, can protect patient's privacy to solve the technical problem who mentions in the background art.
The purpose of the utility model is realized through the following technical scheme:
the utility model provides a intervene patient's trousers that patient used in perioperative period, includes anter waist of trousers, anter trouser legs, rear part waist of trousers and rear part trouser legs, anter waist of trousers and the integrative anter trouser legs of making up constitution anter trouser body, the integrative rear part waist of trousers and rear part trouser legs of making up constitution rear part trouser body, anter trouser legs and rear part trouser legs all include left trouser legs piece and right trouser legs piece, be equipped with the door front of a garment formula opening that supplies the ureter to pass through on the trouser legs piece of a left side, the last viewing aperture of having seted up of trouser legs piece of the right side.
Further, the distance D between the front fly type opening and the end part of the front piece trouser waist is 32-36 cm, and the length of the front fly type opening is 8-16 cm.
Further, the front fly type opening comprises a first front fly sheet and a second front fly sheet, a hook and loop fastening surface is arranged on the bottom surface of the first front fly sheet, and a hook and loop fastening surface is arranged on the surface of the second front fly sheet.
Further, the opening width of the observation port is 8-10 centimeters, and the opening length of the observation port is 8-10 centimeters.
Furthermore, the front piece trouser legs and the back piece trouser legs are respectively provided with a crotch, the crotch is provided with a crotch piece, one end of the crotch piece is sewn on the back piece trouser legs, and the other end of the crotch piece is connected with the front piece trouser legs through magic tapes.
Further, the left trouser leg piece comprises a first trouser leg piece and a second trouser leg piece, and the first trouser leg piece and the second trouser leg piece are bonded into the left trouser leg cylinder through magic.
Further, the right trouser leg piece comprises a third trouser leg piece and a fourth trouser leg piece, and the third trouser leg piece and the fourth trouser leg piece are bonded into a right trouser leg cylinder through magic.
The utility model has the advantages that:
(1) the patient trousers of the utility model are provided with the front opening for the passing of the ureter on the left trouser leg piece, after the patient is provided with the pipeline such as the ureter, the remaining ureter and the ureter can pass, the pipeline can directly extend out from the opening of the left trouser leg piece of the patient trousers, thereby avoiding the phenomena of exposing privacy, hurting the patient self-esteem, uneven clothes and causing skin pressure damage caused by the fact that the patient lies in bed and needs to wear the existing patient trousers below the hip; the problems that urine flows back and the probability of urinary tract infection is increased due to the fact that the urinary catheter extends out from the waistband when a patient gets out of the bed through movement are overcome, and the problem that urine drainage is not smooth due to the fact that the urinary catheter extends out from the waistband to fold and bend the urinary catheter after the urinary catheter is fixed for the second time is solved; the right trouser leg piece is provided with an observation port, which is convenient for some patients with radiography to arrange the indwelling catheter and the compressor at the same time, and the observation port can be convenient for operating the venous catheterization and observing whether the compressor is displaced or not.
(2) The first front flap and the second front flap of the front opening of the patient trousers of the utility model are attached by means of magic tapes, so as to ensure the integrity of the patient trousers when the patient gets out of bed for activity and prevent the patient from catching a cold; the open crotch is arranged, so that the indwelling catheter can be conveniently inserted, the perineum can be conveniently cleaned and disinfected, and trousers do not need to be taken off; left side trouser legs piece passes through the magic by first trouser legs piece and second trouser legs piece and bonds and constitute a detachable trouser legs section of thick bamboo, and right trouser legs piece passes through the magic by third trouser legs piece and fourth trouser legs piece and bonds into a detachable right side trouser legs section of thick bamboo, is convenient for to doctorse and nurses and examines the thigh to the patient, can reach the dual-purpose effect of a trousers moreover.
Drawings

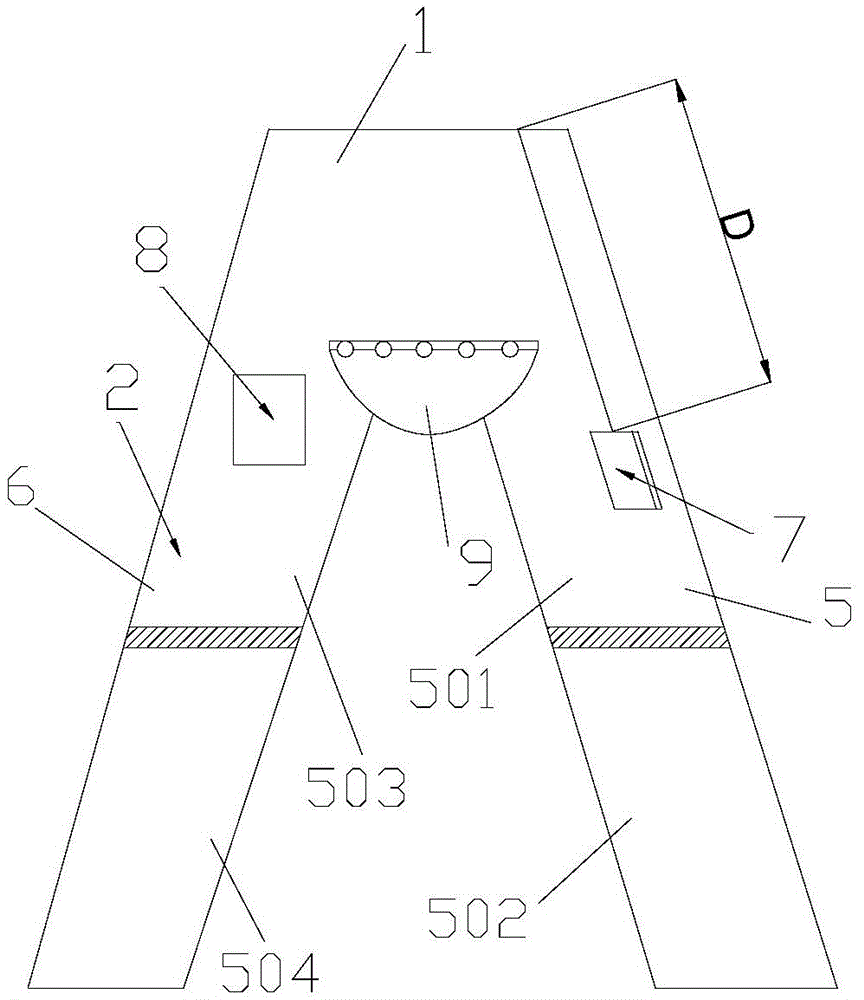

FIG. 1 is a front view of the patient trousers of the present invention;
FIG. 2 is a schematic view of the overall structure of the back of the patient trousers of the present invention;
FIG. 3 is a schematic structural view of the left leg piece of the patient trousers of the present invention;
in the figure, 1-front panel waist, 2-front panel legs, 3-back panel waist, 4-back panel legs, 5-left leg panel, 501-first leg panel, 502-second leg panel, 503-third leg panel, 504-fourth leg panel, 6-right leg panel, 7-top fly type opening, 8-viewing opening, 9-crotch panel.
Detailed Description
The technical solution of the present invention will be described clearly and completely with reference to the following embodiments, and it should be understood that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. Based on the embodiments in the present invention, all other embodiments obtained by those skilled in the art without creative efforts belong to the protection scope of the present invention.
Example 1
Referring to fig. 1-3, the present invention provides a technical solution:
referring to fig. 1-2, a pair of patient trousers for intervention in a perioperative period of a patient comprises a front piece waist 1, front piece legs 2, a rear piece waist 3 and rear piece legs 4, wherein the front piece waist 1 and the front piece legs 2 are integrally sewn to form a front piece trouser body, the rear piece waist 3 and the rear piece legs 4 are integrally sewn to form a rear piece trouser body, the front piece legs 2 and the rear piece legs 4 both comprise a left leg piece 5 and a right leg piece 6, a front opening 7 for passing a urinary catheter is arranged on the left leg piece 5, and an observation opening 8 is arranged on the right leg piece 6.
The utility model discloses a patient trousers, its left trouser legs piece 5 is equipped with the front of a garment formula opening 7 that supplies the ureter to pass through, and after the patient settled the pipeline such as the ureter, can supply to keep somewhere ureter and ureter to pass through, and the pipeline can directly be prolonged out from the opening of patient trousers's left trouser legs piece 5, avoided the patient bed need wear the privacy of exposure that present patient trousers brought below the buttock hurt patient self-esteem, clothing unevenness and cause the phenomenon of skin pressure nature damage; the problems that urine flows back and the probability of urinary tract infection is increased due to the fact that the urinary catheter extends out from the waistband when a patient gets out of the bed through movement are overcome, and the problem that urine drainage is not smooth due to the fact that the urinary catheter extends out from the waistband to fold and bend the urinary catheter after the urinary catheter is fixed for the second time is solved; the right trouser leg piece 6 is provided with an observation port 8, which is convenient for some patients with radiography to arrange the indwelling catheter and the compressor at the same time, and the observation port 8 can be convenient for operating the venous indwelling catheter and observing whether the compressor is displaced or not.
Referring to fig. 1, a distance D between the front fly type opening 7 and the end of the front waist 1 is 32-36 cm, and the length of the front fly type opening 7 is 8-16 cm.
The distance range between the front opening 7 and the end part of the front piece trouser waist 1 of the utility model is set at 32-36 cm, so as to ensure that the secondary fixing position of the urine bag is at the proper position of the trouser legs after the urine tube and the urine bag are led out from the front opening 7, the compatibility of the secondary fixing method of the urine tube is improved, the patient can not walk when getting out of bed, the urine tube is not easy to bend, the urine collecting bag is lower than the pubic bone combination, the urine drainage is smooth and not easy to flow backwards, and the urinary tract infection chance is reduced; the length of the placket-type opening 7 is set to be 8-16 cm so as to cater to the size of the urine bag and facilitate the urine bag to be led out from the placket-type opening 7.
Preferably, the placket-type opening 7 comprises a first placket piece and a second placket piece, a hook-and-loop fastening surface is arranged on the bottom surface of the first placket piece, and a hook-and-loop fastening surface is arranged on the surface of the second placket piece.
The utility model discloses the first door front of a garment piece and the second door front of a garment piece of door front of a garment formula opening 7 adopt the mode laminating of magic subsides to patient's trousers integrality when guaranteeing patient's activity of getting off the bed prevents that the patient from catching a cold.
Referring to fig. 1, the width of the opening of the observation port 8 is 8-10 cm, and the length of the opening of the observation port 8 is 8-10 cm.
The utility model discloses the size of viewing aperture 8 sets up to above-mentioned scope, is in order to expose enough observation window.
Be equipped with on the viewing aperture 8 and cover cloth, viewing aperture 8 with cover cloth and pass through the magic and paste and be connected.
Referring to fig. 1-2, the front and back legs 2 and 4 are provided with a crotch, a crotch piece 9 is provided on the crotch, one end of the crotch piece 9 is sewn on the back leg 4, and the other end of the crotch piece 9 is connected to the front leg 2 by a hook and loop fastener.
The utility model discloses the setting of open seat, the open seat is lifted, not only is convenient for plant and keeps somewhere the ureter, and the clean disinfection of the perineum of being convenient for moreover need not take off trousers.
Referring to fig. 3, the left leg-containing sheet 5 comprises a first leg-containing sheet 501 and a second leg-containing sheet 502, and the first leg-containing sheet 501 and the second leg-containing sheet 502 are bonded together by magic bonding to form a left leg-containing sleeve.
Referring to fig. 3, the right leg piece 6 includes a third leg piece 503 and a fourth leg piece 504, and the third leg piece 503 and the fourth leg piece 504 are bonded by magic to form a right leg sleeve.
The utility model discloses a left side trouser legs piece 5 bonds through the magic by first trouser legs piece 501 and second trouser legs piece 502 and constitutes a detachable trouser legs section of thick bamboo, and right trouser legs piece 6 bonds into a detachable right side trouser legs section of thick bamboo through the magic by third trouser legs piece 503 and fourth trouser legs piece 504, is convenient for medical and nursing and examines the thigh to the patient, can reach a dual-purpose effect of trousers moreover.
The foregoing is illustrative of the preferred embodiments of the present invention, and it is to be understood that the invention is not limited to the precise forms disclosed herein, and that various other combinations, modifications, and environments may be resorted to, falling within the scope of the invention as defined by the appended claims. But that modifications and variations may be effected by those skilled in the art without departing from the spirit and scope of the invention, which is to be limited only by the claims appended hereto.
