Abstract
The utility model discloses a telescopic scaffold frame for building engineering, the mounting panel comprises a mounting plate, the equal fixedly connected with support column in four corners of mounting panel bottom, the bottom fixedly connected with universal wheel of support column controls the equal fixedly connected with connecting plate in one side that two support columns are opposite, one side fixedly connected with sleeve pipe of support column is kept away from to the connecting plate, the top of threaded rod extends to sheathed tube top and fixedly connected with changes the handle. The utility model discloses a set up mounting panel, lead screw, second installation piece, second slider, second spout, connecting plate, sleeve pipe, change handle, support column, first dead lever, montant, first installation piece, running-board, slide bar, first slider, connecting rod, motor, belt, action wheel, use from the cooperation of driving wheel, horizontal pole, threaded rod, backup pad and second dead lever, possess the height of conveniently adjusting the scaffold frame, reduced personnel's intensity of labour, improve work efficiency's advantage.
Description
Technical Field
The utility model relates to a building engineering technical field specifically is a telescopic scaffold frame for building engineering.
Background
The building engineering refers to an engineering entity formed by the construction of various building constructions and their auxiliary facilities and the installation of lines, pipelines and equipment matched with them. The house building is characterized by comprising a top cover, a beam column, a wall, a foundation and a project which can form an internal space and meet the requirements of people on production, living, study and public activities.
The scaffold can be frequently used in the engineering construction process, the scaffold can be adjusted in height according to the operation height sometimes in the use process, the existing scaffold is very inconvenient in height adjustment, the height of the scaffold is required to be improved by personnel from the scaffold, and then the scaffold is climbed, so that the operation is very troublesome, the labor intensity of the personnel is increased, and the working efficiency is reduced.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a telescopic scaffold frame for building engineering possesses the height that conveniently adjusts the scaffold frame, has reduced personnel's intensity of labour, improves work efficiency's advantage, has solved the not aspect height-adjusting of current scaffold frame, has increased personnel's intensity of labour, has reduced work efficiency's problem.
In order to achieve the above object, the utility model provides a following technical scheme: a telescopic scaffold for constructional engineering comprises a mounting plate, wherein four corners of the bottom of the mounting plate are fixedly connected with support columns, the bottom of each support column is fixedly connected with a universal wheel, one side of each support column opposite to the left support column and the right support column is fixedly connected with a connecting plate, one side of each connecting plate far away from the support column is fixedly connected with a sleeve, the inner cavity of each sleeve is movably connected with a threaded rod, the top of each threaded rod extends to the top of each sleeve and is fixedly connected with a rotating handle, the bottom of each threaded rod extends to the bottom of each sleeve and is fixedly connected with a support plate, the front side and the rear side of each side of the top of the mounting plate are respectively and fixedly connected with a first fixing rod and a second fixing rod, the inner cavities of the first fixing rod and the second fixing rod are, the utility model discloses a mounting plate, including the slide bar, the both ends of slide bar are all overlapped and are equipped with first installation piece, the first slider of top fixedly connected with of first installation piece, the bottom swing joint of first installation piece has the connecting rod, swing joint has the lead screw between first dead lever and the second dead lever, the both ends of lead screw are all overlapped and are equipped with second installation piece, the bottom fixedly connected with second slider of second installation piece, one side and the second installation piece swing joint of first installation piece are kept away from to two connecting rods, the right side of lead screw is run through to the right side of second dead lever and is overlapped and is equipped with from the driving wheel, the middle part fixedly connected with motor on mounting plate top right side, the output shaft cover of motor is equipped with the action wheel, the quantity of action wheel is two, and two action.
Preferably, the surface of the threaded rod is in threaded connection with the joint of the sleeve, and positioning holes are formed in four corners of the top of the supporting plate.
Preferably, the top of one side of the sleeve close to the support column is fixedly connected with a reinforcing rod, and one side of the reinforcing rod far away from the sleeve is fixedly connected with the support column.
Preferably, the surface of the screw rod is respectively provided with a left-handed thread and a right-handed thread, and the surface of the screw rod is in threaded connection with the joint of the second mounting block.
Preferably, the two connecting rods are in cross connection, the connection part is movably connected through a shaft pin, the surface of the screw rod is movably connected with the connection part of the first fixing rod and the second fixing rod through a bearing, and the right side of the second fixing rod is fixedly connected with a protective cover.
Preferably, the front side and the rear side of the bottom of the pedal plate are provided with first sliding grooves matched with the first sliding blocks for use, the front side and the rear side of the top of the mounting plate are provided with second sliding grooves matched with the second sliding blocks for use, and a cross rod is fixedly connected between the two first fixing rods.
Compared with the prior art, the beneficial effects of the utility model are as follows:
1. the utility model discloses a set up mounting panel, lead screw, second installation piece, second slider, second spout, connecting plate, sleeve pipe, change handle, support column, first dead lever, montant, first installation piece, running-board, slide bar, first slider, connecting rod, motor, belt, action wheel, use from the cooperation of driving wheel, horizontal pole, threaded rod, backup pad and second dead lever, possess the height that conveniently adjusts the scaffold frame, reduced personnel's intensity of labour, improve work efficiency's advantage, be worth promoting.
2. The utility model can conveniently rotate the threaded rod by arranging the rotating handle;
the sleeve can be firmer by arranging the reinforcing rod;
by arranging the protective cover, people can be prevented from touching the rotating belt by mistake;
the moving track of the second mounting block can be limited by arranging the second sliding block and the second sliding groove;
through the arrangement of the cross rods, personnel can conveniently get on the scaffold;
through setting up the bearing, can make things convenient for the lead screw installation.
Drawings

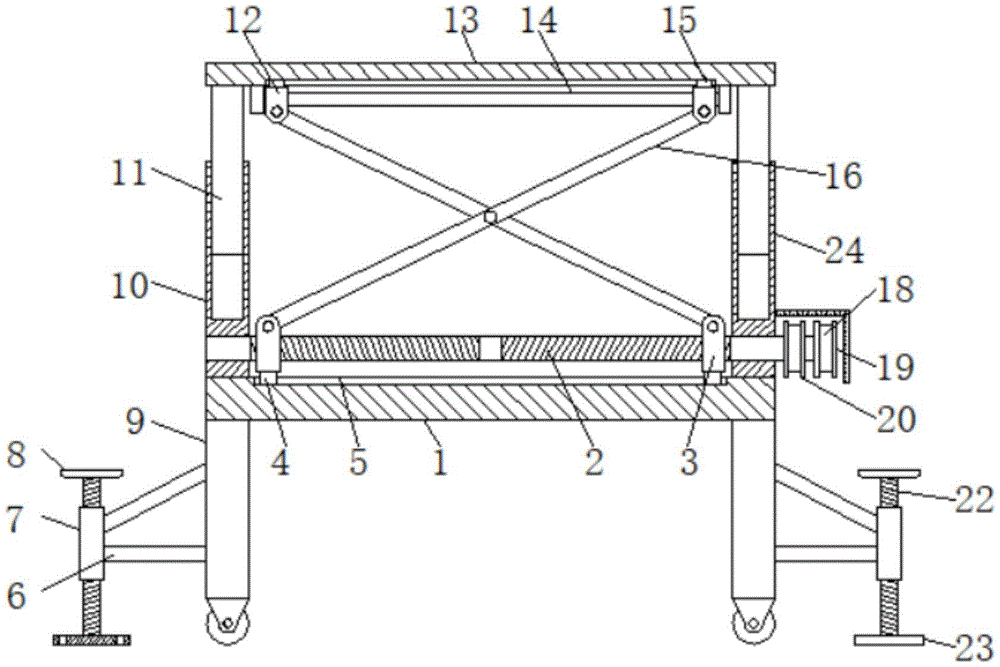

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a top view of a partial structure of the present invention;
fig. 3 is a left side view of the local structure of the present invention.
In the figure: the device comprises a mounting plate 1, a screw rod 2, a second mounting block 3, a second sliding block 4, a second sliding chute 5, a connecting plate 6, a sleeve 7, a rotating handle 8, a supporting column 9, a first fixing rod 10, a vertical rod 11, a first mounting block 12, a pedal 13, a sliding rod 14, a first sliding block 15, a connecting rod 16, a motor 17, a belt 18, a driving wheel 19, a driven wheel 20, a cross rod 21, a threaded rod 22, a supporting plate 23 and a second fixing rod 24.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "both ends", "one end", "the other end", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element to be referred must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted", "provided", "connected", and the like are to be construed broadly, such as "connected", which may be fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
The utility model provides a mounting panel 1, lead screw 2, second installation piece 3, second slider 4, second spout 5, connecting plate 6, sleeve pipe 7, change 8, support column 9, first dead lever 10, montant 11, first installation piece 12, running-board 13, slide bar 14, first slider 15, connecting rod 16, motor 17, belt 18, action wheel 19, follow parts such as driving wheel 20, horizontal pole 21, threaded rod 22, backup pad 23 and second dead lever 24 are general standard or the part that technical personnel in the field know, its structure and principle all can learn through the technical manual for technical manual in the field or learn through conventional experimental method.
Referring to fig. 1-3, a telescopic scaffold for construction engineering comprises a mounting plate 1, wherein four corners of the bottom of the mounting plate 1 are fixedly connected with supporting columns 9, the bottom of each supporting column 9 is fixedly connected with a universal wheel, one side of each supporting column 9 opposite to the left supporting column and the right supporting column is fixedly connected with a connecting plate 6, one side of each connecting plate 6 far away from the corresponding supporting column 9 is fixedly connected with a sleeve 7, the inner cavity of each sleeve 7 is movably connected with a threaded rod 22, the top of each threaded rod 22 extends to the top of each sleeve 7 and is fixedly connected with a rotating handle 8, the bottom of each threaded rod 22 extends to the bottom of each sleeve 7 and is fixedly connected with a supporting plate 23, the front side and the rear side of each side of the top of the mounting plate 1 are respectively and fixedly connected with a first fixing rod 10 and a second fixing rod 24, the inner cavities of the first fixing rod, the two ends of the sliding rod 14 are respectively sleeved with a first mounting block 12, the top of each first mounting block 12 is fixedly connected with a first sliding block 15, the bottom of each first mounting block 12 is movably connected with a connecting rod 16, a screw rod 2 is movably connected between each first fixing rod 10 and each second fixing rod 24, the two ends of each screw rod 2 are respectively sleeved with a second mounting block 3, the bottom of each second mounting block 3 is fixedly connected with a second sliding block 4, one side, far away from the first mounting block 12, of each two connecting rods 16 is movably connected with the second mounting block 3, the right side of each screw rod 2 penetrates through the right side of the corresponding second fixing rod 24 and is sleeved with a driven wheel 20, the middle of the right side of the top of each mounting plate 1 is fixedly connected with a motor 17, the output shafts of the motors 17 are sleeved with driving wheels 19, the number of the driving;
the surface of the threaded rod 22 is in threaded connection with the joint of the sleeve 7, and positioning holes are formed in four corners of the top of the supporting plate 23;
the top of one side, close to the support column 9, of the sleeve 7 is fixedly connected with a reinforcing rod, and one side, far away from the sleeve 7, of the reinforcing rod is fixedly connected with the support column 9;
the surface of the screw rod 2 is respectively provided with a left-handed thread and a right-handed thread, and the surface of the screw rod 2 is in threaded connection with the joint of the second mounting block 3;
the two connecting rods 16 are in cross connection, the connection parts are movably connected through shaft pins, the surface of the screw rod 2 and the connection parts of the first fixing rod 10 and the second fixing rod 24 are movably connected through bearings, and the right side of the second fixing rod 24 is fixedly connected with a protective cover;
the front side and the rear side of the bottom of the pedal 13 are both provided with first sliding grooves matched with the first sliding blocks 15 for use, the front side and the rear side of the top of the mounting plate 1 are both provided with second sliding grooves 5 matched with the second sliding blocks 4 for use, and a cross rod 21 is fixedly connected between the two first fixing rods 10;
by arranging the rotating handle 8, the threaded rod 22 can be conveniently rotated;
the sleeve 7 can be firmer by arranging the reinforcing rod;
by arranging the protective cover, the personnel can be prevented from touching the rotating belt 18 by mistake;
the moving track of the second mounting block 3 can be limited by arranging the second sliding block 4 and the second sliding groove 5;
through the arrangement of the cross rods 21, people can conveniently get on the scaffold;
through setting up the bearing, can make things convenient for 2 installations of lead screw.
During the use, after the scaffold frame is moved to suitable position, through rotating threaded rod 22, threaded rod 22 drives backup pad 23 and moves down and contacts with ground, can fix a position backup pad 23 through expansion bolts, can make this scaffold frame subaerial more stable at unevenness like this, the personnel stand and carry out the operation on running-board 13, when needs adjust the operation height, for motor 17 circular telegram, motor 17 passes through action wheel 19, belt 18 and the cooperation from driving wheel 20 use and drive lead screw 2 and rotate, two second installation piece 3 relative motion on lead screw 2 surface, then make two first installation piece 12 relative motion through connecting rod 16, just so can make running-board 13 move up, the operation height has been adjusted, convenient operation, the manpower is saved, the operating efficiency has been improved.
In summary, the following steps: this telescopic scaffold for building engineering, through mounting panel 1, lead screw 2, second installation piece 3, second slider 4, second spout 5, connecting plate 6, sleeve pipe 7, change 8, support column 9, first dead lever 10, montant 11, first installation piece 12, running-board 13, slide bar 14, first slider 15, connecting rod 16, motor 17, belt 18, action wheel 19, follow driving wheel 20, horizontal pole 21, threaded rod 22, backup pad 23 and the cooperation of second dead lever 24 are used, the height-adjusting of the aspect not in the present scaffold has been solved, personnel's intensity of labour has been increased, work efficiency's problem has been reduced.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a telescopic scaffold for building engineering, includes mounting panel (1), its characterized in that: the four corners of the bottom of the mounting plate (1) are fixedly connected with supporting columns (9), the bottom of each supporting column (9) is fixedly connected with a universal wheel, one side of each supporting column (9) opposite to the other side of each supporting column (6) is fixedly connected with a connecting plate (6), one side of each connecting plate (6) far away from the corresponding supporting column (9) is fixedly connected with a sleeve (7), the inner cavity of each sleeve (7) is movably connected with a threaded rod (22), the top of each threaded rod (22) extends to the top of each sleeve (7) and is fixedly connected with a rotating handle (8), the bottom of each threaded rod (22) extends to the bottom of each sleeve (7) and is fixedly connected with a supporting plate (23), the front side and the rear side of the two sides of the top of the mounting plate (1) are respectively fixedly connected with a first fixing rod (10) and a second fixing rod (24), the top of the vertical rod (11) is fixedly connected with a pedal (13), the front side and the rear side of the bottom of the pedal (13) are fixedly connected with a sliding rod (14), two ends of the sliding rod (14) are respectively sleeved with a first mounting block (12), the top of the first mounting block (12) is fixedly connected with a first sliding block (15), the bottom of the first mounting block (12) is movably connected with a connecting rod (16), a lead screw (2) is movably connected between the first fixing rod (10) and a second fixing rod (24), two ends of the lead screw (2) are respectively sleeved with a second mounting block (3), the bottom of the second mounting block (3) is fixedly connected with a second sliding block (4), one side of the two connecting rods (16) far away from the first mounting block (12) is movably connected with the second mounting block (3), the right side of the lead screw (2) penetrates through to the right side of the second fixing rod (24) and is sleeved with a driven wheel (, middle part fixedly connected with motor (17) on mounting panel (1) top right side, the output shaft cover of motor (17) is equipped with action wheel (19), the quantity of action wheel (19) is two, all through belt (18) swing joint between two action wheels (19) and two follow driving wheels (20).
2. A telescopic scaffold for construction engineering according to claim 1, characterized in that: the surface of the threaded rod (22) is in threaded connection with the joint of the sleeve (7), and positioning holes are formed in four corners of the top of the supporting plate (23).
3. A telescopic scaffold for construction engineering according to claim 1, characterized in that: the top fixedly connected with stiffener that sleeve pipe (7) are close to support column (9) one side, one side and support column (9) fixed connection that sleeve pipe (7) were kept away from to the stiffener.
4. A telescopic scaffold for construction engineering according to claim 1, characterized in that: the surface of the screw rod (2) is respectively provided with a left-handed thread and a right-handed thread, and the surface of the screw rod (2) is in threaded connection with the joint of the second mounting block (3).
5. A telescopic scaffold for construction engineering according to claim 1, characterized in that: two connecting rods (16) are in cross connection, the connection position is movably connected through a shaft pin, the surface of the screw rod (2) is movably connected with the connection position of the first fixing rod (10) and the second fixing rod (24) through a bearing, and the right side of the second fixing rod (24) is fixedly connected with a protective cover.
6. A telescopic scaffold for construction engineering according to claim 1, characterized in that: the front side and the rear side of the bottom of the pedal plate (13) are provided with first sliding grooves matched with the first sliding blocks (15) for use, the front side and the rear side of the top of the mounting plate (1) are provided with second sliding grooves (5) matched with the second sliding blocks (4) for use, and a cross rod (21) is fixedly connected between the two first fixing rods (10).
