Abstract
The utility model provides a hoist strutting arrangement based on BIM, including the backup pad, the fixed reinforcing steel sheet that is provided with in the backup pad is provided with rings on the reinforcing steel sheet, the equal activity in backup pad both sides is provided with the link, and the link that corresponds cooperatees, and the activity is provided with on the link and presses solid board and backup pad to pass through adjustment mechanism and be connected with solid board. The utility model has the advantages of simple whole structure design, only need during the use to collude the hoist and hang at the shaped steel both ends, utilize connecting screw to connect the backup pad with pressing solid board afterwards, will press solid board through rotating connecting screw and compress tightly shaped steel downwards, the security is good, and convenient to use can adapt to the handling of different thickness shaped steel.
Description
Technical Field
The utility model relates to a building engineering's technical field especially relates to a hoist strutting arrangement based on BIM.
Background
The BIM is a complete information model, engineering information, processes and resources of engineering projects at different stages in the whole construction period can be integrated in one model, so that convenience is brought to a construction party, a design party and a first party for use, and the construction efficiency in the design and construction processes is greatly improved by building a three-dimensional visual model; when a supporting beam is built on a construction plane layer, various section steels need to be hoisted, the traditional hoisting is to utilize a tower crane and a reinforcing steel rope to bundle the section steel beam fixedly, although a worker can bundle the reinforcing steel rope on the section steel quickly, the reinforcing steel rope is easy to slip in the hoisting process of the tower crane, the overall safety is low, and the life safety of constructors around the section steel is seriously influenced.
SUMMERY OF THE UTILITY MODEL
Utilize tower crane and reinforcing bar rope to tie shaped steel roof beam to traditional handling and live fixedly, though the staff can tie the reinforcing bar rope on shaped steel fast, the slippage appears very easily in tower crane handling in-process reinforcing bar rope, the technical problem that overall security is low, the utility model provides a hoist strutting arrangement based on BIM.
In order to solve the above problem, the technical scheme of the utility model is so realized:
the utility model provides a hoist strutting arrangement based on BIM, includes the backup pad, fixedly in the backup pad is provided with the reinforcement steel sheet, is provided with rings on the reinforcement steel sheet, the equal activity in backup pad both sides is provided with the link, and the link that corresponds cooperatees, and the link is gone up the activity and is provided with the solid board of pressure and the backup pad passes through adjustment mechanism and is connected with the solid board of pressure.
Preferably, a chute is formed in the connecting frame, a connecting spring is fixedly mounted at the lower part of the chute, the pressing and fixing plate is movably arranged in the chute and fixedly connected with the connecting spring; the pressing and fixing plate is provided with a groove, and the adjusting mechanism penetrates through the supporting plate to be connected with the groove.
Preferably, the shape of the pressing plate is T-shaped.
Preferably, the adjusting mechanism comprises a connecting screw rod, and the connecting screw rod penetrates through the support plate to be in threaded connection with a groove in the pressing and fixing plate.
Preferably, the spread groove has all been seted up to the backup pad both sides, and link upper portion is provided with the connector, and the connector passes through connecting pin movable mounting in the spread groove.
Compared with the prior art, the beneficial effects of the utility model are that:
the utility model has the advantages of the whole structure design is simple, only needs during the use to collude the hoist and hangs at the shaped steel both ends, utilizes connecting screw to connect the backup pad with pressing solid board afterwards, will press solid board fastening shaped steel downwards through rotating connecting screw, avoids shaped steel slippage to appear, and whole security is good, convenient to use.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.
Fig. 1 is a schematic view of the overall structure of the present invention.
Fig. 2 is a schematic view of the usage state of the present invention.

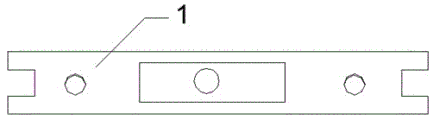

Fig. 3 is a schematic structural view of the support plate in fig. 1.
Fig. 4 is a cross-sectional view of the connecting bracket of fig. 1.
1 is the backup pad, 2 is the recess, 3 is the link, 4 is the pressure solid board, 5 is connecting screw, 6 is connecting spring, 7 is the spout.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without any creative effort belong to the protection scope of the present invention.
As shown in figure 1, a hoist strutting arrangement based on BIM, refer to when building the three-dimensional model through BIM technique and need use the shaped steel of various models when building the construction plane layer, can be at the hoist strutting arrangement of engineering prefabrication unidimensional, satisfy the shaped steel handling demand in whole construction cycle process, specifically include backup pad 1, the fixed reinforcing steel sheet that is provided with in backup pad 1, be provided with rings on the reinforcing steel sheet, rings are used for connecting wire rope, the equal movable joint frame 3 that is provided with in backup pad 1 both sides, as shown in figure 3, the spread groove has all been seted up to backup pad 1 both sides, and 3 upper portions of link are provided with the connector, and the connector passes through connecting pin movable mounting in the spread groove, and the link 3 that corresponds cooperatees, and it is fixed to the side of shaped steel through the corresponding link, is convenient for improve whole.
As shown in fig. 4, a fixing plate 4 is movably arranged on a connecting frame 3, the fixing plate 4 is in a T shape, the T-shaped fixing plate slides on the connecting frame to be convenient for pressing and fixing the side of the profile steel, a chute 7 is arranged in the connecting frame 3, a connecting spring 6 is fixedly arranged in the chute 7, the connecting spring is in a compressed state in an initial state, the fixing plate 4 is movably arranged in the chute 7, the fixing plate 4 is fixedly connected with the connecting spring 6, a support plate 1 is connected with the fixing plate 4 through an adjusting mechanism, a groove 2 is arranged on the fixing plate 4, the adjusting mechanism penetrates through the support plate 1 to be connected with the groove 2, as shown in fig. 2, the adjusting mechanism comprises a connecting screw rod 5, the connecting screw rod 5 penetrates through the support plate 1 to be in threaded connection with the groove 2 on the fixing plate 4, a constructor moves the fixing plate upwards to clamp the side of the profile steel firstly, and limits the fixing plate through the connecting spring, pass the backup pad through connecting screw and press solid board threaded connection afterwards, further compress tightly fixedly to shaped steel limit side, avoid the shaped steel slippage to appear.
The above description is only a preferred embodiment of the present invention, and should not be taken as limiting the invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (5)
1. The utility model provides a hoist strutting arrangement based on BIM, includes backup pad (1), fixedly on backup pad (1) is provided with the reinforcement steel sheet, is provided with rings on the reinforcement steel sheet, its characterized in that, backup pad (1) both sides all activity is provided with link (3), and link (3) that correspond cooperate, link (3) go up the activity and are provided with solid board (4) of pressure and backup pad (1) are connected with solid board (4) of pressure through adjustment mechanism.
2. The BIM-based lifting appliance supporting device according to claim 1, wherein a sliding groove (7) is formed in the connecting frame (3), a connecting spring (6) is fixedly installed in the sliding groove (7), the pressing plate (4) is movably arranged in the sliding groove (7), and the pressing plate (4) is fixedly connected with the connecting spring (6); the pressing and fixing plate (4) is provided with a groove (2), and the adjusting mechanism penetrates through the supporting plate (1) to be connected with the groove (2).
3. BIM-based spreader support device according to claim 1 or 2, wherein the shape of the press plates (4) is T-shaped.
4. The BIM-based spreader support device according to claim 1 or 2, wherein the adjusting mechanism comprises a connecting screw (5), and the connecting screw (5) is threaded through the support plate (1) and the groove (2) on the press plate (4).
5. The BIM-based lifting appliance supporting device according to claim 1, wherein connecting grooves are formed in both sides of the supporting plate (1), and a connecting head is arranged at the upper part of the connecting frame (3) and movably mounted in the connecting grooves through connecting pins.
