Abstract

The utility model provides a scald-proof paper cup, which comprises a paper cup body and a high temperature resistant adhesive, wherein the paper cup body is composed of a cup body and a cup bottom, the cup bottom is positioned below the cup body, the cup body and the cup bottom are integrally formed, the outer wall of the cup body is sleeved with a fixing ring, two fixing buckle seats are buckled on the fixing ring, and scald-proof heads are buckled on the fixing buckle seats, the utility model discloses can jack up two scald-proof heads by a forefinger and a thumb so as to lift up the paper cup body for drinking, thereby playing a good scald-proof role, simultaneously facilitating the disassembly and the installation of the two scald-proof heads, repeatedly using for many times, and the fixing ring plays a good protection role, preventing the cup body from being bent by too forceful hand, preventing hot water from overflowing, being safe and reliable, and the bottom end of the cup bottom is evenly provided with antiskid bulges, when the paper cup body is supported on a desktop, the antiskid bulges can avoid the body from skidding, the stability is improved.

Description

Anti-scald paper cup

Technical Field

The utility model mainly relates to the technical field of articles for daily use, concretely relates to prevent scalding paper cup.

Background

Articles for daily use of ordinary people are articles which are necessities of life, namely household articles, household food, household appliances and the like. The paper cup is one of daily necessities, and is a paper container which is made by mechanically processing and bonding base paper (white paper board) made of chemical wood pulp, and the appearance of the paper container is in a cup shape. The paper cup for frozen food is waxed, and can be used for containing ice cream, jam, butter, etc. The paper cup for hot drink is coated with plastic, can resist the temperature of over 90 ℃ and even can contain boiled water.

When traditional paper cup holds hot water, the cup body is thermal-insulated relatively poor in effect, and the phenomenon of scalding is very easily appeared to handheld paper cup, has great potential safety hazard.

SUMMERY OF THE UTILITY MODEL

The utility model mainly provides a prevent scalding paper cup for the paper cup that proposes in solving above-mentioned background art is when holding hot water, and the cup body is thermal-insulated relatively poor, and the phenomenon of scalding is very easily appeared to handheld paper cup, has great potential safety hazard technical problem.

The utility model provides a technical scheme that above-mentioned technical problem adopted does:

the utility model provides a prevent scalding paper cup, includes paper cup body and high temperature resistant adhesive, the paper cup body comprises cup body and bottom of cup, the bottom of cup is located the below of cup body, and cup body and bottom of cup integrated into one piece, the outer wall cover of cup body has solid fixed ring, gu the lock joint has two fixed knot seats, gu all the lock joint has the head of preventing scalding on the seat.

The bottom end of the cup bottom is uniformly distributed with anti-skid bulges.

The top end of the cup body is provided with a cup mouth.

The fixing ring is connected with the cup body through high-temperature resistant adhesive.

The anti-scalding head is composed of a fixing buckle and a curved anti-slip block, and the curved anti-slip block is installed at the top end of the fixing buckle.

And an anti-skid soft cushion is bonded on the inner side surface of the curved anti-skid block.

Compared with the prior art, the beneficial effects of the utility model are that: one of which, the utility model discloses an outer wall cover of cup body has solid fixed ring, and gu be connected with two fixed knot seats on the fixed ring, it has the anti-scalding head all to detain simultaneously on the seat, can be convenient for lift up the paper cup body with two anti-scalding heads of forefinger and thumb jack-up and drink, play good scald-proof effect, also be convenient for simultaneously scald the dismantlement and the installation of head to two sides, repeated repetitious usage, and gu fixed ring plays good guard action, avoid the hand to use too vigorously to bend the cup body, prevent hot water and spill over, safety and reliability.

Two, the utility model discloses a bottom evenly distributed of bottom of cup has anti-skidding arch, and when the paper cup body supported on the desktop, the phenomenon of skidding can be avoided appearing to the anti-skidding arch paper cup body, improves the steadiness.

The present invention will be explained in detail with reference to the drawings and specific embodiments.

Drawings

Fig. 1 is a schematic structural view of the present invention;

fig. 2 is a schematic view of the structure of the anti-scald head of the present invention;

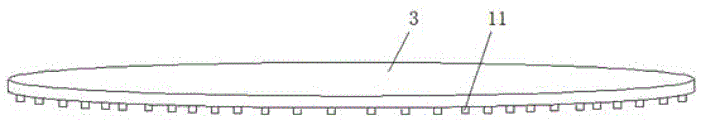

FIG. 3 is a schematic view of the structure of the cup bottom of the present invention;

fig. 4 is a schematic structural view of the fixing ring of the present invention.

In the figure: 1. a paper cup body; 2. a cup body; 3. a cup bottom; 4. a fixed buckle seat; 5. a fixing ring; 6. a cup mouth; 7. preventing scalding heads; 8. a fixing buckle; 9. an anti-slip soft cushion; 10. a curved non-slip block; 11. anti-skid projections; 12. high temperature resistant adhesive.

Detailed Description

In order to facilitate understanding of the present invention, the present invention will be described more fully with reference to the accompanying drawings, in which several embodiments of the present invention are shown, but the present invention can be implemented in different forms, and is not limited to the embodiments described in the text, but rather, these embodiments are provided to make the disclosure of the present invention more thorough and comprehensive.

It will be understood that when an element is referred to as being "secured to" another element, it can be directly on the other element or intervening elements may be present, and when an element is referred to as being "connected" to another element, it can be directly connected to the other element or intervening elements may also be present, as the terms "vertical", "horizontal", "left", "right" and the like are used herein for descriptive purposes only.

Unless defined otherwise, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this invention belongs, and the use of the term knowledge in the specification of the present invention is for the purpose of describing particular embodiments and is not intended to limit the present invention, and the term "and/or" as used herein includes any and all combinations of one or more of the associated listed items.

Please refer to fig. 1-4 with great emphasis, an anti-scald paper cup comprises a paper cup body 1 and a high temperature resistant adhesive 12, wherein the paper cup body 1 is composed of a cup body 2 and a cup bottom 3, the cup bottom 3 is positioned below the cup body 2, the cup body 2 and the cup bottom 3 are integrally formed, a fixing ring 5 is sleeved on the outer wall of the cup body 2, the fixing ring 5 has a good protection effect, the cup body 2 is prevented from being bent by hand force, hot water is prevented from overflowing, the anti-scald paper cup is safe and reliable, two fixing buckle seats 4 are connected to the fixing ring 5, and anti-scald heads 7 are buckled on the fixing buckle seats 4, so that the index finger and thumb can jack up the two anti-scald heads 7 to lift up the paper cup body 1 for drinking, so as to have a good anti-scald effect, and meanwhile, the two anti-scald heads 7 are convenient to detach and install, and can.

Bottom evenly distributed of bottom 3 has anti-skidding arch 11, and when paper cup body 1 supported on the desktop, anti-skidding arch 11 can avoid paper cup body 1 the phenomenon of skidding to appear, improves the steadiness.

The top end of the cup body 2 is provided with a cup opening 6, and hot water in the cup body 2 can be drunk from the cup opening 6.

The fixing ring 5 is connected with the cup body 2 through the high-temperature resistant adhesive 12, so that the fixing ring 5 is firmly and tightly connected with the cup body 2 and is not easy to fall off.

The anti-scalding head 7 is composed of a fixing buckle 8 and a curved anti-skid block 10, and the curved anti-skid block 10 is installed at the top end of the fixing buckle 8.

The antiskid cushion 9 is bonded on the inner side surface of the curved antiskid blocks 10, the antiskid cushion 9 can avoid the phenomenon that a finger slips when the two curved antiskid blocks 10 are jacked up, and therefore the paper cup body 1 can be conveniently moved, safety and reliability are achieved, and hands are comfortable.

The utility model discloses a concrete operation as follows: when the paper cup body 1 is filled with boiled water, the paper cup body 1 consists of a cup body 2 and a cup bottom 3, and the bottom end of the cup bottom 3 is uniformly distributed with the anti-skidding bulges 11, when the paper cup body 1 is supported on a desktop, the anti-skidding bulges 11 can avoid the phenomenon of skidding of the paper cup body 1, so as to improve the stability, when the paper cup needs to be drunk, as the outer wall of the cup body 2 is sleeved with the fixing ring 5, and the fixing ring 5 is connected with the cup body 2 through the high-temperature resistant adhesive 12, the stability of the fixing ring 5 is improved, the fixing ring 5 plays a good protection role, so as to avoid the phenomenon that the cup body 2 is bent by too hard hand, so as to prevent hot water from overflowing, the fixing ring 5 is safe and reliable, the fixing buckle seats 4 are connected with the fixing buckle seats 4, the anti-scalding heads 7 are buckled with the anti-scalding heads 7, the anti-scalding heads 7 consist of the fixing buckles 8 and the anti-scalding blocks 10, so as to jack, play good preventing scalding the effect, curved shape non slipping spur 10 medial surface bonds has anti-skidding cushion 9, avoids the finger to appear skidding the phenomenon when jack-up two prevent scalding head 7, uses safe and reliable more.

The present invention has been described above with reference to the accompanying drawings, and it is obvious that the present invention is not limited by the above-mentioned manner, if the method and the technical solution of the present invention are adopted, the present invention can be directly applied to other occasions without substantial improvement, and the present invention is within the protection scope of the present invention.

Claims (6)

1. The utility model provides a prevent scalding paper cup, includes paper cup body (1) and high temperature resistant adhesive (12), its characterized in that: the paper cup body (1) is composed of a cup body (2) and a cup bottom (3), the cup bottom (3) is located below the cup body (2), the cup body (2) and the cup bottom (3) are integrally formed, the outer wall of the cup body (2) is sleeved with a fixing ring (5), two fixing buckle seats (4) are connected onto the fixing ring (5), and the fixing buckle seats (4) are buckled with an anti-scalding head (7).

2. An anti-scald paper cup according to claim 1, characterized in that the bottom end of the cup bottom (3) is uniformly distributed with anti-slip protrusions (11).

3. An anti-scald paper cup as claimed in claim 1, wherein a cup mouth (6) is formed at the top end of the cup body (2).

4. An anti-scald paper cup as claimed in claim 1, wherein the fixing ring (5) is connected with the cup body (2) through a high-temperature resistant adhesive (12).

5. An anti-scald paper cup according to claim 1, characterized in that the anti-scald head (7) is composed of a fixing buckle (8) and a curved anti-slip block (10), and the curved anti-slip block (10) is installed at the top end of the fixing buckle (8).

6. An anti-scald paper cup as claimed in claim 5, wherein the inner side of the curved skidproof block (10) is adhered with the skidproof soft cushion (9).
