Abstract
本实用新型涉及操作设备技术领域，尤其为一种能够快速清除废屑的家具设计操作台，包括底座、垃圾桶、除尘板、毛刷和操作台，所述底座的下端面固定安装有收集箱，所述垃圾桶的下端面固定设置有滑板，所述底座的上端面滑动设置有滑动操作台，所述滑动操作台的下端面镂空设置有滤网，所述操作台的下端面固定设置有平面刷。通过向左移动滑动操作台，平面刷将废屑通过滤网落入收集箱中，利用可以滑动的毛刷可以快速对操作台上的废屑进行清理，操作简单，收集箱内设置的抽屉方便对废屑进行统一清理，通过在垃圾桶侧端设置的磁吸板，可以起到良好的固定作用，需要统一清理垃圾桶时，垃圾桶底部设置的滑板方便移动垃圾桶，节省人力，快捷方便。
The utility model relates to the technical field of operating equipment, in particular to a furniture design operating table capable of quickly removing waste debris, comprising a base, a trash can, a dust removal board, a brush and an operating table, and a collection box is fixedly installed on the lower end surface of the base , the lower end surface of the trash can is fixedly provided with a sliding plate, the upper end surface of the base is slidably provided with a sliding operating table, the lower end surface of the sliding operating table is hollowed out with a filter screen, and the lower end surface of the operating table is fixedly provided with Flat brush. By moving the sliding operation table to the left, the flat brush will drop the waste into the collection box through the filter screen, and the slidable brush can quickly clean the waste on the operation table, the operation is simple, and the drawer set in the collection box is convenient For uniform cleaning of waste debris, the magnetic suction plate set on the side of the trash can can play a good role in fixing. When the trash can needs to be cleaned uniformly, the sliding plate set at the bottom of the trash can is convenient to move the trash can, which saves manpower and is fast and convenient. .
Description
Technical Field
The utility model relates to an operating equipment technical field specifically is a can clear away furniture design operation panel of sweeps fast.
Background
Furniture refers to a large category of appliances and facilities essential for human beings to maintain normal life, practice production and develop social activities, and furniture design refers to expressing the shape, function, dimension, color, material and structure of furniture by using methods such as graphics (or models) and written descriptions. The furniture design is an art and an application science.
Often need use the workstation when furniture design and add man-hour, because furniture processing's particularity, often can produce a large amount of dusts and sweeps when cutting or polishing furniture material, however a large amount of sweeps can cause very big injury to operating personnel's health to sweeps and dust inconvenient collection when the clearance, waste time and energy, consequently, propose a furniture design operation panel that can clear away the sweeps fast to above-mentioned problem.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a can clear away furniture design operation panel of sweeps fast to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
a furniture design operation table capable of quickly removing scraps comprises a base, a garbage can, a dust removing plate, a brush and an operation table, the lower end surface of the base is fixedly provided with a supporting column, the lower end surface of the base is fixedly provided with a collecting box, a drawer is arranged in the collecting box in a sliding way, the side end face of the base is fixedly connected with a garbage can, the lower end surface of the garbage can is fixedly provided with a sliding plate, the upper end surface of the base is provided with a sliding chute, the inner end of the chute is provided with a roller in a sliding way, the upper end surface of the roller is fixedly provided with a dust removing plate, the upper end surface of the dust removing plate is fixedly provided with a handle, the middle part of the base is fixedly provided with an operating platform, the upper end face of base slides and is provided with the slip operation panel, the lower terminal surface fretwork of slip operation panel is provided with the filter screen, the fixed plane brush that is provided with of lower terminal surface of operation panel.
Preferably, the garbage bin left side terminal surface is fixed and is provided with the magnetism suction disc, the base lateral surface is provided with the stainless steel protective layer, the garbage bin passes through the magnetism suction disc and the side end face magnetism of base is connected.
Preferably, the number of the rollers is four, the rollers are evenly arranged on the lower end face of the dust removing plate, the number of the sliding grooves is two, the sliding grooves are symmetrically arranged on the end faces of the two sides of the base, and the rollers are symmetrically arranged in the sliding grooves in a sliding mode.
Preferably, the length of the brush is greater than that of the operating platform, the lowest surface of the brush and the upper end surface of the operating platform are located on the same horizontal line, and the length of the brush is smaller than the distance between the symmetrically arranged sliding grooves.
Preferably, the height of the sliding operation table is smaller than that of the operation table, a base below the sliding operation table is provided with a hollow groove and a filter screen, and the collecting box is located under the filter screen.
Preferably, the height of the left side plate of the garbage can is smaller than that of the sliding operation table, and the height of the right side plate of the garbage can is larger than that of the sliding operation table.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses in, through the slip operation panel that slides and set up, can get rid of the sweeps on the slip operation panel when needs, slip the slip operation panel left, the sweeps on the plane brush of operation panel downside will slide the operation panel falls into the collection box through the filter screen in, through the dust removal board that slides and set up, the slip dust removal board utilizes the brush to clear up the sweeps on the operation panel fast, easy operation, and the practicality is strong.
2. The utility model discloses in, through the drawer that sets up in the collecting box, the convenient sweeps to the collecting box is unified and is cleared up, through the magnetism suction disc that sets up at the garbage bin side, can play good fixed action, when needing unified clearance garbage bin, the convenient garbage bin that removes of slide that the garbage bin bottom set up uses manpower sparingly, and is swift convenient.
Drawings

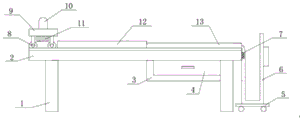

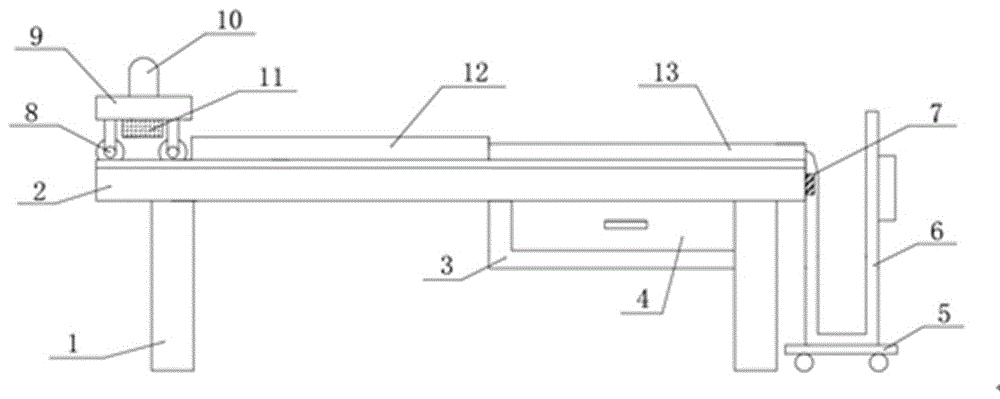

FIG. 1 is a schematic view of the overall structure of the present invention;
fig. 2 is a schematic top view of the base of the present invention;
FIG. 3 is a schematic side view of the dust-collecting plate of the present invention;
FIG. 4 is a schematic view of the structure of the flat brush of the present invention;
fig. 5 is a schematic top view of the operation table of the present invention.
In the figure: 1-supporting column, 2-base, 3-collecting box, 4-drawer, 5-sliding plate, 6-garbage can, 7-magnetic suction plate, 8-roller, 9-dust removing plate, 10-handle, 11-brush, 12-operation table, 13-sliding operation table, 14-chute, 15-filter screen, 16-plane brush.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-5, the present invention provides a technical solution:
a furniture design operation table capable of quickly removing scraps, which comprises a base 2 and a garbage can 6, dust removal board 9, brush 11 and operation panel 12, the fixed support column 1 that is provided with of lower terminal surface of base 2, the lower terminal surface fixed mounting of base 2 has collecting box 3, it is provided with drawer 4 to slide in the collecting box 3, the side end fixed connection of base 2 has garbage bin 6, the fixed slide 5 that is provided with of lower terminal surface of garbage bin 6, spout 14 has been seted up to the up end of base 2, the inner slip of spout 14 is provided with gyro wheel 8, the fixed dust removal board 9 that is provided with of up end of gyro wheel 8, the up end fixed mounting of dust removal board 9 has handle 10, the middle part fixed mounting of base 2 has operation panel 12, the up end slip of base 2 is provided with slip operation panel 13, the lower terminal surface fretwork of slip operation panel 13 is provided with filter screen 15, the lower terminal surface fixed.
A magnetic suction plate 7 is fixedly arranged on the left end face of the garbage can 6, a stainless steel protective layer is arranged on the outer side face of the base 2, and the garbage can 6 is magnetically connected with the side end face of the base 2 through the magnetic suction plate 7; the quantity of gyro wheel 8 is four, and it evenly sets up the lower terminal surface at dust removal board 9, and the quantity of spout 14 is two, and its symmetry sets up in the both sides terminal surface of base 2, and gyro wheel 8 symmetry slip sets up in spout 14.
The length of the hairbrush 11 is greater than that of the operating platform 12, the lowest surface of the hairbrush 11 and the upper end surface of the operating platform 12 are located on the same horizontal line, and the length of the hairbrush 11 is smaller than the distance between the symmetrically arranged sliding grooves 14; the height of the sliding operation table 13 is smaller than that of the operation table 12, a hollow groove is formed in the base 2 below the sliding operation table 13, the filter screen 15 is arranged, and the collecting box 3 is located right below the filter screen 15; the height of the left side plate of the garbage can 6 is smaller than that of the sliding operation table 13, and the height of the right side plate of the garbage can 6 is larger than that of the sliding operation table 13.
The working process is as follows: firstly, before use, the dust removal plate 9 is slid at the leftmost end of the base 2, and the scraps in the drawer 4 and the garbage can 6 are cleaned; when the sweeps on the operation panel 12 need to be cleaned, the operation handle 10 slides the dust removal plate 9 rightwards, the sweeps on the operation panel 12 are removed by the brush 11 on the lower end face of the dust removal plate 9, the dust removal plate falls onto the sliding operation panel 13, the dust removal plate 9 continues to be pushed, the sweeps on the sliding operation panel 13 are removed into the garbage can 6, when the sweeps on the sliding operation panel 13 only need to be removed, the sliding operation panel 13 slides leftwards, the sweeps on the sliding operation panel 13 are removed by the plane brush 16 arranged on the lower end face of the operation panel 12, the sweeps fall into the drawer 4 in the collection box 3 through the filter screen 15, and the operation handle is noteworthy of cleaning uniformly when the sweeps in the drawer 4 or the garbage can 6 are fully stored.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a can clear away furniture design operation panel of sweeps fast, includes base (2), garbage bin (6), dust removal board (9), brush (11) and operation panel (12), its characterized in that: the garbage bin is characterized in that a support column (1) is fixedly arranged on the lower end face of the base (2), a collecting box (3) is fixedly arranged on the lower end face of the base (2), a drawer (4) is arranged in the collecting box (3) in a sliding mode, a garbage bin (6) is fixedly connected to the side end face of the base (2), a sliding plate (5) is fixedly arranged on the lower end face of the garbage bin (6), a sliding groove (14) is formed in the upper end face of the base (2), a roller (8) is slidably arranged at the inner end of the sliding groove (14), a dust removing plate (9) is fixedly arranged on the upper end face of the roller (8), a handle (10) is fixedly arranged on the upper end face of the dust removing plate (9), an operating table (12) is fixedly arranged in the middle of the base (2), a sliding operating table (13) is slidably arranged on the upper end face of the base, the lower end face of the operating platform (12) is fixedly provided with a plane brush (16).
2. A furniture design operating platform capable of quickly removing scraps according to claim 1, wherein: the garbage bin (6) left side terminal surface is fixed and is provided with magnetism suction disc (7), base (2) lateral surface is provided with the stainless steel protective layer, garbage bin (6) are connected through the side end face magnetism of magnetism suction disc (7) and base (2).
3. A furniture design operating platform capable of quickly removing scraps according to claim 1, wherein: the quantity of gyro wheel (8) is four, and it evenly sets up the lower terminal surface at dust removal board (9), the quantity of spout (14) is two, and its symmetry sets up the both sides terminal surface at base (2), and gyro wheel (8) symmetry slip setting in spout (14).
4. A furniture design operating platform capable of quickly removing scraps according to claim 1, wherein: the length of the brush (11) is greater than that of the operating platform (12), the lowest surface of the brush (11) and the upper end surface of the operating platform (12) are located on the same horizontal line, and the length of the brush (11) is smaller than the distance between the symmetrically arranged sliding grooves (14).
5. A furniture design operating platform capable of quickly removing scraps according to claim 1, wherein: the height of the sliding operation table (13) is smaller than that of the operation table (12), a hollow groove is formed in the base (2) below the sliding operation table (13), a filter screen (15) is arranged in the hollow groove, and the collecting box (3) is located under the filter screen (15).
6. A furniture design operating platform capable of quickly removing scraps according to claim 1, wherein: the height of the left side plate of the garbage can (6) is smaller than that of the sliding operation table (13), and the height of the right side plate of the garbage can (6) is larger than that of the sliding operation table (13).
