本实用新型公开了一种板材自动加筋机，包括：移动支架、开槽机构、牵引机构、校直机构、导线机构、切断机构、注胶机构和工作台，移动支架安装在工作台上，开槽机构、牵引机构、切断机构和注胶机构安装在移动支架上，校直机构安装在牵引机构上，导线机构安装在校直机构上。本实用新型自动化程度高，工作效率高，而且能够保持加工质量，有效提升了板材的强度；另外生产精度提高，减少了粉尘和树脂的污染。
The utility model discloses an automatic plate reinforcement machine, comprising: a moving bracket, a slotting mechanism, a traction mechanism, a straightening mechanism, a wire mechanism, a cutting mechanism, a glue injection mechanism and a workbench, wherein the mobile supporter is installed on the workbench, The slotting mechanism, the traction mechanism, the cutting mechanism and the glue injection mechanism are installed on the moving bracket, the straightening mechanism is installed on the pulling mechanism, and the wire mechanism is installed on the straightening mechanism. The utility model has a high degree of automation, high work efficiency, and can maintain the processing quality, thereby effectively improving the strength of the board; in addition, the production precision is improved, and the pollution of dust and resin is reduced.
Description
Technical Field
The utility model relates to a stone material processing equipment field specifically is an automatic muscle machine that adds of panel.
Background
Because natural stone is rich in texture and patterns, the natural stone is deeply loved by people, and high-grade products of the natural stone are widely applied to decoration of floors, wall surfaces, cabinets and the like; however, the natural stone is rich in texture and patterns, so that the instability and the possibility of breakage of the stone are increased, and the stone is not beautiful.
In order to enhance the strength of the stone, a straight groove with two ends penetrating is generally cut on the stone by an edge trimmer, two sides of the groove are blocked by powerful glue, the length of the groove is measured, an iron bar with corresponding length is cut and placed in the groove, and finally, resin is manually poured into the groove; the operation method has long time, high labor intensity, low production efficiency and unstable quality of the produced product.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects of the prior art and providing an automatic plate reinforcing machine with high automation degree, high efficiency, low cost and strong stability.
The utility model discloses a realize through following technique:
an automatic plate material reinforcing machine, comprising: the device comprises a movable support, a grooving mechanism, a traction mechanism, a straightening mechanism, a wire mechanism, a cutting mechanism, an adhesive injection mechanism and a workbench, wherein the movable support is arranged on the workbench;
the movable support includes: the device comprises a transverse guide rail, a guide rail sliding seat I and a guide rail sliding seat II; two transverse guide rails are arranged on the workbench, and the transverse guide rails span the workbench; the first guide rail sliding seat is movably arranged on one transverse guide rail, the second guide rail sliding seat is movably arranged on the other transverse guide rail, and a cross beam is arranged between the first guide rail sliding seat and the second guide rail sliding seat; a beam motor is arranged at the top end of the beam, and the guide rail sliding seat I and the guide rail sliding seat II synchronously move on the transverse guide rail through transmission;
the grooving mechanism includes: a motor angle frame and a grinding head; the motor angle frame is movably arranged on the guide rail sliding seat I through the electric lifting plate I, and the grinding head is arranged at the bottom of the motor angle frame; the motor angle frame can move up and down on the electric lifting plate I, so that the grinding head is driven to move up and down, and a processing groove is conveniently cut on the stone;
the traction mechanism includes: drawing the main board; the traction main board is movably arranged on the cross beam through an electric lifting board II, and a fixed pressing wheel and a movable pressing wheel are arranged on the traction main board; the distance between the fixed pinch roller and the movable pinch roller can be adjusted by moving the movable pinch roller, so that iron bars with different diameters can be met; a stepping motor is arranged on the traction main board, an output shaft of the stepping motor is connected with the fixed pinch roller, and the stepping motor drives the fixed pinch roller to rotate, so that an iron bar between the fixed pinch roller and the movable pinch roller is pulled in;
the straightening mechanism is arranged on the traction mechanism; the straightening mechanism includes: the straightening bottom plate is arranged on the traction main plate; the fixed straightening wheel and the movable straightening wheel are arranged on the straightening bottom plate, the distance between the movable straightening wheel and the fixed straightening wheel is adjusted, and when an iron strip is pulled in, the movable straightening wheel and the fixed straightening wheel can straighten the iron strip;
the wire guiding mechanism is arranged on the straightening mechanism and comprises a wire guider and a wire guiding wheel; the wire guide is arranged on the straightening bottom plate, and the wire guide wheel is arranged on the wire guide; the wire guide wheel can ensure that the iron bars cannot deviate; the dust hood is arranged at the bottom of the wire guide, so that dust and sewage generated when the grinding head cuts the stone can be sucked away, and the stone is kept clean;
the cutting mechanism includes: the cutting-off device comprises a cutting-off seat, a cutting-off cylinder, an upper cutter template and a cutter head; the cutting seat is arranged on the traction main board, and a cutting cylinder and a cutting sliding seat are arranged on the cutting seat; the upper cutter template is arranged on the cutting slide seat and is connected with the cutting cylinder; the bottom of the upper cutter template is provided with a cutter head; the upper cutter template is controlled to move up and down on the cutting slide seat through the cutting cylinder, and the cutter head is driven to move up and down, so that the iron bar is cut off;
the injecting glue mechanism includes: a dispensing valve and a dispensing carriage; the dispensing carriage is arranged on the second guide rail sliding seat, and the dispensing valve is movably arranged on the dispensing carriage through the dispensing sliding seat; the glue dispensing slide seat is also provided with a glue dispensing cylinder, and the glue dispensing cylinder is connected with the glue dispensing valve and pushes the glue dispensing valve to move on the glue dispensing carriage;
the workstation includes: the device comprises a base, a roller, a belt and a conveying motor; the two ends of the base are provided with rollers, and the belt is arranged on the rollers; the conveying motor is connected with the roller on one side, and drives the roller to rotate and the belt to move, so that the stone placed on the belt moves towards the direction of the feeler motor; an adjusting groove is formed in one end, where the conveying motor is not installed, of the base, and the roller is installed on the adjusting groove; a tensioning device is arranged outside the adjusting groove and connected with the roller; the distance between the two rollers is adjusted through the tensioning device, and the belt is prevented from slipping.
The utility model has the advantages that:
1. the utility model has high automation degree and high working efficiency, can maintain the processing quality and effectively improve the strength of the plate;
2. the production precision is improved, and the pollution of dust and resin is reduced.
Drawings

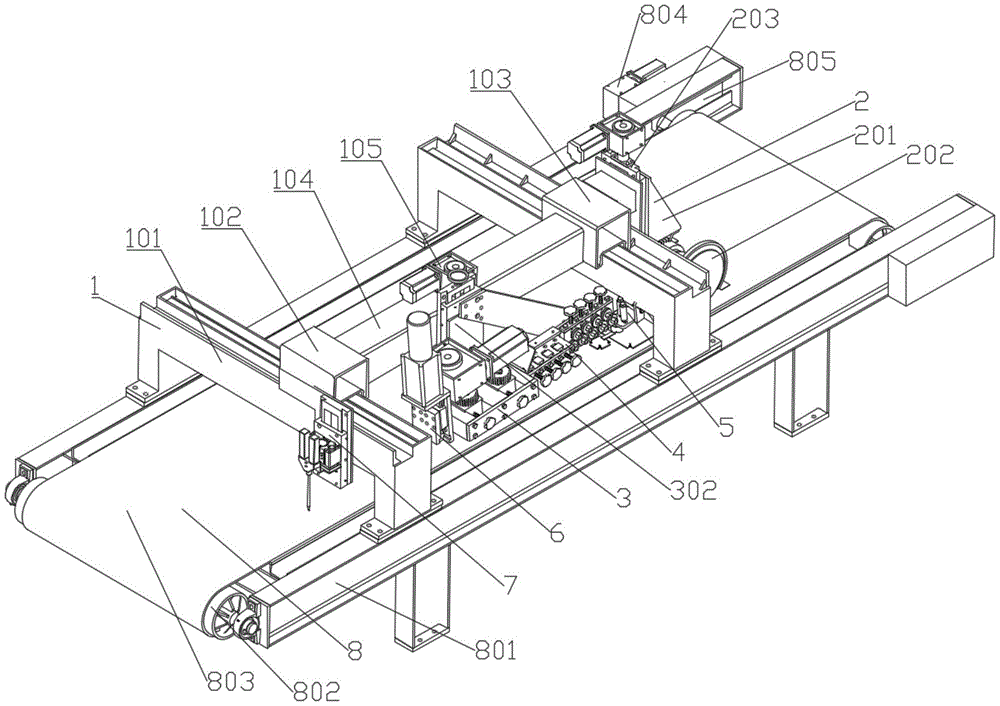

Fig. 1 is a schematic structural diagram of the present invention.
Fig. 2 is a schematic structural diagram of the present invention.
Fig. 3 is a schematic structural diagram of a traction mechanism according to the present invention.
Fig. 4 is a schematic structural diagram of a traction mechanism according to the present invention.
Fig. 5 is a schematic bottom view of the traction mechanism of the present invention.
Fig. 6 is a schematic structural diagram of the glue dispensing mechanism of the present invention.
Reference signs mean: 1. moving the support; 101. a transverse guide rail; 102. a first guide rail sliding seat; 103. a second guide rail sliding seat; 104. a cross beam; 105. a beam motor; 2. a grooving mechanism; 201. a motor angle bracket; 202. grinding heads; 203. a first electric lifting plate; 3. a traction mechanism; 301. drawing the main board; 302. a second electric lifting plate; 303. fixing the pinch roller; 304. a movable pinch roller; 305. a stepping motor; 4. a straightening mechanism; 401. straightening the bottom plate; 402. fixing the straightening wheels; 403. a movable straightening wheel; 5. a wire guide mechanism; 501. a wire guide; 502. a wire guide wheel; 6. a cutting mechanism; 601. a cutting seat; 602. cutting off the cylinder; 603. cutting off the sliding seat; 604. feeding a cutter template; 605. a cutter head; 7. a glue injection mechanism; 701. dispensing a glue valve; 702. dispensing a trailing bar; 703. a glue dispensing sliding seat; 704. a dispensing cylinder; 8. a work table; 801. a base; 802. a drum; 803. a belt; 804. a conveying motor; 805. an adjustment groove; 806. a tensioning device.
Detailed Description
In order to make the technical solution, objects and advantages of the present invention more apparent, the present invention will be further explained with reference to the accompanying drawings and embodiments.
As shown in fig. 1-2, an automatic plate material stiffener includes: the device comprises a movable support 1, a grooving mechanism 2, a traction mechanism 3, a straightening mechanism 4, a wire guiding mechanism 5, a cutting mechanism 6, a glue injection mechanism 7 and a workbench 8, wherein the movable support 1 is installed on the workbench 8, the grooving mechanism 2, the traction mechanism 3, the cutting mechanism 6 and the glue injection mechanism 7 are installed on the movable support 1, the straightening mechanism 4 is installed on the traction mechanism 3, and the wire guiding mechanism 5 is installed on the straightening mechanism 4;
the moving rack 1 includes: a transverse guide rail 101, a first guide rail sliding seat 102 and a second guide rail sliding seat 103; two transverse guide rails 101 are arranged on the workbench 8, racks are arranged on the transverse guide rails 101, and the transverse guide rails 101 cross the workbench 8; a first guide rail sliding seat 102 is movably arranged on one transverse guide rail 101, a second guide rail sliding seat 103 is movably arranged on the other transverse guide rail 101, and a cross beam 104 is arranged between the first guide rail sliding seat 102 and the second guide rail sliding seat 103; a beam motor 105 is installed at the top end of the beam 104, a transmission shaft is installed inside the beam 104, and gears are installed at two ends of the transmission shaft; an output shaft of the beam motor 105 is driven by a transmission shaft, so that gears at two ends of the transmission shaft are meshed with racks, and the first guide rail sliding seat 102 and the second guide rail sliding seat 103 synchronously move on the transverse guide rail 101;
the notching mechanism 2 includes: a motor angle bracket 201 and a grinding head 202; the motor angle frame 201 is movably arranged on the guide rail sliding seat I102 through an electric lifting plate I203, and the grinding head 202 is arranged at the bottom of the motor angle frame 201; the motor angle frame 201 can move up and down on the electric lifting plate I203, so that the grinding head 202 is driven to move up and down, and a processing groove can be conveniently cut on the stone;
as shown in fig. 3 to 5, the traction mechanism 3 includes: a traction main plate 301; the traction main plate 301 is movably arranged on the cross beam 104 through an electric lifting plate II 302, and a fixed pinch roller 303 and a movable pinch roller 304 are arranged on the traction main plate 301; the distance between the fixed pinch roller 303 and the movable pinch roller 304 can be adjusted by rotating the handle on the movable pinch roller 304, so that iron bars with different diameters can be satisfied; a stepping motor 305 is arranged on the traction main board 301, an output shaft of the stepping motor 305 is connected with the fixed pinch roller 303, and the stepping motor 305 drives the fixed pinch roller 303 to rotate, so that the iron bar between the fixed pinch roller 303 and the movable pinch roller 304 is pulled into the processing groove;
the traction mechanism 3 is provided with two straightening mechanisms 4, wherein one straightening mechanism 4 is parallel to the workbench 8, and the other straightening mechanism 4 is vertical to the workbench 8; the straightening mechanism 4 includes: a straightening bottom plate 401, the straightening bottom plate 401 being mounted on the towing main plate 301; a fixed straightening wheel 402 and a movable straightening wheel 403 are arranged on the straightening bottom plate 401, the distance between the movable straightening wheel 403 and the fixed straightening wheel 402 is adjusted, and when an iron bar is pulled in, the movable straightening wheel 403 and the fixed straightening wheel 402 straighten the iron bar;
the wire guiding mechanism 5 is arranged on the straightening mechanism 4, and the wire guiding mechanism 5 comprises a wire guide 501 and a wire guide wheel 502; a wire guide 501 is mounted on the straightening base plate 401, and a wire guide wheel 502 is mounted on the wire guide 501; the wire guide wheel 502 can ensure that the iron bars cannot deviate; the dust hood is arranged at the bottom of the wire guide 501, so that dust and sewage generated when the grinding head 202 cuts the stone can be sucked away, and the stone is kept clean;
the cutting mechanism 6 includes: a cutting seat 601, a cutting cylinder 602, an upper cutting template 604 and a cutter head 605; the cutting seat 601 is arranged on the traction main board 301, and the cutting cylinder 602 and the cutting slide seat 603 are arranged on the cutting seat 601; an upper cutter template 604 is arranged on a cutting slide seat 603, and the upper cutter template 604 is connected with a cutting cylinder 602; the bottom of the upper knife template 604 is provided with a knife head 605; the upper cutter template 604 is controlled by the cutting cylinder 602 to move up and down on the cutting slide 603, and the cutter head 605 is driven to move up and down, so that the iron bar is cut off;
as shown in fig. 6, the glue injection mechanism 7 includes: a dispensing valve 701 and a dispensing carriage 702; the dispensing carriage 702 is arranged on the second guide rail sliding seat 103, and the dispensing valve 701 is movably arranged on the dispensing carriage 702 through a dispensing sliding seat 703; a dispensing cylinder 704 is arranged on the dispensing carriage 702, and the dispensing cylinder 704 and the dispensing valve push the dispensing valve 701 to move on the dispensing carriage 702;
the work table 8 includes: a base 801, a roller 802, a belt 803, and a conveying motor 804; the two ends of the base 801 are provided with rollers 802, and the belt 803 is arranged on the rollers 802; the conveying motor 804 is connected with the roller 802 on one side, the conveying motor 804 drives the roller 802 to rotate and drives the belt 803 to move, so that the stone placed on the belt 803 moves towards the grinding head; an adjusting groove 805 is formed in one end, where the conveying motor 804 is not installed, of the base 801, and the roller 802 is installed on the adjusting groove 805; a tensioning device 806 is arranged outside the adjusting groove 805, and the tensioning device 806 is connected with the roller 802; the distance between the two rollers 802 is adjusted by the tensioner 806 to prevent the belt 803 from slipping.
The above is only the preferred embodiment of the present invention, and to the technical personnel in the technical field, without departing from the present invention, the embodiment can still be modified, and the corresponding modification should also be regarded as the protection scope of the present invention.
Claims (4)
1. An automatic plate material reinforcing machine, comprising: the automatic cutting device comprises a movable support, a grooving mechanism, a traction mechanism, a cutting mechanism, an adhesive injection mechanism and a workbench, wherein the movable support is arranged on the workbench, and the grooving mechanism, the traction mechanism, the cutting mechanism and the adhesive injection mechanism are arranged on the movable support; the method is characterized in that:
the moving rack includes: the device comprises a transverse guide rail, a guide rail sliding seat I and a guide rail sliding seat II; the workbench is provided with two transverse guide rails, the first guide rail sliding seat is movably arranged on one transverse guide rail, and the second guide rail sliding seat is movably arranged on the other transverse guide rail; a cross beam is arranged between the first guide rail sliding seat and the second guide rail sliding seat;
the grooving mechanism includes: a motor angle frame and a grinding head; the motor angle frame is movably arranged on the first guide rail sliding seat through the first electric lifting plate, and the grinding head is arranged at the bottom of the motor angle frame;
the traction mechanism includes: drawing the main board; the traction main board is movably arranged on the cross beam through an electric lifting board II, and a fixed pressing wheel and a movable pressing wheel are arranged on the traction main board; a stepping motor is arranged on the traction main board and connected with the fixed pinch roller;
the cutting mechanism includes: the cutting-off device comprises a cutting-off seat, a cutting-off cylinder, an upper cutter template and a cutter head; the cutting seat is arranged on the traction main board, and a cutting cylinder and a cutting sliding seat are arranged on the cutting seat; the upper cutter template is arranged on the cutting slide seat and is connected with the cutting cylinder; the bottom of the upper cutter template is provided with a cutter head;
the injecting glue mechanism includes: a dispensing valve and a dispensing carriage; the dispensing carriage is arranged on the second guide rail sliding seat, and the dispensing valve is movably arranged on the dispensing carriage through the dispensing sliding seat;
the work bench includes: the device comprises a base, a roller, a belt and a conveying motor; the two ends of the base are provided with rollers, and the belt is arranged on the rollers; the conveying motor is connected with the roller.
2. The automatic plate material reinforcing machine according to claim 1, wherein: an adjusting groove is formed in one end of the base, and the roller is installed on the adjusting groove; and a tensioning device is arranged outside the adjusting groove and connected with the roller.
3. The automatic plate material reinforcing machine according to claim 1 or 2, characterized in that: the traction mechanism is provided with a straightening mechanism; the straightening mechanism includes: the straightening device comprises a straightening bottom plate, wherein a fixed straightening wheel and a movable straightening wheel are arranged on the straightening bottom plate.
4. The automatic plate material stiffener of claim 3, wherein: the straightening mechanism is provided with a wire guiding mechanism; the wire guiding mechanism comprises a wire guide and a wire guiding wheel; the wire guide is arranged on the straightening bottom plate, and the wire guide wheel is arranged on the wire guide.
