Abstract
The utility model discloses a drilling equipment for processing radiator connecting plate convenient for collecting debris, which comprises a supporting frame, the top of the supporting frame is provided with a top plate, the bottom outer wall of the top plate is welded with a slide bar, the top plate is movably connected with the supporting frame through the slide bar, the top outer wall of the top plate is provided with a rectangular hole, the top outer wall of the top plate is fixedly provided with a slide rail, the top outer wall of the top plate is provided with a slide plate, the top outer wall of the top plate is fixedly provided with a first air cylinder, the output end of the first air cylinder is fixedly connected with a first push-pull rod, one end of the first push-pull rod is fixedly connected with the slide plate, the bottom outer wall of the slide plate is fixedly provided with a hydraulic telescopic rod, the bottom end of the hydraulic telescopic rod is fixedly connected with a fixed frame, a scrap collecting box is arranged below the object placing plate.
Description
Technical Field
The utility model relates to a radiator connecting plate processing technology field, in particular to drilling equipment is used in processing of radiator connecting plate convenient to collect piece.
Background
The radiator is very abundant in the kind of in our daily life, has notebook radiator, auto radiator etc. and the radiator needs to install on the connecting plate when using, consequently, need to carry out the drilling to the connecting plate when processing.
When drilling the radiator connecting plate, can produce the piece, current drilling equipment is not convenient for collect the piece, and the piece is piled up the influence and is continued drilling after processing a period of time, needs the manual work to clear up, wastes time and energy for machining efficiency reduces, and in addition, current drilling equipment is not convenient for press from both sides tightly fixedly to the radiator connecting plate that the specification of a dimension is different.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a drilling equipment is used in processing of radiator connecting plate convenient to collect clastic to solve the inconvenient clastic problem of collecting of the traditional device that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a drilling device convenient for collecting scraps and used for machining a radiator connecting plate comprises a supporting frame, wherein a top plate is arranged at the top of the supporting frame, a sliding rod is welded on the outer wall of the bottom of the top plate, the top plate is movably connected with the supporting frame through the sliding rod, a rectangular hole is formed in the outer wall of the top plate, sliding rails are fixedly arranged on the outer wall of the top plate and are positioned on two sides of the rectangular hole, a sliding plate is arranged at the top of the sliding rails, a first air cylinder is fixedly arranged on the outer wall of the top plate, the output end of the first air cylinder is fixedly connected with a first push-pull rod, one end of the first push-pull rod is fixedly connected with the sliding plate, a hydraulic telescopic rod is fixedly arranged on the outer wall of the bottom of the sliding plate, the output end of the motor is fixedly connected with a drill bit.
The drill bit is characterized in that an object placing plate is fixedly arranged on the inner wall of the support frame and located below the drill bit, a through hole is formed in the object placing plate, a fragment collecting box is arranged below the object placing plate, and the fragment collecting box is fixedly connected with the support frame.
Preferably, a scrap outlet pipe is welded on the outer wall of the bottom of the scrap collecting box, and a switch plate is clamped on the scrap outlet pipe.
Preferably, a supporting plate is welded on the outer wall of one side of the supporting frame, a second cylinder is fixedly mounted on the outer wall of the top of the supporting plate, a second push-pull rod is fixedly connected to the output end of the second cylinder, and one end of the second push-pull rod is fixedly connected with the top plate.
Preferably, the first object placing block is welded on the outer wall of the top of one side of the object placing plate, and a fixing clamp is fixedly arranged on the outer wall of the top of the first object placing block.
Preferably, a clamping groove is formed in the outer wall of the top of the object placing plate, a second object placing block is arranged on the outer wall of the top of the object placing plate, a sliding block is welded to the outer wall of the bottom of the second object placing block, and the sliding block is clamped in the clamping groove.
Preferably, the second is put the welding on the both sides outer wall of thing piece and is had the fixed plate, the screw has been seted up on the fixed plate, the second is put the welding on the top outer wall of thing piece and is had movable fixture, movable fixture includes mounting bracket and screw rod.
Preferably, the fixing jig includes a mounting bracket and a screw.
Preferably, the outer wall of the top of the object placing plate is provided with a positioning block.
The utility model discloses a technological effect and advantage:
1. through putting thing board, through-hole, piece collecting box, play bits pipe and switch board that set up, the piece that produces in the process of driling the radiator connecting plate can drop to the piece collecting box in through-hole on putting the thing board, because the curb plate and the horizontal plane of piece collecting box have certain contained angle, under the effect of gravity, the piece landing of being convenient for to collect the piece.
2. Put thing piece, sliding block and fixed plate through the second that sets up, slide the sliding block in putting the draw-in groove on the thing board, be convenient for adjust the distance between activity anchor clamps and the mounting fixture to make the device can press from both sides tightly fixed to the radiator connecting plate of size and specification difference, make the device can carry out drilling processing to the radiator connecting plate of difference, strengthened the device's suitability.
Drawings
Fig. 1 is a sectional view of the structure of the present invention.
Fig. 2 is a right side view of the structure of the present invention.

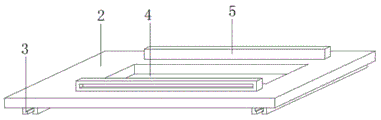

Fig. 3 is a schematic view of the top plate structure of the present invention.
Fig. 4 is a schematic view of the structure of the movable clamp of the present invention.
Fig. 5 is a top view of the storage plate structure of the present invention.
In the figure: 1. a support frame; 2. a top plate; 3. a slide bar; 4. a rectangular hole; 5. a slide rail; 6. a slide plate; 7. a first cylinder; 8. a first push-pull rod; 9. a hydraulic telescopic rod; 10. a fixed mount; 11. a motor; 12. a drill bit; 13. a storage plate; 14. a through hole; 15. a debris collection bin; 16. a scrap discharge pipe; 17. a switch plate; 18. a support plate; 19. a second cylinder; 20. a second push-pull rod; 21. a first object placing block; 22. fixing the clamp; 23. a card slot; 24. a second storage block; 25. a slider; 26. a fixing plate; 27. a movable clamp; 28. a mounting frame; 29. a screw; 30. and (5) positioning the blocks.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
The utility model provides a drilling device for processing a radiator connecting plate convenient for collecting scraps, as shown in figures 1-5, which comprises a support frame 1, wherein the top of the support frame 1 is provided with a top plate 2, the outer wall of the bottom of the top plate 2 is welded with a slide bar 3, the top plate 2 is movably connected with the support frame 1 through the slide bar 3, the outer wall of the top plate 2 is provided with a rectangular hole 4, the outer wall of the top plate 2 is fixedly provided with slide rails 5, the slide rails 5 are positioned at two sides of the rectangular hole 4, the top of the slide rails 5 is provided with a slide plate 6, the outer wall of the top plate 2 is fixedly provided with a first air cylinder 7, the output end of the first air cylinder 7 is fixedly connected with a first push-pull rod 8, one end of the first push-pull rod, the motor 11 is fixedly mounted on the fixing frame 10, the drill bit 12 is fixedly connected to the output end of the motor 11, the object placing plate 13 is fixedly mounted on the inner wall of the support frame 1, and the object placing plate 13 is located below the drill bit 12.
Referring to fig. 1 and 2, a support plate 18 is welded on the outer wall of one side of a support frame 1, a second cylinder 19 is fixedly installed on the outer wall of the top of the support plate 18, a second push-pull rod 20 is fixedly connected to the output end of the second cylinder 19, one end of the second push-pull rod 20 is fixedly connected to a top plate 2, a first cylinder 7 is started, a sliding plate 6 is driven by a first push-pull rod 8 to move in the direction of a sliding rail 5, so as to adjust the transverse position of a drill bit 12, the second cylinder 19 is started, the top plate 2 is driven by the second push-pull rod 20 to slide on the support frame 1, so as to adjust the longitudinal position of the drill bit 12, a motor 11 is started to drive the drill bit 12 to rotate after the adjustment is completed, a hydraulic telescopic rod 9 is started to drive the drill bit 12 to move up and down, so as to perform drilling, a through hole 14 is formed in a, be provided with locating piece 30 on putting the top outer wall of thing board 13, in order to fix a position when placing the radiator connecting plate, the welding has a detritus pipe 16 on the bottom outer wall of piece collecting box 15, the joint has switch board 17 on the detritus pipe 16, the piece that produces can drop to piece collecting box 15 in through-hole 14 on putting thing board 13 in the in-process of driling the radiator connecting plate, because the curb plate of piece collecting box 15 has certain contained angle with the horizontal plane, under the effect of gravity, the piece landing of being convenient for, thereby collect the piece.
Referring to fig. 1 and 4, a first object placing block 21 is welded on the outer wall of the top of one side of the object placing plate 13, a fixing clamp 22 is fixedly arranged on the outer wall of the top of the first object placing block 21, a clamping groove 23 is arranged on the outer wall of the top of the object placing plate 13, a second object placing block 24 is arranged on the outer wall of the top of the object placing plate 13, a sliding block 25 is welded on the outer wall of the bottom of the second object placing block 24, the sliding block 25 is clamped in the clamping groove 23, fixing plates 26 are welded on the outer walls of two sides of the second object placing block 24, a screw hole is arranged on the fixing plates 26, a movable clamp 27 is welded on the outer wall of the top of the second object placing block 24, the movable clamp 27 comprises a mounting frame 28 and a screw 29, the fixing clamp 22 also comprises a mounting frame 28 and a screw 29, when in use, the distance between the movable clamp 27 and the fixing clamp 22 is adjusted according to, the movable clamp 27 is driven to move, and after adjustment is completed, the movable clamp is screwed into a screw hole in the fixing plate 26 by using a bolt for fixing, so that the device can clamp and fix radiator connecting plates with different sizes and specifications, then the radiator connecting plates to be processed are placed on the first object placing block 21 and the second object placing block 24, and then the screw 29 is rotated to clamp the connecting plates.
This practical theory of operation: the utility model relates to a drilling equipment for processing radiator connecting plate convenient to collect piece, when using, at first according to the radiator connecting plate size adjustment of waiting to process the distance between movable clamp 27 and the mounting fixture 22, slide sliding block 25 in putting draw-in groove 23 on thing board 13, drive movable clamp 27 and move, use the bolt to twist into the screw hole on mounting plate 26 and fix after the adjustment is accomplished, thereby make the equipment can clamp tightly the radiator connecting plate of different size specifications and fix, then put the radiator connecting plate of waiting to process on first thing piece 21 and second thing piece 24, use locating piece 30 to fix when putting, then rotate screw 29 and clamp the connecting plate, then start first cylinder 7, drive slide 6 through first push-and-pull rod 8 and move in the direction of slide rail 5, thereby adjust the horizontal position of drill bit 12, start second cylinder 19, it slides on support frame 1 to drive roof 2 through second push-and-pull rod 20, thereby adjust the longitudinal position of drill bit 12, after the adjustment is accomplished, starter motor 11 drives drill bit 12 and rotates, start hydraulic stretching rod 9 and drive drill bit 12 up-and-down motion, thereby drill, piece that the in-process produced of driling the radiator connecting plate can drop to piece collecting box 15 in through-hole 14 on putting thing board 13, because the curb plate of piece collecting box 15 has certain contained angle with the horizontal plane, under the effect of gravity, the piece landing of being convenient for, thereby collect the piece.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and variations can be made in the embodiments or in part of the technical features of the embodiments without departing from the spirit and the scope of the invention.
Claims (8)
1. The utility model provides a drilling equipment is used in processing of radiator connecting plate convenient to collect clastic, includes support frame (1), its characterized in that: the top of the support frame (1) is provided with a top plate (2), the outer wall of the bottom of the top plate (2) is welded with a sliding rod (3), the top plate (2) is movably connected with the support frame (1) through the sliding rod (3), the outer wall of the top plate (2) is provided with a rectangular hole (4), the outer wall of the top plate (2) is fixedly provided with a sliding rail (5), the sliding rail (5) is positioned at two sides of the rectangular hole (4), the top of the sliding rail (5) is provided with a sliding plate (6), the outer wall of the top plate (2) is fixedly provided with a first air cylinder (7), the output end of the first air cylinder (7) is fixedly connected with a first push-pull rod (8), one end of the first push-pull rod (8) is fixedly connected with the sliding plate (6), the outer wall of the bottom of the, the bottom end of the hydraulic telescopic rod (9) is fixedly connected with a fixing frame (10), a motor (11) is fixedly mounted on the fixing frame (10), and the output end of the motor (11) is fixedly connected with a drill bit (12);
the drill bit is characterized in that an object placing plate (13) is fixedly mounted on the inner wall of the support frame (1), the object placing plate (13) is located below the drill bit (12), a through hole (14) is formed in the object placing plate (13), a fragment collecting box (15) is arranged below the object placing plate (13), and the fragment collecting box (15) is fixedly connected with the support frame (1).
2. The drilling device for machining the radiator connecting plate convenient for collecting the scraps in the claim 1, wherein: the chip collecting box is characterized in that a chip outlet pipe (16) is welded on the outer wall of the bottom of the chip collecting box (15), and a switch plate (17) is clamped on the chip outlet pipe (16).
3. The drilling device for machining the radiator connecting plate convenient for collecting the scraps in the claim 1, wherein: the supporting plate (18) is welded on the outer wall of one side of the supporting frame (1), a second air cylinder (19) is fixedly mounted on the outer wall of the top of the supporting plate (18), a second push-pull rod (20) is fixedly connected to the output end of the second air cylinder (19), and one end of the second push-pull rod (20) is fixedly connected with the top plate (2).
4. The drilling device for machining the radiator connecting plate convenient for collecting the scraps in the claim 1, wherein: the welding has first thing piece (21) of putting on the one side top outer wall of putting thing board (13), fixed mounting fixture (22) of being provided with on the first top outer wall of putting thing piece (21).
5. The drilling device for machining the radiator connecting plate convenient for collecting the scraps in the claim 1, wherein: the novel storage rack is characterized in that a clamping groove (23) is formed in the outer wall of the top of the storage plate (13), a second storage block (24) is arranged on the outer wall of the top of the storage plate (13), a sliding block (25) is welded to the outer wall of the bottom of the second storage block (24), and the sliding block (25) is clamped in the clamping groove (23).
6. The drilling device for machining the radiator connecting plate convenient for collecting the scraps of claim 5, wherein: the welding has fixed plate (26) on the both sides outer wall of thing piece (24) is put to the second, the screw has been seted up on fixed plate (26), the welding has movable fixture (27) on the top outer wall of thing piece (24) is put to the second, movable fixture (27) include mounting bracket (28) and screw rod (29).
7. The drilling device for machining the radiator connecting plate convenient for collecting the scraps of claim 4, wherein: the fixing clamp (22) comprises a mounting frame (28) and a screw rod (29).
8. The drilling device for machining the radiator connecting plate convenient for collecting the scraps in the claim 1, wherein: and a positioning block (30) is arranged on the outer wall of the top of the object placing plate (13).
