Abstract
The utility model relates to a skid-mounted filling device based on thing networking states operating module (2) controls indoor explosion-proof electric cabinet, refuels mechanism and the oil discharge mechanism of installing, oil storage module (1) includes at least one oil tank (1.1), oil tank (1.1) is linked together through defeated oil pipe (1.2) and operating module (2) control indoor filling mechanism and oil discharge mechanism, install treater, wireless module and relay on the circuit board that sets up in the explosion-proof electric cabinet, the treater links to each other with wireless module and relay communication, camera, gas concentration sensor, infrared sensor and optical line sensors all link to each other with the treater communication. The utility model relates to a skid-mounted filling device based on thing networking, it adopts the modularized design simultaneously through the realization remote monitoring that the thing networking can be convenient, can be nimble carry out the overall arrangement equipment according to the on-the-spot in service behavior to very big improvement its application scope.
Description
Technical Field
The utility model relates to a skid-mounted tanker aircraft based on thing networking especially relates to an intelligent skid-mounted tanker aircraft with modularization equipment ability, belongs to tanker aircraft technical field.
Background
At present, in order to provide temporary oil supply service, a skid-mounted refueling device is developed, which can be flexibly transferred according to field requirements, and mainly comprises an oil tank and a refueling machine which are integrally installed in a box-type structure (such as a container), so that the skid-mounted refueling device is convenient to rapidly transfer.
However, the conventional skid-mounted refueling device faces the problem of difficult management in the application process, and particularly, the occasion where the skid-mounted refueling device needs to be used is often remote, so that great challenges are brought to the management (oil quantity, safety, geographical position reporting and the like) of the skid-mounted refueling device; meanwhile, the skid-mounted refueling device with the container type structure lacks assembly flexibility and cannot be flexibly distributed and applied according to actual conditions on site; therefore, a skid-mounted refueling device capable of solving the above problems is needed.
Disclosure of Invention
An object of the utility model is to overcome the aforesaid not enough, provide a skid-mounted filling device based on thing networking, its realization remote monitoring that can be convenient through the thing networking adopts the modularized design simultaneously, can be nimble carry out the overall arrangement equipment according to the on-the-spot in service behavior to very big improvement its application scope.
The purpose of the utility model is realized like this:
a skid-mounted refueling device based on the Internet of things comprises an oil storage module and at least one operation module, wherein an explosion-proof electric cabinet, a refueling mechanism and an oil unloading mechanism are arranged in an operating room of the operation module, the oil storage module comprises at least one oil tank, the oil tank is communicated with the refueling mechanism and the oil unloading mechanism in the operating room of the operation module through an oil conveying pipe,
the explosion-proof electric cabinet is characterized in that a processor, a wireless module and a relay are installed on a circuit board arranged in the explosion-proof electric cabinet, the processor is in communication connection with the wireless module and the relay, a camera, a gas concentration sensor, an infrared sensor and a light sensor are embedded in the wall of the explosion-proof electric cabinet, and the camera, the gas concentration sensor, the infrared sensor and the light sensor are all in communication connection with the processor.
The utility model relates to a skid-mounted filling device based on thing networking, the last alarm of installing of operating module, the alarm is connected with the treater through the transmission cable.
The utility model relates to a skid-mounted filling device based on thing networking, the alarm is audible-visual annunciator.
The utility model relates to a skid-mounted filling device based on thing networking, the oil tank is the bilayer structure who comprises inlayer storage tank and outer storage tank, be provided with the sensor that leaks hunting between inlayer storage tank and the outer storage tank, the sensor that leaks hunting is connected to the treater through transmission line cable.
The utility model relates to a skid-mounted filling device based on thing networking, fill the explosion-proof stopping of oil in oil pipe's the inner storage tank.
The utility model relates to a skid-mounted filling device based on thing networking, defeated oil pipe is the double-deck pipeline that comprises inlayer pipeline and outer pipeline, and is provided with the sensor that leaks hunting between inlayer pipeline and the outer pipeline, the sensor that leaks hunting is connected to the treater through transmission line cable.
The utility model relates to a skid-mounted filling device based on thing networking, oil storage module top is provided with the rail.
The utility model relates to a skid-mounted filling device based on thing networking, install the display screen on the rail, the display screen links to each other with the treater communication through the transmission cable.
The utility model relates to a skid-mounted filling device based on thing networking, the oil tank is shelved on the skid-mounted saddle.
The utility model relates to a skid-mounted filling device based on thing networking, it has two sets of communication interfaces to inlay on the outer wall of explosion-proof electric cabinet, and two sets of communication interfaces are connected with the IO mouth and the relay looks electricity of treater respectively.
Compared with the prior art, the beneficial effects of the utility model are that:
the utility model discloses a wireless module can conveniently carry out communication with remote terminal (computer, panel, cell-phone etc.) and be connected, thereby not only can be convenient with information such as the volume of refueling in the inside refueling mechanism real-time transmission so that the background personnel control, also can be convenient to information transmission such as on-the-spot image to the backstage, thereby be convenient for carry out real-time management and dispatch to skid-mounted refueling unit, and through all kinds of sensors very big improvement its ability of coping with dangerous situation, and can pass through the relay extended function, thereby realize intelligent management; additionally, the utility model discloses can make up oil storage module and operating module according to actual conditions is nimble to make its different application scenario of adaptation, very big improvement skid-mounted tanker aircraft's application scenario.
Drawings
Fig. 1 is the utility model relates to a skid-mounted filling device's circuit block diagram based on thing networking.
Fig. 2 is the utility model relates to a skid-mounted filling device's appearance structure schematic diagram based on thing networking.
Fig. 3 is the utility model relates to a skid-mounted filling device's elevation view based on thing networking.

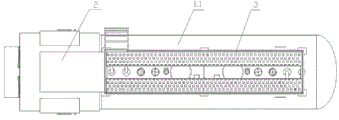

Fig. 4 is the utility model relates to a skid-mounted filling device's top view based on thing networking.
Wherein:
the oil storage module 1, the operation module 2 and the fence 3;
1.1 parts of oil tank, 1.2 parts of oil delivery pipe, 1.3 parts of skid-mounted saddle,
An inner storage tank 1.1.1 and an outer storage tank 1.1.2;
an oil filling mechanism and an oil discharging mechanism are arranged in the operation module 2.
Detailed Description
Referring to fig. 1-3, the skid-mounted refueling device based on the internet of things comprises an oil storage module 1 and at least one operation module 2, wherein an explosion-proof electric cabinet, a refueling mechanism and an oil unloading mechanism are installed in a control chamber of the operation module 2, the oil storage module 1 comprises at least one oil tank 1.1, and the oil tank 1.1 is communicated with the refueling mechanism and the oil unloading mechanism in the control chamber of the operation module 2 through an oil conveying pipe 1.2;
a processor, a wireless module and a relay are installed on a circuit board arranged in the explosion-proof electric cabinet, the processor is in communication connection with the wireless module and the relay, a camera, a gas concentration sensor, an infrared sensor and a light sensor are embedded in the wall of the explosion-proof electric cabinet, and the camera, the gas concentration sensor, the infrared sensor and the light sensor are all in communication connection with the processor;
furthermore, an alarm is mounted on the operation module 2 and connected with the processor through a transmission cable; preferably, the alarm is an audible and visual electric alarm;
further, the oil tank 1.1 is of a double-layer structure consisting of an inner-layer storage tank 1.1.1 and an outer-layer storage tank 1.1.2, a leakage detection sensor is arranged between the inner-layer storage tank 1.1.1 and the outer-layer storage tank 1.1.2, and the leakage detection sensor is connected to a processor through a transmission line cable; preferably, the inner storage tank 1.1.1 of the oil pipe 1.1 is filled with oil explosion-proof filler;
further, the oil delivery pipe 1.2 is a double-layer pipeline composed of an inner layer pipeline and an outer layer pipeline, a leakage detection sensor is arranged between the inner layer pipeline and the outer layer pipeline, and the leakage detection sensor is connected to the processor through a transmission line cable;
further, a fence 3 is arranged at the top of the oil storage module 1, a display screen is mounted on the fence 3, and the display screen is in communication connection with the processor through a transmission cable;
further, the oil tank 1.1 is placed on a skid-mounted saddle 1.3;
furthermore, the oiling mechanism is an oiling machine (the existing oiling machine is adopted for integration);
furthermore, two groups of communication interfaces are embedded on the outer wall of the explosion-proof electric cabinet, and are respectively and electrically connected with an IO port of the processor and the relay; thereby facilitating wiring;
in addition: it should be noted that the above-mentioned embodiment is only a preferred embodiment of the present patent, and any modification or improvement made by those skilled in the art based on the above-mentioned conception is within the protection scope of the present patent.
Claims (10)
1. The utility model provides a skid-mounted filling device based on thing networking which characterized in that: the oil storage device comprises an oil storage module (1) and at least one operation module (2), wherein an explosion-proof electric cabinet, an oil filling mechanism and an oil unloading mechanism are installed in an operation chamber of the operation module (2), the oil storage module (1) comprises at least one oil tank (1.1), and the oil tank (1.1) is communicated with the oil filling mechanism and the oil unloading mechanism in the operation chamber of the operation module (2) through an oil conveying pipe (1.2);
the explosion-proof electric cabinet is characterized in that a processor, a wireless module and a relay are installed on a circuit board arranged in the explosion-proof electric cabinet, the processor is in communication connection with the wireless module and the relay, a camera, a gas concentration sensor, an infrared sensor and a light sensor are embedded in the wall of the explosion-proof electric cabinet, and the camera, the gas concentration sensor, the infrared sensor and the light sensor are all in communication connection with the processor.
2. The skid-mounted refueling device based on the Internet of things as claimed in claim 1, wherein: and an alarm is arranged on the operating module (2) and is connected with the processor through a transmission cable.
3. The skid-mounted refueling device based on the internet of things as claimed in claim 2, wherein: the alarm is an audible and visual electric alarm.
4. The skid-mounted refueling device based on the Internet of things as claimed in claim 1, wherein: the oil tank (1.1) is of a double-layer structure consisting of an inner storage tank (1.1.1) and an outer storage tank (1.1.2), a leakage detection sensor is arranged between the inner storage tank (1.1.1) and the outer storage tank (1.1.2), and the leakage detection sensor is connected to the processor through a transmission line cable.
5. The skid-mounted refueling device based on the Internet of things as claimed in claim 4, wherein: and the inner storage tank (1.1.1) of the oil pipe (1.1) is filled with oil explosion-proof filler.
6. The skid-mounted refueling device based on the Internet of things as claimed in claim 1, wherein: the oil delivery pipe (1.2) is a double-layer pipeline consisting of an inner layer pipeline and an outer layer pipeline, a leakage detection sensor is arranged between the inner layer pipeline and the outer layer pipeline, and the leakage detection sensor is connected to the processor through a transmission line cable.
7. The skid-mounted refueling device based on the Internet of things as claimed in claim 1, wherein: the top of the oil storage module (1) is provided with a fence (3).
8. The skid-mounted refueling device based on the internet of things as claimed in claim 7, wherein: the fence (3) is provided with a display screen which is in communication connection with the processor through a transmission cable.
9. The skid-mounted refueling device based on the Internet of things as claimed in claim 1, wherein: the oil tank (1.1) is placed on the skid-mounted saddle (1.3).
10. The skid-mounted refueling device based on the Internet of things as claimed in claim 1, wherein: and two groups of communication interfaces are embedded on the outer wall of the explosion-proof electric cabinet and are respectively and electrically connected with an IO port of the processor and the relay.
