The utility model discloses a surface fabric is knitted to superstrong moisture absorption quick-drying shuttle, including fast dry layer, close skin layer, first superstrong water absorption silk, enhancement silk, wear-resisting silk, the superstrong water absorption silk of second, first spandex silk, the superstrong water absorption silk of third, cavity polyester fiber silk, second spandex silk and bamboo charcoal fiber silk. The fabric is formed by compounding the quick-drying layer and the skin-friendly layer, the skin-friendly layer greatly improves the skin-friendly capability of the fabric, is favorable for avoiding the condition that clothes are stuck to the skin during sweating, and is favorable for improving the wearing comfort of the clothes; the weaving threads of the quick drying layer formed by the fabric are formed by twisting a plurality of fiber yarns, under the action of the first super water-absorbing yarn, the second super water-absorbing yarn and the third super water-absorbing yarn, the water absorption, moisture absorption and quick drying capabilities of the fabric are greatly improved, the sweat absorption when the fabric is made into sports clothes and worn is facilitated, and the wear resistance and the tear resistance of the fabric are improved by the reinforcing yarns and the wear-resistant yarns.
Description
Technical Field
The utility model relates to a surface fabric is knitted to superstrong moisture absorption fast-drying's shuttle specifically is a surface fabric is knitted to superstrong moisture absorption fast-drying's shuttle belongs to shuttle surface fabric application technical field.
Background
The woven fabric is formed by interlacing warp and weft in a picking mode of a weaving machine, and the weave of the woven fabric generally has three main types of plain weave, twill weave and satin weave and changes of the plain weave, the twill weave and the satin weave. The fabric is firm, stiff and smooth and not easy to deform due to the fact that weaving methods are staggered in warp and weft, the fabric is classified from components including cotton fabrics, silk fabrics, wool fabrics, hemp fabrics, chemical fiber fabrics, blended fabrics of the cotton fabrics, the silk fabrics, the wool fabrics, the hemp fabrics and the chemical fiber fabrics, interwoven fabrics of the cotton fabrics, the silk fabrics, the wool fabrics, the hemp fabrics and the chemical fiber fabrics, the woven fabrics are in the world leading position in terms of variety and production quantity, the woven fabrics are widely used for various high-grade clothes, and the woven fabrics are also adopted in.
Most of the existing woven fabrics are of single-layer structures, the moisture absorption capacity is general, sweat cannot be well absorbed by the manufactured sports clothes when the sports clothes are worn, after the sweat is produced, the clothes are easily attached to the surface of the skin, the comfort is poor, the wear resistance and the tear resistance of the existing woven fabrics are general, and the manufactured clothes are easily worn or torn when the sports clothes are worn, so that certain defects exist. Therefore, the woven fabric with super-strong moisture absorption and quick drying is provided for solving the problems.
SUMMERY OF THE UTILITY MODEL
The utility model aims to solve the problems and provide a woven fabric with super-strong moisture absorption and quick drying.
The utility model discloses a following technical scheme realizes above-mentioned purpose, a shuttle surface fabric of superstrong moisture absorption quick-drying, including rapid-curing cutback layer and close skin layer, the top surface of rapid-curing cutback layer complex on close skin layer constitutes the line of knitting on rapid-curing cutback layer comprises first superstrong water-absorbing silk, enhancement silk, resistant silk, the superstrong water-absorbing silk of second, first spandex silk, the superstrong water-absorbing silk of third and hollow polyester fiber silk, first superstrong water-absorbing silk, resistant silk, first superstrong water-absorbing silk, first spandex silk, the superstrong water-absorbing silk of third and hollow polyester fiber silk twist with one another around the enhancement silk.
Preferably, the weaving threads forming the skin-friendly layer are formed by second polyurethane filaments and bamboo charcoal fiber filaments, and the second polyurethane filaments and the bamboo charcoal fiber filaments are twisted together.
Preferably, the first super-absorbent filament, the second super-absorbent filament and the third super-absorbent filament are super-absorbent fiber filaments.
Preferably, the reinforcing wires are carbon fiber wires, and the wear-resistant wires are nylon wires.
Preferably, the thickness of the quick-drying layer is twice the thickness of the skin-friendly layer.
Preferably, the first super absorbent filament, the second super absorbent filament, the first spandex filament and the third super absorbent filament are fibers with different cross sections.
The utility model has the advantages that:
1. the fabric is formed by compounding the quick-drying layer and the skin-friendly layer, the skin-friendly layer greatly improves the skin-friendly capability of the fabric, is favorable for avoiding the condition that clothes are stuck to the skin during sweating, and is favorable for improving the wearing comfort of the clothes;
2. the weaving threads of the quick drying layer formed by the fabric are formed by twisting a plurality of fiber yarns, under the action of the first super water-absorbing yarn, the second super water-absorbing yarn and the third super water-absorbing yarn, the water absorption, moisture absorption and quick drying capabilities of the fabric are greatly improved, the sweat absorption when the fabric is made into sports clothes and worn is facilitated, and the wear resistance and the tear resistance of the fabric are improved by the reinforcing yarns and the wear-resistant yarns.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings needed to be used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to the drawings without inventive exercise.
FIG. 1 is a cross-sectional view of the inventive layer weaving line for quick drying;

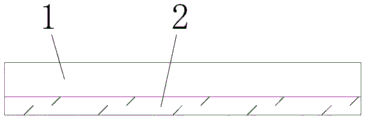

FIG. 2 is a cross-sectional view of the present invention;
fig. 3 is a cross-sectional view of the skin-friendly layer knitting line of the present invention.
In the figure: 1. the quick-drying layer comprises a quick-drying layer body 2, a skin-friendly layer body 101, first super-absorbent yarns, 102, reinforcing yarns, 103, wear-resistant yarns, 104, second super-absorbent yarns, 105, first spandex yarns, 106, third super-absorbent yarns, 107, hollow polyester fiber yarns, 201, second spandex yarns, 202 and bamboo charcoal fiber yarns.
Detailed Description
In order to make the objects, features and advantages of the present invention more obvious and understandable, the drawings in the embodiments of the present invention are combined below to clearly and completely describe the technical solutions in the embodiments of the present invention, and obviously, the embodiments described below are only some embodiments of the present invention, but not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts belong to the protection scope of the present invention.
The technical solution of the present invention is further explained by the following embodiments with reference to the accompanying drawings.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on those shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the present invention.
Referring to fig. 1-3, the woven fabric with super-strong moisture absorption and quick drying function comprises a quick drying layer 1 and a skin-friendly layer 2, wherein the quick drying layer 1 is compounded on the top surface of the skin-friendly layer 2, a weaving line forming the quick drying layer 1 is composed of a first super-strong water absorption yarn 101, a reinforcing yarn 102, an abrasion-resistant yarn 103, a second super-strong water absorption yarn 104, a first spandex yarn 105, a third super-strong water absorption yarn 106 and a hollow polyester fiber yarn 107, and the first super-strong water absorption yarn 101, the abrasion-resistant yarn 103, the first super-strong water absorption yarn 101, the first spandex yarn 105, the third super-strong water absorption yarn 106 and the hollow polyester fiber yarn 107 are twisted together around the reinforcing yarn 102.
The weaving lines forming the skin-friendly layer 2 are composed of second polyurethane filaments 201 and bamboo charcoal fiber filaments 202, and the second polyurethane filaments 201 and the bamboo charcoal fiber filaments 202 are mutually twisted together, so that the peculiar smell adsorption capacity of the fabric is improved conveniently; the first super-absorbent filament 101, the second super-absorbent filament 104 and the third super-absorbent filament 106 are all super-absorbent fiber filaments; the reinforcing wires 102 are carbon fiber wires, and the wear-resistant wires 103 are nylon wires; the thickness of the quick-drying layer 1 is twice that of the skin-friendly layer 2; the first super-absorbent filament 101, the second super-absorbent filament 104, the first spandex filament 105 and the third super-absorbent filament 106 are fibers with different cross sections.
The fabric is formed by compounding a quick-drying layer 1 and a skin-friendly layer 2, the weaving line forming the quick-drying layer 1 is formed by twisting reinforcing filaments 102, wear-resistant filaments 103, second super-absorbent filaments 104, first spandex filaments 105, third super-absorbent filaments 106 and hollow polyester fibers 107 around the reinforcing filaments 102, under the action of the first super-absorbent filaments 101, the second super-absorbent filaments 104 and the third super-absorbent filaments 106, the water absorption and moisture absorption capacity of the fabric is greatly improved, sweat absorption when the fabric is made into sports clothes and worn is facilitated, the wear resistance and tear resistance of the fabric are improved by the reinforcing filaments 102 and the wear-resistant filaments 103, the skin-friendly ability of the fabric is greatly improved by the skin-friendly layer 2, the phenomenon that clothes are attached to the skin during sweating is facilitated, and the wearing comfort of the clothes is facilitated to be improved.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
The above embodiments are only used to illustrate the technical solution of the present invention, and not to limit the same; although the present invention has been described in detail with reference to the foregoing embodiments, it should be understood by those skilled in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some technical features may be equivalently replaced; such modifications and substitutions do not depart from the spirit and scope of the present invention in its corresponding aspects.
Claims (6)
1. The utility model provides a shuttle surface fabric that superstrong moisture absorption is fast dried which characterized in that: including fast dry layer (1) and skin-friendly layer (2), fast dry layer (1) complex is at the top surface of skin-friendly layer (2), constitutes the line of knitting of fast dry layer (1) comprises first super absorbent filament (101), enhancement silk (102), wear-resisting silk (103), the super absorbent filament of second (104), first spandex silk (105), the super absorbent filament of third (106) and hollow polyester fiber silk (107), first super absorbent filament (101), wear-resisting silk (103), first super absorbent filament (101), first spandex silk (105), the super absorbent filament of third (106) and hollow polyester fiber silk (107) twist with one another around enhancement silk (102).
2. The woven fabric with super moisture absorption and quick drying performance as claimed in claim 1, wherein: the weaving line forming the skin-friendly layer (2) is composed of second spandex filaments (201) and bamboo charcoal fiber filaments (202), and the second spandex filaments (201) and the bamboo charcoal fiber filaments (202) are mutually twisted together.
3. The woven fabric with super moisture absorption and quick drying performance as claimed in claim 1, wherein: the first super-absorbent filament (101), the second super-absorbent filament (104) and the third super-absorbent filament (106) are all super-absorbent fiber filaments.
4. The woven fabric with super moisture absorption and quick drying performance as claimed in claim 1, wherein: the reinforcing wires (102) are carbon fiber wires, and the wear-resistant wires (103) are nylon wires.
5. The woven fabric with super moisture absorption and quick drying performance as claimed in claim 1, wherein: the thickness of the quick-drying layer (1) is twice that of the skin-friendly layer (2).
6. The woven fabric with super moisture absorption and quick drying performance as claimed in claim 1, wherein: the first super-absorbent filament (101), the second super-absorbent filament (104), the first spandex filament (105) and the third super-absorbent filament (106) are fibers with different cross sections.
