CN212383846U - Traditional chinese medicine is smashed and is ground all-in-one convenient to unloading - Google Patents
Traditional chinese medicine is smashed and is ground all-in-one convenient to unloading Download PDFInfo
- Publication number
- CN212383846U CN212383846U CN202020549823.0U CN202020549823U CN212383846U CN 212383846 U CN212383846 U CN 212383846U CN 202020549823 U CN202020549823 U CN 202020549823U CN 212383846 U CN212383846 U CN 212383846U
- Authority
- CN
- China
- Prior art keywords
- grinding
- traditional chinese
- motor
- main body
- chinese medicine
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Crushing And Grinding (AREA)
Abstract
本实用新型公开了一种便于下料的中药粉碎磨研一体机，涉及中药加工领域，包括主体，所述主体的顶端固定有破碎箱，所述破碎箱的一端安装有一号电机，所述一号电机的输出端转动连接有主齿轮，所述主齿轮的一侧啮合有副齿轮，所述主齿轮与副齿轮的一端通过转轴连接有破碎辊，所述主体的内部安装有二号电机，所述二号电机的输出端通过转轴转动连接有转动碾磨盘。本实用新型通过设置进水管、出水管与冷却管，将与进水管连接的水泵开启，冷却水通过进水管流入冷却管内，并顺着冷却管流出，在此过程中冷却水可将中药研磨时产生的热量带走，由此降低中药研磨时的热量，达到保持药性的目的。
The utility model discloses an integrated machine for crushing, grinding and grinding of traditional Chinese medicine, which is convenient for unloading, and relates to the field of traditional Chinese medicine processing. The output end of the No. 1 motor is rotatably connected with a main gear, one side of the main gear is meshed with an auxiliary gear, one end of the main gear and the auxiliary gear is connected with a crushing roller through a rotating shaft, and a No. 2 motor is installed inside the main body, The output end of the No. 2 motor is rotatably connected with a rotating grinding disc through a rotating shaft. In the utility model, the water inlet pipe, the water outlet pipe and the cooling pipe are arranged, the water pump connected with the water inlet pipe is turned on, the cooling water flows into the cooling pipe through the water inlet pipe, and flows out along the cooling pipe. The heat generated is taken away, thereby reducing the heat during grinding of the traditional Chinese medicine, and achieving the purpose of maintaining the medicinal properties.
Description
Technical Field
The utility model relates to a traditional chinese medicine processing field specifically is a traditional chinese medicine is smashed and is ground all-in-one convenient to unloading.
Background
The traditional Chinese medicine mainly originates from China, plays a very key role in the treatment process of diseases in China, is mainly a plant medicine, also comprises an animal medicine, a mineral medicine and a part of chemical and biological products, is divided into a Chinese patent medicine and a traditional Chinese medicine according to a processing technology, and the curative effect of a plurality of Chinese herbal medicines not only withstands the inspection of long-term medical practice, but also is proved by modern scientific research institute.
According to "a traditional chinese medicine grinds smashes all-in-one" that chinese patent number "CN 207222103U" discloses, this open patent is including smashing barrel and screw feeder, the top of smashing the barrel is equipped with sealed install bin, the outside integrated into one piece of lateral wall of sealed install bin stretches out there is the side ear, the bottom and the output of cylinder of side ear are connected, the top position department at smashing the barrel is fixed to the bottom of cylinder, there is the rotating electrical machines at the internally mounted of sealed install bin, the output and the speed reducer of rotating electrical machines are connected, the output and the output shaft of speed reducer, the output shaft is worn out sealed install bin downwards and is stretched into the inside of smashing the barrel. The utility model discloses a cooperation between fixed blade and the rotating blade can be with chinese-medicinal material shredding, and the grinding of chinese-medicinal material can be realized to the extrusion between rotatory bistrique of rethread and the fixed seat of grinding to realize the crushing grinding of chinese-medicinal material and can obtain fine grinding effect.
However, when the traditional Chinese medicine is ground, the friction force is large during grinding, so that more heat is generated, and when the heat acts on the processed traditional Chinese medicine, the traditional Chinese medicine is easy to change, so that the medicine property is changed; meanwhile, after the traditional Chinese medicine is ground, part of the medicine powder is easy to adhere to the inner wall of the main body, so that the loss cannot be further reduced.
Disclosure of Invention
The utility model aims to provide a: in order to solve the problems that the property of the traditional Chinese medicine is changed easily, and part of the medicine powder is attached to the inner wall of the main body easily, so that the loss cannot be further reduced, the traditional Chinese medicine crushing and grinding integrated machine convenient for blanking is provided.
In order to achieve the above object, the utility model provides a following technical scheme: a traditional Chinese medicine crushing and grinding integrated machine convenient for discharging comprises a main body, wherein a crushing box is fixed at the top end of the main body, a first motor is installed at one end of the crushing box, the output end of the first motor is rotatably connected with a main gear, an auxiliary gear is meshed with one side of the main gear, a crushing roller is connected with one ends of the main gear and the auxiliary gear through rotating shafts, a second motor is installed inside the main body, the output end of the second motor is rotatably connected with a rotating grinding disc through rotating shafts, a fixed grinding disc is fixed on the outer side, located on the rotating grinding disc, of the inner wall of the main body, a water inlet pipe penetrating through the outer side of the main body is connected to the outer side of the fixed grinding disc, a water outlet pipe penetrating through the outer side of the main body is connected to one side, located on the outer side of the water inlet pipe, of the fixed, the bottom of rotating the mill dish is connected with the connecting axle, the bottom of connecting axle is connected with the dwang, one side of dwang is connected with the brush hair.
Preferably, the crushing roller is rotatably connected with the crushing box through a bearing, the first motor is rotatably connected with the main gear through a rotating shaft, and the first motor is fixedly connected with the main body through a mounting frame.
Preferably, the input of inlet tube passes through the hose, the water pump is connected with external water source, No. two motors pass through mounting bracket fixed connection with the inner wall of main part.
Preferably, the cooling pipe is connected with the water inlet pipe through threads, and a sealing ring is arranged at the position where the cooling pipe is contacted with the water inlet pipe.
Preferably, the water outlet pipe is connected with the cooling pipe through threads, and a sealing ring is arranged at the position where the water outlet pipe is contacted with the cooling pipe.
Preferably, one side that the dwang was kept away from to the brush hair is laminated with the inner wall of crushing roller mutually, and the brush hair passes through the magic with the dwang and pastes detachable the connection.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model opens the water pump connected with the water inlet pipe by arranging the water inlet pipe, the water outlet pipe and the cooling pipe, the cooling water flows into the cooling pipe through the water inlet pipe and flows out along the cooling pipe, and the cooling water can take away the heat generated during grinding the traditional Chinese medicine in the process, thereby reducing the heat during grinding the traditional Chinese medicine and achieving the purpose of keeping the medicine property;
2. the utility model discloses a set up connecting axle, dwang and brush, the rotation millstone drives the dwang through the connecting axle when rotating and rotates, and the dwang drives the brush hair and cleans the inner wall of main part, will adhere to the powder of main part inner wall and wipe down, reduce the loss.
Drawings

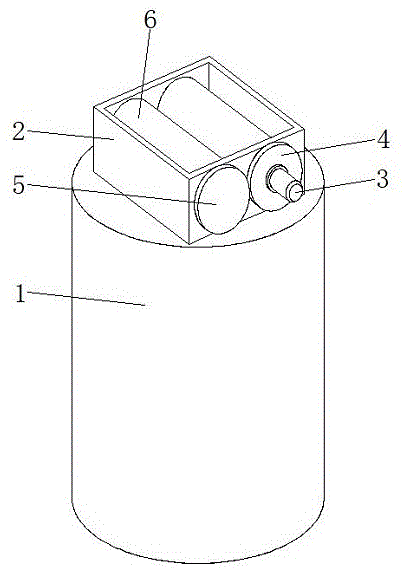

Fig. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of the internal mechanism of the main body of the present invention;
fig. 3 is an installation schematic diagram of the rotating rod of the present invention.
In the figure: 1. a main body; 2. a crushing box; 3. a first motor; 4. a main gear; 5. a pinion gear; 6. a crushing roller; 7. a second motor; 8. rotating a grinding disc; 9. fixing a grinding disc; 10. a water inlet pipe; 11. a water outlet pipe; 12. a cooling tube; 13. a connecting shaft; 14. rotating the rod; 15. and (3) brush hairs.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
The first motor (TCB 6324) and the second motor (TCB 6324) mentioned in the utility model can be obtained by market or private ordering.
Referring to fig. 1-3, a traditional Chinese medicine crushing and grinding integrated machine convenient for discharging comprises a main body 1, a crushing box 2 is fixed at the top end of the main body 1, a first motor 3 is installed at one end of the crushing box 2, a main gear 4 is rotatably connected to the output end of the first motor 3, a secondary gear 5 is meshed with one side of the main gear 4, a crushing roller 6 is connected to one end of the main gear 4 and one end of the secondary gear 5 through a rotating shaft, a second motor 7 is installed inside the main body 1, a rotating grinding disc 8 is rotatably connected to the output end of the second motor 7 through a rotating shaft, a fixed grinding disc 9 is fixed on the outer side of the rotating grinding disc 8 on the inner wall of the main body 1, a water inlet pipe 10 penetrating through the outer side of the main body 1 is connected to the outer side of the fixed grinding disc 9, a water outlet pipe 11 penetrating through the outer side of the main body 1 is connected to one side, A cooling pipe 12 connected with the water outlet pipe 11, a connecting shaft 13 connected with the bottom end of the rotary grinding disc 8, a rotating rod 14 connected with the bottom end of the connecting shaft 13, and bristles 15 connected with one side of the rotating rod 14.
Please refer to fig. 1, the crushing roller 6 is rotatably connected to the crushing box 2 through a bearing, so as to reduce the friction between the crushing roller 6 and the crushing box 2, the first motor 3 is rotatably connected to the main gear 4 through a rotating shaft, so that the first motor 3 drives the main gear 4 to rotate, and the first motor 3 is fixedly connected to the main body 1 through an installation frame, so as to prevent the first motor 3 from shaking during operation.
Please refer to fig. 2, the input end of the water inlet pipe 10 is connected to the external water source through the hose and the water pump, so that the external water source can enter the water inlet pipe 10 conveniently, and the second motor 7 is fixedly connected to the inner wall of the main body 1 through the mounting frame, so as to prevent the second motor from shaking during operation.
Please refer to fig. 2, the cooling pipe 12 is connected to the water inlet pipe 10 by a screw thread, and a sealing ring is disposed at a position where the cooling pipe 12 contacts the water inlet pipe 10, so as to facilitate quick connection between the water inlet pipe 10 and the cooling pipe 12, and improve the sealing performance at the connection between the cooling pipe 12 and the water inlet pipe 10.
Please refer to fig. 2, the water outlet pipe 11 is connected to the cooling pipe 12 by a screw thread, and a sealing ring is disposed at a position where the water outlet pipe 11 contacts the cooling pipe 12, so as to facilitate quick connection between the water outlet pipe 11 and the cooling pipe 12, and improve the sealing performance at the connection between the water outlet pipe 11 and the water inlet pipe 10.
Please refer to fig. 3, one side of the brush 15 far from the rotating rod 14 is attached to the inner wall of the crushing roller 6, so that the brush 15 can clean the inner wall of the main body 1, and the brush 15 and the rotating rod 14 are detachably connected through a magic tape, so that the brush 15 can be installed quickly.
The working principle is as follows: firstly, when a device is used for crushing and grinding traditional Chinese medicines, the dried traditional Chinese medicines with low moisture content are placed into a crushing box 2, then a first motor 3 is controlled to operate, the first motor 3 drives a main gear 4 to rotate through a rotating shaft, the main gear 4 drives an auxiliary gear 5 to rotate oppositely, the main gear 4 and the auxiliary gear 5 respectively drive two crushing rollers 6 to rotate oppositely, and at the moment, the traditional Chinese medicines in the crushing box 2 are crushed by the crushing rollers 6 and enter a main body 1; then, the second motor 7 is controlled to operate, the second motor 7 drives the rotary grinding disc 8 to rotate at a high speed through the rotating shaft, the traditional Chinese medicine crushed by primary grinding falls on the rotary grinding disc 8, when the rotary grinding disc 8 rotates at a high speed, the traditional Chinese medicine at the top end of the rotary grinding disc 8 falls into a gap between the rotary grinding disc 8 and the fixed grinding disc 9 under the action of centrifugal force, and the rotary grinding disc 8 and the fixed grinding disc 9 are matched with each other to grind the traditional Chinese medicine; finally, when the rotary grinding disc 8 rotates, the water pump connected with the water inlet pipe 10 is started, cooling water flows into the cooling pipe 12 through the water inlet pipe 10 and flows out along the cooling pipe 12, the cooling water can take away heat generated when the traditional Chinese medicine is ground in the process, so that the heat generated when the traditional Chinese medicine is ground is reduced, meanwhile, the rotary grinding disc 8 drives the rotating rod 14 to rotate through the connecting shaft 13 when rotating, the rotating rod 14 drives the brush bristles 15 to wipe the inner wall of the main body 1, medicinal powder attached to the inner wall of the main body 1 is wiped down, and loss is reduced.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
