CN212361434U - A shock absorbing device for electromechanical equipment - Google Patents
A shock absorbing device for electromechanical equipment Download PDFInfo
- Publication number
- CN212361434U CN212361434U CN202021389053.4U CN202021389053U CN212361434U CN 212361434 U CN212361434 U CN 212361434U CN 202021389053 U CN202021389053 U CN 202021389053U CN 212361434 U CN212361434 U CN 212361434U
- Authority
- CN
- China
- Prior art keywords
- plate
- liftable
- vertical
- fixed
- montant
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Vibration Prevention Devices (AREA)
Abstract
本实用新型公开了一种机电设备减震装置，置于可升降板下方的丝杆上均螺纹连接一个托块，丝杆伸出可升降板的部分螺纹连接一个锁定螺母，通过锁定螺母以及托块将可升降板夹紧，两块立板相对一侧的端面上均固接有导轨，横板滑动安装在左右两侧的导轨之间，横板下端面四个顶角一侧分别固接一根伸缩杆，伸缩杆下端固接在可升降板上，每个伸缩杆外侧均套装一个高强度弹簧，圆板下端面上固接有呈圆形分布的竖杆，竖杆向下穿过横板且竖杆下端固接一个挡块，圆板与横板之间的竖杆上均套装一个压缩弹簧，圆板上端面中心处竖直固接一个圆柱块，圆柱块顶端固接一块安装板。本实用新型具有结构新颖、减震效果好的优点。
The utility model discloses a shock absorbing device for electromechanical equipment. A screw rod placed under a liftable plate is threadedly connected with a support block, and the part of the screw rod extending out of the liftable board is screwed with a locking nut. The block clamps the liftable plate, the end faces on the opposite sides of the two vertical plates are fixed with guide rails, the horizontal plate is slidably installed between the guide rails on the left and right sides, and the four top corners of the lower end face of the horizontal plate are respectively fixed on one side. A telescopic rod, the lower end of the telescopic rod is fixed on the liftable plate, a high-strength spring is set on the outer side of each telescopic rod, and vertical rods in a circular distribution are fixed on the lower end surface of the circular plate, and the vertical rod passes downwards The horizontal plate and the lower end of the vertical rod are fixed with a stopper, a compression spring is set on the vertical rod between the circular plate and the horizontal plate, a cylindrical block is vertically fixed at the center of the upper surface of the circular plate, and a block is fixed on the top of the cylindrical block. plate. The utility model has the advantages of novel structure and good shock absorption effect.
Description
Technical Field
The utility model relates to an electromechanical device damping device is applied to electromechanical device installation technical field.
Background
Electromechanical devices generally refer to mechanical, electrical and electrical automation devices, and in the fields of production, processing and the like, a large number of electromechanical devices are often adopted to perform various production, processing or monitoring operations. When electromechanical device installs, in order to realize electromechanical device's shock attenuation, generally all be provided with damper in electromechanical device bottom, but damper structure on the existing market is too simple, realizes through simple shock pad or block rubber much, and the shock attenuation effect is relatively poor.
SUMMERY OF THE UTILITY MODEL
For solving prior art scheme's defect, the utility model discloses an electromechanical device damping device, this application has novel structure, the effectual advantage of shock attenuation.
The utility model discloses an electromechanical device damping device, include: the lifting plate is provided with through holes for the screw rods to pass through, the lifting plate can slide on the screw rods through the through holes, the support blocks are all in threaded connection with the screw rods arranged below the lifting plate, all the support blocks are arranged on the same horizontal plane, part of the screw rods extending out of the lifting plate is in threaded connection with a locking nut, the lifting plate is clamped tightly through the locking nut and the support blocks, and the left side and the right side of the upper end surface of the lifting plate are respectively and vertically fixedly connected with a vertical plate, equal rigid coupling has the guide rail on the terminal surface of the relative one side of two blocks of risers, diaphragm slidable mounting is between the guide rail of the left and right sides, four apex angle one sides of terminal surface are rigid coupling telescopic link respectively under the diaphragm, telescopic link lower extreme rigid coupling is on the liftable board, and a high strength spring of every telescopic link outside all suit, under the high strength spring effect, the telescopic link is in the state of extending completely, the rigid coupling has the montant that is circular distribution under the plectane on the terminal surface, the montant passes a dog of diaphragm and montant lower extreme rigid coupling downwards, all suit a compression spring on the montant between plectane and the diaphragm, the cylinder piece of the vertical rigid coupling of plectane up end center department, a mounting panel of cylinder piece top rigid.
The support block is of a cylindrical structure, and a threaded through hole matched with the screw rod is formed in the center of the support block.
Two guide rails are fixedly connected to the end face of one side of each vertical plate, which faces the center of the lifting plate.
The vertical rods are round rods, and the distance between every two adjacent vertical rods is consistent.
By adopting the technical scheme, the method has the following advantages:
1. the structure is novel;
2. under the combined action of the compression spring, the high-strength spring and the shock pad, the shock absorption effect is good.
Drawings

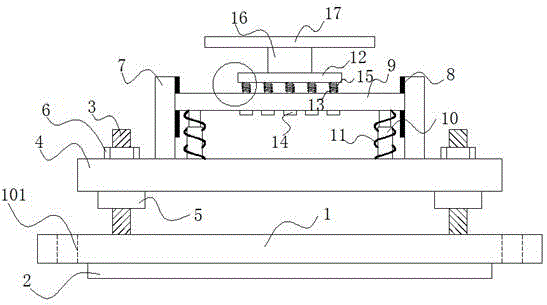

FIG. 1 is a schematic structural view of an electromechanical device damping device according to the present invention;
FIG. 2 is an enlarged schematic view of FIG. 1 taken at circle;
fig. 3 is a schematic bottom view of the circular plate of the present invention.
Wherein: 1-a bottom plate; 2-a shock pad; 3-a screw rod; 4-a liftable plate; 5-a supporting block; 6-a locking nut; 7-standing the plate; 8-a guide rail; 9-a transverse plate; 10-a telescopic rod; 11-high strength spring; 12-a circular plate; 13-a vertical rod; 14-a stopper; 15-compression spring; 16-a cylindrical block; 17-mounting a plate; 101-mounting holes.
Detailed Description
As shown in fig. 1-3, the utility model discloses an electromechanical device damping device, include: the lifting plate comprises a bottom plate 1, a shock pad 2, screw rods 3, a lifting plate 4, support blocks 5, locking nuts 6, vertical plates 7, guide rails 8, transverse plates 9, telescopic rods 10, high-strength springs 11, circular plates 12, vertical rods 13, stop blocks 14, compression springs 15, cylindrical blocks 16 and mounting plates 17, wherein one side of each of four vertex angles of the bottom plate 1 is provided with a mounting hole 101, a rubber pad 2 is bonded on the lower end face of the bottom plate 1, the left side and the right side of the upper end face of the bottom plate 1 are fixedly connected with two screw rods 3 respectively, the four screw rods 3 are distributed in a rectangular shape, one side of each of the four vertex angles of the lifting plate 4 is provided with a through hole for the screw rods 3 to pass through, the lifting plate 4 can slide on the screw rods 3 through the through holes, the screw rods 3 arranged below the lifting plate 4 are all in threaded connection with one support block 5, all the support blocks 5 are on the, the lifting plate 4 is clamped through a locking nut 6 and a support block 5, the left side and the right side of the upper end face of the lifting plate 4 are respectively and vertically fixedly connected with a vertical plate 7, the end face of one side, opposite to the two vertical plates 7, is fixedly connected with a guide rail 8, a transverse plate 9 is slidably installed between the guide rails 8 of the left side and the right side, one side of four vertex angles of the lower end face of the transverse plate 9 is respectively and fixedly connected with a telescopic rod 10, the lower end of the telescopic rod 10 is fixedly connected with the lifting plate 4, the outer side of each telescopic rod 10 is sleeved with a high-strength spring 11, the telescopic rod 10 is in a completely extended state under the action of the high-strength spring 11, the lower end face of the circular plate 12 is fixedly connected with a circular distributed vertical rod 13, the vertical rod 13 downwards passes through the transverse plate 10 and the lower end of the vertical rod 13 is fixedly connected with a stop block 14, the vertical, the top end of the cylindrical block 16 is fixedly connected with an installation plate 17.
The support block 5 is of a cylindrical structure, and a threaded through hole matched with the screw rod 3 is formed in the center of the support block 5.
Two guide rails 8 are fixedly connected to the end face of each vertical plate 7 facing to the center of the lifting plate 4.
The vertical rods 13 are round rods, and the distance between every two adjacent vertical rods 13 is consistent.
The utility model discloses an implement like this: during the use, assemble electromechanical device on mounting panel 17, under compression spring 15 effect, dog 14 supports tight diaphragm 9 bottom surface, electromechanical device when receiving the vibration, and compression spring 15 and high strength spring 11 can play the cushioning effect, and the shock pad 2 that sets up simultaneously in the bottom also has certain shock attenuation effect, and the whole shock attenuation effect promotes greatly. This application can be according to actual conditions, can change electromechanical device's mounting height, specifically for the height-adjustable of liftable board 4, during the adjustment, change lead screw 3 pop-up block 5 the height can.
Finally, it should be noted that: the above embodiments are only used for illustrating the present invention and do not limit the technical solution described in the present invention; thus, while the present invention has been described in detail with reference to the various embodiments thereof, it will be understood by those skilled in the art that various changes may be made and equivalents may be substituted; all such modifications and variations are intended to be included herein within the scope of this disclosure and the present invention and within the scope and spirit of the following claims.
Claims (4)
1. An electromechanical device damping apparatus comprising: bottom plate, shock pad, lead screw, liftable board, tray, lock nut, riser, guide rail, diaphragm, telescopic link, high strength spring, plectane, montant, dog, compression spring, cylinder piece, mounting panel, a mounting hole has been opened respectively to four apex angle one sides of bottom plate, rubber pad, its characterized in that of bonding of terminal surface department under the bottom plate: the left side and the right side of the upper end surface of the bottom plate are respectively and vertically fixedly connected with two lead screws, the four lead screws are distributed in a rectangular shape, one side of each of four top angles of the liftable plate is provided with a through hole for the lead screw to pass through, the liftable plate can slide on the lead screw through the through hole, the lead screws arranged below the liftable plate are all in threaded connection with a support block, all the support blocks are arranged on the same horizontal plane, the part of the lead screw extending out of the liftable plate is in threaded connection with a locking nut, the liftable plate is clamped through the locking nut and the support block, the left side and the right side of the upper end surface of the liftable plate are respectively and vertically fixedly connected with a vertical plate, the end surfaces of the opposite sides of the two vertical plates are respectively and fixedly connected with a guide rail, the transverse plate is slidably arranged between the guide rails on the left side and the right side, under the effect of high strength spring, the telescopic link is in the state of extending completely, the rigid coupling has the montant that is circular distribution under the plectane on the terminal surface, the montant passes diaphragm and a dog of montant lower extreme rigid coupling downwards, all suit a compression spring on the montant between plectane and the diaphragm, the cylinder piece of the vertical rigid coupling of plectane up end center department, mounting panel is gone up to cylinder piece top rigid coupling.
2. The electromechanical device damping apparatus according to claim 1, wherein: the support block is of a cylindrical structure, and a threaded through hole matched with the screw rod is formed in the center of the support block.
3. The electromechanical device damping apparatus according to claim 1, wherein: two guide rails are fixedly connected to the end face of one side of each vertical plate, which faces the center of the lifting plate.
4. The electromechanical device damping apparatus according to claim 1, wherein: the vertical rods are round rods, and the distance between every two adjacent vertical rods is consistent.
