The utility model provides an assembled ventilation and ventilation device for a full glass curtain wall, which comprises an outer frame, a central frame, a glass curtain wall and a solid frame. A central frame is installed on the inner side of the outer frame, and a solid frame is installed inside the central frame. A glass curtain wall is installed on the inner side of the frame, a glass curtain wall is installed on the inner side of the center frame, a ventilation plate is connected to the front end of the center frame, an adjusting bolt is connected to the rear end of the ventilation plate, and a solid frame is installed inside the frame. Adjusting bolts, a fine-hole filter screen is installed on the rear side of the ventilation plate, a scraper is installed on the rear surface of the fine-hole filter screen, a connecting rod is fixed on the rear end surface of the scraper, and a connecting rod is installed on the rear end surface of the connecting rod. The rotating rod is equipped with a motor on the rear side of the rotating rod, and the annular side surface of the rotating rod is connected with a rotating blade.

Description

Full glass curtain wall assembled ventilation device

Technical Field

The utility model belongs to the technical field of decorate, specifically be full glass curtain wall assembled ventilation device.

Background

The full glass curtain wall is a glass curtain wall formed by glass ribs and glass panels. The full glass curtain wall is produced along with the improvement of glass production technology and the diversification of products, provides conditions for architects to create a peculiar, transparent and crystal building, develops into a multi-variety curtain wall family, and comprises a glass rib glued full glass curtain wall and a glass rib point connected full glass curtain wall.

Current building curtain is connected with building structure integral type, and when the window of installation was opened on the full glass curtain wall, the whole outward appearance nature of influence to because window opening in the below, though have pleasing to the eye effect, but ventilation inefficiency, and open and shut the connecting piece and rust easily and cause the internals card shell in current window use, the effect that opens and shuts is influenced, for this reason, we propose full glass curtain wall assembled ventilation device.

SUMMERY OF THE UTILITY MODEL

Not enough to prior art exists, the utility model aims at providing a full glass curtain wall assembled ventilation device to solve the problem that proposes in the above-mentioned background art, the utility model discloses rational in infrastructure, ventilation is efficient, strengthens the air current circulation, has the aesthetic property.

The purpose of the utility model can be realized by the following technical scheme: the full-glass curtain wall assembly type ventilation device comprises an outer frame, a central frame, a glass curtain wall and a solid frame, wherein the central frame is installed on the inner side of the outer frame;

the utility model discloses a ventilation air exchange plate, including central frame, ventilation air exchange plate, scraper blade, dust collection box internally mounted have a silica gel drier, the terminal surface is connected with ventilation air exchange plate before the central frame, ventilation air exchange plate rear end face is connected with adjusting bolt, solid frame internally mounted has adjusting bolt, the pore filter screen is installed to ventilation air exchange plate rear side, the scraper blade is installed to pore filter screen rear end face, the scraper blade rear end face is fixed with the connecting rod, the dwang is installed to connecting rod rear end face, the dwang rear side is equipped with the motor, dwang annular side is connected with rotating vane, the motor rear end face is fixed with the mounting panel, the central frame rear side is fixed with the mounting panel, the terminal surface is equipped.

As a further aspect of the present invention: the right end face of the ventilation plate is provided with a connecting hinge, and the ventilation plate is hinged with the central frame through the connecting hinge.

As a further aspect of the present invention: the inside screw hole that has seted up of solid frame, and screw hole and adjusting bolt phase-match, ventilation board and adjusting bolt junction install the bearing, and bearing and adjusting bolt phase-match.

As a further aspect of the present invention: the scraper blade sets up to the I-shaped, the scraper blade length width is less than the pore filter screen length width, mounting panel rear end face sets up to porous structure.

As a further aspect of the present invention: the dwang annular side front side is carved with the screw thread, the inside mounting hole of having seted up of connecting rod, and mounting hole and dwang phase-match, the dwang is connected with the dwang through screw thread and mounting hole.

As a further aspect of the present invention: the motor is connected with an external power supply through a wire, a coupler is installed on the front end face of the motor and matched with the rotating rod, and the motor is connected with the rotating rod through the coupler.

The utility model has the advantages that:

1. the right end face of the ventilation plate is provided with the connecting hinge, the ventilation plate is hinged with the central frame through the connecting hinge, and the ventilation plate is arranged on the central frame through the connecting hinge, so that the ventilation plate is convenient to open and close and air circulation is convenient;

2. the ventilation and air exchange plate is driven to move after the adjusting bolt is easily screwed into the threaded hole by using the bearing, so that the ventilation and air exchange plate is prevented from being abraded;

3. the scraper blade sets up to the I-shaped, and the scraper blade length width is less than the pore filter screen length width, and the mounting panel rear end face sets up to porous structure, through the use of a word nature scraper blade, can effectually scrape down the dust on the pore filter screen and fall into in the dust collecting box to do not hinder the air again and circulate, porous structure's mounting panel still does not hinder the circulation of air when playing the installation holding power for the motor.

Drawings

In order to facilitate understanding for those skilled in the art, the present invention will be further described with reference to the accompanying drawings.

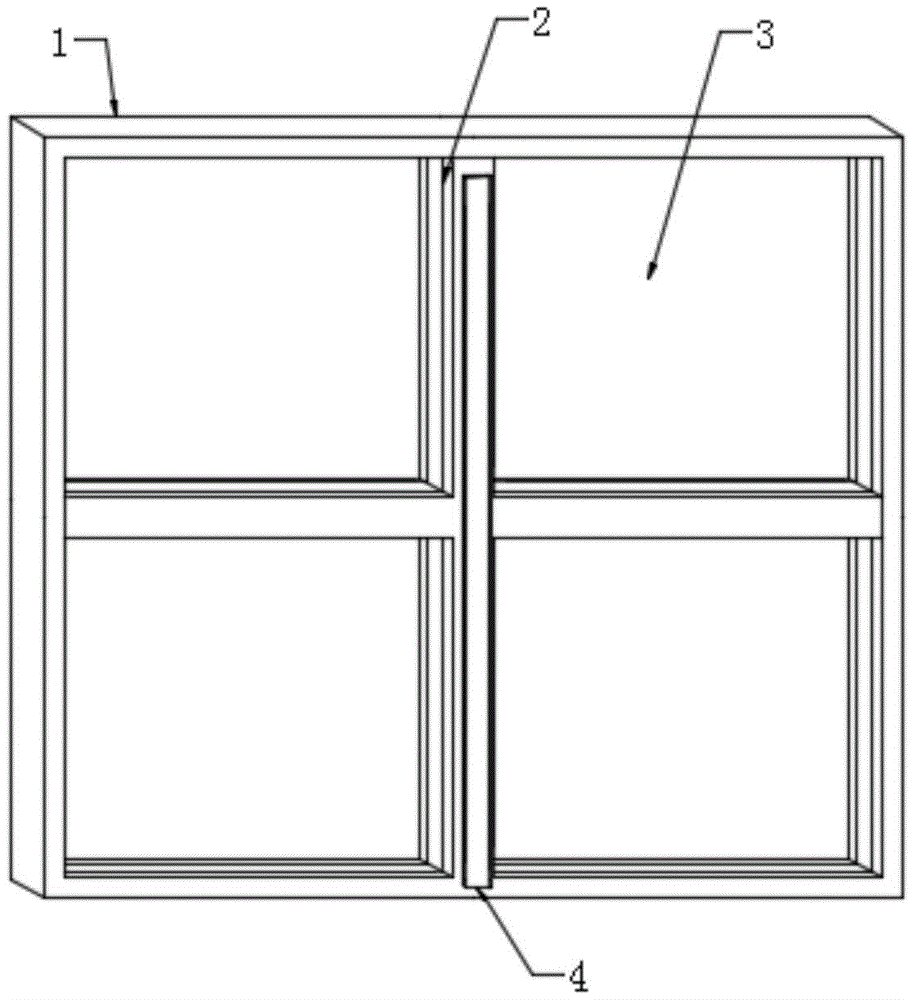

FIG. 1 is a schematic view of the whole structure of the assembled ventilation device of the full-glass curtain wall of the present invention;

FIG. 2 is a side sectional view of the center frame of the assembled ventilation device of the full glass curtain wall of the present invention;

fig. 3 is an enlarged view at a in fig. 2.

In the figure: 1. an outer frame; 2. a central frame; 3. a glass curtain wall; 4. a ventilation plate; 5. a fine-pore filter screen; 6. a silica gel desiccant; 7. a solid frame; 8. adjusting the bolt; 9. a dust collecting box; 10. mounting a plate; 11. a motor; 12. a rotating blade; 13. a squeegee; 14. a connecting rod; 15. rotating the rod; 16. and an air exchanging cavity.

Detailed Description

As shown in fig. 1-3, the assembled ventilation and air-exchange device for the full-glass curtain wall comprises an outer frame 1, a central frame 2, a glass curtain wall 3 and a solid frame 7, wherein the central frame 2 is installed at the inner side of the outer frame 1, the solid frame 7 is installed inside the central frame 2, the glass curtain wall 3 is installed at the inner side of the outer frame 1, and the glass curtain wall 3 is installed at the inner side of the central frame 2;

the terminal surface is connected with ventilation scavenging plate 4 before

central frame

2, 4 rear end faces of ventilation scavenging plate are connected with adjusting

bolt

8, 7 internally mounted of solid frame has adjusting bolt 8, pore filter screen 5 is installed to ventilation scavenging plate 4 rear side, scraper blade 13 is installed to pore filter screen 5 rear end face, scraper blade 13 rear end face is fixed with connecting rod 14, dwang 15 is installed to connecting rod 14 rear end face, dwang 15 rear side is equipped with motor 11, dwang 15 annular side is connected with rotating vane 12, motor 11 rear end face is fixed with

mounting panel

10, 2 rear sides of central frame are fixed with mounting panel 10, terminal surface is equipped with dust-collecting box 9 under mounting panel 10, dust-collecting box 9 internally mounted has silica gel drier 6, scavenging chamber 16 has been seted up to central frame 2 inside.

In fig. 1, the right end face of the ventilation plate 4 is provided with a connecting hinge, the ventilation plate 4 is hinged with the central frame 2 through the connecting hinge, the ventilation plate 4 is installed on the central frame 2 through the connecting hinge, and the ventilation plate 4 is convenient to open and close and facilitates air circulation.

In fig. 2, the inside threaded hole that has seted up of solid frame 7, and threaded hole and adjusting bolt 8 phase-match, ventilation breather plate 4 and adjusting bolt 8 junction install the bearing, and bearing and adjusting bolt 8 phase-match, use through the bearing makes adjusting bolt 8 easily twist the threaded hole back drive ventilation breather plate 4 and remove, prevents that ventilation breather plate 4 from receiving wearing and tearing.

In fig. 2 and 3, the scraper 13 is in a straight line shape, the length and width of the scraper 13 is smaller than that of the fine-hole filter screen 5, the rear end face of the mounting plate 10 is in a porous structure, dust on the fine-hole filter screen 5 can be effectively scraped down to fall into the dust collection box 9 through the straight scraper 13, air circulation is not blocked, and the mounting plate 10 in the porous structure plays a role of mounting supporting force for the motor 11 and simultaneously does not block air circulation.

In fig. 2 and 3, the front side of the annular side surface of the rotating rod 15 is engraved with threads, the connecting rod 14 is internally provided with a mounting hole, the mounting hole is matched with the rotating rod 15, the rotating rod 15 is connected with the rotating rod 15 through the threads and the mounting hole, the rotating rod 15 and the connecting rod 14 are connected into a whole through the threaded use convenience, and the rotating rod 15 is rotated while the connecting rod 14 is driven.

In fig. 2 and 3, the motor 11 is connected with an external power supply through a wire, a coupler is installed on the front end face of the motor 11, the coupler is matched with the rotating rod 15, the motor 11 is connected with the rotating rod 15 through the coupler, and the rotating rod 15 can be driven to rotate through the coupler after the motor 11 receives electric energy, so that power is provided for the rotating rod 15.

The utility model discloses when specifically implementing: when the glass curtain wall 3 is installed, enough space is reserved in a central frame 2, then a ventilation and ventilation plate 4 is installed on the central frame 2 through a connecting hinge, a fine-hole filter screen 5, a silica gel drying agent 6, an adjusting bolt 8, a dust collection box 9, an installation plate 10, a motor 11, a rotating blade 12, a scraper 13, a connecting rod 14 and a rotating rod 15 are respectively installed in the central frame 2, after a resident lives in or only needs to ventilate, the adjusting bolt 8 is firstly screwed into a threaded hole clockwise, the adjusting bolt 8 moves forwards and drives the ventilation and ventilation plate 4 to move forwards through a bearing, the ventilation and ventilation plate 4 opens one side through the connecting hinge, at the moment, a ventilation cavity 16 leaks out, after the motor 11 is connected with an external power supply through a wire, the motor 11 receives electric energy and drives the rotating rod 15 to rotate through a coupler, the rotating rod 15 drives the rotating blade 12 to rotate to generate wind power so as, air gets into in glass curtain wall 3 from glass curtain wall 3 outward, wherein air admission glass curtain wall 3 is interior can pass through pore filter screen 5, pore filter screen 5 filters dust in the air, can drive connecting rod 14 rotatory when dwang 15 is rotatory, connecting rod 14 drives scraper blade 13 rotatory, scraper blade 13 rotates pore filter screen 5 and scrapes, scraper blade 13 scrapes the dust on pore filter screen 5, the dust falls into in the dust collection box 9 downwards, silica gel drier 6 conveniently adsorbs the moisture, the air circulates through the wind-force that trades air cavity 16 and rotating vane 12 and produce.

The foregoing is merely exemplary and illustrative of the structure of the invention, and various modifications, additions and substitutions as described in the detailed description may be made by those skilled in the art without departing from the structure or exceeding the scope of the invention as defined in the claims.

Claims

1. The full-glass curtain wall assembled ventilation device is characterized by comprising an outer frame (1), a central frame (2), a glass curtain wall (3) and a solid frame (7), wherein the central frame (2) is installed on the inner side of the outer frame (1), the solid frame (7) is installed inside the central frame (2), the glass curtain wall (3) is installed on the inner side of the outer frame (1), and the glass curtain wall (3) is installed on the inner side of the central frame (2);

the end face is connected with ventilation gas exchange plate (4) before center frame (2), ventilation gas exchange plate (4) rear end face is connected with adjusting bolt (8), solid frame (7) internally mounted has adjusting bolt (8), pore filter screen (5) are installed to ventilation gas exchange plate (4) rear side, scraper blade (13) are installed to pore filter screen (5) rear end face, scraper blade (13) rear end face is fixed with connecting rod (14), dwang (15) are installed to connecting rod (14) rear end face, dwang (15) rear side is equipped with motor (11), dwang (15) annular side face is connected with rotating vane (12), motor (11) rear end face is fixed with mounting panel (10), center frame (2) rear side is fixed with mounting panel (10), the terminal surface is equipped with dust collection box (9) under mounting panel (10), the silica gel drying agent (6) is installed inside the dust collection box (9), and the air exchange cavity (16) is formed inside the central frame (2).

2. The full-glass curtain wall assembled ventilation and air exchange device as claimed in claim 1, wherein the right end face of the ventilation and air exchange plate (4) is provided with a connecting hinge, and the ventilation and air exchange plate (4) is hinged with the central frame (2) through the connecting hinge.

3. The assembled ventilation and air exchange device for the full-glass curtain wall as claimed in claim 1, wherein the solid frame (7) is internally provided with a threaded hole which is matched with the adjusting bolt (8), a bearing is arranged at the joint of the ventilation and air exchange plate (4) and the adjusting bolt (8), and the bearing is matched with the adjusting bolt (8).

4. The fabricated ventilation and air-exchange device for the full-glass curtain wall according to claim 1, wherein the scraper (13) is arranged in a straight line shape, the length and width of the scraper (13) are less than those of the fine-hole filter screen (5), and the rear end surface of the mounting plate (10) is arranged in a porous structure.

5. The fabricated ventilation and air exchange device for the full-glass curtain wall according to claim 1, wherein threads are carved on the front side of the annular side surface of the rotating rod (15), a mounting hole is formed inside the connecting rod (14), the mounting hole is matched with the rotating rod (15), and the rotating rod (15) is connected with the rotating rod (15) through the threads and the mounting hole.

6. The assembly type ventilation device for the full-glass curtain wall according to claim 1, wherein the motor (11) is connected with an external power supply through a wire, a coupler is installed on the front end face of the motor (11) and matched with the rotating rod (15), and the motor (11) is connected with the rotating rod (15) through the coupler.
