本实用新型公开了一种皮带机滚筒轴的安装支架结构，包括：机架板、固定件、螺纹杆、滚筒轴连接座、调节螺母、支撑件，所述的机架板上开有用于滚筒轴穿过的水平槽口，所述的固定件位于水平槽口的两侧，所述的螺纹杆两端通过调节螺母固接在固定件上，所述的滚筒轴连接座为固定圈，滚筒轴连接座套接在螺纹杆上，且滚筒轴连接座两端通过调节螺母固定在螺纹杆上，所述的支撑件为方形金属片，支撑件前端两侧开有槽口，且机架板水平槽口上下两端嵌入支撑件的两个槽口内，支撑件后端中部开有通孔，支撑件通过通孔套接在螺纹杆上，且支撑件通过调节螺母固定在螺纹杆中部。本实用新型具有结构简单、使用方便、使用效果好等优点。
The utility model discloses a mounting bracket structure for a roller shaft of a belt conveyor. The horizontal slot through which the shaft passes, the fixing member is located on both sides of the horizontal slot, the two ends of the threaded rod are fixed on the fixing member by adjusting nuts, the connecting seat of the roller shaft is a fixing ring, and the roller The shaft connecting seat is sleeved on the threaded rod, and the two ends of the roller shaft connecting seat are fixed on the threaded rod by adjusting nuts. The upper and lower ends of the horizontal slot are embedded in the two slots of the support piece, a through hole is opened in the middle of the rear end of the support piece, the support piece is sleeved on the threaded rod through the through hole, and the support piece is fixed in the middle of the threaded rod through an adjusting nut. The utility model has the advantages of simple structure, convenient use, good use effect and the like.
Description
Technical Field
The utility model relates to a band conveyer technical field specifically is an installing support structure of belt feeder drum axle.
Background
The conveying line is mainly used for completing the conveying task of the materials; in the places surrounding the storehouses, the production workshops and the packaging workshops, a conveying chain consisting of a plurality of belt conveyors, roller conveyors and the like is arranged, and the continuous conveying line is formed by connecting the belt conveyors, the roller conveyors and the like end to end.
The belt conveyor is a common conveyor line, and a belt of the belt conveyor is loosened in the running process and a belt pulley needs to be tightened; however, since the plurality of roller shafts are connected to one threaded rod, the threaded rod can be twisted left and right in actual use, so that the threaded rod is deformed and cannot be reused.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a belt feeder drum shaft's installing support structure to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a mounting bracket structure of belt conveyor roller axle, includes: the frame plate is a plate on the side surface of the belt conveyor, a horizontal notch for the roller shaft to pass through is formed in the frame plate, the fixing pieces are fixedly connected on the frame plate through bolts and are positioned at two sides of the horizontal notch, two ends of the threaded rod are fixedly connected on the fixing piece through adjusting nuts, the roller shaft connecting seat is a fixing ring and is sleeved on the threaded rod, and two ends of the roller shaft connecting seat are fixed on the threaded rod through adjusting nuts, the supporting piece is a square metal sheet, two sides of the front end of the supporting piece are provided with notches, and both ends embedding support piece's two notches about the horizontal notch of frame plate, open at support piece rear end middle part has the through-hole, and support piece passes through the through-hole and cup joints on the threaded rod, and support piece passes through adjusting nut to be fixed at the threaded rod middle part.
Furthermore, the width of the notches at the two sides of the front end of the supporting piece is equal to the thickness of the rack plate, and the distance between the two notches is equal to the width of the horizontal notch of the rack plate.
Furthermore, the aperture of the through hole in the middle of the rear end of the support piece is equal to the aperture of the threaded rod.
Compared with the prior art, the beneficial effects of the utility model are that: the utility model discloses a belt feeder drum shaft's installing support structure adopts the threaded rod to fix the both ends of drum shaft, can realize its change of position through adjusting nut to reach the mesh of taut belt; set up support piece in the middle part of threaded rod simultaneously, utilize support piece fixed with the middle part of threaded rod to let the length between two fulcrums of threaded rod diminish, at the during operation, the range of threaded rod wrench movement will diminish, and the stability of equipment improves, and great deformation also can appear in the threaded rod, improves life.
The utility model has the advantages of simple structure, convenient use, good use effect and the like.
Drawings

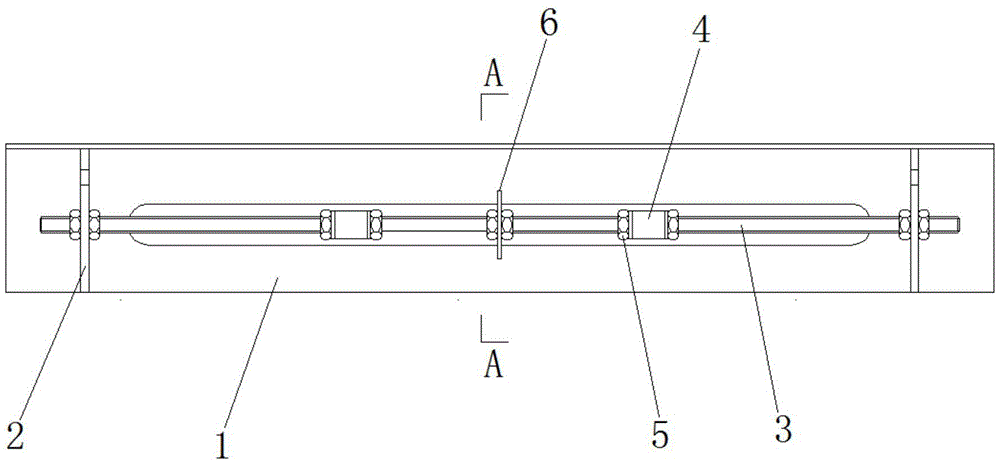

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of the structure of the A-A surface of the present invention;
in the figure: 1-frame plate; 2-a fixing piece; 3-a threaded rod; 4-roller axle connecting seat; 5-adjusting the nut; 6-supporting part.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1 and 2, the present invention provides a mounting bracket structure for a belt conveyor roller shaft, including: the belt conveyor comprises a frame plate 1, a fixing part 2, a threaded rod 3, a roller shaft connecting seat 4, an adjusting nut 5 and a supporting part 6, wherein the frame plate 1 is a plate on the side surface of the belt conveyor, a horizontal notch for a roller shaft to pass through is formed in the frame plate 1, the fixing part 2 is fixedly connected to the frame plate 1 through a bolt, the fixing part 2 is positioned on two sides of the horizontal notch, two ends of the threaded rod 3 are fixedly connected to the fixing part 2 through the adjusting nut 5, the roller shaft connecting seat 4 is a fixing ring, the roller shaft connecting seat 4 is sleeved on the threaded rod 3, two ends of the roller shaft connecting seat 4 are fixed on the threaded rod 3 through the adjusting nut 5, the supporting part 6 is a square metal sheet, notches are formed in two sides of the front end of the supporting part 6, the upper end and the lower end of the horizontal notch of the frame plate 1 are embedded into the two notches of the supporting part 6, a through, and the support 6 is fixed in the middle of the threaded rod 3 by means of an adjusting nut 5.
Furthermore, the width of the notches at the two sides of the front end of the support member 6 is equal to the thickness of the frame plate 1, and the distance between the two notches is equal to the width of the horizontal notch of the frame plate 1.
Furthermore, the aperture of the through hole in the middle of the rear end of the support member 6 is equal to the aperture of the threaded rod 3.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (3)
1. The utility model provides a belt feeder drum shaft's installing support structure which characterized in that includes: the belt conveyor comprises a frame plate (1), a fixing part (2), a threaded rod (3), a roller shaft connecting seat (4), an adjusting nut (5) and a supporting part (6), wherein the frame plate (1) is a plate on the side surface of the belt conveyor, a horizontal notch for a roller shaft to pass through is formed in the frame plate (1), the fixing part (2) is fixedly connected to the frame plate (1) through a bolt, the fixing part (2) is positioned on two sides of the horizontal notch, two ends of the threaded rod (3) are fixedly connected to the fixing part (2) through the adjusting nut (5), the roller shaft connecting seat (4) is a fixing ring, the roller shaft connecting seat (4) is sleeved on the threaded rod (3), two ends of the roller shaft connecting seat (4) are fixed to the threaded rod (3) through the adjusting nut (5), the supporting part (6) is a square metal sheet, notches are formed in two sides of the front end of the supporting part, and both ends embedding support piece (6) about frame plate (1) horizontal notch in two notches, open support piece (6) rear end middle part has the through-hole, and support piece (6) cup joint on threaded rod (3) through the through-hole, and support piece (6) are fixed in threaded rod (3) middle part through adjusting nut (5).
2. The mounting bracket structure of the belt conveyor roller shaft according to claim 1, characterized in that the width of the notches on both sides of the front end of the supporting member (6) is equal to the thickness of the frame plate (1), and the distance between the two notches is equal to the width of the horizontal notch of the frame plate (1).
3. The mounting bracket structure of the roller shaft of the belt conveyor as claimed in claim 1, characterized in that the aperture of the through hole in the middle of the rear end of the supporting piece (6) is equal to the aperture of the threaded rod (3).
