CN212351629U - Fixing device for grinding machine capable of clamping periphery of square component simultaneously - Google Patents

Fixing device for grinding machine capable of clamping periphery of square component simultaneously Download PDF

Info

Publication number
CN212351629U
CN212351629U CN201921996360.6U CN201921996360U CN212351629U CN 212351629 U CN212351629 U CN 212351629U CN 201921996360 U CN201921996360 U CN 201921996360U CN 212351629 U CN212351629 U CN 212351629U
Authority
CN
China
Prior art keywords
fixedly connected
box body
box
rod
square component
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Active
Application number
CN201921996360.6U
Other languages
Chinese (zh)
Inventor
张雪媛
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
LIAONING HUAYUE PRECISION PROCESSING Corp.,Ltd.
Original Assignee
Shenyang Xinhe Sheng Technology Co ltd
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Shenyang Xinhe Sheng Technology Co ltd filed Critical Shenyang Xinhe Sheng Technology Co ltd
Priority to CN201921996360.6U priority Critical patent/CN212351629U/en
Application granted granted Critical
Publication of CN212351629U publication Critical patent/CN212351629U/en
Active legal-status Critical Current
Anticipated expiration legal-status Critical

Links

Images

Landscapes

  • Finish Polishing, Edge Sharpening, And Grinding By Specific Grinding Devices (AREA)

Abstract

The utility model discloses a can carry out the clamping fixing device for grinding machine simultaneously all around of square part, the power distribution box comprises a box body, the equal fixedly connected with landing leg in four corners of bottom half, the guiding hole has been seted up at the top of box, the bottom fixedly connected with motor of box, the top of motor shaft runs through to the inner chamber and the fixedly connected with threaded rod of box, the top fixedly connected with plectane of threaded rod. The utility model discloses a four splint remove simultaneously and fix square component, can fix around square component, fixed effectual, avoid square component to produce the displacement at the in-process of processing, improved processingquality, it can only fix square component's both sides to have solved current fixing device for the grinding machine, fixed effect is not good, square component displacement around the in-process of processing produces easily, square component's processingquality has been reduced, the problem that people used not convenient for.

Description

Fixing device for grinding machine capable of clamping periphery of square component simultaneously
Technical Field
The utility model relates to a grinding machine processing technology field specifically is a can carry out the fixing device for grinding machine that presss from both sides tightly simultaneously all around of square part.
Background
The grinding machine is a machine tool for grinding the surface of a workpiece by utilizing a grinding tool, most grinding machines carry out grinding by utilizing a grinding wheel rotating at a high speed, and the minority are other grinding tools such as oilstones, abrasive belts and the like and free grinding materials, such as a honing machine, a superfinishing machine tool, an abrasive belt grinding machine, a polishing machine and the like.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a can carry out the tight fixing device for grinding machine simultaneously all around of square component, possess and can fix square component simultaneously all around, fixed effectual advantage has been solved current fixing device for grinding machine and can only fix square component's both sides, and fixed effect is not good, and displacement around square component produces easily at the in-process of processing has reduced square component's processingquality, the problem that people used not convenient for.
In order to achieve the above object, the utility model provides a following technical scheme: a fixing device for a grinding machine capable of clamping the periphery of a square part simultaneously comprises a box body, wherein four corners of the bottom of the box body are fixedly connected with supporting legs, the top of the box body is provided with a guide hole, the bottom of the box body is fixedly connected with a motor, the top of a motor rotating shaft penetrates through an inner cavity of the box body and is fixedly connected with a threaded rod, the top of the threaded rod is fixedly connected with a circular plate, two sides, the front side and the back side of the circular plate are fixedly connected with a transverse rod, one end of the transverse rod, far away from the circular plate, is fixedly connected with the inner wall of the box body, the surface of the threaded rod is in threaded connection with a threaded sleeve, two sides, the front side and the back side of the threaded sleeve are fixedly connected with first connecting blocks, one end, far away from the threaded sleeve, of each first connecting block is movably connected with, the sliding sleeve on the surface of the cross rod is sleeved with the top fixedly connected with sleeve of the second connecting block, the top fixedly connected with connecting rod of the sliding sleeve, and the top of the connecting rod penetrates through the guide hole and is fixedly connected with the clamping plate.
Preferably, the bottom of landing leg fixedly connected with backup pad, the equal fixedly connected with stiffener in both sides of motor, the one end that the stiffener kept away from the motor is fixedly connected with the bottom of box.
Preferably, the two sides of the box body are fixedly connected with first electric telescopic rods, and the top of each first electric telescopic rod is fixedly connected with a movable frame which is sleeved on the surface of the box body.
Preferably, the four corners of the bottom of the box body are fixedly connected with through holes, the front side and the rear side of the two sides of the inner wall of the box body are fixedly connected with second electric telescopic rods through supporting plates, the bottom of each second electric telescopic rod penetrates through the through hole and is fixedly connected with a support, and the bottom of each support is movably connected with a roller through a rotating shaft.
Preferably, the front surface of the box body is movably connected with a box door through a hinge, the front surface of the box door is fixedly connected with a handle, and the surface of the handle is provided with anti-skid grains.
Compared with the prior art, the beneficial effects of the utility model are as follows:
1. the utility model discloses a box, the guiding hole, including a motor, an end cap, a controller, and a cover plate, the threaded rod, the plectrum, the thread bush, first connecting block, the movable rod, the second connecting block, the sliding sleeve, connecting rod and splint cooperate, adopt four splint to remove simultaneously and fix square component, can fix around square component, fixed effectual, avoid square component to produce the displacement at the in-process of processing, the processingquality is improved, it can only fix square component's both sides to have solved current fixing device for the grinding machine, fixed effect is not good, square component is the displacement around the in-process of processing produces easily, the processingquality of square component has been reduced, the problem that people used is not convenient for.
2. The utility model discloses a backup pad, the area of contact of increase landing leg and ground, can carry out the stability to the box and support, through setting up the anchor strut, can consolidate the motor, through setting up first electric telescopic handle and removing the frame, can make and remove the vertical removal of frame, remove the frame and carry out the separation all around to the box, through setting up the through-hole, second electric telescopic handle, support and gyro wheel cooperate, can make gyro wheel downward movement and ground contact, the removal of the box of being convenient for, through setting up the chamber door, be convenient for maintain and repair the square component of box inner chamber, through setting up the handle, the opening and shutting of the chamber door of being convenient for.
Drawings

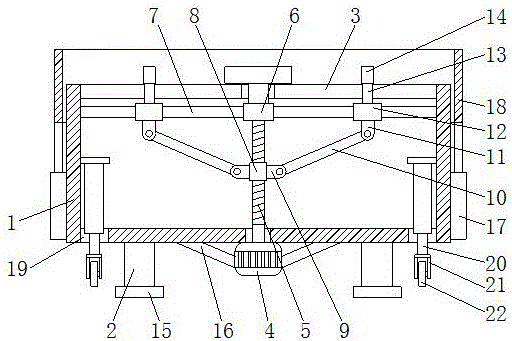

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a front view of the structure of the present invention;
fig. 3 is a schematic top view of the structure of the present invention.
In the figure: the device comprises a box body 1, supporting legs 2, guide holes 3, a motor 4, a threaded rod 5, a circular plate 6, a cross rod 7, a threaded sleeve 8, a first connecting block 9, a movable rod 10, a second connecting block 11, a sliding sleeve 12, a connecting rod 13, a clamping plate 14, a supporting plate 15, a reinforcing rod 16, a first electric telescopic rod 17, a movable frame 18, a through hole 19, a second electric telescopic rod 20, a support 21, a roller 22, a box door 23 and a handle 24.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present application, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "disposed," "connected," and the like are to be construed broadly, such as "connected," which may be fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present application can be understood in a specific case by those of ordinary skill in the art.
The utility model provides a box 1, landing leg 2, guiding hole 3, motor 4, threaded rod 5, circular plate 6, horizontal pole 7, thread bush 8, first connecting block 9, movable rod 10, second connecting block 11, sliding sleeve 12, connecting rod 13, splint 14, backup pad 15, anchor strut 16, first electric telescopic handle 17, remove frame 18, through-hole 19, second electric telescopic handle 20, support 21, gyro wheel 22, chamber door 23 and handle 24 part are universal standard or the part that technical staff in the field knows, its structure and principle all can learn through the technical manual or learn through conventional experimental method for this technical staff.
Referring to fig. 1-3, a fixing device for a grinding machine capable of simultaneously clamping the periphery of a square component comprises a box body 1, wherein four corners of the bottom of the box body 1 are fixedly connected with supporting legs 2, the top of the box body 1 is provided with a guide hole 3, the bottom of the box body 1 is fixedly connected with a motor 4, two sides of the motor 4 are fixedly connected with reinforcing rods 16, one end of each reinforcing rod 16, which is far away from the motor 4, is fixedly connected with the bottom of the box body 1, the contact area of the supporting legs 2 and the ground is increased through a supporting plate 15, the box body 1 can be stably supported, the motor 4 can be reinforced by arranging the reinforcing rods 16, the top of a rotating shaft of the motor 4 penetrates through an inner cavity of the box body 1 and is fixedly connected with a threaded rod 5, the top of the threaded rod 5 is fixedly connected with a circular plate 6, two sides, the front side and the back side of the circular plate, the surface of the threaded rod 5 is in threaded connection with a threaded sleeve 8, the two sides, the front side and the back side of the threaded sleeve 8 are fixedly connected with a first connecting block 9, one end of the first connecting block 9, which is far away from the threaded sleeve 8, is movably connected with a movable rod 10 through a rotating shaft, one end of the movable rod 10, which is far away from the first connecting block 9, is movably connected with a second connecting block 11 through a rotating shaft, the top of the second connecting block 11 is fixedly connected with a sliding sleeve 12 sleeved on the surface of a cross rod 7, the top of the sliding sleeve 12 is fixedly connected with a connecting rod 13, the top of the connecting rod 13 penetrates through a guide hole 3 and is fixedly connected with a clamping plate 14, the two sides of the box body 1 are both fixedly connected with first electric telescopic rods 17, the top of the first electric telescopic rods 17 is fixedly connected with a moving frame 18 sleeved on the surface of the box body 1, the, the bottom of the second electric telescopic rod 20 penetrates through the through hole 19 and is fixedly connected with the support 21, the bottom of the support 21 is movably connected with the roller 22 through a rotating shaft, the front of the box body 1 is movably connected with a box door 23 through a hinge, the front of the box door 23 is fixedly connected with a handle 24, the surface of the handle 24 is provided with anti-skidding lines, the first electric telescopic rod 17 and the moving frame 18 are arranged, the moving frame 18 can move vertically, the moving frame 18 separates the periphery of the box body 1, the through hole 19, the second electric telescopic rod 20, the support 21 and the roller 22 are arranged to be matched, the roller 22 can move downwards to be in contact with the ground, the box body 1 is convenient to move, the box door 23 is arranged to maintain and repair square parts in an inner cavity of the box body 1, the opening and closing of the box door 23 are convenient through the arrangement of the handle 24, and the threaded, The plectane 6, the horizontal pole 7, thread bush 8, first connecting block 9, the movable rod 10, second connecting block 11, sliding sleeve 12, connecting rod 13 and splint 14 cooperate, adopt four splint 14 to remove simultaneously and fix square component, can fix around square component, it is fixed effectual, avoid square component to produce the displacement at the in-process of processing, the processingquality is improved, it can only fix square component's both sides to have solved current fixing device for the grinding machine, fixed effect is not good, square component is the displacement around the in-process of processing produces easily, the processingquality of square component has been reduced, be not convenient for the problem that people used.
During the use, place the square part at the center of four splint 14, it is rotatory that pivot through motor 4 drives threaded rod 5, threaded rod 5 makes 8 downshifts of thread bush with 8 threaded connection of thread bush, 8 downshifts of thread bush drive first connecting block 9, first connecting block 9 drives movable rod 10 downshifts, movable rod 10 drives second connecting block 11 downshifts, second connecting block 11 drives sliding sleeve 12 at the surperficial lateral sliding of horizontal pole 7, sliding sleeve 12 drives connecting rod 13 and splint 14 and removes, through four splint 14 centre gripping square part all around, drive support 21 downshifts through the extension of second electric telescopic handle 20, support 21 drives gyro wheel 22 downshifts, make gyro wheel 22 support with ground contact, be convenient for the removal of box 1.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (1)

1. The utility model provides a can carry out the clamping simultaneously fixing device for grinding machine to square part's all around, includes box (1), its characterized in that: the four corners of the bottom of the box body (1) are fixedly connected with supporting legs (2), the top of the box body (1) is provided with a guide hole (3), the bottom of the box body (1) is fixedly connected with a motor (4), the top of a rotating shaft of the motor (4) penetrates through an inner cavity of the box body (1) and is fixedly connected with a threaded rod (5), the top of the threaded rod (5) is fixedly connected with a circular plate (6), the two sides, the front side and the back side of the circular plate (6) are fixedly connected with a transverse rod (7), one end, away from the circular plate (6), of the transverse rod (7) is fixedly connected with the inner wall of the box body (1), the surface thread of the threaded rod (5) is connected with a thread sleeve (8), the two sides, the front side and the back side of the thread sleeve (8) are fixedly connected with first connecting blocks (9), one end, away from the thread sleeve (8, one end of the movable rod (10) far away from the first connecting block (9) is movably connected with a second connecting block (11) through a rotating shaft, the top of the second connecting block (11) is fixedly connected with a sliding sleeve (12) sleeved on the surface of the cross rod (7), the top of the sliding sleeve (12) is fixedly connected with a connecting rod (13), the top of the connecting rod (13) penetrates through the guide hole (3) and is fixedly connected with a clamping plate (14), the bottom of the landing leg (2) is fixedly connected with a supporting plate (15), two sides of the motor (4) are both fixedly connected with reinforcing rods (16), one end of the reinforcing rod (16) far away from the motor (4) is fixedly connected with the bottom of the box body (1), two sides of the box body (1) are both fixedly connected with first electric telescopic rods (17), the top of the first electric telescopic rods (17) is fixedly connected with a moving frame (18) sleeved on, the all fixedly connected with through-hole in four corners (19) of box (1) bottom, the front side and the rear side of box (1) inner wall both sides all are through extension board fixedly connected with second electric telescopic handle (20), through-hole (19) and fixedly connected with support (21) are run through to the bottom of second electric telescopic handle (20), there are gyro wheel (22) bottom of support (21) through pivot swing joint, there are chamber door (23) in the front of box (1) through hinge swing joint, the positive fixedly connected with handle (24) of chamber door (23), the surface of handle (24) is provided with anti-skidding line.
