CN212330321U - A kind of punching and polishing device for the processing of arrester cross arm - Google Patents
A kind of punching and polishing device for the processing of arrester cross arm Download PDFInfo
- Publication number
- CN212330321U CN212330321U CN202020859113.8U CN202020859113U CN212330321U CN 212330321 U CN212330321 U CN 212330321U CN 202020859113 U CN202020859113 U CN 202020859113U CN 212330321 U CN212330321 U CN 212330321U
- Authority
- CN
- China
- Prior art keywords
- motor
- cross arm
- dust collecting
- punching
- electric telescopic
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Grinding-Machine Dressing And Accessory Apparatuses (AREA)
Abstract
本实用新型公开了一种避雷器横担加工用打孔抛光装置，包括箱体和连接管道，所述箱体内设置有第一电动伸缩杆，所述第二电动伸缩杆顶部设置有托板，且托板上设置有电机，所述电机通过电机轴与转杆连接，且转杆远离电机轴的一端与钻头连接，所述箱体上开设有矩形槽，且矩形槽设置在电机上方，所述电机的左侧设置有集尘箱，所述连接管道通过气泵与集尘箱连接，且连接管道远离集尘箱的一端与集尘罩连接。该避雷器横担加工用打孔抛光装置，设置有第二电动伸缩杆，第二电动伸缩杆可推动电机向上移动，电机可通过电机轴和转杆带动钻头转动对横担进行钻孔，且电机可通过电机轴带动转杆上的打磨砂纸转动对孔的内壁进行打磨，使用起来较为便捷。
The utility model discloses a punching and polishing device for processing a cross arm of an arrester, which comprises a box body and a connecting pipe, wherein a first electric telescopic rod is arranged in the box body, a support plate is arranged on the top of the second electric telescopic rod, and A motor is provided on the support plate, the motor is connected with the rotating rod through the motor shaft, and the end of the rotating rod away from the motor shaft is connected with the drill bit, the box body is provided with a rectangular slot, and the rectangular slot is arranged above the motor, the The left side of the motor is provided with a dust collecting box, the connecting pipe is connected with the dust collecting box through an air pump, and the end of the connecting pipe which is far away from the dust collecting box is connected with the dust collecting hood. The punching and polishing device for processing the cross arm of the arrester is provided with a second electric telescopic rod. The second electric telescopic rod can push the motor to move upward. The motor can drive the drill bit to rotate through the motor shaft and the rotating rod to drill the cross arm. The grinding sandpaper on the rotating rod can be driven by the motor shaft to rotate to grind the inner wall of the hole, which is more convenient to use.
Description
Technical Field
The utility model relates to a cross arm processing technology field specifically is a lightning arrester cross arm processing is with burnishing device that punches.
Background
The cross arm is used for the top horizontal fixed angle bar of shaft tower, and the cross arm is the important component of shaft tower, and its effect is used for installing insulator and gold utensil to support wire, lightning conductor, and make it keep certain safe distance according to the regulation, divide into according to the usage: sharp cross arm, the corner cross arm, strain insulator cross arm need use perforating device in the course of working of cross arm, current perforating device causes the not smooth phenomenon of hole inner wall easily at the in-process that punches, consequently need carry out the polishing operation on the cross arm transfer polishing device after will punching, it is convenient inadequately to use, the inconvenient sweeps that produces to the in-process of punching of the inconvenient of the perforating device that on the other hand, cause environmental pollution easily, to above-mentioned problem, need improve current equipment.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a lightning arrester cross arm processing is with burnishing device that punches to current perforating device who proposes in solving above-mentioned background art causes the unsmooth phenomenon of hole inner wall easily at the in-process that punches, consequently need will punch after the cross arm shift polish the operation on the burnishing device, it is convenient inadequately to use, the inconvenient sweeps that produce to the punching in-process of the inconvenient sweeps that produce of on the other hand, cause environmental pollution's problem easily.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a processing of arrester cross arm is with burnishing device that punches, includes box and connecting tube, be provided with first electric telescopic handle in the box, and first electric telescopic handle left end is connected with second electric telescopic handle's bottom, second electric telescopic handle top is provided with the layer board, and is provided with the motor on the layer board, the motor passes through the motor shaft and is connected with the bull stick, and the bull stick keeps away from the one end of motor shaft and is connected with the drill bit, the rectangular channel has been seted up on the box, and the rectangular channel setting is in the motor top, the left side of motor is provided with the dust collection box, and is provided with the dust collection box in the dust collection box, and the dust collection box top is provided with the air pump simultaneously, the connecting tube passes through the air pump and is connected with the dust.
Preferably, the surface of the rotating rod is bonded with polishing sand paper, and the rotating rod, the motor shaft, the polishing sand paper and the drill bit form a rotating structure.
Preferably, the rotating rod and the motor shaft form a dismounting and mounting structure.
Preferably, the left side and the right side of the rectangular groove are symmetrically provided with fixing blocks, and the fixing blocks are in threaded connection with the fasteners.
Preferably, the dust collecting box and the box body form a drawing structure, and the front side of the box body is provided with a control panel.
Preferably, the right side of the control panel is provided with a baffle plate, and the baffle plate is connected with the box body through a screw.
Compared with the prior art, the beneficial effects of the utility model are that: the drilling and polishing device for processing the lightning arrester cross arm,
(1) the second electric telescopic rod is arranged and can push the motor to move upwards, the motor can drive the drill bit to rotate through the motor shaft and the rotating rod to drill the cross arm, and the motor can drive the polishing abrasive paper on the rotating rod to rotate through the motor shaft to polish the inner wall of the hole, so the use is convenient,
(2) be provided with the air pump, the sweeps that the dust cage can produce the drilling in-process under the effect of air pump is collected and is discharged to the dust collecting box through the connecting tube and save in, and can manually take out the dust collecting box from the inside of box and clear up the sweeps to can avoid the sweeps to discharge at will and cause the pollution to the environment.
Drawings

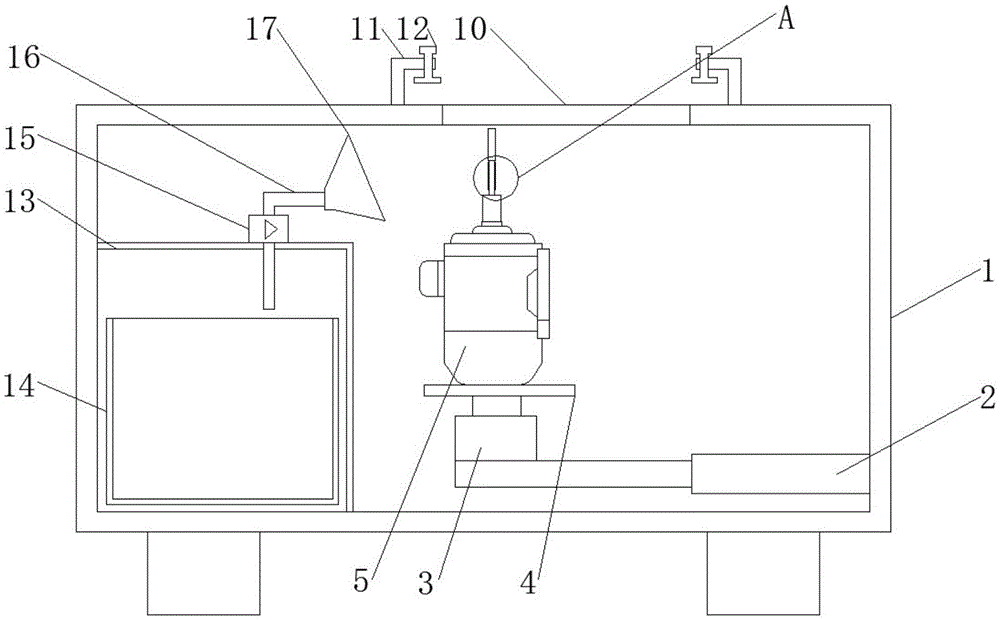

Fig. 1 is a schematic view of the front cross-sectional structure of the present invention;
FIG. 2 is an enlarged schematic view of the structure at A of FIG. 1 according to the present invention;
fig. 3 is a schematic view of the front view structure of the present invention.
In the figure: 1. the box, 2, first electric telescopic handle, 3, second electric telescopic handle, 4, layer board, 5, motor, 6, motor shaft, 7, bull stick, 8, the abrasive paper of polishing, 9, drill bit, 10, rectangular channel, 11, fixed block, 12, fastener, 13, dust collection box, 14, dust collection box, 15, air pump, 16, connecting tube, 17, dust cage, 18, control panel, 19, screw, 20, baffle.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: a punching and polishing device for machining a cross arm of a lightning arrester is disclosed, as shown in figures 1 and 2, a first electric telescopic rod 2 is arranged in a box body 1, the left end of the first electric telescopic rod 2 is connected with the bottom end of a second electric telescopic rod 3, a supporting plate 4 is arranged at the top of the second electric telescopic rod 3, a motor 5 is arranged on the supporting plate 4, the motor 5 is connected with a rotating rod 7 through a motor shaft 6, polishing abrasive paper 8 is bonded on the surface of the rotating rod 7, the arrangement of the polishing abrasive paper 8 can polish the inner part of a hole, the rotating rod 7, the motor 5, the motor shaft 6, the polishing abrasive paper 8 and a drill bit 9 form a rotating structure, the rotating rod 7 and the motor shaft 6 form a dismounting and mounting structure, the rotating rod 7 and the motor shaft 6 are conveniently dismounted, so that drill bits 9 with different sizes can be replaced, the dismounting and mounting are simpler and more convenient, one end of the rotating rod 7, which is far away, and rectangular channel 10 sets up in motor 5 top, and the left and right sides symmetry of rectangular channel 10 sets up fixed block 11, and fixed block 11 and fastener 12 threaded connection, is convenient for fix the cross arm position through manual rotatory fastener 12, avoids the cross arm to remove when drilling.
As shown in fig. 1 and 3, a dust collection box 13 is disposed on the left side of the motor 5, a dust collection box 14 is disposed in the dust collection box 13, the dust collection box 14 and the box 1 form a drawing structure, a control panel 18 is disposed on the front side of the box 1, which is convenient for cleaning up waste in the dust collection box 14, meanwhile, the motor 5 is disposed in the box 1, which can prevent the waste generated during drilling from polluting the external environment, and on the other hand, which can also reduce the influence of noise generated during drilling on the external environment, a baffle 20 is disposed on the right side of the control panel 18, and the baffle 20 is connected with the box 1 through a screw 19, which is convenient for overhauling the motor 5 inside the box 1 through disassembling the baffle 20 and the screw 19, and an air pump 15 is disposed on the top of the dust collection box 13, a connection pipe 16 is connected with the dust collection box 13 through the air pump 15, and one end.
The working principle is as follows: when the drilling and polishing device for processing the lightning arrester cross arm is used, firstly, the fastening piece 12 is manually rotated until the bottom of the fastening piece is contacted with the cross arm placed above the rectangular groove 10, the position of the fastening piece is fixed, then the power supply operation control panel 18 is connected to start the first electric telescopic rod 2 and the motor 5, the first electric telescopic rod 2 can drive the motor 5 to move left and right so as to adjust the drilling position of the cross arm, the motor 5 drives the sanding abrasive paper 8 and the drill bit 9 on the rotating rod 7 to rotate through the motor shaft 6, then the second electric telescopic rod 3 is started, the second electric telescopic rod 3 drives the motor 5 to move upwards so as to enable the drill bit 9 to pass through the rectangular groove 10 to be contacted with the cross arm for drilling, after the drilling is finished, the second electric telescopic rod 3 continues to drive the motor 5 to move upwards until the rotating sanding paper 8 is contacted with the inner wall of the hole so, meanwhile, under the action of the air pump 15, the dust collecting cover 17 can collect the waste chips generated in the drilling and polishing processes and discharge the waste chips into the dust collecting box 14 through the connecting pipeline 16, when the waste chips in the dust collecting box 14 need to be cleaned, the dust collecting box 14 can be manually drawn out from the interior of the box body 1 to clean the waste chips, and when the motor 5 breaks down, the detachable screw 19 separates the baffle plate 20 from the box body 1, so that the motor 5 in the box body 1 can be maintained, and all the work is completed.
The terms "central," "longitudinal," "lateral," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientation or positional relationship indicated in the drawings for ease of description, but are not intended to indicate or imply that the device or element so referred to must have a particular orientation, be constructed and operated in a particular orientation, and are not to be considered limiting of the scope of the invention.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.
