The utility model discloses an assembled LED wisdom street lamp, the on-line screen storage device comprises a base, the top threaded connection of base has the lamp pole, the top swing joint of lamp pole has the mount pad, the bottom of mount pad and the equal fixedly connected with fixed disk in top of lamp pole, two through bolt fixed connection between the fixed disk, the equal fixedly connected with connecting rod in upper and lower both sides of surface around the mount pad, the utility model relates to a street lamp technical field. This assembled LED wisdom street lamp, through connecting through the fixed disk between mount pad and the lamp pole, set up the mount pad of activity simultaneously, can make things convenient for whole LED wisdom street lamp to assemble, avoid the inconvenient transport of traditional integral type, slide bar, sliding sleeve, connecting plate, cardboard and spring in the inside setting of footstock simultaneously, the fixing base at cooperation LED lamp body top not only can play fine guard action to the LED lamp body, and can conveniently change the fixing base, and easy operation, it is convenient to use.
Description
Technical Field
The utility model relates to a street lamp technical field specifically is an assembled LED wisdom street lamp.
Background
The LED street lamp is a street lamp manufactured by using an LED light source, and has very important significance for urban illumination energy conservation; the LED street lamp is different from the conventional street lamp in that the LED light source adopts low-voltage direct current power supply, and high-efficiency white light synthesized by GaN-based power type blue light LED and yellow has the unique advantages of high efficiency, safety, energy conservation, environmental protection, long service life, high response speed, high color rendering index and the like, can be widely applied to roads, and can be used for manufacturing an outer cover, and resist high temperature up to 135 ℃ and low temperature up to-45 ℃.
Current LED wisdom street lamp, mostly be integrated into one piece, can not assemble, and it is inconvenient at the in-process transport that removes, and the LED lamp suffers external force easily moreover and is damaged, not only is difficult to change, influences the life of LED lamp moreover, for this reason, the utility model provides an assembled LED wisdom street lamp.
SUMMERY OF THE UTILITY MODEL
Not enough to prior art, the utility model provides an assembled LED wisdom street lamp has solved current LED wisdom street lamp, and mostly be integrated into one piece, can not assemble, and the LED lamp suffers the impaired problem of external force easily.
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: an assembled LED intelligent street lamp comprises a base, wherein a lamp post is in threaded connection with the top of the base, the top end of the lamp post is movably connected with an installation seat, fixed disks are fixedly connected with the bottom of the installation seat and the top end of the lamp post, the two fixed disks are fixedly connected through bolts, connecting rods are fixedly connected with the upper side and the lower side of the front surface and the lower side of the rear surface of the installation seat, an LED lamp body is fixedly connected between the two connecting rods, a top seat is movably connected with the top of the LED lamp body, a fixed seat is fixedly connected with the top of the LED lamp body, the top of the fixed seat penetrates through the top seat and extends into the top seat, a clamping groove is formed in the inner side of the fixed seat, a sliding rod is fixedly connected with the inner side of the top seat, a sliding sleeve is slidably connected with the outer surface of the sliding rod, and the outer surface of the clamping plate is clamped with the inner surface of the clamping groove, the surface of the sliding rod is sleeved with a spring, and one end of the spring is fixedly connected with one side of the sliding sleeve.
Preferably, the number of the connecting rods is four, and the connecting rods are uniformly distributed on the upper side and the lower side of the front surface and the lower side of the rear surface of the mounting seat.
Preferably, the other end of the sliding sleeve penetrates through the top seat and extends to the outside of the top seat, and the other end of the sliding sleeve is connected with the back of the top seat in a sliding mode.
Preferably, the outside fixedly connected with stopper of footstock inner wall, and one side of stopper and one side sliding connection of fixing base.
Preferably, the top of lamp pole rotates and is connected with the bull stick, the surface fixed connection of bull stick has spacing, and spacing is in the surface symmetric distribution of bull stick.
Preferably, the inner surface of the mounting seat is provided with a limiting groove, the limiting groove is symmetrically distributed on the inner surface of the mounting seat, and the inner surface of the limiting groove is in sliding connection with the outer surface of the limiting strip.
Preferably, the top of the top seat is fixedly connected with a solar power generation panel.
Advantageous effects
The utility model provides an assembled LED wisdom street lamp. Compared with the prior art, the method has the following beneficial effects:
(1) the assembled LED intelligent street lamp is characterized in that the bottom of the mounting seat and the top end of the lamp post are fixedly connected with fixed disks, the two fixed disks are fixedly connected through bolts, the upper side and the lower side of the front surface of the mounting seat are fixedly connected with connecting rods, an LED lamp body is fixedly connected between the two connecting rods, the top of the LED lamp body is movably connected with a top seat, the top of the LED lamp body is fixedly connected with a fixed seat, the top of the fixed seat penetrates through the top seat and extends into the top seat, a clamping groove is formed in the inner side of the fixed seat, a sliding rod is fixedly connected to the inner side of the top seat, the outer surface of the sliding rod is slidably connected with a sliding sleeve, one end of the sliding sleeve is fixedly connected with a connecting plate, the inner side of the connecting plate is fixedly connected with a clamping, through connecting through the fixed disk between mount pad and the lamp pole, set up the mount pad of activity simultaneously, can make things convenient for whole LED wisdom street lamp to assemble, avoid the inconvenient transport of traditional integral type, slide bar, sliding sleeve, connecting plate, cardboard and spring that set up in the footstock simultaneously, the fixing base at cooperation LED lamp body top not only can play fine guard action to the LED lamp body, can conveniently change the fixing base moreover, easy operation, it is convenient to use.
(2) This assembled LED wisdom street lamp, be connected with the bull stick through rotating on the top at the lamp pole, the surface fixed connection of bull stick is with spacing, and spacing is at the surface symmetric distribution of bull stick, the spacing groove has been seted up to the internal surface of mount pad, and the internal surface symmetric distribution of spacing groove at the mount pad, the internal surface of spacing groove and spacing outer surface sliding connection, the top fixedly connected with solar panel of footstock, through setting up the bull stick, spacing and spacing groove, can rotate the LED lamp body, conveniently carry out adaptability and adjust, set up solar panel, can provide the electric energy for the LED lamp body, and energy is saved.
Drawings
Fig. 1 is a perspective view of the external structure of the present invention;
FIG. 2 is a perspective view of the present invention;
fig. 3 is a top view of the internal structure of the present invention;

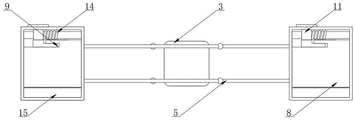

fig. 4 is a schematic view of a partial structure of the present invention;
fig. 5 is a top view of the internal structure of the mounting base of the present invention.
In the figure: the solar LED lamp comprises a base 1, a lamp post 2, a mounting seat 3, a fixing disk 4, a connecting rod 5, an LED lamp body 6, a top seat 7, a fixing seat 8, a clamping groove 9, a sliding rod 10, a sliding sleeve 11, a connecting plate 12, a connecting plate 13, a clamping plate 14, a spring 15, a limiting block 16, a rotating rod 17, a limiting strip 18, a limiting groove 18 and a solar power generation plate 19.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-5, the present invention provides a technical solution: an assembled LED intelligent street lamp comprises a base 1, wherein the top of the base 1 is in threaded connection with a lamp post 2, the top end of the lamp post 2 is rotatably connected with a rotating rod 16, the outer surface of the rotating rod 16 is fixedly connected with a limiting strip 17, the limiting strip 17 is symmetrically distributed on the outer surface of the rotating rod 16, the top end of the lamp post 2 is movably connected with an installation seat 3, the inner surface of the installation seat 3 is provided with a limiting groove 18, the limiting groove 18 is symmetrically distributed on the inner surface of the installation seat 3, the inner surface of the limiting groove 18 is in sliding connection with the outer surface of the limiting strip 17, the bottom of the installation seat 3 and the top end of the lamp post 2 are both fixedly connected with fixed disks 4, the two fixed disks 4 are fixedly connected through bolts, the upper side and the lower side of the front surface and the rear surface of the installation seat 3 are both fixedly connected with connecting rods 5, the number of the connecting rods 5 is, the LED lamp body 6 adopts the existing LED lighting technology, the top of the LED lamp body 6 is movably connected with a top seat 7, the top of the top seat 7 is fixedly connected with a solar power generation board 19, the solar power generation board 19 is electrically connected with the LED lamp body 6, the outer side of the inner wall of the top seat 7 is fixedly connected with a limiting block 15, one side of the limiting block 15 is in sliding connection with one side of a fixed seat 8, the top of the LED lamp body 6 is fixedly connected with the fixed seat 8, the top of the fixed seat 8 penetrates through the top seat 7 and extends into the top seat 7, a clamping groove 9 is formed in the inner side of the fixed seat 8, a sliding rod 10 is fixedly connected with the inner side of the top seat 7, the outer surface of the sliding rod 10 is in sliding connection with a sliding sleeve 11, the other end of the sliding sleeve 11 penetrates through the top seat 7 and extends to the outer part of the top seat 7, the other end of the sliding sleeve 11 is in sliding connection with, and cardboard 13's surface and draw-in groove 9's internal surface joint, the surface cover of slide bar 10 is equipped with spring 14, and one side fixed connection of spring 14's one end and sliding sleeve 11, through being connected through fixed disk 4 between mount pad 3 and the lamp pole 2, set up movable mount pad 3 simultaneously, can make things convenient for whole LED wisdom street lamp to assemble, avoid the inconvenient transport of traditional integral type, slide bar 10 at the inside setting of footstock 7 simultaneously, sliding sleeve 11, connecting plate 12, cardboard 13 and spring 14, the fixing base 8 at cooperation LED lamp body 6 top, not only can play fine guard action to LED lamp body 6, and can conveniently change fixing base 6, and is simple in operation, and convenient in use.
And those not described in detail in this specification are well within the skill of those in the art.
When the street lamp is assembled, firstly, the base 1 is pre-buried in soil, then the mounting seat 3 is sleeved on the rotating rod 16, so that the limiting strip 17 slides along the limiting groove 18, at the moment, the mounting seat 3 is rotated to rotate the LED lamp body 6, so that adaptability adjustment is convenient to carry out, after the adjustment is finished, the lamp post 2 is connected with the mounting seat 3 through the fixed disk 4, at the moment, the top seat 7 is placed at the top of the LED lamp body 6, so that the fixed seat 8 at the top of the LED lamp body 6 enters the top seat 7, meanwhile, the sliding sleeve 11 is pulled to one side, so that the sliding sleeve 11 slides to one side on the surface of the sliding rod 10, the spring 14 is stretched, after the fixed seat 8 enters the top seat 7, the sliding sleeve 11 is loosened, under the elastic force of the spring 14, the sliding sleeve 11 is restored to the initial position, so as to drive the connecting plate 12 to restore the initial position, at, can fix footstock 7, reverse when needing to dismantle the operation, can make things convenient for whole LED wisdom street lamp to assemble, avoid the inconvenient transport of traditional integral type, not only can play fine guard action to LED lamp body 6, can conveniently change fixing base 6 in addition, easy operation, it is convenient to use, lift up lamp pole 2 at last in the screw thread tightening base 1 can, when dismantling the street lamp, reverse above-mentioned operation, the above theory of operation that is exactly an assembled LED wisdom street lamp.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. The utility model provides an assembled LED wisdom street lamp, includes base (1), the top threaded connection of base (1) has lamp pole (2), its characterized in that: the LED lamp comprises a lamp pole (2), wherein the top end of the lamp pole (2) is movably connected with a mounting seat (3), the bottom of the mounting seat (3) and the top end of the lamp pole (2) are fixedly connected with fixed disks (4), the two fixed disks (4) are fixedly connected through bolts, the upper side and the lower side of the front surface and the lower side of the rear surface of the mounting seat (3) are fixedly connected with connecting rods (5), an LED lamp body (6) is fixedly connected between the two connecting rods (5), the top of the LED lamp body (6) is movably connected with a top seat (7), the top of the LED lamp body (6) is fixedly connected with a fixed seat (8), the top of the fixed seat (8) penetrates through the top seat (7) and extends to the inside of the top seat (7), a clamping groove (9) is formed in the inner side of the fixed seat (8), a sliding rod (10) is fixedly connected with the inner side of the, one end fixedly connected with connecting plate (12) of sliding sleeve (11), inboard fixedly connected with cardboard (13) of connecting plate (12), and the surface joint of the surface of cardboard (13) and draw-in groove (9), the surface cover of slide bar (10) is equipped with spring (14), and one side fixed connection of one end of spring (14) and sliding sleeve (11).
2. The intelligent LED street lamp as claimed in claim 1, wherein: the number of the connecting rods (5) is four, and the connecting rods are uniformly distributed on the upper side and the lower side of the front surface and the rear surface of the mounting seat (3).
3. The intelligent LED street lamp as claimed in claim 1, wherein: the other end of the sliding sleeve (11) penetrates through the top seat (7) and extends to the outside of the top seat (7), and the other end of the sliding sleeve (11) is connected with the back of the top seat (7) in a sliding mode.
4. The intelligent LED street lamp as claimed in claim 1, wherein: the outside fixedly connected with stopper (15) of footstock (7) inner wall, and one side of stopper (15) and one side sliding connection of fixing base (8).
5. The intelligent LED street lamp as claimed in claim 1, wherein: the lamp post is characterized in that the top end of the lamp post (2) is rotatably connected with a rotating rod (16), the outer surface of the rotating rod (16) is fixedly connected with a limiting strip (17), and the limiting strip (17) is symmetrically distributed on the outer surface of the rotating rod (16).
6. The intelligent LED street lamp as claimed in claim 1, wherein: the inner surface of the mounting seat (3) is provided with a limiting groove (18), the limiting groove (18) is symmetrically distributed on the inner surface of the mounting seat (3), and the inner surface of the limiting groove (18) is in sliding connection with the outer surface of the limiting strip (17).
7. The intelligent LED street lamp as claimed in claim 1, wherein: the top of the top seat (7) is fixedly connected with a solar power generation panel (19).
