CN212300348U

CN212300348U - Tripod mapping device based on architectural survey usefulness

Info

Publication number: CN212300348U
Application number: CN202020904890.XU
Authority: CN
Inventors: 李瑶
Original assignee: Xuzhou Zhongce Surveying And Mapping Technology Co ltd
Current assignee: Xuzhou Zhongce Surveying And Mapping Technology Co ltd
Priority date: 2020-05-26
Filing date: 2020-05-26
Publication date: 2021-01-05
Anticipated expiration: 2030-05-26

Abstract

The utility model discloses a tripod surveying and mapping device for building surveying, which belongs to the technical field of surveying and mapping devices. The utility model comprises a surveying and mapping equipment body, the lower surface of the surveying and mapping equipment body is fixedly connected with the upper surface of a base, and the lower surface of the base is fixedly connected. There are six connecting blocks fixedly connected on the surface, the opposite surfaces of the two connecting blocks are clamped with rotating devices, and the opposite surfaces of the two rotating devices are fixedly connected with the same first connecting plate, the first connecting plate Its lower surface is movably connected with the upper surface of the second connecting plate through a pin shaft. The tripod surveying and mapping device based on building surveying is provided with the first connecting plate, the second connecting plate, the threaded rod and the threaded cap, so that when the staff moves the height of the main body of the surveying and mapping device, the surveying and mapping device is not prone to tilt. The efficiency of height adjustment of the staff is effectively improved, and the horizontal angle of the surveying and mapping equipment body is not easily changed after the adjustment is completed.

Description

Tripod mapping device based on architectural survey usefulness

Technical Field

The utility model belongs to the technical field of the mapping device, specifically be a tripod mapping device based on architectural measurement uses.

Background

With the development of science and technology, people's life is changing over the sky and covering the ground, on modern building worker ground, basically all can measure the operation in advance, and in the measurement operation, all need use the tripod to erect the measuring apparatu and measure, most tripod is convenient for adjust the height of top mapping equipment after finishing fixing at present, just need adjust the horizontal position of tripod again after adjusting mapping equipment, not only increase the staff and consumed time, and easily because of adjusting the height and leading to horizontal position to change.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

In order to overcome prior art's above-mentioned defect, the utility model provides a tripod mapping device based on architectural measurement uses has solved and just need adjust the horizontal position of tripod again after adjusting surveying and mapping equipment, has not only increased the staff and has consumed the time, and leads to the problem that the horizontally position changes because of the adjustment height easily.

(II) technical scheme

In order to achieve the above object, the utility model provides a following technical scheme: a tripod surveying and mapping device for architectural measurement comprises a surveying and mapping device body, wherein the lower surface of the surveying and mapping device body is fixedly connected with the upper surface of a base, the lower surface of the base is fixedly connected with six connecting blocks, the opposite surfaces of the corresponding two connecting blocks are respectively clamped with a rotating device, the opposite surfaces of the two rotating devices are fixedly connected with a first connecting plate, the lower surface of the first connecting plate is movably connected with the upper surface of a second connecting plate through a pin shaft, the lower surfaces of the three second connecting plates are respectively movably connected with supporting legs through hinges, the opposite surfaces of the three supporting legs are fixedly connected with a clamping plate, the upper surface of the clamping plate is fixedly connected with a first rotating mechanism, the top end of the first rotating mechanism is fixedly connected with a handle, the top end of the handle is fixedly connected with a threaded rod, and the, the left side surface and the right side surface of the threaded cap are respectively fixedly connected with the lower surface of the base through two support rods.

As a further aspect of the present invention: the upper surface of the inner wall of the supporting leg is fixedly connected with an elastic device, the bottom end of the elastic device is fixedly connected with a rotating handle, the lower surface of the rotating handle is fixedly connected with a second rotating mechanism, and the lower surface of the second rotating mechanism is fixedly connected with a clamping rod.

As a further aspect of the present invention: the front of supporting leg has seted up the spout, the shape of spout sets up to L shape, the kelly joint is in the spout.

As a further aspect of the present invention: the outer surfaces of the handle and the rotating handle are provided with anti-skid grains, and the three surfaces, far away from the supporting legs, of the handle and the rotating handle are fixedly connected with universal wheels.

As a further aspect of the present invention: the rotating device comprises a bearing, a rotating shaft is sleeved in the bearing, the bearing is connected to the left side face of the connecting block in a clamped mode, and the left end of the rotating shaft is fixedly connected with the right side face of the first connecting plate.

As a further aspect of the present invention: the elastic device comprises a telescopic rod, a spring is sleeved on the outer surface of the telescopic rod, and the two ends of the spring and the telescopic rod are fixedly connected with the upper surface of the inner wall of the supporting leg and the upper surface of the rotating handle respectively.

(III) advantageous effects

Compared with the prior art, the beneficial effects of the utility model reside in that:

1. this tripod mapping device based on architectural measurement usefulness, through setting up the handle, a bearing, the apparatus further comprises a rotating shaft, first connecting plate, the second connecting plate, threaded rod and screw cap, when the staff need adjust the height of surveying equipment body, only need hold the handle, make the handle rotate, it is rotatory to make the handle drive the threaded rod, make the screw cap rebound under the rotation of threaded rod, the bracing piece will drive the base and reciprocate this moment, make the staff when the height of removing the surveying equipment body, the difficult condition that the slope appears of this mapping device, the effectual efficiency that improves staff height-adjusting, and the difficult emergence of horizontal angle at the back surveying equipment body that finishes of regulation changes.

2. This tripod mapping device based on architectural measurement usefulness, through setting up the spring, the kelly with change the handle, when the staff need remove this mapping device's position, only need the staff upwards to stimulate the kelly, make to change along spout rebound, the staff just can be changeed along spout forward rotation afterwards, make to change the joint in the spout, will two other changes the joint in the spout with the same reason, the staff just can remove this mapping device's position, make the staff can be convenient the position of this mapping device of removal, and it is comparatively steady at the in-process that removes, make the difficult condition that drops because of removing to appear of the mapping equipment body.

3. This tripod mapping device based on architectural measurement usefulness through setting up the kelly, when the staff need fix a position this mapping device's position, only need will change along the spout roll-off for the spring extrudees the kelly, makes that the staff can be convenient fix a position this mapping device through the kelly, makes and is difficult for changing placing the position of this mapping device after finishing.

Drawings

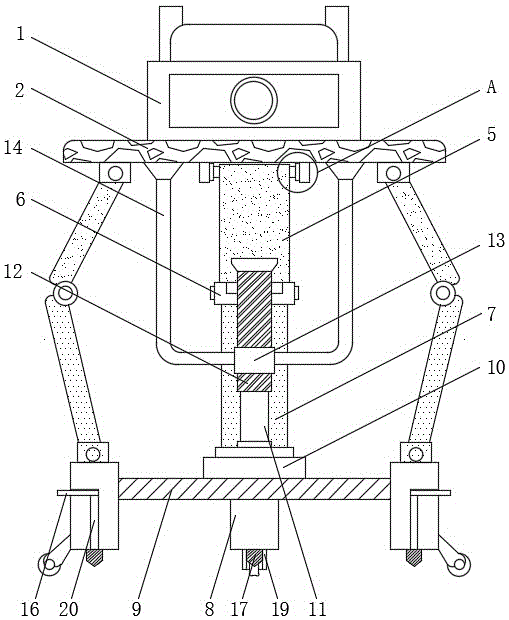

Fig. 1 is a front view of the present invention.

Fig. 2 is the sectional structure schematic diagram of the supporting leg in front view.

Fig. 3 is an enlarged schematic structural diagram of a position a of the present invention.

In the figure: 1 surveying and mapping equipment body, 2 bases, 3 connecting blocks, 4 rotating devices, 41 bearings, 42 rotating shafts, 5 first connecting plates, 6 pin shafts, 7 second connecting plates, 8 supporting legs, 9 clamping plates, 10 first rotating mechanisms, 11 grips, 12 threaded rods, 13 threaded caps, 14 supporting rods, 15 elastic devices, 151, springs, 152 telescopic rods, 16 rotating handles, 17 second rotating mechanisms, 18 clamping rods, 19 universal wheels and 20 sliding chutes.

Detailed Description

The technical solution of the present patent will be described in further detail with reference to the following embodiments.

As shown in fig. 1-3, the utility model provides a technical solution: a tripod surveying and mapping device for architectural measurement comprises a surveying and mapping device body 1, wherein the lower surface of the surveying and mapping device body 1 is fixedly connected with the upper surface of a base 2, the lower surface of the base 2 is fixedly connected with six connecting blocks 3, rotating devices 4 are respectively clamped on the opposite surfaces corresponding to the two connecting blocks 3, the opposite surfaces of the two rotating devices 4 are fixedly connected with a same first connecting plate 5, the lower surface of the first connecting plate 5 is movably connected with the upper surface of a second connecting plate 7 through a pin shaft 6, the lower surfaces of the three second connecting plates 7 are respectively movably connected with supporting legs 8 through hinges, the opposite surfaces of the three supporting legs 8 are fixedly connected with a same clamping plate 9, the upper surface of the clamping plate 9 is fixedly connected with a first rotating mechanism 10, the top end of the first rotating mechanism 10 is fixedly connected with a handle 11, the top end of the handle 11 is fixedly connected, the left and right sides face of screw cap 13 is respectively through the lower fixed surface connection of two bracing pieces 14 with base 2, through setting up handle 11, threaded rod 12 and screw cap 13 for the staff is when removing surveying equipment body 1's height, and the difficult condition that inclines that appears of this mapping device, the effectual efficiency that improves the staff height-adjusting, and the difficult emergence of horizontal angle who finishes after the regulation surveying equipment body 1 changes.

Specifically, as shown in fig. 2, the upper surface of the inner wall of the supporting leg 8 is fixedly connected with the elastic device 15, the bottom end of the elastic device 15 is fixedly connected with the rotating handle 16, because the rotating handle 16 is arranged, when the worker rotates the rotating handle 16, the rotating handle 16 slides along the sliding groove 20, the elastic force of the spring 151 drives the clamping rod 18 to rapidly move downwards, so that the worker can conveniently position the surveying and mapping device through the clamping rod 18, the lower surface of the rotating handle 16 is fixedly connected with the second rotating mechanism 17, the lower surface of the second rotating mechanism 17 is fixedly connected with the clamping rod 18, because the clamping rod 18 is arranged, the worker can conveniently position the surveying and mapping device through the clamping rod 18, thereby facilitating the use of the worker, the elastic device 15 comprises an expansion link 152, the outer surface of the expansion link 152 is sleeved with the spring 151, because the spring 151 is arranged, the worker can eject the clamping rod 18 through the spring 151, the clamping rod 18 is not easy to shrink, the stability of the surveying and mapping device is improved, and the two ends of the spring 151 and the telescopic rod 152 are fixedly connected with the upper surface of the inner wall of the supporting leg 8 and the upper surface of the rotating handle 16 respectively.

Specifically, as shown in fig. 1, spout 20 has been seted up in the front of supporting leg 8, the shape of spout 20 sets up to L shape, card pole 18 joint is in spout 20, handle 11 all is provided with anti-skidding line with the surface of changeing 16, the equal fixedly connected with universal wheel 19 of one side that three supporting leg 8 kept away from mutually, because of spout 20 is L shape, make the staff can fix card pole 18 through spout 20, at the in-process that removes this mapping device, card pole 18 is difficult for the roll-off, because of changeing 16 and handle 11 surface all is equipped with anti-skidding line, make the staff when using handle 11 and commentaries on classics 16, the condition of the difficult slippage that appears.

Specifically, as shown in fig. 3, the rotating device 4 includes a bearing 41, a rotating shaft 42 is sleeved in the bearing 41, the bearing 41 is connected to the left side surface of the connecting block 3 in a clamping manner, the left end of the rotating shaft 42 is fixedly connected with the right side surface of the first connecting plate 5, and the first connecting plate 5 and the second connecting plate 7 are not easily blocked when being overturned due to the hinge, the pin shaft 6, the bearing 41 and the rotating shaft 42.

The utility model discloses a theory of operation does:

s1, when the surveying and mapping device is used, a worker only needs to pull the clamping rod 18 upwards to enable the rotating handle 16 to move upwards along the sliding groove 20, at the moment, the rotating handle 16 drives the clamping rod 18 to move upwards, then, the worker can rotate the rotating handle 16 forwards along the sliding groove 20 to enable the rotating handle 16 to be clamped in the sliding groove 20, and similarly, the other two rotating handles 16 are clamped in the sliding groove 20, so that the worker can move the position of the surveying and mapping device;

s2, when the worker reaches the position to be mapped, the worker only needs to rotate the rotating handle 16 reversely to enable the rotating handle 16 to slide along the sliding groove 20, at the moment, the elastic force of the spring 151 drives the rotating handle 16 to slide rapidly in the sliding groove 20, the clamping rods 18 move rapidly downwards to support the mapping device, and then the other two clamping rods 18 slide out;

s3, when the staff need adjust the height of surveying and mapping equipment body 1 in surveying and mapping, only need hold grip 11, make grip 11 forward rotation, make grip 11 drive threaded rod 12 forward rotation, make screw cap 13 up-shift under the rotation of threaded rod 12, bracing piece 14 will drive base 2 up-shift this moment, and first bracing piece 14 and second bracing piece 14 will appear the condition of upset along round pin axle 6, bearing 41, pivot 42 and hinge, when removing to suitable height, the staff stop to rotate grip 11 can.

In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood by those of ordinary skill in the art through specific situations.

Although the preferred embodiments of the present patent have been described in detail, the present patent is not limited to the above embodiments, and various changes can be made without departing from the spirit of the present patent within the knowledge of those skilled in the art.

Claims

1. A tripod surveying and mapping device based on architectural surveying, comprising a surveying and mapping equipment body (1), characterized in that: the lower surface of the surveying and mapping equipment body (1) is fixedly connected to the upper surface of a base (2), and the The lower surface of the base (2) is fixedly connected with six connecting blocks (3), and the opposite surfaces corresponding to the two connecting blocks (3) are clamped with rotating devices (4), and the two rotating devices (4) are The opposite surface is fixedly connected with the same first connecting plate (5), the lower surface of the first connecting plate (5) is movably connected with the upper surface of the second connecting plate (7) through the pin (6), and the three The lower surface of the second connecting plate (7) is movably connected with supporting legs (8) through hinges, and the opposite surfaces of the three supporting legs (8) are fixedly connected with the same clamping plate (9). ) is fixedly connected with a first rotating mechanism (10), the top of the first rotating mechanism (10) is fixedly connected with a handle (11), and the top of the handle (11) is fixedly connected with a threaded rod ( 12), the outer surface of the threaded rod (12) is threadedly connected with a threaded cap (13), and the left and right sides of the threaded cap (13) are respectively connected to the lower surface of the base (2) through two support rods (14) Fixed connection.

2. A tripod surveying and mapping device based on architectural measurement according to claim 1, characterized in that: an elastic device (15) is fixedly connected to the upper surface of the inner wall of the support leg (8), and the elastic device ( The bottom end of 15) is fixedly connected with a turning handle (16), the lower surface of the turning handle (16) is fixedly connected with a second rotating mechanism (17), and the lower surface of the second rotating mechanism (17) is fixedly connected with a Clamp (18).

3. A tripod surveying and mapping device based on building surveying according to claim 2, wherein a chute (20) is provided on the front of the support leg (8), and the The shape is set to be L-shaped, and the clamping rod (18) is clamped in the chute (20).

4. A tripod surveying and mapping device based on building surveying according to claim 2, characterized in that: the outer surfaces of the handle (11) and the turning handle (16) are provided with anti-skid lines, and the three A universal wheel (19) is fixedly connected to the side away from the supporting legs (8).

5. A tripod surveying and mapping device based on building surveying according to claim 1, characterized in that: the rotating device (4) comprises a bearing (41), and a rotating shaft (41) is sleeved inside the bearing (41). 42), the bearing (41) is clamped on the left side of the connecting block (3), and the left end of the rotating shaft (42) is fixedly connected with the right side of the first connecting plate (5).

6. A tripod surveying and mapping device based on building surveying according to claim 2, characterized in that: the elastic device (15) comprises a telescopic rod (152), and the outer surface of the telescopic rod (152) is sleeved A spring (151) is connected, and the two ends of the spring (151) and the telescopic rod (152) are respectively fixedly connected with the upper surface of the inner wall of the support leg (8) and the upper surface of the turning handle (16).
