CN212288152U

CN212288152U - A cement mixing device for landscape engineering

Info

Publication number: CN212288152U
Application number: CN202020583048.0U
Authority: CN
Inventors: 张玉喜
Original assignee: Tianjin Yuntiantu Exhibition Co ltd
Current assignee: Tianjin Yuntiantu Exhibition Co ltd
Priority date: 2020-04-17
Filing date: 2020-04-17
Publication date: 2021-01-05
Anticipated expiration: 2030-04-17

Abstract

The utility model discloses a cement mixing device for garden landscape engineering, comprising a mixing bucket and a bracket, a fixedly connected bracket is installed under the mixing bucket, and the mixing bucket includes an upper reinforced mixing blade, a mixing shaft, a fixed bracket, The barrel body and the lower reinforced stirring blade are provided with a movably connected stirring shaft in the center of the barrel body. The utility model adopts four wide and inclined stirring blades, which can make the material stirring more evenly and improve the quality of the product. and service life, and a groove is designed at the discharge port, which can make the sealing effect of the baffle more significant, effectively avoid material leakage, protect the environmental sanitation of the construction area, and reduce the subsequent cleaning work. The wall groove is designed with an elastic support plate, which can fill the groove surface when the baffle is taken out, so that there will be no blockage during unloading, and the baffle will be inserted next time. The groove is formed, which can also play a good sealing effect.

Description

Cement mixing plant for landscape engineering

Technical Field

The utility model belongs to the technical field of landscape engineering equipment is relevant, concretely relates to cement mixing plant for landscape engineering.

Background

A stirrer is a construction engineering machine and is mainly used for stirring building materials such as cement, sand and stone, various dry-mixed mortar and the like. This is a machine in which a shaft with blades rotates in a cylinder or tank to mix and stir a plurality of materials into a mixture or a suitable consistency. The stirring machines are divided into various types, such as a forced stirring machine, a single horizontal shaft stirring machine, a double horizontal shaft stirring machine and the like.

The prior art has the following problems: stirring inhomogeneous leads to the cement quality low, uses the easy fracture in later stage and damages to it is tight sealed at the stirring in-process, and the material leaks along the discharge gate, causes the regional environmental pollution of construction, and the work of cleaning up for the later stage brings the trouble.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a cement agitating unit for landscape engineering to solve the problem that proposes in the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a cement agitating unit for landscape engineering, includes agitator and support, fixed connection's support is installed to the agitator below, the agitator is including strengthening stirring leaf, (mixing) shaft, fixed bolster, staving and strengthening the stirring leaf down, the center department of staving is provided with swing joint's (mixing) shaft, the upper portion of (mixing) shaft is provided with the last stirring leaf of strengthening of fixed connection, the lower part of (mixing) shaft is provided with fixed connection's lower stirring leaf of strengthening, on strengthen stirring leaf and strengthen respectively using fixed bolster looks fixed connection between stirring leaf and the (mixing) shaft with strengthening down, the below of (mixing) shaft is provided with fixed connection's motor, fixed connection's control switch is installed in the left side of motor, the right side below of agitator is provided with fixed connection's discharging pipe, the discharging pipe is including pipe wall, fastening bolt, fixed tube, The supporting plate is movably connected with the lower side of the supporting plate, the spring is fixedly connected with the lower side of the supporting plate, a fixed pipe is fixedly connected with the left side of the upper portion of the baffle, a fastening bolt is movably connected with the left side of the fixed pipe, and a pipe wall is fixedly connected with the left side of the baffle.

Preferably, the spring has an original length such that the strip is slightly above the level of the wall of the pipe and has a high spring constant.

Preferably, the left side of the baffle is provided with a threaded hole matched with the fastening bolt.

Preferably, the upper reinforcing stirring vane has a slightly smaller size than the lower reinforcing stirring vane.

Preferably, a coupling and a speed reducer are arranged between the motor and the stirring shaft.

Preferably, a reinforcing connecting rod is arranged among the three support legs of the support.

Compared with the prior art, the utility model provides a cement mixing device for landscape engineering possesses following beneficial effect:

the utility model discloses a stirring leaf that four wide and slopes to place, can be so that the material stirring more even, the quality and the life of product have been improved, and the design is fluted in discharge gate department, can be so that the sealed effect of baffle is showing more, effectively avoid the material to leak, construction area's sanitation has been protected, subsequent clearance cleaning work has been alleviateed, and there is the elasticity extension board at pipe wall groove, can be when the baffle takes out, fill out the recess face, can not produce the jam when unloading like this, insert the baffle when using next time, under the exogenic action, the elasticity extension board shrink, form the recess, can play fine sealed effect again.

Drawings

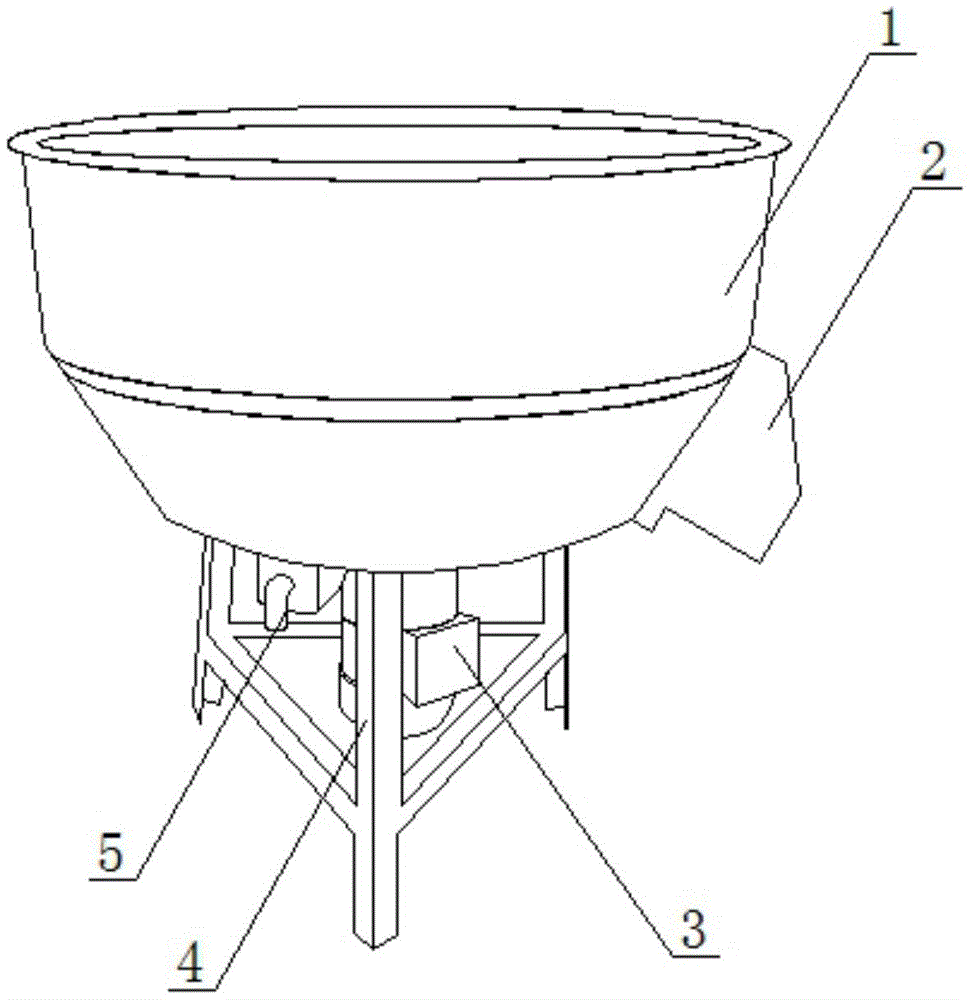

Fig. 1 is a schematic view of the overall structure of the present invention;

FIG. 2 is a schematic structural view of the stirring mechanism of the present invention;

FIG. 3 is a schematic structural view of the discharging device of the present invention;

in the figure: 1. a stirring barrel; 11. an upper reinforced stirring blade; 12. a stirring shaft; 13. fixing a bracket; 14. A barrel body; 15. a lower reinforcing stirring blade; 2. a discharge pipe; 21. a tube wall; 22. fastening a bolt; 23. a fixed tube; 24. a baffle plate; 25. a support plate; 26. a spring; 3. an electric motor; 4. a support; 5. and controlling the switch.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: the utility model provides a cement agitating unit for landscape engineering, including agitator 1 and support 4, fixedly connected support 4 is installed to agitator 1 below, agitator 1 is including strengthening stirring leaf 11 on, the (mixing) shaft 12, fixed bolster 13, staving 14 and lower enhancement stirring leaf 15, the center department of staving 14 is provided with swing joint's (mixing) shaft 12, the upper portion of (mixing) shaft 12 is provided with fixedly connected and strengthens stirring leaf 11 on, the lower part of (mixing) shaft 12 is provided with fixedly connected and strengthens stirring leaf 15 down, it uses fixed bolster 13 looks fixed connection respectively between stirring leaf 11 and the lower enhancement stirring leaf 15 and the (mixing) shaft 12 to strengthen stirring leaf on, the below of (mixing) shaft 12 is provided with fixedly connected motor 3, fixedly connected control switch 5 is installed in the left side of motor 3, the right side below of agitator 1 is provided with fixedly connected discharging pipe 2, discharging pipe 2 includes pipe wall 21, The fixing device comprises a fastening bolt 22, a fixing pipe 23, a baffle plate 24, a support plate 25 and a spring 26, wherein the support plate 25 is movably connected and is arranged below the baffle plate 24, the spring 26 is fixedly connected to the lower side of the support plate 25, the fixing pipe 23 is fixedly connected and is arranged on the left side of the upper portion of the baffle plate 24, the fastening bolt 22 is movably connected and is arranged on the left side of the fixing pipe 23, and the pipe wall 21 is fixedly connected and is arranged on the left side of the baffle plate 24.

The original length of the spring 26 is such that the support plate 25 is slightly higher than the horizontal plane of the pipe wall 21 and the elastic coefficient is larger, thereby effectively avoiding the blockage during discharging. The left side of the baffle plate 24 is provided with a threaded hole matched with the fastening bolt 22, so that the baffle plate 24 can be positioned, and the sealing effect is more remarkable. The size of the upper reinforcing stirring blade 11 is slightly smaller than that of the lower reinforcing stirring blade 15, and the stirring is performed in a grading manner, so that the stirring is more uniform. A coupler and a speed reducer are arranged between the motor 3 and the stirring shaft 12, so that the transmission is more stable. A reinforcing connecting rod is arranged between the three support legs of the support 4, so that the support is more stable.

The utility model discloses a theory of operation and use flow: when the stirring device is used, materials to be mixed are added into the stirring barrel 1 manually, after the materials are added, the motor 3 is started through the control switch 5, the motor 3 is connected with the speed reducer through the motor shaft, the model of the speed reducer is PL60, the speed reducer converts the high rotating speed output by the motor 3 into the medium-low speed and increases the torque to be transmitted to the stirring shaft 12, the stirring shaft 12 starts to drive the stirring blades 11 fixedly connected with the stirring shaft 12 to rotate, the irregular motion of the materials is driven in the rotating process of the stirring blades 11, and finally the uniform stirring is achieved, when the materials are mixed, the control switch 5 is electrically connected with a power supply, the motor 3 is stopped through the control switch 5, the model of the motor 3 is Y315M-2, the baffle plate 24 is opened, and the pipe wall 21 from the baffle plate can play a certain supporting role on the bottom plate, so that the pressure of the materials in the stirring barrel 1 on the baffle plate 24 under the double actions of the, the baffle plate 24 is prevented from deforming, then the fastening bolt 22 is unscrewed, the baffle plate 24 is taken out, at this time, the support plate 25 moves upwards along the outer wall of the stirring barrel 1 to the horizontal position of the pipe wall 21 under the action of the elastic force of the spring 26, and the stirred material flows out along the pipe wall 21 under the action of gravity.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A cement mixing device for landscape engineering, comprising a mixing bucket (1) and a support (4), characterized in that: a fixedly connected support (4) is installed below the mixing bucket (1), and the mixing bucket (1) is (1) It includes an upper reinforced stirring blade (11), a stirring shaft (12), a fixed bracket (13), a barrel (14) and a lower reinforced stirring blade (15), and the center of the barrel (14) is provided with There is a movable stirring shaft (12), the upper part of the stirring shaft (12) is provided with a fixedly connected upper reinforced stirring blade (11), and the lower part of the stirring shaft (12) is provided with a fixedly connected lower reinforced stirring blade (15), the upper reinforced stirring blade (11) and the lower reinforced stirring blade (15) and the stirring shaft (12) are respectively fixedly connected by a fixed bracket (13), and the bottom of the stirring shaft (12) is arranged There is a fixedly connected motor (3), a fixedly connected control switch (5) is installed on the left side of the motor (3), and a fixedly connected discharge pipe (2) is arranged on the lower right of the mixing barrel (1) , the discharge pipe (2) includes a pipe wall (21), a fastening bolt (22), a fixing pipe (23), a baffle plate (24), a support plate (25) and a spring (26), the baffle plate (25) and the spring (26). A supporting plate (25) is movably connected below the plate (24), a spring (26) is fixedly connected to the lower side of the supporting plate (25), and a fixed connection is provided on the upper left side of the baffle plate (24) The fixing pipe (23) is provided on the left side of the fixing pipe (23) with a movably connected fastening bolt (22), and the left side of the baffle plate (24) is provided with a fixedly connected pipe wall (21).

2 . The cement mixing device for landscape engineering according to claim 1 , wherein the original length of the spring ( 26 ) is such that the support plate ( 25 ) is slightly higher than the horizontal plane of the pipe wall ( 21 ) and its The coefficient of elasticity is large.

3 . The cement mixing device for landscape engineering according to claim 1 , wherein the left side of the baffle plate ( 24 ) is provided with threaded holes matched with the fastening bolts ( 22 ). 4 .

4 . The cement mixing device for landscape engineering according to claim 1 , wherein the size of the upper reinforced mixing blade ( 11 ) is slightly smaller than that of the lower reinforced mixing blade ( 15 ). 5 .

5 . The cement mixing device for landscape engineering according to claim 1 , wherein a coupling and a reducer are arranged between the motor ( 3 ) and the mixing shaft ( 12 ). 6 .

6 . The cement mixing device for landscape engineering according to claim 1 , wherein a reinforcing connecting rod is arranged between the three legs of the bracket ( 4 ). 7 .
