CN212283214U

CN212283214U - Filter equipment is from clean system

Info

Publication number: CN212283214U
Application number: CN202020375197.8U
Authority: CN
Inventors: 周俊
Original assignee: Jiangsu Chundu Environmental Protection Technology Co ltd
Current assignee: Jiangsu Chundu Environmental Protection Technology Co ltd
Priority date: 2020-03-23
Filing date: 2020-03-23
Publication date: 2021-01-05
Anticipated expiration: 2030-03-23

Abstract

The utility model discloses a self-purification system of a filter device, comprising a purification chamber, an adsorption type filter device, a smoke inlet pipe and a condensed water spray impurity removal device. The adsorption type filter device is arranged in the purification chamber, and the smoke enters the The pipe is arranged through the purification chamber, and the condensed water spraying and impurity removal device is arranged through the purification chamber and is arranged in the adsorption filter device. The utility model belongs to the technical field of self-purification systems, in particular to a self-purification system of a filter device, a filter device flushed with water, and a method of flushing the inside of the filter device, which realizes the self-purification of the filter device and prolongs the service life of the purification device. It effectively solves the problems that the self-purification system of the filter device on the market has poor purification effect, complex structure and inconvenient maintenance.

Description

Filter equipment is from clean system

Technical Field

The utility model belongs to the technical field of from clean system, specifically indicate a filter equipment is from clean system.

Background

Filter equipment when filtering the gas that contains impurity and dust, have a large amount of impurity and dust and attach filter equipment's inside, at present take the mode of blowback and vibrations basically to let impurity and dust freely fall down, this kind of mode can not let impurity and dust all fall down completely, if water content is big in the gas, the in-service use effect can be worse, the consequence of production is exactly that filter equipment front and back pressure differential is bigger and bigger, influences production, filter equipment's change cycle is short, increase cost.

SUMMERY OF THE UTILITY MODEL

To the above situation, for overcoming prior art's defect, the utility model provides a filter equipment is from clean system utilizes the filter equipment that water washed, to the inside method of sending out that washes of filter equipment, has realized filter equipment's oneself and has purified, extension purifier life's technological effect, and effectual filter equipment is poor from clean system purifying effect in having solved present market, and self structure is complicated, maintains comparatively inconvenient problem.

The utility model adopts the following technical scheme: the utility model relates to a filter equipment self-purification system, including purifying the chamber, adsorbing type filter equipment, smog admission pipe and comdenstion water spray edulcoration device, adsorbing type filter equipment locates in purifying the chamber, smog admission pipe link up locate purifying the chamber, comdenstion water spray edulcoration device link up locate purifying the chamber and locate in adsorbing type filter equipment; the water inlet is arranged on one side wall of the purification cavity, the smoke inlet is arranged on the other side wall of the purification cavity, the condensed water spraying and impurity removing device is arranged in the purification cavity through the water inlet, and the smoke inlet pipe is arranged in the purification cavity through the smoke inlet.

Further, absorption type filter equipment is including adsorbing the filter chamber and filtering the piece, it is the setting of falling test tube shape to adsorb the filter chamber, filter the piece and locate and adsorb the filter chamber upper end, it can adsorb dust and impurity to filter the piece.

Furthermore, the adsorption filter cavities are provided with a plurality of groups, and the number of the filter pieces is equal to that of the adsorption filter cavities.

Further, the comdenstion water sprays edulcoration device includes condensate pipe, shower and shower head, the condensate pipe is located through the water inlet and is purified the intracavity and locate smog admission pipe top, the shower link up with the condensate pipe and link up continuously, the shower sets up with the condensate pipe is perpendicular, the shower head is located the upper end of shower and is located the adsorption and filtration intracavity, comdenstion water sprays the edulcoration device and can wash away the absorbent dust of filtering piece inner wall and impurity to can cool down smog, reduce steam.

Furthermore, the spray pipes are provided with a plurality of groups, and the number of the spray heads is equal to that of the spray pipes.

Furthermore, the bottom in the purification cavity is provided with an ash collecting pool, and the ash collecting pool collects dust and impurities washed away.

Further, the filter member is a hydrophobic type filter material.

Adopt above-mentioned structure the utility model discloses the beneficial effect who gains as follows: this scheme is a filter equipment self-purification system, provides the filter equipment who utilizes water to wash, to the inside method that washes of filter equipment, adopts hydrophobic type filtering material, and increase filtering material inner chamber places water sprinkling system in the inner chamber, can make impurity and dust can not attach on filtering material's surface like this, can also fall to gaseous temperature simultaneously, reduces steam.

Drawings

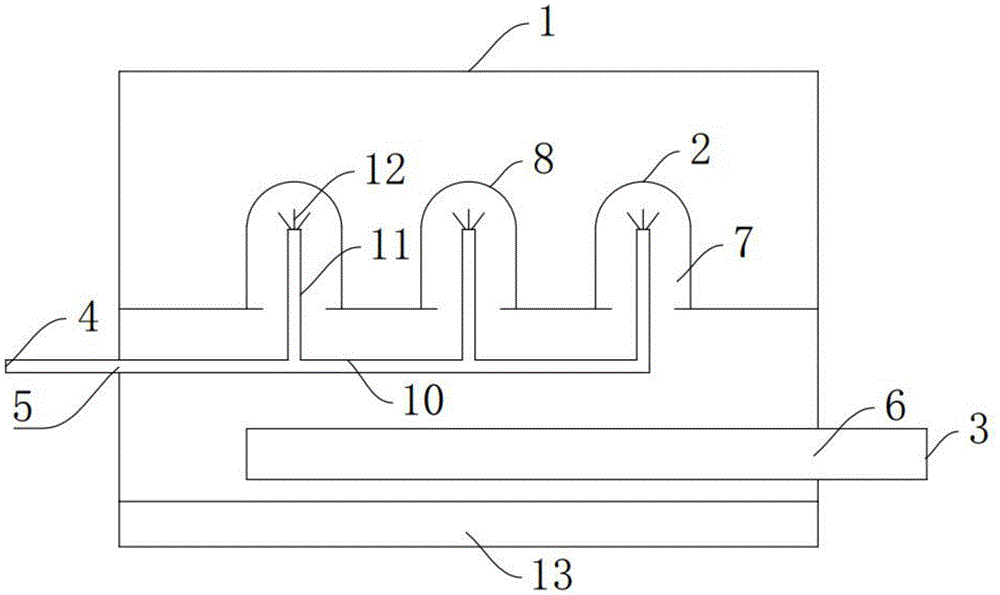

FIG. 1 is a schematic structural view of a self-purification system of a filtering device according to the present invention;

wherein, 1, purify the chamber, 2, absorption type filter equipment, 3, smog admission pipe, 4, comdenstion water spray edulcoration device, 5, water inlet, 6, smog import, 7, absorption filter chamber, 8, filter piece, 10, condensate pipe, 11, shower, 12, shower head, 13, collection ash pond.

The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments; based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

As shown in fig. 1, the filtering device self-purification system of the present invention comprises a purification chamber 1, an adsorption type filtering device 2, a smoke inlet pipe 3 and a condensed water spraying and impurity removing device 4, wherein the adsorption type filtering device 2 is disposed in the purification chamber 1, the smoke inlet pipe 3 is communicated with the purification chamber 1, and the condensed water spraying and impurity removing device 4 is communicated with the purification chamber 1 and disposed in the adsorption type filtering device 2; be equipped with water inlet 5 on purifying chamber 1's a lateral wall, be equipped with smog import 6 on purifying chamber 1's another lateral wall, condensed water sprays edulcoration device 4 and locates in purifying chamber 1 through water inlet 5, smog admission pipe 3 is located in purifying chamber 1 through smog import 6.

Adsorption type filter equipment 2 is including adsorbing filter chamber 7 and filtering piece 8, it is the setting of falling test tube shape to adsorb filter chamber 7, filter piece 8 and locate and adsorb 7 upper ends in filter chamber, it can adsorb dust and impurity to filter piece 8.

The adsorption filter cavities 7 are provided with a plurality of groups, and the number of the filter pieces 8 is equal to that of the adsorption filter cavities 7.

Condensate water sprays edulcoration device 4 and includes condensate pipe 10, shower 11 and shower head 12, condensate pipe 10 locates through water inlet 5 and purifies in the chamber 1 and locate smog admission pipe 3 tops, shower 11 link up with condensate pipe 10 and link to each other, shower 11 sets up with condensate pipe 10 is perpendicular, shower 12 is located the upper end of shower 11 and is located and adsorbs in the filter chamber 7, condensate water sprays edulcoration device 4 and can wash away the absorptive dust of filtering 8 inner walls and impurity to can cool down smog, reduce steam.

The spray pipes 11 are provided with a plurality of groups, and the number of the spray heads 12 is equal to that of the spray pipes 11.

The bottom in the purification chamber 1 is provided with an ash collecting tank 13, and the ash collecting tank 13 collects the flushed dust and impurities.

The filter member 8 is a hydrophobic filter material.

During the specific use, smog gets into through smog admission pipe 3 and purifies in the chamber 1 and rises gradually until filling into and adsorb filter chamber 7, filter piece 8 and adsorb dust and impurity in the smog this moment, the comdenstion water gets into and gives shower head 12 along shower 11 transmission through condensate pipe 10, and through shower head 12 blowout, the spun comdenstion water erodees absorbing dust and impurity on filtering piece 8, and dust and impurity after scouring down and fall into collection ash pond 13 along adsorbing filter chamber 7, and it is just above that the utility model discloses holistic work flow, repeat this step when using next time can.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

The present invention and the embodiments thereof have been described above, but the description is not limited thereto, and the embodiment shown in the drawings is only one of the embodiments of the present invention, and the actual structure is not limited thereto. In summary, those skilled in the art should understand that they should not be limited to the embodiments described above, and that they can design the similar structure and embodiments without departing from the spirit of the invention.

Claims

1. A filter device self-purification system, characterized in that: the device comprises a purification cavity, an adsorption type filtering device, a smoke inlet pipe and a condensed water spraying and impurity removing device, wherein the adsorption type filtering device is arranged in the purification cavity, the smoke inlet pipe is communicated with the purification cavity, and the condensed water spraying and impurity removing device is communicated with the purification cavity and arranged in the adsorption type filtering device; the water inlet is arranged on one side wall of the purification cavity, the smoke inlet is arranged on the other side wall of the purification cavity, the condensed water spraying and impurity removing device is arranged in the purification cavity through the water inlet, and the smoke inlet pipe is arranged in the purification cavity through the smoke inlet.

2. A filter self-cleaning system according to claim 1, wherein: the adsorption type filter device comprises an adsorption filter cavity and a filter piece, the adsorption filter cavity is in an inverted tube shape, and the filter piece is arranged at the upper end of the adsorption filter cavity.

3. A filter self-cleaning system according to claim 2, wherein: the adsorption and filtration cavities are provided with a plurality of groups, and the number of the filter pieces is equal to that of the adsorption and filtration cavities.

4. A filter self-cleaning system according to claim 3, wherein: the condensed water spraying and impurity removing device comprises a condensed water pipe, a spraying pipe and a spraying head, the condensed water pipe is arranged in the purifying cavity through a water inlet and is arranged above the smoke inlet pipe, the spraying pipe is communicated with the condensed water pipe and is vertically arranged with the condensed water pipe, and the spraying head is arranged at the upper end of the spraying pipe and is arranged in the adsorption filtering cavity.

5. A filter self-cleaning system according to claim 4, wherein: the spraying pipes are provided with a plurality of groups, and the number of the spraying heads is equal to that of the spraying pipes.

6. A filter self-cleaning system according to claim 5, wherein: an ash collecting pool is arranged at the bottom of the purification cavity.

7. A filter self-cleaning system according to claim 6, wherein: the filter piece is a hydrophobic filter material.
