Abstract

The utility model relates to an otolaryngology branch of academic or vocational study is with scope disinfection technical field, and disclose an otolaryngology branch of academic or vocational study is with scope degassing unit, including the sterilizer main part, disinfection inner chamber has been seted up to one side of sterilizer main part, and one side of sterilizer main part and the one side that is located disinfection inner chamber install the detachable cabinet door, and the pneumatic cylinder is all installed through the screw at the both ends of sterilizer main part, and the inside lower extreme of sterilizer main part and the lower extreme that is located disinfection inner chamber have seted up the waste water collecting vat, and the bottle rack has been seted up to the lower extreme of sterilizer main part and the one end that is located the waste water collecting vat. The utility model discloses a series of designs make medical personnel can be more convenient with the orderly placing in the inside of device of instrument after otolaryngology branch of academic or vocational study used to make and place the instrument inside the device and can obtain better washing and disinfection, and can wash the disinfection of disinfecting again after the internal mirror earlier.

Description

Endoscope disinfection device for otolaryngological department
Technical Field
The utility model relates to an otolaryngology branch of academic or vocational study is with scope disinfection technical field especially relates to an otolaryngology branch of academic or vocational study is with scope degassing unit.
Background
Otolaryngology branch of academic or vocational study is a common administrative or vocational study of hospital, mainly treat otolaryngology relevant disease, need use nasal endoscope and laryngoscope when for otolaryngology patient inspection usually, nasal endoscope and laryngoscope can contact with the internal tissue of patient when using, need carry out strict disinfection after the use and just can reuse, current endoscope degassing unit can not accomplish simultaneously and wash and disinfect sterile work to the endoscope, and there is endoscope degassing unit now need stretch into the inside of device with one with it when disinfecting to instruments such as nasal endoscope and laryngoscope and put into the cabinet, thereby can not be with the neat pendulum of instrument in the device, and then make and to carry out comprehensive disinfection work to the instrument.
SUMMERY OF THE UTILITY MODEL
The purpose of the utility model is to solve the shortcoming that exists among the prior art, if: present scope degassing unit can not accomplish simultaneously and wash and disinfect sterile work to the scope, and has the scope degassing unit now need stretch into the inside of device with the hand when disinfecting to instruments such as nose scope and laryngoscope and put into the cabinet with one of them to can not be with the neat putting of instrument in the device, and then make and to carry out comprehensive disinfection work to the instrument.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides an scope degassing unit for otolaryngology branch of academic or vocational study, includes the sterilizer main part, disinfection inner chamber has been seted up to one side of sterilizer main part, the detachable cabinet door is installed to one side that just is located disinfection inner chamber in one side of sterilizer main part, the pneumatic cylinder is all installed through the screw in the both ends of sterilizer main part, the inside lower extreme of sterilizer main part and the lower extreme that is located disinfection inner chamber have seted up the wastewater collection groove, the lower extreme of sterilizer main part and the one end that is located the wastewater collection groove have seted up the bottle rack, disinfectant liquid is placed in the inside of bottle rack and is deposited the bottle, the inside grafting of disinfectant liquid upper end is deposited there is the pencil of adding, two sterilamp are installed on the inside top of disinfection inner chamber, the inside top of sterilizer main part just is located and installs the anion generator between two sterilamp, the inside upper end of disinfection inner chamber just is located sterilamp and anion generator The novel disinfection device comprises a slide way, the outer side of the slide way is slidably connected with two pesticide sprayers, a nozzle is installed at the lower end of the pesticide sprayer, a heater is installed at one end inside a disinfection inner cavity and the lower end of the nozzle through screws, slide rails are installed on two sides inside the disinfection inner cavity and below the heater through screws, a scope placing frame is installed between the slide rails, a filter plate is connected to the upper end of the inside of a wastewater collecting tank in a welded mode, a first filter element is placed at the upper end of the filter plate, a second filter element is placed at the upper end of the first filter element, and a third filter element is placed at the upper end of the second filter element.
Preferably, one side welded connection of sterilizer main part has two rectangle lugs, just the equal welded connection in both sides of rectangle lug has the pivot, two rectangle recesses have been seted up to the one end of cabinet door and the position that is located two rectangle lugs corresponding, the pivot runs through the inside of cabinet door, the cabinet door is connected through rotating with the sterilizer main part.
Preferably, the four end corners of the bottom end of the disinfection cabinet main body are all provided with rollers through threads.
Preferably, a sealing ring is connected to one side of the cabinet door and located inside the disinfection inner cavity through gluing.
Preferably, a drain pipe is installed at the other side of the sterilizing cabinet main body.
Preferably, a handle is installed on one side of the cabinet door through a screw.
Compared with the prior art, the beneficial effects of the utility model are that:
(1) the utility model discloses when using, come to open the cabinet door through pulling the handle with the hand earlier, place the frame through placing the scope and outwards stimulate again, make the scope place the frame and can slide with the slide rail according to its both sides installation, thereby can place the frame with the scope and pull out from the inside of device, place the upper end of placing the frame at the scope after using again with the scope, then the needle scope of reproducing places the inside that the frame pushed the device, close the cabinet door again and close the lid with the sterilizer main part together, the increase of placing the frame through the scope makes that medical personnel can be more convenient with the orderly the putting in the inside of device of instrument after otolaryngology branch of academic or vocational study used, thereby make and place the instrument inside the device and can obtain better washing and disinfection.
(2) The utility model discloses when using, after the scope washs the completion, the rethread heater heats the inside of disinfection inner chamber for steam can carry out high temperature disinfection to the scope, and rethread sterilamp and anion generator disinfect the disinfection of disinfecting to the scope after wasing, thereby make can be with scope sterile more thoroughly.
Drawings

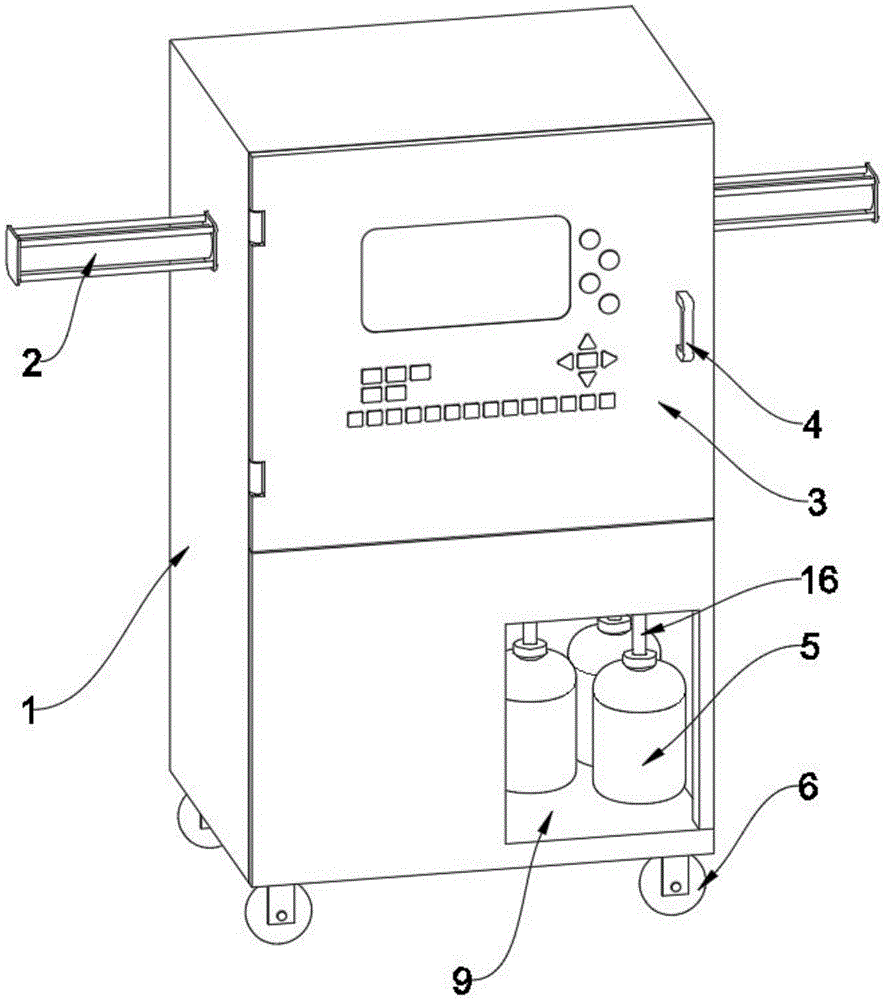

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of the whole structure of the present invention after the pneumatic cylinder is opened;
FIG. 3 is a front sectional view of the overall structure of the present invention;
fig. 4 is a side sectional view of the overall structure of the present invention.
In the figure: 1. a disinfection cabinet main body; 2. a pneumatic cylinder; 3. a cabinet door; 4. a handle; 5. a disinfectant storage bottle; 6. a roller; 7. an endoscope placing frame; 8. a seal ring; 9. a bottle body placing rack; 10. a heater; 11. a slideway; 12. a pesticide sprayer; 13. a nozzle; 14. an ultraviolet germicidal lamp; 15. a negative ion generator; 16. a medicine feeding pipe; 17. a filter plate; 18. a first filter element; 19. a second filter element; 20. a third filter element; 21. a drain pipe; 22. disinfecting the inner cavity; 23. a wastewater collection tank; 24. a slide rail.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
Referring to fig. 1-4, an endoscope disinfection device for otolaryngological department comprises a disinfection cabinet main body 1, a disinfection inner chamber 22 is arranged on one side of the disinfection cabinet main body 1, a detachable cabinet door 3 is arranged on one side of the disinfection cabinet main body 1 and the side located in the disinfection inner chamber 22, and a handle 4 is arranged on one side of the cabinet door 3 through a screw, so that the cabinet door 3 can be opened and closed more conveniently, and a used endoscope can be placed in the disinfection inner chamber 22 for disinfection more conveniently;
a sealing ring 8 is connected to one side of the cabinet door 3 and positioned in the disinfection inner cavity 22 through gluing, so that the device has better sealing performance, and an endoscope placed in the disinfection inner cavity 22 can be better disinfected;
two rectangular convex blocks are welded and connected to one side of the disinfection cabinet main body 1, rotating shafts are welded and connected to two sides of each rectangular convex block, two rectangular grooves are formed in one end of the cabinet door 3 and located at positions corresponding to the two rectangular convex blocks, the rotating shafts penetrate into the cabinet door 3, and the cabinet door 3 is connected with the disinfection cabinet main body 1 in a rotating mode, so that the cabinet door 3 can be conveniently installed on one side of the disinfection cabinet main body 1;
pneumatic cylinders 2 are mounted at two ends of a disinfection cabinet main body 1 through screws, a wastewater collection tank 23 is arranged at the lower end of the inside of the disinfection cabinet main body 1 and the lower end of a disinfection inner cavity 22, a bottle body placing frame 9 is arranged at the lower end of the disinfection cabinet main body 1 and one end of the wastewater collection tank 23, a disinfection liquid medicine storage bottle 5 is placed inside the bottle body placing frame 9, a medicine feeding pipe 16 is inserted inside the upper end of the disinfection liquid medicine storage bottle 5, two ultraviolet sterilizing lamps 14 are mounted at the top end of the inside of the disinfection inner cavity 22, a negative ion generator 15 is mounted at the top end of the inside of the disinfection cabinet main body 1 and between the two ultraviolet sterilizing lamps 14, and two slide ways 11 are welded and connected at the upper end of the inside of the disinfection inner cavity 22 and;
two pesticide sprayers 12 are connected to the outer side of the slide rail 11 in a sliding mode, a nozzle 13 is installed at the lower end of the pesticide sprayer 12, a heater 10 is installed at one end inside a disinfection inner cavity 22 and at the lower end of the nozzle 13 through screws, slide rails 24 are installed on two sides inside the disinfection inner cavity 22 and below the heater 10 through screws, an endoscope placing frame 7 is installed between the two slide rails 24 through screws, a filter plate 17 is connected to the upper end inside a wastewater collecting tank 23 in a welding mode, a first filter element 18 is placed at the upper end of the filter plate 17, a second filter element 19 is placed at the upper end of the first filter element 18, a third filter element 20 is placed at the upper end of the second filter element 19, idler wheels 6 are installed at four end, make can be convenient promote the device to the place that needs the disinfection, drain pipe 21 is installed to the opposite side of sterilizer main part 1 for wash the waste water of crossing the scope and can follow drain pipe 21 and discharge.
The working principle is as follows:
in the utility model, when a user uses the device, the handle 4 is pulled by hand to open the cabinet door 3, the endoscope placing frame 7 is pulled outwards to enable the endoscope placing frame 7 to slide along the slide rails 24 arranged on two sides of the endoscope placing frame 7, so that the endoscope placing frame 7 can be pulled out from the inside of the device, the used endoscope is placed at the upper end of the endoscope placing frame 7, then the endoscope placing frame 7 is pushed into the inside of the device, the cabinet door 3 is closed and covered with the disinfection cabinet main body 1, medical staff can more conveniently place tools used by the otolaryngology department in the device by increasing the endoscope placing frame 7, so that the tools placed in the device can be better cleaned and disinfected, the device is powered on and opened, and then the liquid medicine in the liquid medicine storing bottle 5 is sprayed out through the nozzle 13 arranged at the lower end of the medicine sprayer 12, then spray the outside of scope, thereby can wash the scope, the waste water after the completion of washing places the mesh department that the frame 7 surface was seted up through the scope and flows down, rethread third filter core 20, second filter core 19 and first filter core 18 filter waste water, rethread drain pipe 21 department will filter the waste water discharge after, thereby can be convenient the completion to the cleaning work of scope, after the scope washs the completion, rethread heater 10 heats disinfection inner chamber 22's inside, make steam can carry out high temperature sterilization to the scope, rethread sterilamp 14 and anion generator 15 disinfect the disinfection of disinfecting of scope after wasing, thereby make can be with the sterile more thorough of scope.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Claims (6)

1. An endoscope disinfection device for otolaryngological department comprises a disinfection cabinet main body (1) and is characterized in that a disinfection inner cavity (22) is formed in one side of the disinfection cabinet main body (1), a detachable cabinet door (3) is installed on one side of the disinfection inner cavity (22) and one side of the disinfection cabinet main body (1), pneumatic cylinders (2) are installed at two ends of the disinfection cabinet main body (1) through screws, a wastewater collection tank (23) is formed at the lower end of the inner part of the disinfection cabinet main body (1) and the lower end of the disinfection inner cavity (22), a bottle body placing frame (9) is formed at the lower end of the disinfection cabinet main body (1) and one end of the wastewater collection tank (23), disinfection liquid medicine storage bottles (5) are placed in the bottle body placing frame (9), medicine adding pipes (16) are inserted in the inner parts of the upper ends of the disinfection liquid medicine storage bottles (5, two ultraviolet germicidal lamps (14) are arranged at the top end inside the disinfection inner cavity (22);
an anion generator (15) is arranged at the top end inside the disinfection cabinet main body (1) and between the two ultraviolet germicidal lamps (14), two slideways (11) are welded and connected at the upper end inside the disinfection inner cavity (22) and at the lower ends of the ultraviolet germicidal lamps (14) and the anion generator (15), two pesticide sprayers (12) are connected to the outer sides of the slideways (11) in a sliding manner, and nozzles (13) are arranged at the lower ends of the pesticide sprayers (12);
the utility model discloses a disinfection device, including disinfection inner chamber (22), heater (10) are installed through the screw to the lower extreme that the inside one end of disinfection inner chamber (22) just is located nozzle (13), the inside both sides of disinfection inner chamber (22) just are located all have slide rail (24), two through this screw installation of screw down of heater (10) between slide rail (24) there is the scope to place frame (7), the inside upper end welded connection of waste water collecting vat (23) has filter (17), first filter core (18) have been placed to the upper end of filter (17), second filter core (19) have been placed to the upper end of first filter core (18), third filter core (20) have been placed to the upper end of second filter core (19).
2. An endoscope disinfection device for otolaryngological department according to claim 1, characterized in that one side of the disinfection cabinet main body (1) is welded with two rectangular bumps, and both sides of the rectangular bumps are welded with a rotating shaft, one end of the cabinet door (3) is provided with two rectangular grooves at the positions corresponding to the two rectangular bumps, the rotating shaft penetrates through the inside of the cabinet door (3), and the cabinet door (3) is connected with the disinfection cabinet main body (1) through rotation.
3. An endoscope disinfection device for otolaryngological department according to claim 1 characterized in that four corners of the bottom end of the disinfection cabinet main body (1) are all provided with rollers (6) by screw threads.
4. An endoscope sterilization device for otolaryngological department according to claim 1, characterized in that a sealing ring (8) is connected with one side of the cabinet door (3) and inside the sterilization chamber (22) by gluing.
5. An endoscope sterilizing apparatus for otolaryngological department according to claim 1, characterized in that the other side of the sterilizing cabinet body (1) is installed with a drain pipe (21).
6. An endoscope sterilizing unit for otolaryngological use according to claim 2, characterized in that a handle (4) is installed on one side of the cabinet door (3) by means of screws.
