Abstract
本实用新型涉及棉纱生产设备技术领域，且公开了一种棉纱生产用裁切设备，包括箱体，所述箱体的顶部左侧固定安装有支柱，所述支柱的顶部转动连接有杠杆，所述箱体的顶部且位于支柱的右侧固定安装有支撑板，所述支撑板的正面转动连接有棉纱卷筒。该棉纱生产用裁切设备，通过第一齿轮、第二齿轮、活动杆、安装架板、转轴和传动轴，便于对棉纱进行定长度裁切，放置了裁切时长度参差不齐，通过设置支柱、杠杆、导线辊、拉线轮、驱动电机、第一齿轮、第二齿轮、活动杆、安装架板、阴刀具和阳刀具，只需要启动启动电动机和驱动电机，便可自动对棉纱进行裁切，解决了裁切长度参差不齐、自动化程度低等问题。
The utility model relates to the technical field of cotton yarn production equipment, and discloses a cotton yarn production cutting device, comprising a box body, a support column is fixedly installed on the left side of the top of the box body, and a lever is rotatably connected to the top of the support column. A support plate is fixedly installed on the top of the box body and located on the right side of the pillar, and a cotton yarn drum is rotatably connected to the front of the support plate. The cotton yarn production cutting equipment, through the first gear, the second gear, the movable rod, the installation frame plate, the rotating shaft and the transmission shaft, is convenient to cut the cotton yarn to a fixed length, and the length is uneven when the cutting is placed. Pillar, lever, wire roller, wire pulley, driving motor, first gear, second gear, movable rod, mounting plate, female cutter and male cutter, just need to start the starter motor and drive motor, the cotton yarn can be cut automatically It solves the problems of uneven cutting length and low degree of automation.
Description
Technical Field
The utility model relates to a cotton yarn production facility technical field specifically is a cutting equipment is used in cotton yarn production.
Background
The cotton yarn being cotton fibre warp-spinningThe yarn can be divided into the carded yarn and the combed yarn according to different spinning processes, the carded yarn is the yarn spun by cotton fiber through a common spinning system, the combed yarn is the yarn spun by the cotton fiber through the combed spinning system, the combed yarn is made of high-quality raw materials, the fiber in the finished yarn is straightened and parallel, the knot impurity is less, the luster is good, the evenness of the yarn is high, and the strength is high, and the cotton yarn is mainly used for weaving high-gradeFabric。
To the cotton yarn production cutting equipment who uses at present, most cotton yarn production can not fix length cut to lead to cutting the inequality, influence cotton yarn production effect, partial cutting equipment is low at degree of automation in addition, and is inhomogeneous during the feed, needs a large amount of manpower and material resources, and intensity of labour is big, and is consuming time long, and it is very inconvenient to use, so proposed a cotton yarn production with cutting equipment and solved the above-mentioned problem of proposing.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
The not enough to prior art, the utility model provides a cutting equipment is used in cotton yarn production possesses length fixed and cuts, advantage such as degree of automation height, has solved and has cut length irregularity, degree of automation low scheduling problem.
(II) technical scheme
For realize above-mentioned definite length cut, purpose that degree of automation is high, the utility model provides a following technical scheme: the cutting equipment for cotton yarn production comprises a box body, wherein a supporting column is fixedly arranged on the left side of the top of the box body, a lever is connected to the top of the supporting column in a rotating mode, a supporting plate is fixedly arranged on the top of the box body and positioned on the right side of the supporting column, a cotton yarn winding drum is connected to the front of the supporting plate in a rotating mode, a guide roller is connected to the front of the box body in a rotating mode, a driving motor is fixedly arranged on the back of the inner wall of the box body, a motor is fixedly arranged on the back of the inner wall of the box body and positioned on the bottom of the driving motor, a rotating shaft is fixedly arranged on the output shaft of the motor, a first gear is fixedly arranged on the front of the rotating shaft, a transmission shaft is rotatably connected to the front of the box body and positioned, the front of the first gear is rotatably connected with a movable rod, and the front of the second gear is rotatably connected with a mounting frame plate corresponding to the movable rod.
Preferably, the number of the driving motors is two, the two driving motors are opposite driving motors, the steering directions of the two driving motors face inwards, and the number of the wire pulling wheels is two.
Preferably, the first gear is connected with the movable rod through the rotary column in a rotating mode, the second gear is connected with the installation frame plate through the movable column in a rotating mode, the installation frame plate is connected with the movable rod in a sliding mode, and the front of the installation frame plate is fixedly provided with a fixing block corresponding to the movable rod.
Preferably, the box body is rotatably connected with the guide roller through a guide post.
Preferably, the lever passes through connecting rod and cotton yarn reel swing joint, the left side fixed mounting of lever has the balancing weight.
Preferably, the positive left side fixed mounting of movable rod has female cutter, the positive left side fixed mounting of installation frame plate has male cutter, and female cutter and male cutter are trapezoidal, female cutter is the same with male cutter's width.
(III) advantageous effects
Compared with the prior art, the utility model provides a cutting equipment is used in cotton yarn production possesses following beneficial effect:
1. this cutting equipment is used in cotton yarn production, through starter motor and driving motor, it acts as go-between to drive the wire drawing wheel and rotate, drive first gear and second gear meshing and rotate, make the movable rod rotate round the tooth center of first gear, the installation frame plate rotates round the tooth center of second gear, make cloudy cutter and positive cutter can make a round trip to cut the cotton yarn, can let the cotton yarn continously cut by cloudy cutter and positive cutter under acting as go-between of wire drawing wheel, the solution cuts length irregularity, degree of automation hangs down the scheduling problem.
2. This cutting equipment is used in cotton yarn production, through first gear, the second gear, the movable rod, the installation frame plate, pivot and transmission shaft, be convenient for carry out length fixing to the cotton yarn and cut, length irregularity when having placed and cut, through setting up the pillar, the lever, the wire roller, the wire wheel, driving motor, first gear, the second gear, the movable rod, the installation frame plate, cloudy cutter and positive cutter, only need start-up motor and driving motor, alright cut the cotton yarn automatically, the length irregularity has been solved and has been cut, degree of automation hangs down the scheduling problem.
Drawings

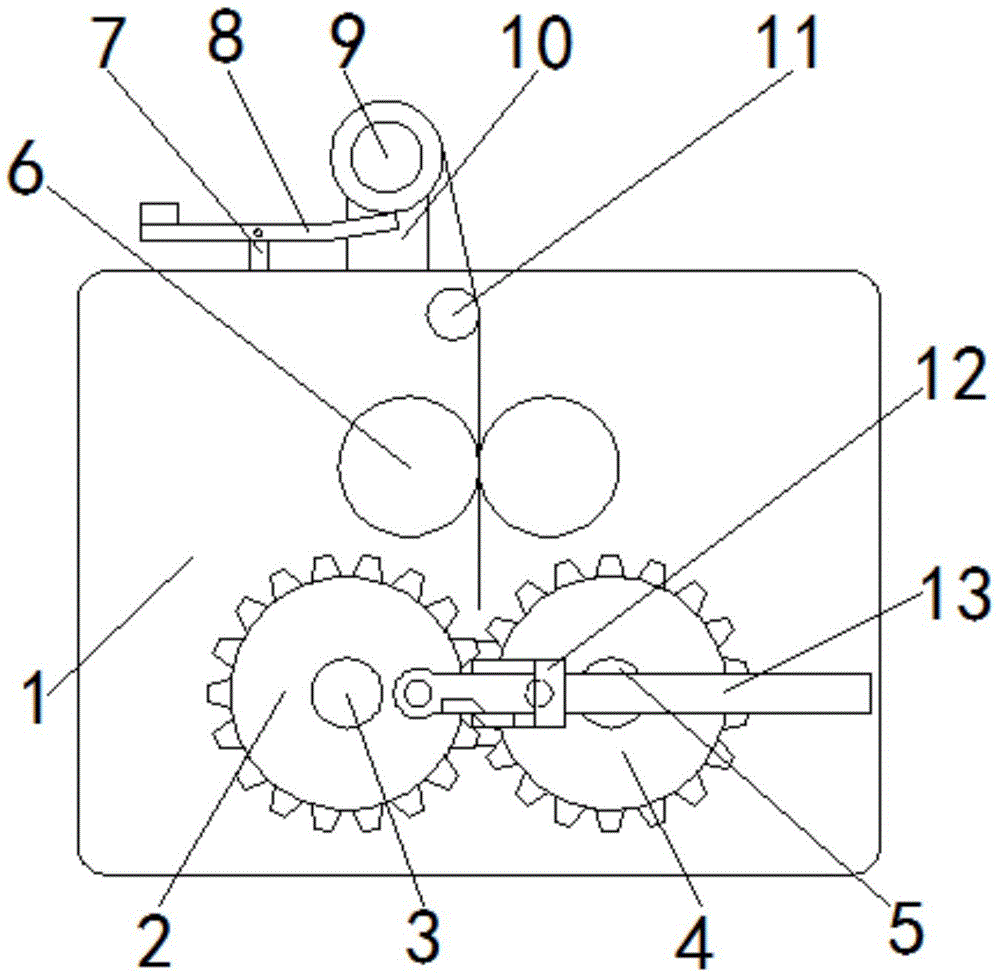

FIG. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic diagram of the left side of the structure of the present invention.
In the figure: the device comprises a box body 1, a first gear 2, a rotating shaft 3, a second gear 4, a transmission shaft 5, a wire drawing wheel 6, a support 7, a lever 8, a cotton yarn winding drum 9, a support plate 10, a wire guide roller 11, a mounting frame plate 12, a movable rod 13, a motor 14 and a driving motor 15.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-2, a cutting device for cotton yarn production comprises a box body 1, the box body 1 is rotatably connected with a yarn guide roller 11 through a guide post, a support post 7 is fixedly installed on the left side of the top of the box body 1, the top of the support post 7 is rotatably connected with a lever 8, the lever 8 is movably connected with a cotton yarn winding drum 9 through a connecting rod, a balancing weight is fixedly installed on the left side of the lever 8, a support plate 10 is fixedly installed on the top of the box body 1 and positioned on the right side of the support post 7, the cotton yarn winding drum 9 is rotatably connected to the front of the support plate 10, the yarn guide roller 11 is rotatably connected to the front of the box body 1, a driving motor 15 is fixedly installed on the back of the inner wall of the box body 1, the two driving motors 15 are reverse driving motors 15, the two driving motors 15 are both turned towards the inner side, a motor 14 is fixedly arranged on the back of the inner wall of the box body 1 and positioned at the bottom of the driving motor 15, a rotating shaft 3 is fixedly arranged on an output shaft of the motor 14, a first gear 2 is fixedly arranged on the front of the rotating shaft 3, the first gear 2 is rotatably connected with a movable rod 13 through a rotating column, a second gear 4 is rotatably connected with a mounting frame plate 12 through a movable column, the mounting frame plate 12 is connected with the movable rod 13 in a sliding manner, a fixed block corresponding to the movable rod 13 is fixedly arranged on the front of the mounting frame plate 12, a transmission shaft 5 is rotatably connected on the front of the box body 1 and positioned at the right side of the rotating shaft 3, the second gear 4 corresponding to the first gear 2 is fixedly arranged on the front of the transmission shaft 5, the movable rod 13 is rotatably connected on the front of the first gear 2, a female cutter is fixedly arranged on the left side of the front, and the female cutter and the male cutter are both trapezoidal, the widths of the female cutter and the male cutter are the same, and the front surface of the second gear 4 is rotatably connected with a mounting frame plate 12 corresponding to the movable rod 13.
In summary, according to the cutting equipment for cotton yarn production, the pulling wheel 6 is driven to rotate and pull the cotton yarn by starting the motor 14 and the driving motor 15, the first gear 2 and the second gear 4 are driven to rotate in a meshed mode, the movable rod 13 rotates around the tooth center of the first gear 2, the mounting frame plate 12 rotates around the tooth center of the second gear 4, the female cutter and the male cutter can cut the cotton yarn back and forth, the cotton yarn can be cut by the female cutter and the male cutter successively under the pulling of the pulling wheel 6, the fixed length cutting of the cotton yarn is facilitated through the first gear 2, the second gear 4, the movable rod 13, the mounting frame plate 12, the rotating shaft 3 and the transmission shaft 5, the length of the cotton yarn is uneven when the cotton yarn is placed for cutting, and the supporting column 7, the lever 8, the wire guide roller 11, the pulling wheel 6, the driving motor 15, the first gear 2, the second gear 4, the movable rod 13, the mounting frame plate 12, the cutting line can be cut, The female cutter and the male cutter can automatically cut cotton yarns only by starting the starting motor 14 and the driving motor 15, and the problems of uneven cutting length, low automation degree and the like are solved.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a cutting equipment is used in cotton yarn production, includes box (1), its characterized in that: the top left side fixed mounting of box (1) has pillar (7), the top of pillar (7) is rotated and is connected with lever (8), the top of box (1) just is located the right side fixed mounting of pillar (7) and has backup pad (10), the front of backup pad (10) is rotated and is connected with cotton yarn reel (9), the front of box (1) is rotated and is connected with wire roller (11), the inner wall back fixed mounting of box (1) has driving motor (15), the output shaft fixed mounting of driving motor (15) has wire wheel (6), the inner wall back of box (1) just is located the bottom fixed mounting of driving motor (15) and has motor (14), the output shaft fixed mounting of motor (14) has pivot (3), the front fixed mounting of pivot (3) has first gear (2), the front of box (1) just is located the right side rotation of pivot (3) and is connected with transmission shaft (5), the front fixed mounting of transmission shaft (5) has second gear (4) corresponding with first gear (2), the front of first gear (2) is rotated and is connected with movable rod (13), the front of second gear (4) is rotated and is connected with and installs frame plate (12) corresponding with movable rod (13).
2. The cutting apparatus as claimed in claim 1, wherein: the number of the driving motors (15) is two, the two driving motors (15) are opposite to each other, the steering directions of the two driving motors (15) face inwards, and the number of the wire pulling wheels (6) is two.
3. The cutting apparatus as claimed in claim 1, wherein: first gear (2) are rotated with movable rod (13) through the rotary column and are connected, second gear (4) are rotated with installation frame board (12) through the movable column and are connected, and installation frame board (12) are sliding connection with the connected mode of movable rod (13), the positive fixed mounting of installation frame board (12) has the fixed block corresponding with movable rod (13).
4. The cutting apparatus as claimed in claim 1, wherein: the box body (1) is rotatably connected with the guide roller (11) through a guide post.
5. The cutting apparatus as claimed in claim 1, wherein: the lever (8) is movably connected with the cotton yarn winding drum (9) through a connecting rod, and a balancing weight is fixedly mounted on the left side of the lever (8).
6. The cutting apparatus as claimed in claim 1, wherein: the positive left side fixed mounting of movable rod (13) has cloudy cutter, the positive left side fixed mounting of installation frame plate (12) has positive cutter, and cloudy cutter and positive cutter are trapezoidal, the width of cloudy cutter and positive cutter is the same.
