Breathable and warm-keeping garment

Technical Field

The utility model relates to a clothing correlation field specifically is a ventilative cold-proof clothing.

Background

The clothing is a general name of clothes, shoes, bags, ornaments and the like, and is a multi-finger clothing, which is defined as a product which is sewn and worn on a human body to protect and decorate the human body in national standards, also called as clothing, and refers to various types of shields made of materials such as cloth and the like for covering the human body and carriers by human or people.

When the existing clothes are used for sweating, sweat can be absorbed by the direct contact between the neckline and the neck, the existing clothes are easy to yellow after being worn for a long time, and the existing clothes are inconvenient to pull up sleeves in part of occasions and often easy to slide down.

SUMMERY OF THE UTILITY MODEL

Therefore, in order to solve the above-mentioned deficiencies, the utility model provides a breathable and warm-keeping garment.

The utility model is realized in such a way, a breathable and warm-keeping garment is constructed, the device comprises a garment body, two ends of the garment body are sewn with sleeves, a neckline is arranged at the upper end of the garment body, a zipper is arranged at the middle part of the garment body, the middle part of the zipper is in sliding fit with a pull buckle, the rear part of the inner side of the garment body is tightly adhered with a warm-keeping pad, a sweat absorbing mechanism is arranged at the inner side of the neckline, a fixing device is arranged at the lower end of the rear part of the sleeves, the sweat absorbing mechanism is composed of an installation sheet, a raised strip, a female magic tape, sweat absorbing cloth and a male magic tape, the bottom of the installation sheet is tightly sewn with the neckline, the bottom of the raised strip is vertically fixed with the installation sheet, the two ends of the raised strip are provided with the female magic tape, the bottom of the sweat absorbing cloth is tightly adhered with the male magic tape, the fixing device is composed of a fixing clamp, a, and the two ends of the fixing clamp are respectively provided with a first notch and a second notch, and the middle parts of the first notch and the second notch are respectively extended by a first magnetic block and a second magnetic block.

Preferably, the sweat absorbing mechanisms are arranged in two, and the two sweat absorbing mechanisms are arranged symmetrically with each other.

Preferably, the fixing devices are two in number and correspond to the two sleeves one by one.

Preferably, the thickness of the mounting piece is one half of the thickness of the collar, and the mounting piece is mounted in parallel with the collar.

Preferably, the upper end of each convex strip is arc-shaped, and the height of each convex strip is five times of the thickness of each mounting piece.

Preferably, the female magic tapes are symmetrically provided with two female magic tapes, and the length of the female magic tape is one fourth of that of the male magic tape.

Preferably, the fixing clip is in a U shape, and both sides of the fixing clip are parallel to each other.

Preferably, the first and second notches have the same inner diameter as the first and second magnetic blocks and the first and second notches have a depth of fifty percent of the thickness of the first and second magnetic blocks.

Preferably, the first magnetic block and the second magnetic block have the same diameter, and are symmetrically arranged.

Preferably, the sweat absorbing cloth is made of pure cotton.

The utility model has the advantages of as follows: the utility model discloses an improve and provide a ventilative cold-proof clothing here, compare with equipment of the same type, have following improvement:

the method has the advantages that: a ventilative cold-proof clothing, through having set up sweat-absorbing mechanism, the sweat of neck subflow can adsorb through sweat-absorbing cloth to can tear sweat-absorbing cloth and paste back again after wasing, make son magic subsides and female magic paste adsorb each other can, when having solved human sweat, collarband and neck direct contact can inhale the sweat, wear the problem of yellowing easily for a long time.

The method has the advantages that: a ventilative cold-proof clothing, through having set up fixing device, put into first notch and second notch respectively with first magnetic path and second magnetic path after rolling up the sleeve, make first magnetic path and second magnetic path adsorb each other fixedly can make the fixation clamp press from both sides the sleeve tightly, solved partial occasion need roll up the sleeve inconvenient when time, the problem that often glides easily.

Drawings

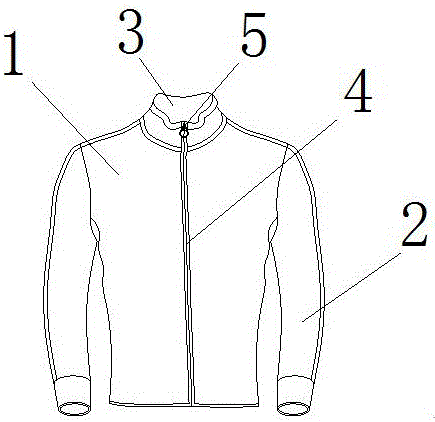

FIG. 1 is a schematic structural view of the present invention;

fig. 2 is a rear view structure diagram of the present invention;

FIG. 3 is a schematic view of the thermal pad of the present invention;

FIG. 4 is a schematic view of the structure of the sweat absorbing mechanism of the present invention;

fig. 5 is a schematic structural view of the fixing device of the present invention.

Wherein: the warm-keeping clothes comprise a clothes body-1, sleeves-2, a neckline-3, a zipper-4, a pull buckle-5, a warm-keeping pad-6, a sweat absorbing mechanism-7, a fixing device-8, a mounting piece-71, convex strips-72, female magic tapes-73, sweat absorbing cloth-74, sub magic tapes-75, fixing clips-81, first notches-82, second notches-83, first magnetic blocks-84 and second magnetic blocks-85.

Detailed Description

The present invention will be described in detail with reference to the accompanying fig. 1-5, and the technical solutions in the embodiments of the present invention will be clearly and completely described, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

The utility model provides a breathable and warm-keeping garment through improvement, which comprises a garment body 1, wherein two ends of the garment body 1 are sewn with sleeves 2, a neckline 3 is arranged at the upper end of the garment body 1, a zipper 4 is arranged at the middle part of the garment body 1, the middle part of the zipper 4 is in sliding fit with a pull buckle 5, the rear part of the inner side of the garment body 1 is tightly adhered with a warm-keeping pad 6, a sweat absorbing mechanism 7 is arranged at the inner side of the neckline 3, a fixing device 8 is arranged at the lower end of the rear part of the sleeves 2, the sweat absorbing mechanism 7 comprises an installation sheet 71, a raised strip 72, a female magic tape 73, sweat absorbing cloth 74 and a sub magic tape 75, the bottom of the installation sheet 71 is tightly sewn with the neckline 3, the bottom of the raised strip 72 is vertically fixed with the installation sheet 71, the two ends of the raised strip 72 are provided with the female magic tape 73, the bottom of the sweat absorbing cloth 74 is tightly adhered with the sub magic tape 75, the fixing device, the bottom of the fixing clamp 81 is fixed with the sleeves 2, the two ends of the fixing clamp 81 are respectively provided with a first notch 82 and a second notch 83, the middle parts of the first notch 82 and the second notch 83 are respectively extended by a first magnetic block 84 and a second magnetic block 85, and the fixing clamp can be well fixed in a mutual adsorption mode.

Further, sweat absorbing mechanisms 7 are arranged in two, and the two sweat absorbing mechanisms 7 are symmetrically arranged, so that sweat can be absorbed on two sides of the neck better.

Furthermore, two fixing devices 8 are provided, and correspond to the two sleeves 2 one by one, so that the two sleeves can be fixed.

Furthermore, the thickness of the mounting piece 71 is half of the thickness of the collar 3, and the mounting piece 71 is mounted in parallel with the collar 3, so that the mounting can be well carried out.

Furthermore, the upper end of the convex strip 72 is arc-shaped, and the height of the convex strip 72 is five times of the thickness of the mounting piece 71, so that the convex strip 72 can push out the sweat absorbing cloth 74, and the neck is not easy to contact the neckline 3.

Further, female magic subsides 73 mutual symmetry is provided with two to female magic subsides 73 length is the quarter of sub-magic subsides 75 length, and mutual absorption that can be fine is fixed.

Further, the fixing clip 81 is U-shaped, and two sides of the fixing clip 81 are parallel to each other, so that the fixing clip can be well fixed.

Further, the inner diameters of the first notch 82 and the second notch 83 are the same as those of the first magnetic block 84 and the second magnetic block 85, and the depths of the first notch 82 and the second notch 83 are fifty percent of the thicknesses of the first magnetic block 84 and the second magnetic block 85, so that the first magnetic block 84 and the second magnetic block 85 can well extend into the inner sides of the first notch 82 and the second notch 83.

Further, the diameters of the first magnetic block 84 and the second magnetic block 85 are the same, and the first magnetic block 84 and the second magnetic block 85 are symmetrically arranged with each other, so that the first magnetic block 84 and the second magnetic block can be well adsorbed and fixed with each other.

Further, the sweat absorbing cloth 74 is made of pure cotton, so that sweat absorption is better performed.

The utility model provides a breathable and warm-keeping garment through improvement, and the working principle is as follows;

firstly, when the clothes need to be put on, the left hand and the right hand respectively penetrate through the two sleeves 2 and extend out, then the neckline 3 is folded, the zipper 4 at the front end of the clothes body 1 can be tensioned by pulling up the buttons 5, and the warm pad 6 plays a role in keeping warm;

secondly, sweat under the neck flow can be absorbed through the sweat absorbing cloth 74, and the sweat absorbing cloth 74 can be torn down and then attached back again after being cleaned, so that the sub magic tape 75 and the female magic tape 73 can be mutually absorbed;

thirdly, the raised strips 72 can push out the sweat absorbing cloth 74, so that the neck is not easy to contact the neckline 3, and the mounting pieces 71 play a mounting role;

fourthly, when the sleeves need to be rolled up, the first magnetic block 84 and the second magnetic block 85 can be respectively placed in the first notch 82 and the second notch 83, so that the first magnetic block 84 and the second magnetic block 85 are mutually adsorbed and fixed, and the fixing clamp 81 can clamp the sleeves.

The utility model discloses an improvement provides a ventilative cold-proof clothing, through having set up sweat-absorbing mechanism 7, sweat under the neck stream can adsorb through inhaling single jersey 74, and can tear and inhale single jersey 74 and rinse the back and paste again, make sub-magic subsides 75 and female magic subsides 73 adsorb each other can, when having solved human sweat, the collarband can inhale the sweat with neck direct contact, the problem of long-term easy yellowing of wearing, through having set up fixing device 8, put into first notch 82 and second notch 83 respectively with first magnetic path 84 and second magnetic path 85 after having rolled up the sleeve, make first magnetic path 84 and second magnetic path 85 adsorb each other fixedly can make fixation clamp 81 press from both sides the sleeve tightly, when having solved partial occasion and need rolled up the sleeve inconvenient time-out, the problem of frequent easy gliding.

The basic principle and the main characteristics of the utility model and the advantages of the utility model have been shown and described above, and the utility model discloses the standard part that uses all can purchase from the market, and dysmorphism piece all can be customized according to the record of the description with the drawing, and the concrete connection mode of each part all adopts conventional means such as ripe bolt rivet among the prior art, welding, and machinery, part and equipment all adopt prior art, conventional model, and conventional connection mode in the prior art is adopted in addition to circuit connection, and the details are not repeated here.

The previous description of the disclosed embodiments is provided to enable any person skilled in the art to make or use the present invention. Various modifications to these embodiments will be readily apparent to those skilled in the art, and the generic principles defined herein may be applied to other embodiments without departing from the spirit or scope of the invention. Thus, the present invention is not intended to be limited to the embodiments shown herein but is to be accorded the widest scope consistent with the principles and novel features disclosed herein.

Claims

1. The breathable and warm-keeping garment comprises a garment body (1), wherein two ends of the garment body (1) are sewn with sleeves (2), a neckline (3) is arranged at the upper end of the garment body (1), a zipper (4) is arranged in the middle of the garment body (1), the middle of the zipper (4) is in sliding fit with a pull buckle (5), and the rear part of the inner side of the garment body (1) is tightly adhered to a warm-keeping pad (6);

the method is characterized in that: still include sweat-absorbing mechanism (7) and fixing device (8), collarband (3) inboard is provided with sweat-absorbing mechanism (7), sleeve (2) rear portion lower extreme is provided with fixing device (8), sweat-absorbing mechanism (7) is by installation piece (71), sand grip (72), female magic subsides (73), sweat-absorbing cloth (74) and sub-magic subsides (75) are constituteed, installation piece (71) bottom is closely sewed up with collarband (3), sand grip (72) bottom is vertical fixed with installation piece (71) to sand grip (72) both ends are provided with female magic subsides (73), sweat-absorbing cloth (74) bottom and sub-magic subsides (75) closely adhere, fixing device (8) are by fixation clamp (81), first notch (82), second notch (83), first magnetic path (84) and second magnetic path (85) are constituteed, fixation clamp (81) bottom is fixed with sleeve (2), and both ends of the fixing clamp (81) are respectively provided with a first notch (82) and a second notch (83), and the middle parts of the first notch (82) and the second notch (83) are respectively extended by a first magnetic block (84) and a second magnetic block (85).

2. The breathable and warm-keeping garment according to claim 1, characterized in that: the two sweat absorbing mechanisms (7) are arranged, and the two sweat absorbing mechanisms (7) are arranged symmetrically.

3. The breathable and warm-keeping garment according to claim 1, characterized in that: the number of the fixing devices (8) is two, and the fixing devices correspond to the two sleeves (2) one by one.

4. The breathable and warm-keeping garment according to claim 1, characterized in that: the thickness of the mounting piece (71) is one half of that of the collar (3), and the mounting piece (71) is mounted in parallel with the collar (3).

5. The breathable and warm-keeping garment according to claim 1, characterized in that: the upper end of the convex strip (72) is arc-shaped, and the height of the convex strip (72) is five times of the thickness of the mounting piece (71).

6. The breathable and warm-keeping garment according to claim 1, characterized in that: the female magic tapes (73) are symmetrically provided with two female magic tapes (73), and the length of the female magic tape (73) is one fourth of that of the sub magic tape (75).

7. The breathable and warm-keeping garment according to claim 1, characterized in that: the fixing clamp (81) is U-shaped, and two sides of the fixing clamp (81) are parallel to each other.

8. The breathable and warm-keeping garment according to claim 1, characterized in that: the first and second notches (82, 83) have the same inner diameter as the first and second magnetic blocks (84, 85), and the first and second notches (82, 83) have a depth of fifty percent of the thickness of the first and second magnetic blocks (84, 85).

9. The breathable and warm-keeping garment according to claim 1, characterized in that: the diameters of the first magnetic block (84) and the second magnetic block (85) are the same, and the first magnetic block (84) and the second magnetic block (85) are arranged symmetrically.
