Abstract
本实用新型公开了一种核桃苗的种植装置，属于核桃苗种植技术领域，包括盆体，盆体内侧底部活动设置有第一培养层，第一培养层上方活动设置有第二培养层，盆体上方外壁开口处左右两端分别固定连接有卡环和卡勾，第一培养层和第二培养层中部活动设置有核桃苗。本实用新型设置有卡环和卡勾，在核桃苗还处于育苗状态时，可将卡环和卡勾扣紧使得盆体闭合，如果核桃苗育苗完成后需要移栽种植时可打开卡环和卡勾，然后在不损坏盆体的情况下通过合页打开盆体的开口，使得盆体张开将第一培养层、第二培养层以及核桃苗完整取出，方便移栽种植且不损伤核桃苗的根须，大大提高核桃苗在移栽种植过程中的成活率。
The utility model discloses a planting device for walnut seedlings, belonging to the technical field of planting walnut seedlings. The left and right ends of the opening of the outer wall above the body are respectively fixedly connected with a snap ring and a snap hook, and walnut seedlings are movably arranged in the middle of the first culture layer and the second culture layer. The utility model is provided with a snap ring and a snap hook. When the walnut seedlings are still in the seedling-raising state, the snap ring and the snap hook can be fastened to close the pot body. Hook, and then open the opening of the pot body through hinges without damaging the pot body, so that the pot body is opened to take out the first culture layer, the second culture layer and the walnut seedlings completely, which is convenient for transplanting and planting without damaging the walnut. The roots of the seedlings greatly improve the survival rate of walnut seedlings in the process of transplanting and planting.
Description
Technical Field
The utility model belongs to the technical field of walnut seedling is planted, specifically is a planting device of walnut seedling.
Background
Walnuts are plants of the genus juglans, which are divided into 3 groups of about 20. The method is distributed in warm and hot zone areas of two hemispheres, 2 groups of 5 varieties 1 are produced in China, the varieties are generally distributed in the south and the north, the carya illinoensis is an important economic tree species suitable for planting areas in the southwest and the west, and no economic forest tree species can be cultivated like the carya illinoensis in a karst area for a long time, and has wide distribution, high yield and stable economic benefit. The ancient people call the soaked walnuts as the fruits of the god, and the contemporary people call the soaked walnuts as the nutrition treasury and the Dalishi food.
Need grow seedlings to the walnut seedling earlier when planting the walnut, then just can transplant and plant, through detecting the discovery, have patent number CN201720281062.3, a walnut seedling planting device convenient to transplant, this patent can satisfy the demand of walnut seedling fast growth, the survival rate of very big high sapling, and it is extremely convenient to transplant, wherein, not enough points are as follows: the utility model discloses a device of growing seedlings is when growing seedlings to the bubble walnut in karst area, can't spout water and photosynthesis to the walnut seedling, and when the walnut seedling need be in advance with the walnut seedling when taking out from the device of growing seedlings when transplanting the planting, cause the deformation of soil easily to make the moisture loss of walnut seedling, the impaired survival rate that leads to of root system not enough, simultaneously because the inside nursery stock quantity of big-arch shelter is too much, the walnut seedling is extremely inconvenient when moving and unified cultivation management after taking out.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a: in order to solve and can't carry out water spray and photosynthesis to the walnut seedling, and when needing to take out the walnut seedling from the device of growing seedlings in advance when the walnut seedling transplants the planting, cause the deformation of soil easily to make the moisture loss of walnut seedling, the impaired survival rate that leads to of root system not enough, simultaneously because the inside nursery stock quantity of big-arch shelter is too much, the walnut seedling is when taking out the back and move and when unified cultivation management extremely inconvenient problem, provide a planting device of walnut seedling.
The utility model adopts the technical scheme as follows: a walnut seedling planting device comprises a pot body, wherein a first culture layer is movably arranged at the bottom of the inner side of the pot body, a second culture layer is movably arranged above the first culture layer, a paper pulp seedling cup is laid between the second culture layer and the inner side of the pot body, the middle part of the outer wall of the pot body is fixedly connected with a hinge, the bottom of the pot body is provided with a water seepage hole in a penetrating way, the lower end of the pot body is rotatably connected with a brake trundle through a connecting piece, the middle part of the brake trundle is provided with a brake pad in a matching way, the left side and the right side of the outer wall above the pot body are fixedly connected with a spray head through a bracket, a light lamp is fixedly connected above the spray head through the bracket, the utility model discloses a soil PH detector, including light lamp connecting rod, basin body top outer wall opening part, both ends are fixedly connected with snap ring and trip respectively about the rotation of light lamp connecting rod middle part, first cultivation layer and the activity of second cultivation layer middle part are provided with soil PH detector.
Wherein, basin body outer wall is the opening setting, the position of hinge and basin body opening part corresponds.
The first culture layer is a sandy soil first culture layer, the second culture layer is a soil second culture layer, and the paper pulp seedling cup is a prefabricated degradable paper pulp seedling cup.
The brake trundles and the brake pads are four in number and are respectively positioned at four corners of the lower end of the pot body.
Wherein, the snap ring and the snap hook are matched with each other for use.
The utility model discloses a basin body top, shower nozzle, illumination lamp, shower nozzle, soil PH detector, wherein, the quantity of shower nozzle and illumination lamp is two, and fixed connection is in basin body top outer wall left and right sides respectively, two illumination lamp connecting rod middle part all rotates and is connected with the damping pivot, the shower nozzle leads to pipe and is connected with external water source, illumination lamp and soil PH detector are all through being electric connection between wire and the external power.
To sum up, owing to adopted above-mentioned technical scheme, the beneficial effects of the utility model are that:
1. the utility model discloses in be provided with shower nozzle and illuminator, can pass through shower nozzle and illuminator to the water spray of walnut seedling row and photosynthesis according to the needs of walnut seedling, then can adjust the angle of illuminator through the damping pivot to illumination carries on better to the walnut seedling, further perfect the seedling of walnut seedling, and improved the walnut seedling in the survival rate of growing seedlings, satisfied the growth of bubble walnut in karst area.
2. The utility model discloses in be provided with snap ring and trip, when walnut seedling still is in the state of growing seedlings, can make the basin body closed with snap ring and trip straining, snap ring and trip can be opened when needing to transplant the planting after walnut seedling grows seedlings and accomplish, then open the opening of the basin body through the hinge under the condition that does not damage the basin body, because paper pulp educates the fixed of seedling cup to cultivateing the layer, make the basin body open and cultivate the layer with first, layer and walnut seedling are complete to be taken out are cultivateed to the second, conveniently transplant the root hair of planting and not damaging the walnut seedling, improve the survival rate of walnut seedling in the planting process of transplanting greatly.
3. The utility model discloses in be provided with the brake truckle, the brake truckle makes the basin body conveniently remove, only need move the basin body to the place that needs were planted during planting, then shift out the walnut seedling just, conveniently move, time saving and labor saving, if the basin body need not move when stewing, can pull down the fixed brake truckle of brake block, thereby make the basin body stabilize unmovable, it need take out the walnut seedling from the device of growing seedlings in advance to have solved when the walnut seedling is transplanted and is planted, thereby make the moisture loss of walnut seedling lead to the survival rate not enough, and the extremely inconvenient problem of walnut seedling when moving after taking out, and can carry out unified water spray to the walnut seedling through pipeline and shower nozzle, production and management cost is reduced, the cultivation efficiency of walnut seedling is improved.
Drawings
FIG. 1 is a schematic overall plan view of the structure of the present invention;

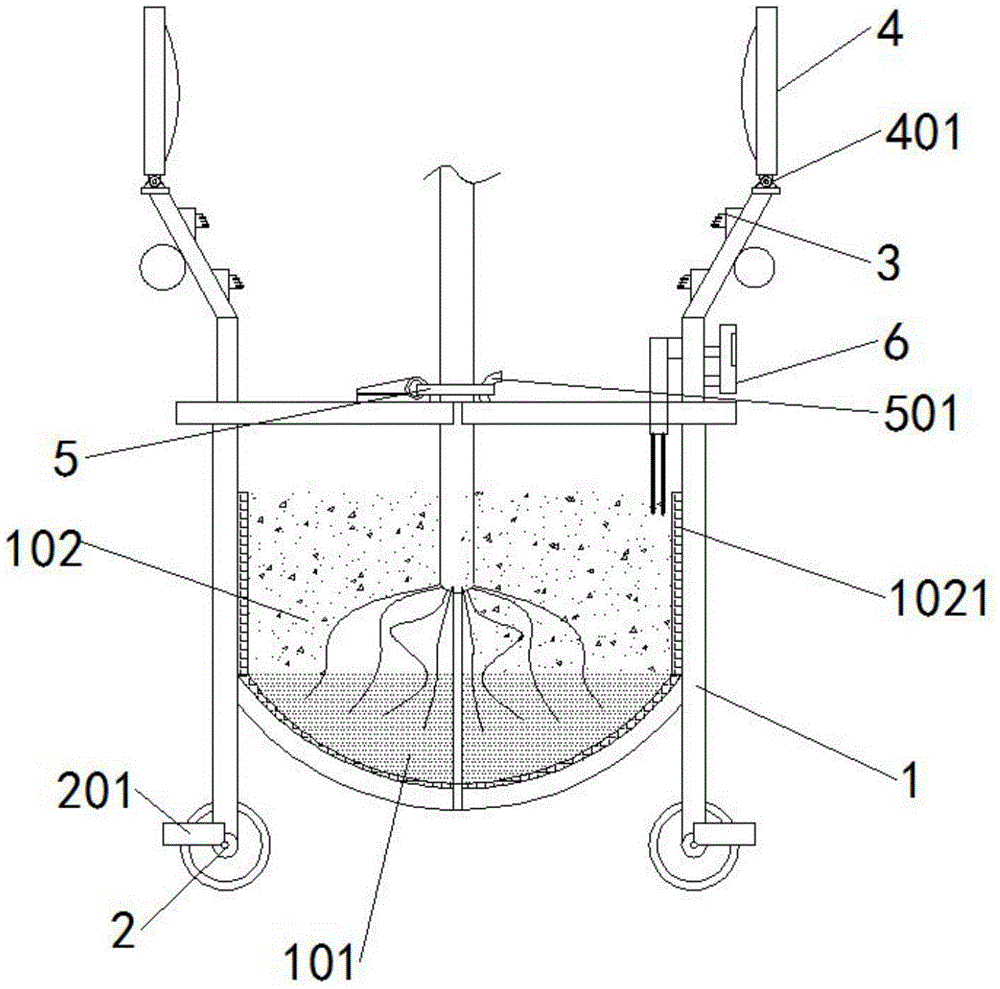

FIG. 2 is a schematic diagram of a partial cross-section of the basin of the present invention;
fig. 3 is a schematic three-dimensional diagram of the middle snap ring and the snap hook of the present invention.
The labels in the figure are: 1. a pot body; 101. a first culture layer; 102. a second culture layer; 1021. paper pulp seedling raising cup; 103. a hinge; 104. a water seepage hole; 2. braking the caster; 201. a brake pad; 3. a spray head; 4. a light; 401. a damping rotating shaft; 5. a snap ring; 501. a hook is clamped; 6. soil pH detector.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention is further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are for purposes of illustration only and are not intended to limit the invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention; the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance; furthermore, unless expressly stated or limited otherwise, the terms "mounted," "connected," and "connected" are to be construed broadly, as they may be fixedly connected, detachably connected, or integrally connected, for example; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
The utility model discloses the paper pulp seedling cup 1021, brake truckle 2, light 4, snap ring 5 and trip 501 all can be obtained in market or private ordering.
The utility model discloses in:
referring to fig. 1-3, a walnut seedling planting device comprises a pot body 1, wherein a first culture layer 101 is movably arranged at the bottom of the inner side of the pot body 1, a second culture layer 102 is movably arranged above the first culture layer 101, a paper pulp seedling cup 1021 is laid between the second culture layer 102 and the inner side of the pot body 1, a hinge 103 is fixedly connected to the middle of the outer wall of the pot body 1, a water seepage hole 104 is arranged at the bottom of the pot body 1 in a penetrating manner, a brake caster 2 is rotatably connected to the lower end of the pot body 1 through a connecting piece, a brake block 201 is arranged at the middle of the brake caster 2 in a matching manner, a spray head 3 is fixedly connected to the left side and the right side of the outer wall above the pot body 1 through a bracket, a light lamp 4 is fixedly connected to the upper side of the spray head 3, a damping rotating shaft 401 is rotatably connected to the middle of a connecting rod of the, the sensor of the soil pH detector 6 is located inside the culture layer, and then the pH of the soil layer can be checked.
Further, basin body 1 outer wall is the opening setting, and the position of hinge 103 and basin body 1 opening part is corresponding, makes like this under the condition that does not damage basin body 1 alright open basin body 1's opening through hinge 103 for basin body 1 opens and cultivates layer 102 and walnut seedling with first cultivation layer 101, second and takes out completely, conveniently plants, improves the survival rate of soil walnut seedling.
Further, first culture layer 101 is the first culture layer 101 of sandy soil matter, second culture layer 102 is soil matter second culture layer 102, paper pulp seedling cup 1021 is the seedling cup 1021 of prefabricated degradable paper pulp, first culture layer 101 and second culture layer 102 loose structure, it is good with ventilative to keep water, humidity is moderate, paper pulp seedling cup 1021 inside contains the nutrient element who gives walnut seedling growth, make the growth that the walnut seedling can be good in first culture layer 101 and second culture layer 102, and degradable paper pulp seedling cup 1021 can draw in fixedly to the culture layer, it removes to make things convenient for the walnut seedling more.
Further, the quantity of brake truckle 2 and brake block 201 is four, is located 1 lower extreme four corners department of the basin body respectively, makes basin body 1 conveniently remove like this, also conveniently moves during the planting, and labour saving and time saving if basin body 1 need not move when stewing, can pull down brake block 201 fixed brake truckle 2 to make basin body 1 stably unmovable.
Further, snap ring 5 and trip 501 are the conjunction relation of mutual supporting use, when the walnut seedling still is in the state of growing seedlings, can make basin body 1 closed with snap ring 5 and trip 501 straining, if the walnut seedling is grown seedlings and is accomplished the back and need to transplant and plant time can open snap ring 5 and trip 501, then open basin body 1's opening through hinge 103 under the condition that does not damage basin body 1, make basin body 1 open with first cultivation layer 101, layer 102 and the walnut seedling is complete to be taken out for the second, conveniently transplant and plant.
Furthermore, the number of the spray heads 3 and the number of the illuminating lamps 4 are two, the spray heads 3 and the illuminating lamps 4 are respectively and fixedly connected to the left side and the right side of the outer wall above the pot body 1, the middle parts of the connecting rods of the two illuminating lamps 4 are respectively and rotatably connected with an external water source, the illuminating lamps 4 and the soil PH detector 6 are respectively and electrically connected with the external power source through leads, the walnut seedlings can be sprayed with water and be photosynthetic through the spray heads 3 and the illuminating lamps 4 according to the requirements of the walnut seedlings, then the middle parts of the connecting rods of the two illuminating lamps 4 are respectively and rotatably connected with the damping rotating shafts 401, the angles of the illuminating lamps 4 can be adjusted through the damping rotating shafts 401, so that the walnut seedlings can be better illuminated, finally, the spray heads 3 are connected with the external water source through the leads, a plurality of groups of walnut seedlings can be simultaneously watered in the, providing the running power for the floodlight 4.
The working principle is as follows: firstly, the spray head 3 is connected with an external water source through a water pipe, then the illuminating lamp 4 is electrically connected with an external power source through a wire, running power is provided for the illuminating lamp 4, then the pot body 1 is closed by fastening the snap ring 5 and the snap hook 501, at the moment, walnut seedlings are placed in the pot body 1, the first culture layer 101 and the second culture layer 102 are sequentially filled around the walnut seedlings for seedling culture, then the walnut seedlings are sprayed with water and subjected to photosynthesis through the spray head 3 and the illuminating lamp 4 according to the requirements of the walnut seedlings, the angle of the illuminating lamp 4 can be adjusted through the damping rotating shaft 401, so that the soil PH detector 6 can be well illuminated, the snap ring 5 and the snap hook 501 can be opened when transplanting is needed after the seedling culture is completed, then the opening of the pot body 1 is opened through the hinge 103 under the condition that the pot body 1 is not damaged, and the pot body 1 is opened to enable the first culture layer 101, Layer 102 and walnut seedling are cultivateed to the second completely takes out, conveniently transplant and plant and do not damage the basin body 1, brake truckle 2 makes the convenient removal of the basin body 1 at last, also conveniently move during the planting, time saving and labor saving, if the basin body 1 need not move when stewing, can pull down brake block 201 fixed brake truckle 2, thereby make the basin body 1 stabilize unmovable, the whole planting process of growing seedlings and transplanting is convenient simple, cultivate perfectly, the survival rate of soil walnut seedling has been improved, and time saving and labor saving.
The above description is only exemplary of the present invention and should not be taken as limiting the scope of the present invention, as any modifications, equivalents, improvements and the like made within the spirit and principles of the present invention are intended to be included within the scope of the present invention.
