Abstract
The utility model belongs to the technical field of sampling device, especially, a soil sampling device for prospecting now proposes following scheme, and it includes the bottom plate that ground and two symmetries set up, the top fixed mounting of bottom plate has the connecting plate, and the top fixed mounting of two connecting plates has same fixed plate, and the top fixed mounting of fixed plate has the riser that two symmetries set up, and the top fixed mounting of two risers has same roof, the motor groove has been seted up to one side of riser, and fixed mounting has servo motor on the inner wall of one side in motor groove, and servo motor's output shaft extends to the outside in motor groove and fixed mounting has the rotary column, and threaded connection has the sliding seat that two symmetries set up on the rotary column, the spacing groove has been seted up to the bottom of roof, and the top of sliding seat extends to the spacing inslot, the. The utility model discloses simple structure, convenient to use can take a sample to the soil of the different degree of depth in ground.
Description
Technical Field
The utility model relates to a sampling device technical field especially relates to a soil sampling device for geological exploration.
Background
The soil sampler is a tool for acquiring a soil sample, and commonly used soil drills, shovels and shovels are provided, wherein each soil drill consists of a drill bit made of hard materials (steel or hard plastics) and a handle, each drill bit is usually spiral or cylindrical, the top end of each spiral drill bit is a pair of sharp knife edges which can be rotatably cut into soil, an expanded soil containing cavity is formed next to the knife edges, and the soil samples to be collected can be guided into the cavities to be collected by downwards drilling into the soil surface along with the rotation of the handle.
However, current soil sampling device is when taking a sample, and the soil sample of a degree of depth can only be gathered usually to once probing, can't acquire the soil sample of the different degree of depth simultaneously, and current soil sampling device that can acquire the soil sample of the different degree of depth simultaneously, causes the soil sample cross contamination of the different degree of depth easily at the sampling in-process to reduced the accuracy to the different degree of depth soil sample detection, for this we propose a soil sampling device for prospecting and be used for solving above-mentioned problem.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving and having soil sampling device among the prior art when taking a sample, once boring can only gather the soil sample of a degree of depth usually, can't acquire the soil sample of the different degree of depth simultaneously, and the current soil sampling device that can acquire the soil sample of the different degree of depth simultaneously, cause the soil sample cross contamination's of the different degree of depth shortcoming in the sampling process easily, and the soil sampling device for geological prospecting that provides.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a soil sampling device for geological exploration comprises a ground surface and two symmetrically arranged bottom plates, wherein connecting plates are fixedly arranged at the tops of the bottom plates, the tops of the two connecting plates are fixedly provided with a same fixing plate, the tops of the fixing plates are fixedly provided with two symmetrically arranged vertical plates, the tops of the two vertical plates are fixedly provided with a same top plate, one side of each vertical plate is provided with a motor groove, a servo motor is fixedly arranged on the inner wall of one side of each motor groove, an output shaft of the servo motor extends to the outer side of the motor groove and is fixedly provided with a rotary column, two symmetrically arranged sliding seats are in threaded connection with the rotary column, the bottom of the top plate is provided with a limiting groove, the top of each sliding seat extends into the limiting groove, the top of each fixing plate is provided with a round hole, the inner walls at two sides of the round hole are provided, sliding mounting has the connecting seat on the dead lever, and the bottom fixed mounting of connecting seat has the one end of spring, and the other end fixed mounting of spring is on the bottom inner wall of spread groove, slidable mounting has the lifter in the round hole, and the top of lifter extends to the outside of round hole, the bottom of lifter extends to the outside of round hole and has seted up the turn trough, and the drilling rod is installed to the turn trough internal rotation, and the bottom of drilling rod extends to the outside of turn trough and cooperatees with ground.
Preferably, the round hole is rotatably provided with one end of a rotating rod, and the other end of the rotating rod is rotatably arranged on the sliding seat.
Preferably, an annular sliding groove is formed in the side wall of the rotating groove, an annular sliding block is arranged on the drill rod, and the annular sliding block is slidably mounted in the annular sliding groove.
Preferably, two one side fixed mounting that the connecting plate is close to each other have a square plate, and the square hole has been seted up at the top of square plate, and fixed mounting has the extrusion piece on the lateral wall of square hole, seted up the extrusion groove on the drilling rod, extrusion piece slidable mounting is in the extrusion groove.
Preferably, one side of the sliding seat is provided with a threaded hole, the side wall of the threaded hole is provided with an internal thread, the rotating column is provided with an external thread with opposite rotation directions, and the internal thread is meshed with the external thread.
The utility model discloses in, soil sampling device for prospecting's beneficial effect:
thereby can drive the bull stick when making the sliding seat slide through setting up of bull stick and rotate, thereby drive the elevator and go up and down, thereby can make the drilling rod rotate steadily in the bull stick through setting up of annular spout and annular slider, thereby make when the drilling rod goes up and down because the effect of extrusion piece can drive the drilling rod and can rotate simultaneously, thereby make and to drive two sliding seats when starting servo motor and remove towards opposite direction through setting up of helicitic texture.
The utility model discloses simple structure, convenient to use can take a sample to the soil of the different degree of depth in ground.
Drawings

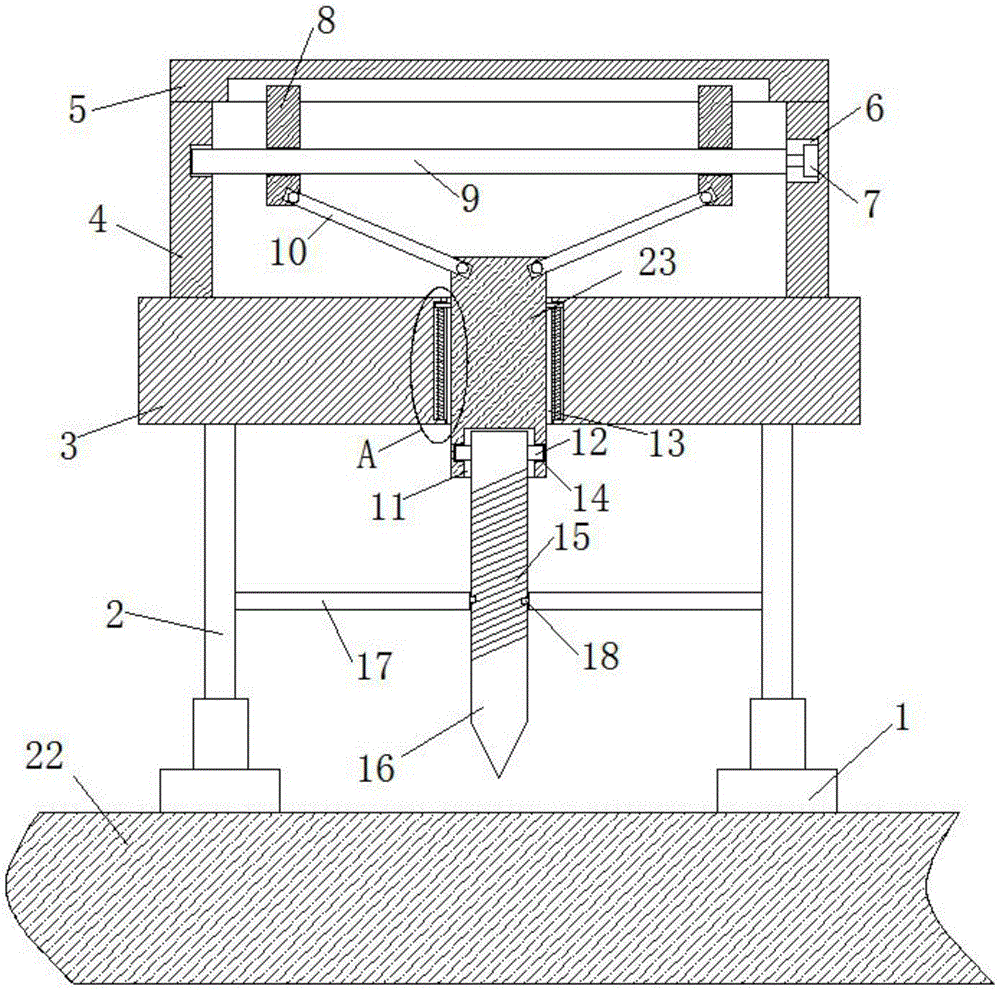

FIG. 1 is a schematic structural diagram of a soil sampling device for geological exploration according to the present invention;
FIG. 2 is a schematic sectional view of a part A of a soil sampling device for geological exploration according to the present invention;
fig. 3 is the utility model provides a soil sampling device for prospecting overlook the schematic structure diagram.
In the figure: 1 bottom plate, 2 connecting plates, 3 fixed plates, 4 vertical plates, 5 top plates, 6 motor grooves, 7 servo motors, 8 sliding seats, 9 rotary columns, 10 rotary rods, 11 rotary grooves, 12 annular sliding blocks, 13 round holes, 14 annular sliding grooves, 15 extrusion grooves, 16 drill rods, 17 square plates, 18 extrusion blocks, 19 connecting grooves, 20 fixed rods, 21 connecting seats, 22 springs, 23 lifting blocks and 24 ground.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-3, a soil sampling device for geological exploration comprises a ground 24 and two symmetrically arranged bottom plates 1, wherein a connecting plate 2 is fixedly arranged at the top of the bottom plate 1, the top of the two connecting plates 2 is fixedly provided with a same fixing plate 3, the top of the fixing plate 3 is fixedly provided with two symmetrically arranged vertical plates 4, the top of the two vertical plates 4 is fixedly provided with a same top plate 5, one side of each vertical plate 4 is provided with a motor groove 6, the inner wall of one side of each motor groove 6 is fixedly provided with a servo motor 7, the output shaft of the servo motor 7 extends to the outer side of the motor groove 6 and is fixedly provided with a rotary column 9, the rotary column 9 is in threaded connection with two symmetrically arranged sliding seats 8, the bottom of the top plate 5 is provided with a limit groove, the top of the sliding seat 8 extends into the limit groove, the top of the fixing plate 3 is, fixed mounting has same dead lever 20 on the top inner wall of spread groove 19 and the bottom inner wall, slidable mounting has connecting seat 21 on the dead lever 20, the bottom fixed mounting of connecting seat 21 has the one end of spring 22, spring 22's other end fixed mounting is on the bottom inner wall of spread groove 19, slidable mounting has elevator 23 in the round hole 13, elevator 23's top extends to the outside of round hole 13, elevator 23's bottom extends to the outside of round hole 13 and has seted up rotary trough 11, drilling rod 16 is installed to 11 internal rotations in the rotary trough, drilling rod 16's bottom extends to the outside of rotary trough 11 and cooperatees with ground 24.
The utility model discloses in, rotate the one end of installing bull stick 10 on the round hole 13, the other end of bull stick 10 rotates and installs on sliding seat 8, thereby can drive bull stick 10 and rotate when making sliding seat 8 slide through setting up of bull stick 10 to it goes up and down to drive elevator 23.
The utility model discloses in, seted up annular spout 14 on the lateral wall of rotary trough 11, be equipped with annular slider 12 on the drilling rod 16, annular slider 12 slidable mounting can make drilling rod 16 steady rotation in rotary trough 11 through the setting of annular spout 14 and annular slider 12 in annular spout 14.
The utility model discloses in, one side fixed mounting that two connecting plates 2 are close to each other has square plate 17, and the square hole has been seted up at square plate 17's top, and fixed mounting has extrusion piece 18 on the lateral wall of square hole, has seted up extrusion groove 15 on the drilling rod 16, and extrusion piece 18 slidable mounting is in extrusion groove 15, thereby makes to rotate simultaneously because extrusion piece 18's effect can drive drilling rod 16 when drilling rod 16 goes up and down through the setting of extrusion groove 15 and extrusion piece 18.
The utility model discloses in, threaded hole is seted up to one side of sliding seat 8, is equipped with the internal thread on the lateral wall of screw hole, is equipped with on the rotary column 9 and revolves to opposite external screw thread, and the internal thread meshes with the external screw thread mutually, thereby makes when starting servo motor 7 can drive two sliding seats 8 and remove towards opposite direction through the setting of helicitic texture.
The working principle is as follows: during the use, fix bottom plate 1 on ground 24, start servo motor 7, servo motor 7's output shaft drives rotary column 9 and rotates, thereby rotary column 9 rotates and drives two sliding seat 8 and slide towards one side that is close to each other, thereby sliding seat 8 slides and drive bull stick 10 and rotate, thereby bull stick 10 rotates and drives elevator 23 and goes up and down, thereby elevator 23 goes up and down to drive extrusion piece 18 and slides in extrusion groove 15, thereby make drilling rod 16 rotate in rotary groove 11, thereby through the lift of drilling rod 16 with rotate can be fine take a sample to ground, and thereby can be fine take a sample the soil of the different degree of depth through controlling two sliding seat 8 gliding distances.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (5)
1. A soil sampling device for geological exploration comprises a ground (24) and two bottom plates (1) which are symmetrically arranged, and is characterized in that a connecting plate (2) is fixedly installed at the top of each bottom plate (1), a same fixing plate (3) is fixedly installed at the tops of the two connecting plates (2), two vertical plates (4) which are symmetrically arranged are fixedly installed at the tops of the fixing plates (3), a same top plate (5) is fixedly installed at the tops of the two vertical plates (4), a motor groove (6) is formed in one side of each vertical plate (4), a servo motor (7) is fixedly installed on the inner wall of one side of each motor groove (6), an output shaft of the servo motor (7) extends to the outer side of the motor groove (6) and is fixedly installed with a rotary column (9), two sliding seats (8) which are symmetrically arranged are in threaded connection on the rotary column (9), and a limiting groove is formed in the, the top of the sliding seat (8) extends into the limiting groove, the top of the fixing plate (3) is provided with a round hole (13), the inner walls of the two sides of the round hole (13) are provided with connecting grooves (19), the inner walls of the top and the bottom of the connecting grooves (19) are fixedly provided with the same fixing rod (20), the fixing rod (20) is provided with a connecting seat (21) in a sliding manner, the bottom of the connecting seat (21) is fixedly provided with one end of a spring (22), the other end of the spring (22) is fixedly arranged on the inner wall of the bottom of the connecting groove (19), the round hole (13) is internally provided with a lifting block (23) in a sliding way, the top of the lifting block (23) extends to the outer side of the round hole (13), the bottom of the lifting block (23) extends to the outer side of the round hole (13) and is provided with a rotary groove (11), a drill rod (16) is rotatably mounted in the rotary groove (11), and the bottom end of the drill rod (16) extends to the outer side of the rotary groove (11) and is matched with the ground (24).
2. The soil sampling device for geological exploration, as claimed in claim 1, wherein one end of the rotating rod (10) is rotatably mounted on said circular hole (13), and the other end of the rotating rod (10) is rotatably mounted on the sliding seat (8).
3. The soil sampling device for geological exploration, as claimed in claim 1, wherein said rotating trough (11) has an annular sliding groove (14) formed on its side wall, and said drill rod (16) has an annular sliding block (12), said annular sliding block (12) being slidably mounted in said annular sliding groove (14).
4. The soil sampling device for geological exploration according to claim 1, characterized in that a square plate (17) is fixedly installed on one side of each of the two connecting plates (2) close to each other, a square hole is formed in the top of the square plate (17), an extrusion block (18) is fixedly installed on the side wall of the square hole, an extrusion groove (15) is formed in the drill rod (16), and the extrusion block (18) is slidably installed in the extrusion groove (15).
5. The soil sampling device for geological exploration, as claimed in claim 1, wherein one side of said sliding seat (8) is provided with a threaded hole, the side wall of said threaded hole is provided with an internal thread, the rotary column (9) is provided with an external thread with opposite rotation direction, and said internal thread is engaged with said external thread.
