Abstract

The utility model discloses an aluminum profile surface electroplating and coloring tank, which comprises a tank body and a protective cover, the protective cover is arranged on the tank body, and the tank body is provided with a negative electrode assembly and a positive electrode assembly; the negative electrode assembly includes a plurality of negative electrode clamping grooves , a plurality of negative clip slots are located on the front and rear sides of the inside of the slot body, and a negative electrode is arranged in the slot body; a negative electrode conductive strip is arranged inside the negative clip slot, and the negative clip slot is connected with the negative electrode wire; the positive electrode assembly includes a number of positive concave The groove of the positive electrode and the groove of the negative electrode are alternately arranged; a positive electrode is arranged in the tank body; a positive electrode plate is arranged inside the positive electrode groove, the positive electrode plate is connected with the positive electrode wire, and one side of the positive electrode plate is provided with an aluminum profile. The electroplating coloring tank on the surface of the aluminum profile provided by the utility model, by arranging a number of negative electrode conductive strips and arranging a number of positive electrode plates between the negative electrode conductive strips, the aluminum profile material is electroplated and colored by conducting electricity between the positive and negative electrodes, and the To facilitate the simultaneous electroplating and coloring of multiple aluminum profiles.

Description

An aluminum profile surface electroplating coloring tank

technical field

The utility model belongs to the technical field of electroplating and coloring of aluminum profiles, in particular to an electroplating and coloring tank on the surface of aluminum profiles.

Background technique

Aluminum profiles are mostly used to manufacture doors and windows of buildings. The surface of aluminum profiles is tinned and colored during manufacture, and tinning and coloring are carried out in an electroplating and coloring tank.

The traditional electroplating and coloring tank can only perform electroplating and coloring work on a single aluminum profile, so the work efficiency is relatively low, and the traditional aluminum profile electroplating and coloring tank is very inconvenient to move, and it has gradually been unable to meet people's needs. For the problems in the related technologies, no effective solutions have been proposed so far.

Utility model content

The purpose of this utility model is to provide an aluminum profile surface electroplating coloring tank to solve the problems raised in the above background technology.

To achieve the above object, the utility model provides the following technical solutions:

An aluminum profile surface electroplating coloring tank, comprising a tank body and a protective cover, the protective cover cover is arranged on the tank body, and the tank body is provided with a negative electrode assembly and a positive electrode assembly;

The negative electrode assembly includes a plurality of negative electrode card slots, the plurality of negative electrode card grooves are located on the front and rear sides of the inside of the groove body, and negative electrodes are arranged in the groove body; the negative electrode card grooves are provided with negative electrode conductive bars, the negative electrode slot is connected with the negative electrode wire;

The positive electrode assembly includes a plurality of positive electrode grooves, and the positive electrode grooves and the negative electrode clamping grooves are alternately arranged; a positive electrode is arranged in the groove body; a positive electrode plate is arranged inside the positive electrode groove, and the positive electrode plate is connected with the negative electrode. The positive electrode wire is connected, and one side of the positive electrode plate is provided with an aluminum profile.

As a preference of this embodiment, the protective cover and the tank body are rotatably connected by hinges, and an observation window is provided on the protective cover.

As a preference of this embodiment, the negative electrode slot is connected to the negative electrode wire, and the negative electrode conductive strip is sleeved with the negative electrode slot.

As a preference of this embodiment, the positive electrode plate includes a conductive surface, an aluminum profile is provided on one side of the conductive surface, and the positive electrode plate and the positive electrode groove are sleeved together.

As a preference of this embodiment, a drain port is provided at the lower part of the tank body, and the drain port is located on the front surface of the tank body.

As a preference of this embodiment, a handle is provided on one side of the groove body, and the handle and the groove body are fixedly connected by bolts.

As a preference of this embodiment, portable casters are installed on the bottom of the tank body, and the portable casters are fixedly connected to the tank body by bolts.

Compared with the prior art, the utility model has the following beneficial effects:

(1) The aluminum profile surface electroplating coloring tank provided by the utility model, by setting several negative electrode conductive strips and setting several positive electrode plates between several negative electrode conductive strips, the aluminum profiles are electroplated and colored by conducting electricity between the positive and negative electrodes , which can facilitate the simultaneous electroplating and coloring of multiple aluminum profiles.

(2) The electroplating and coloring tank on the surface of the aluminum profile provided by the utility model can be easily moved by providing portable casters, and by providing a protective cover and an observation window, it can be convenient for protection and observation.

Description of drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the accompanying drawings required in the embodiments will be briefly introduced below. Obviously, the drawings in the following description are only of the present invention. For some embodiments of the present invention, for those of ordinary skill in the art, other drawings can also be obtained from these drawings without any creative effort.

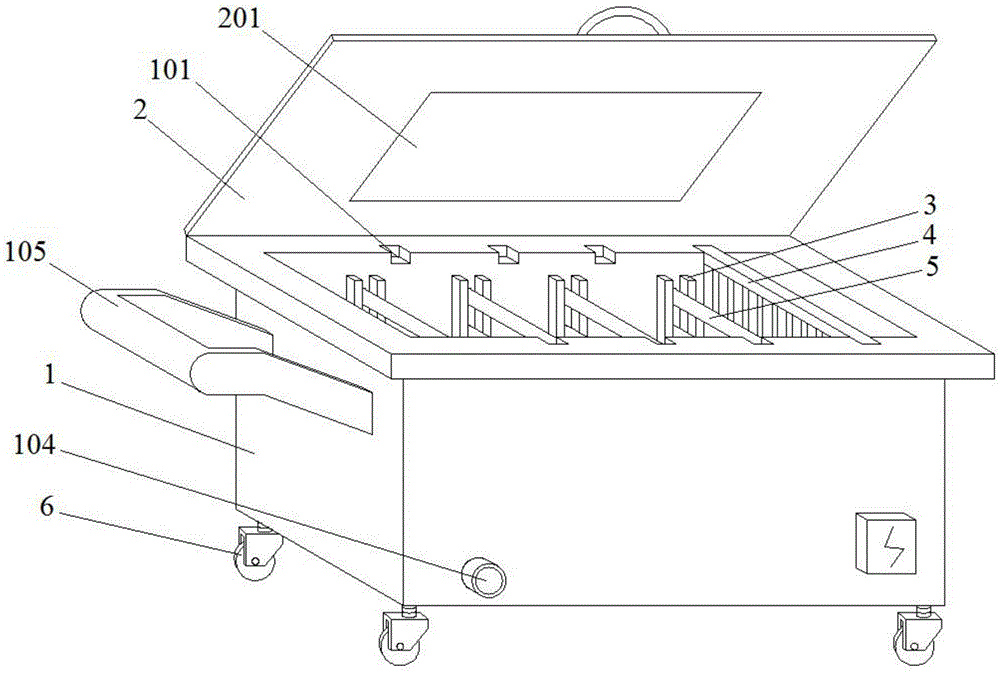

Fig. 1 is the three-dimensional structure schematic diagram of a kind of aluminum profile surface electroplating coloring groove of the present utility model;

Fig. 2 is a top-view structural schematic diagram of an aluminum profile surface electroplating coloring tank of the present invention;

Fig. 3 is a schematic diagram of the structure of the positive plate of the electroplating and coloring tank on the surface of an aluminum profile of the present invention.

Reference number:

1. Tank body; 101. Positive groove; 102. Negative electrode; 103. Positive electrode; 104. Drainage outlet; 105. Handle; 2. Protective cover; 201. Observation window; ; 401, conductive surface; 5, negative conductive strip; 6, portable casters; 7, aluminum profiles.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. For example, based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention. The utility model is further described:

Referring to FIGS. 1 to 3 , an embodiment of the present invention provides an aluminum profile surface electroplating coloring tank, which specifically includes a tank body 1 and a protective cover 2 . The protective cover 2 is covered on the tank body 1 , and the tank body 1 There is a negative electrode assembly and a positive electrode assembly inside; the aluminum profile is placed in the tank body 1 for electroplating and coloring, and during operation, the protective cover 2 is covered, and an observation window 201 is provided on the protective cover 2, through which the observation window 201 can be observed. The working state in the tank body 1.

Referring to Figures 1 to 3, the negative electrode assembly includes a plurality of negative electrode card slots 3, and the plurality of negative electrode card grooves 3 are located on the front and rear sides of the inside of the tank body 1, and a negative electrode 102 is provided inside the tank body 1. A negative electrode conductive strip 5 is arranged inside the slot 3 to connect the negative electrode slot 3 and the negative electrode 102 with wires. The positive electrode assembly includes a number of positive electrode grooves 101, and the positive electrode grooves 101 and the negative electrode card grooves 3 are alternately arranged, wherein the positive electrode grooves 101 are arranged on the edge of the top of the tank body 1, and a positive electrode 103 is arranged in the tank body 1. A positive electrode plate 4 is arranged inside the groove 101 , the positive electrode plate 4 is connected with the positive electrode 103 by wires, and an aluminum profile is provided on one side of the positive electrode plate 4 . In this embodiment, by arranging a number of negative electrode conductive strips 5 and arranging a number of positive electrode plates 4 between a number of negative electrode conductive strips 5, the aluminum profiles are electroplated and colored by conducting electricity between the positive and negative electrodes, so that a plurality of aluminum The profiles are electroplated and colored at the same time, which can greatly improve the production efficiency.

1 to 3 , in this embodiment, the negative electrode slot 3 is connected to the negative electrode 102 by wires, and the negative electrode conductive strip 5 is assembled with the negative electrode slot 3 to facilitate assembly and replacement of the negative electrode assembly. The positive plate 4 includes a conductive surface 401, and one side of the conductive surface 401 is provided with an aluminum profile 7, which can be electroplated and colored. The positive electrode plate 4 is assembled with the positive electrode groove 101 to facilitate the assembly and replacement of the positive electrode assembly.

Referring to FIGS. 1 to 3 , in this embodiment, the lower part of the tank body 1 is provided with a drain port 104 , and the drain port 104 is located on the front surface of the tank body 1 . The electroplating wastewater in the tank body 1 can be quickly drained away through the drain port 104 . A handle 105 is provided on one side of the tank body 1, and the handle 105 and the tank body are fixedly connected by bolts. A portable caster 6 is installed at the bottom of the tank body 1 , and the portable caster 6 and the tank body 1 are fixedly connected by bolts. The portable casters 6 and the tank body 1 are fixedly connected by bolts, which can facilitate the movement.

The above are only preferred embodiments of the present invention, and are not intended to limit the present invention. Although the present invention has been described in detail with reference to the foregoing embodiments, those skilled in the art can still implement the foregoing implementations. Modifications are made to the technical solutions described in the examples, or equivalent replacements are made to some of the technical features. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the protection scope of the present invention.

Claims (7)

1. An aluminum profile surface electroplating coloring tank, comprising a tank body (1) and a protective cover (2), and the protective cover (2) is covered on the tank body (1), characterized in that: the tank A negative electrode assembly and a positive electrode assembly are arranged in the body (1); The negative electrode assembly includes a plurality of negative electrode card slots (3), the plurality of negative electrode card grooves (3) are located on the front and rear sides of the inside of the tank body (1), and negative electrodes are arranged in the tank body (1). (102); a negative electrode conductive strip (5) is provided inside the negative electrode slot (3), and the negative electrode slot (3) is connected with a negative electrode (102) wire; The positive electrode assembly includes a plurality of positive electrode grooves (101), the positive electrode grooves (101) and the negative electrode clamping grooves (3) are alternately arranged; a positive electrode (103) is arranged in the groove body (1); A positive electrode plate (4) is arranged inside the positive electrode groove (101), the positive electrode plate (4) is connected with the positive electrode (103) by wires, and one side of the positive electrode plate (4) is provided with an aluminum profile (7). ). 2. The aluminum profile surface electroplating coloring tank according to claim 1, characterized in that: the protective cover (2) and the tank body (1) are rotatably connected by hinges, and are provided on the protective cover (2). There is a viewing window (201). 3. The aluminum profile surface electroplating coloring tank according to claim 1, characterized in that: the negative electrode slot (3) is connected to the negative electrode (102) wire, and the negative electrode conductive strip (5) is connected to the negative electrode (102). The negative card slots (3) are assembled together. 4. The aluminum profile surface electroplating coloring tank according to claim 1, characterized in that: the positive plate (4) comprises a conductive surface (401), and one side of the conductive surface (401) is provided with an aluminum profile (7). ), the positive electrode plate (4) and the positive electrode groove (101) are sleeved together. 5. The aluminum profile surface electroplating coloring tank according to claim 1, characterized in that: a drainage port (104) is provided at the lower part of the tank body (1), and the drainage port (104) is located in the tank body (1) front. 6. The aluminum profile surface electroplating coloring tank according to claim 1, characterized in that: a handle (105) is provided on one side of the tank body (1), and the handle (105) is connected to the tank body (105). 1) The connection is fixed by means of bolts. 7. The aluminum profile surface electroplating coloring tank according to claim 1, characterized in that: a portable caster (6) is installed at the bottom of the tank body (1), and the portable caster (6) and the tank body ( 1) The connection is fixed by means of bolts.
