Abstract
The utility model discloses a digit control machine tool with chip removal function relates to digit control machine tool technical field, and it includes lathe body and support frame, fixed mounting has a plurality of connecting rods between the opposite face of two hack levers around the support frame, swing joint has cylinder one on the connecting rod, support frame turn department movable mounting has the pivot, fixed mounting has cylinder two in the pivot, the rear end of pivot and the output shaft fixed connection of motor. This digit control machine tool with chip removal function through setting up the drive belt of taking the baffle, can discharge the piece that produces automatically in the numerical control course of working to keep clean in the lathe, and then be favorable to the quality of numerical control processing, through set up the brush on the baffle, the rotation that can utilize the conveyer belt cleans away the piece of the inside bottom of lathe, thereby does not need the staff to clean inside the lathe with the brush in person, has guaranteed staff's safety, can retrieve the piece through the dump bin that sets up.
Description
Technical Field
The utility model relates to a digit control machine tool technical field specifically is a digit control machine tool with chip removal function.
Background
The numerical control machine tool inputs various control signals into the numerical control device through an information carrier, and the numerical control device sends out various control signals through operation processing to control the action of the machine tool, so that parts are automatically machined according to the shape and the size required by a drawing. Digit control machine tool can produce a large amount of sweeps in machining process, exist in the inside processingquality who piles up the easy influence product of protection casing in a large number, so need in time handle the sweeps, among the prior art, stop processing back manual brush clearance generally, if the lathe parks thoroughly, manual processing causes the potential safety hazard easily, influence machining efficiency simultaneously, consequently design the function of automatic clearance sweeps, can tentatively clear up the sweeps when guaranteeing to process the part, it is very necessary consequently to set up this device.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
Not enough to prior art, the utility model provides a digit control machine tool with chip removal function has solved and can not clear up clastic problem automatically in the numerical control course of working.
(II) technical scheme
In order to achieve the above purpose, the utility model adopts the technical proposal that: a numerical control machine tool with a chip removal function comprises a lathe body and a support frame, wherein a plurality of connecting rods are fixedly arranged between opposite surfaces of a front hack lever and a rear hack lever of the support frame, a first roller is movably connected onto the connecting rods, a rotating shaft is movably arranged at a turning position of the support frame, a second roller is fixedly arranged on the rotating shaft, the rear end of the rotating shaft is fixedly connected with an output shaft of a motor, supporting rods are fixedly arranged on the left sides of the opposite surfaces of the front hack lever and the rear hack lever of the support frame, rollers are movably arranged at the bottom ends of the supporting rods, fixed frames are fixedly arranged at the turning positions of the opposite surfaces of the front hack lever and the rear hack lever of the support frame, guide wheels are movably arranged on the fixed frames, a protective cover is fixedly arranged at the right side of, the lower fixed surface of bottom plate installs wheel one, movable mounting has the conveyer belt on cylinder one and the cylinder two, the baffle has evenly been arranged to the upper surface of conveyer belt, the brush has been put to the upper surface equipartition of baffle, the right side of bottom plate is provided with the dump bin, the lower fixed surface of dump bin installs wheel two.
Preferably, the guide wheel is movably connected with the front side and the rear side of the upper surface of the conveyor belt.
Preferably, the angle of the turning part of the support frame is 45 degrees, and the protective cover is provided with a discharge hole.
Preferably, the width of the brush is equal to the width of the partition plate, and the width of the conveyor belt is 1.2 times the width of the partition plate.
Preferably, the motor is fixed behind the support frame through a support plate.
(III) advantageous effects
The beneficial effects of the utility model reside in that:
1. this digit control machine tool with chip removal function through setting up the drive belt of taking the baffle, can discharge the piece that produces automatically in the numerical control course of working to keep the clean in the lathe, and then be favorable to the quality of numerical control processing, reach the automatic clastic effect of clearance in the numerical control course of working.
2. This digit control machine tool with chip removal function through set up the brush on the baffle, can utilize the rotation of conveyer belt to clean away the piece of the inside bottom of lathe to do not need the staff to clean inside the lathe with the brush in person, guaranteed staff's safety.
3. This digit control machine tool with chip removal function can retrieve the piece through the dump bin that sets up, has not only guaranteed the health of processing environment, resources are saved moreover.
Drawings

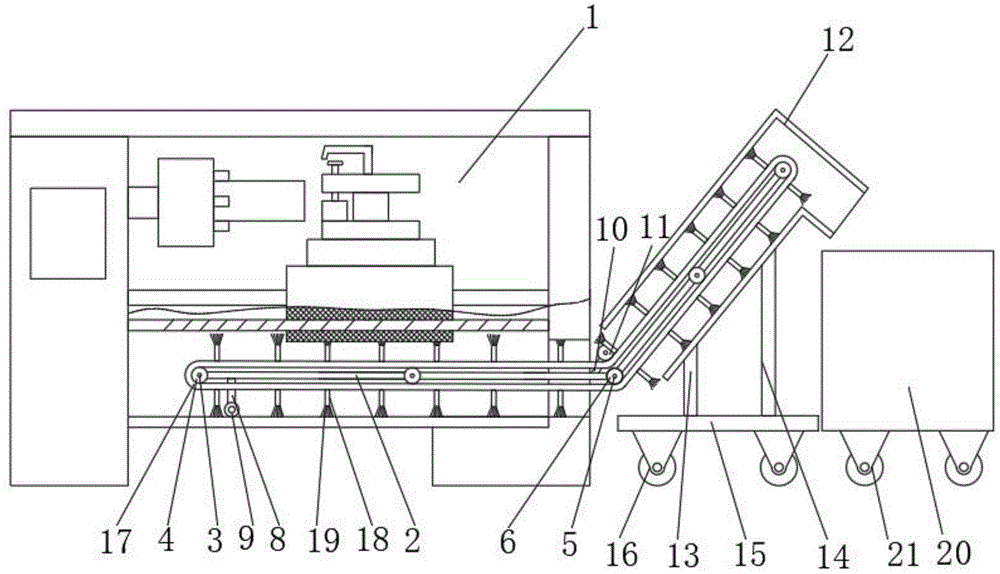

Fig. 1 is a schematic view of the front cross-sectional structure of the present invention;
FIG. 2 is a schematic view of the front view structure of the conveyor belt of the present invention;
FIG. 3 is a schematic top view of the conveyor belt of the present invention;
FIG. 4 is a front view of the supporting frame of the present invention;
fig. 5 is a schematic view of the support frame of the present invention.
In the figure: the lathe comprises a lathe body 1, a support frame 2, a connecting rod 3, a first roller 4, a rotating shaft 5, a second roller 6, a motor 7, a supporting rod 8, a roller 9, a fixing frame 10, a guide wheel 11, a protective cover 12, a first fixed rod 13, a second fixed rod 14, a bottom plate 15, a first wheel 16, a first conveyor belt 17, a partition plate 18, a brush 19, a waste bin 20, a second wheel 21 and a supporting plate 22.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
As shown in fig. 1-5, the utility model provides a technical solution: a numerical control machine tool with chip removal function comprises a lathe body 1 and a support frame 2, the lathe body 1 is used for carrying out numerical control machining through arrangement, the support frame 2 is used for supporting a transmission belt 17 through arrangement, the automatic cleaning of the lathe body 1 in the numerical control machining process can be realized, the machining quality of a product is further ensured, the angle of the turning part of the support frame 2 is 45 degrees, a plurality of connecting rods 3 are fixedly arranged between the opposite surfaces of the front frame rod and the rear frame rod of the support frame 2, a roller I4 is arranged through the arranged connecting rods 3 and used for supporting the transmission belt 17, the roller I4 is movably connected onto the connecting rods 3, the transmission belt 17 is supported through the arranged roller I4, a rotating shaft 5 is movably arranged at the turning part of the support frame 2, the rotating shaft 5 is used for fixedly mounting a roller II 6, and a roller II 6 is fixedly mounted on the rotating shaft 5, the rear end of the rotating shaft 5 is fixedly connected with an output shaft of the motor 7, the rotating shaft 5 is powered by the arranged motor 7, so that the driving belt 17 is driven to rotate, the motor 7 is fixed behind the support frame 2 through a support plate 22, support rods 8 are fixedly arranged on the left sides of the opposite surfaces of the front frame rod and the rear frame rod of the support frame 2, rollers 9 are movably arranged at the bottom ends of the support rods 8, the support frame 2 is supported by the arranged rollers 9, the support frame 2 is more conveniently and stably installed in the lathe body 1, a fixing frame 10 is fixedly arranged at the turning part of the opposite surfaces of the front frame rod and the rear frame rod of the support frame 2, guide wheels 11 are movably arranged on the fixing frame 10, the conveying direction of the conveying belt 17 is convenient to change through the arranged guide wheels 11, thereby being beneficial to collecting materials and waste materials, the guide wheel 11 is movably connected with the front side and the rear side of the upper surface of the conveyor belt 17, the protective cover 12 is fixedly arranged at the right side of the turning part of the support frame 2, the pollution to the ground around the lathe body 1 when the scraps are discharged from the lathe body 1 can be reduced through the arranged protective cover 12, meanwhile, the scraps scratching to workers can be reduced, the safety of the workers is ensured, the discharge port is arranged on the protective cover 12, the first fixing rod 13 and the second fixing rod 14 are fixedly arranged at the front side and the rear side of the protective cover 12, the support frame 2 is fixed on the bottom plate 15 through the arranged first fixing rod 13 and the second fixing rod 14, the installation and the disassembly between the support frame 2 and the lathe body 1 are convenient, the bottom plate 15 is fixedly arranged at the bottom ends of the first fixing rod 13 and the second fixing rod 14, the first wheel 16 is fixedly arranged, movable mounting has conveyer belt 17 on cylinder 4 and the cylinder two 6, baffle 18 has evenly been arranged to the upper surface of conveyer belt 17, conveyer belt 17 through the area baffle 18 that sets up, can be convenient with the piece discharge in lathe body 1, brush 19 has all been arranged to the upper surface of baffle 18, can clean the inside inner piece of lathe body 1 through the brush 19 that sets up, brush 19's width equals the width of baffle 18, conveyer belt 17's width is 1.2 times of baffle 18 width, the right side of bottom plate 15 is provided with waste bin 20, can unify the recovery to the piece through waste bin 20 that sets up, resources are saved, waste bin 20's lower fixed surface installs wheel two 21.
The utility model discloses an operating procedure does:
s1, in the process of carrying out numerical control machining on the lathe body 1, a cutter cutting workpiece generates a large amount of chips, at the moment, the motor 7 is controlled to rotate forwardly through the control panel of the lathe body 1, the rotating shaft 5 drives the roller II 6 to rotate, the conveyor belt 17 rotates through the friction between the roller II 6 and the conveyor belt 17, the chips in the lathe body 1 are taken out through the partition plate 18, the chips are discharged through the discharge port in the protective cover 12, and the chips are uniformly recovered through the waste bin 20, so that the effect of automatically cleaning the chips in the numerical control machining process is achieved;
s2, after the discharge of most of pieces in lathe body 1, control motor 7 carries out antiport, and conveyer belt 17 drives baffle 18 and reverses, through brush 19 on baffle 18, cleans away the piece of the inside bottom of lathe body 1 from the bin outlet on lathe body 1 right side, then carries out the processing to the piece in lathe body 1 outside by the manual work, and whole chip removal process does not need personnel to go on in lathe body 1 is inside, is favorable to guaranteeing operating personnel' S safety.
The above-mentioned embodiments further describe the objects, technical solutions and advantages of the present invention in detail, it should be understood that the above description is only the embodiments of the present invention, and is not intended to limit the present invention, and any modifications, equivalent substitutions, improvements and the like made within the spirit and principle of the present invention should be included in the scope of the present invention.
Claims (5)
1. The utility model provides a digit control machine tool with chip removal function, includes lathe body (1) and support frame (2), its characterized in that: a plurality of connecting rods (3) are fixedly mounted between opposite surfaces of two rack rods in the front and at the back of the support frame (2), a roller I (4) is movably connected onto the connecting rods (3), a rotating shaft (5) is movably mounted at the turning position of the support frame (2), a roller II (6) is fixedly mounted on the rotating shaft (5), the rear end of the rotating shaft (5) is fixedly connected with an output shaft of a motor (7), supporting rods (8) are fixedly mounted on the left sides of the opposite surfaces of the two rack rods in the front and at the back of the support frame (2), rollers (9) are movably mounted at the bottom end of the supporting rods (8), a fixing frame (10) is fixedly mounted at the turning position of the opposite surfaces of the two rack rods in the front and at the back of the support frame (2), a guide wheel (11) is movably mounted on the fixing frame, the utility model discloses a safety protection cover, including safety cover (12), the equal fixed mounting in both sides has dead lever one (13) and dead lever two (14) around safety cover (12), the bottom fixed mounting of dead lever one (13) and dead lever two (14) has bottom plate (15), the lower fixed surface of bottom plate (15) installs wheel one (16), movable mounting has conveyer belt (17) on cylinder one (4) and cylinder two (6), baffle (18) have evenly been arranged to the upper surface of conveyer belt (17), brush (19) have been put to the upper surface equipartition of baffle (18), the right side of bottom plate (15) is provided with waste bin (20), the lower fixed surface of waste bin (20) installs wheel two (21).
2. The numerical control machine tool with the chip removal function according to claim 1, characterized in that: the guide wheel (11) is movably connected with the front side and the rear side of the upper surface of the conveyor belt (17).
3. The numerical control machine tool with the chip removal function according to claim 1, characterized in that: the angle of the turning part of the support frame (2) is 45 degrees, and a discharge hole is formed in the protective cover (12).
4. The numerical control machine tool with the chip removal function according to claim 1, characterized in that: the width of the brush (19) is equal to the width of the partition (18), and the width of the conveyor belt (17) is 1.2 times of the width of the partition (18).
5. The numerical control machine tool with the chip removal function according to claim 1, characterized in that: the motor (7) is fixed behind the support frame (2) through a support plate (22).
