Abstract

The utility model discloses an aseptic cup for toothbrush disinfection and automatic cleaning, which comprises a cup body, a cup cover, a fixing bracket, a base, a lower clutch and an upper clutch; the fixing bracket is arranged on the inner bottom of the cup body; The control module and the power supply module, the top of the base is provided with a card slot that is convenient for the bottom of the cup body to be clipped, the lower clutch is installed on the output shaft of the motor and located in the card slot; the transmission shaft on the top of the upper clutch penetrates the bottom of the cup body and is connected with the fixed bracket Fixed connection; the cup cover includes a cover body, a power source, a first UV lamp module, and a pressure switch. The power source is used to supply power to the first UV lamp module and the pressure switch, and the pressure switch is used to control the power supply of the first UV lamp module. The first UV lamp module can sterilize the toothbrush and the cup at the same time, ensuring that the toothbrush and the cup used by the user are sterile; the motor rotates to drive the toothbrush to rotate at a high speed, which can shake off the water and stains in the brush head. out to improve cleaning efficiency.

Description

A kind of toothbrush disinfection automatic cleaning sterile cup

technical field

The utility model relates to the technical field of cleaning supplies, in particular to a sterile cup for toothbrush disinfection and automatic cleaning.

Background technique

A toothbrush is an essential tool for cleaning the mouth in our daily life. After each brushing, the toothbrush is usually cleaned with clean water, and the brush head is placed in a ventilated place to dry. However, when there are stains in the bristles of the toothbrush, it is not easy to clean it out. In addition, after a period of use, the toothbrush will breed a large number of bacteria, including Candida albicans, hemolytic streptococcus, pneumococcus, etc. These bacteria will directly invade the human digestive tract and respiratory tract through the mouth, which may cause enteritis and lung infection, etc. What’s worse, if these bacteria enter the human blood through the damaged oral mucosa, it will cause serious blood diseases. Relevant data shows that the number of bacteria in a toothbrush after three weeks of use is as high as one million, which is higher than that of rag water and toilet water.

As people pay attention to oral hygiene, in order to reduce the pollution of toothbrushes, most people in life usually adopt the method of replacing toothbrushes regularly to reduce the pollution of toothbrushes, usually once a month or two months or more frequently. In this way, although bacterial contamination is reduced, the cost of living is increased and waste is also caused.

There are many different toothbrush sterilizers on the market. Although the toothbrush sterilizer on the market can disinfect the toothbrush to a certain extent, it can only dry the water stains left in the toothbrush, which is not conducive to the sterilization and disinfection of the toothbrush; and it has a single function and is inconvenient to carry.

Utility model content

The utility model provides an aseptic cup for toothbrush disinfection and automatic cleaning, so as to solve the problems of poor cleaning effect and single function of the toothbrush in the prior art.

A toothbrush disinfection automatic cleaning sterile cup, comprising a cup body, a cup cover, a fixed bracket, a base, a lower clutch and an upper clutch matched with the lower clutch;

the fixing bracket is arranged on the inner bottom of the cup body;

The base is provided with a motor and a base control module and a power supply module connected to it, the top of the base is provided with a slot that is convenient for the bottom of the cup body to be clamped, the lower clutch is installed on the output shaft of the motor, and all the The lower clutch is arranged in the card slot;

The transmission shaft on the top of the upper clutch penetrates through the bottom of the cup body and is fixedly connected with the fixing bracket;

The cup cover includes a cover body, a power supply disposed in the cover body, a first ultraviolet lamp module disposed at the bottom of the cover body, and a pressure force located on the cover body and at the place where the cup body is buckled. A switch, the power supply is used to supply power to the first ultraviolet lamp module and a pressure switch, and the pressure switch is used to control the power supply of the first ultraviolet lamp module on and off.

When in use, insert the end of the toothbrush into the fixing bracket for installation and fixation, and then snap the bottom of the cup into the slot on the top of the base. At this time, the upper clutch and the lower clutch are matched and connected; When the pressure switch on the cup lid is squeezed by the wall of the cup body, it is activated, so that the first ultraviolet lamp module is powered on and starts to work, and emits ultraviolet light to sterilize the toothbrush and the interior of the cup body, and the motor is controlled by the base control module to work. The rotation of the output shaft of the motor drives the rotation of the lower clutch, which in turn drives the rotation of the upper clutch, and then drives the fixed bracket to rotate through the transmission shaft, and finally drives the toothbrush installed on the fixed bracket to rotate at a high speed, thereby throwing out the water and stains in the brush head, so that the The toothbrush cleans and dries quickly. After sterilization and drying, as long as the motor is turned off and the pressure switch is not stressed, when brushing teeth, take out the toothbrush, and take off the cup body from the base as a mouthwash cup, then you can brush your teeth. The toothbrush disinfection and automatic cleaning aseptic cup can sterilize the toothbrush through the ultraviolet lamp, and can also sterilize the cup body, so as to ensure that the toothbrush and the mouthwash cup used by the user are sterile. The toothbrush rotates at a high speed, and uses centrifugal force to shake out the water and stains in the brush head of the toothbrush, improving cleaning and efficiency, making the toothbrush dry quickly, and reducing the growth of bacteria. In addition, if only the sterilization and disinfection treatment is required, the base is not required, and the sterilization and disinfection treatment can be completed through the cup body and the cup cover.

Further, it also includes a cup brush, the cup brush includes a cup-shaped brush body and bristles arranged outside the brush body; the bottom of the brush body is provided with an opening that is clamped with the fixing bracket, and the brush body When clamped on the fixing bracket, the bristles abut on the side wall and the bottom of the cup body.

The cup body can be cleaned by setting the cup brush. When the cup body needs to be cleaned, the cup brush is clamped to the outside of the fixed bracket for relative fixing, and then the bottom of the cup body is clamped into the slot on the top of the base to control the rotation of the motor, thereby driving the fixed bracket to rotate, and the fixed bracket drives The cup brush rotates to clean the inside of the cup body. This method has high cleaning efficiency and good effect, and solves the problem that the cup body is not easy to clean by hand due to the large depth and small diameter of the cup body.

Further, the transmission shaft on the top of the upper clutch is eccentrically and fixedly connected with the fixing bracket. Through the eccentric connection method, the toothbrush is rotated eccentrically during work, which increases the centrifugal force and improves the effect of drying and removing stains.

Further, the cover body is also provided with a dryer for drying the cup body, and the cover body is also provided with an exhaust hole. By setting the dryer, the toothbrush and the cup body can be dried, so as to speed up the drying of the toothbrush and the cup body, and avoid the breeding of bacteria in the humid environment.

Further, the cover body is also provided with a first controller and a timer, the first ultraviolet lamp module, the pressure switch and the timer are all connected to the first controller, the first controller, the first The ultraviolet lamp module, the pressure switch and the timer are all connected with the power supply. When the pressure switch is under pressure, it sends a pressure signal to the first controller. The first controller sends a lamp control command to control the first ultraviolet lamp module to work, and emits ultraviolet light for sterilization and disinfection. At the same time, the first controller sends a timing command to the timer. , the timer starts timing, and when the preset time period is reached, the timer feeds back a timing completion signal to the first controller, and the first controller sends a lamp control command to control the first ultraviolet lamp module to stop working, so as to realize the automatic operation of the first ultraviolet lamp module. disinfecting, without manual intervention, convenient and intelligent, at the same time, it can prevent users from being exposed to ultraviolet light.

Further, two pressure switches are provided on the cover body and are located opposite to the place where the cup body is buckled, and both of the two pressure switches are connected to the first controller. The setting of a single pressure switch may cause the first UV lamp module to work because the user accidentally presses the pressure switch when placing it or grasping it with his hand, which is a safety risk. A UV lamp module only works, providing safety during use.

Further, the base control module includes a second controller, a PWM speed controller, and a control panel, the PWM speed controller and the control panel are all connected to the second controller, and the motor is connected to the PWM speed controller. The second controller, the PWM governor, the control panel, and the motor are all connected to the power supply module. The user inputs control commands of different speed gears through the control panel. After receiving the control commands, the second controller sends a corresponding speed driving signal to the PWM governor, which in turn controls the speed of the motor. Users can choose different speed gears according to different working conditions, such as high gear when drying the toothbrush, and low gear when cleaning the cup alone.

Further, it also includes a second ultraviolet lamp module and a timer connected to the second controller, the second ultraviolet lamp module is arranged in the card slot on the top of the base; the cup body is made of quartz glass . When the cup body is made of quartz glass, a second UV lamp module can be installed in the card slot at the top of the base, so that ultraviolet light can be irradiated from the bottom and top of the cup body at the same time, eliminating dead ends and improving the effect of sterilization and disinfection. Combined with the timer and the second controller, the timed killing of the second ultraviolet lamp module can be realized.

Further, the base is provided with a number of ventilation holes, which facilitates heat dissipation of the motors in the base and prolongs the service life.

Further, the control panel is a touch screen or a key combination panel.

Further, an LED lighting module is also included, which can be used for emergency lighting, and the LED lighting module is arranged on the cup cover or the base. When set on the cup cover, it is powered by the power supply in the cup cover, and when set on the base, it is powered by the power supply module in the base.

beneficial effect

The utility model proposes a toothbrush disinfection automatic cleaning sterile cup, which has the following advantages:

1. By setting the first UV lamp module on the cup cover, the toothbrush and the cup body can be sterilized and disinfected at the same time, ensuring that the toothbrush and the cup body used by the user are sterile and safe to use;

2. By controlling the rotation of the motor to drive the toothbrush to rotate at a high speed, the water and stains in the brush head can be thrown out, improving the cleaning efficiency, and at the same time drying the toothbrush as soon as possible to avoid the growth of bacteria;

3. It can also be used for disinfection of baby products such as pacifiers and spoons. It only needs to put the pacifier and spoon into the cup body, and use the first ultraviolet lamp module on the cup cover to sterilize;

4. The cup body can be used as a mouthwash cup or a water cup;

5. There is no need to replace the toothbrush frequently, saving the cost of living;

6. Simple structure, easy to carry on business trips.

Description of drawings

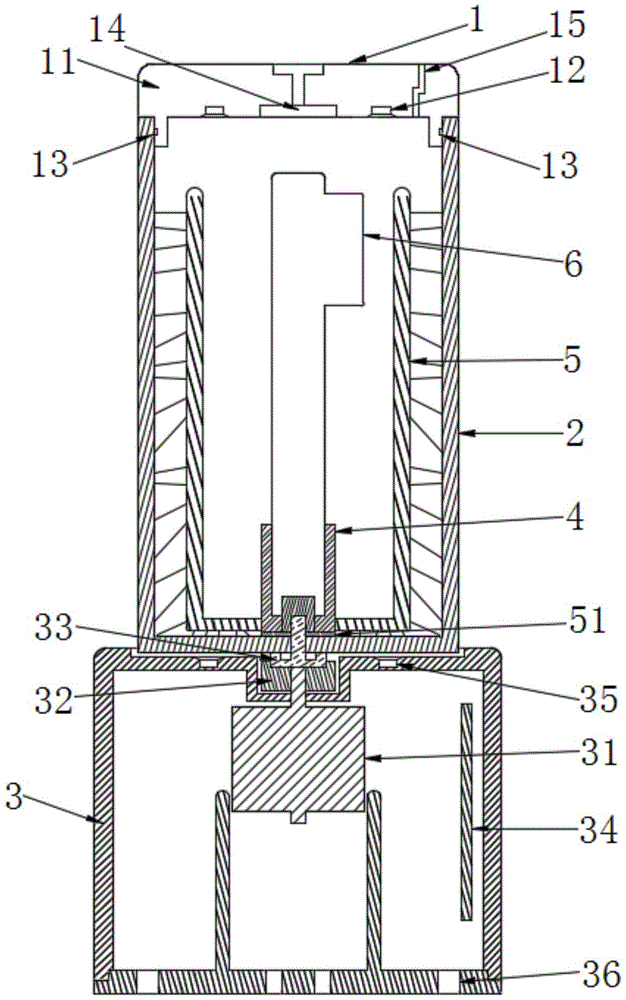

1 is a cross-sectional view of a toothbrush disinfection automatic cleaning sterile cup provided by an embodiment of the present invention;

2 is a perspective view of a toothbrush disinfection automatic cleaning sterile cup provided by an embodiment of the present invention;

Fig. 3 is the electrical control principle diagram in the cup cover provided by the embodiment of the present invention;

FIG. 4 is a schematic diagram of the electrical control in the base provided by the embodiment of the present invention.

Detailed ways

The present utility model will be described in detail below with reference to the accompanying drawings and specific embodiments.

In the description of the present invention, it should be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inside", The orientation or positional relationship indicated by "outside", "center", "longitudinal", "horizontal", "vertical", "horizontal", etc. is based on the orientation or positional relationship shown in the accompanying drawings, and is only for the convenience of describing the present utility The novel and simplified description does not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operate in a particular orientation, and therefore should not be construed as limiting the invention.

As shown in Figures 1 and 2, an embodiment of the present invention discloses a toothbrush disinfection automatic cleaning sterile cup, including a cup body 2, a cup cover 1, a fixed bracket 4, a base 3, a lower clutch 32 and the The upper clutch 33 matched with the lower clutch 32;

The fixing bracket 4 is arranged on the inner bottom of the cup body 2;

The base 3 is provided with a motor 31 and a base control module 34 and a power supply module connected to it. The top of the base 3 is provided with a card slot that is convenient for the bottom of the cup body 2 to be clamped, and the lower clutch 32 is installed on the motor 31. on the output shaft, and the lower clutch 32 is arranged in the card slot;

The transmission shaft on the top of the upper clutch 33 penetrates through the bottom of the cup body 2 and is fixedly connected with the fixing bracket 4 . A seal is sleeved outside the transmission shaft and located between the fixing bracket 4 and the bottom of the cup body 2 circle51;

The cup cover 1 includes a cover body 11 , a power supply arranged in the cover body 11 , a first ultraviolet lamp module 12 arranged at the bottom of the cover body 11 , a first ultraviolet lamp module 12 arranged on the cover body 11 and located on the same side as the cover body 11 . The pressure switch 13 at the clasp of the cup body 2, the power supply is used to supply power to the first ultraviolet lamp module 12 and the pressure switch 13, and the pressure switch 13 is used to control the power supply of the first ultraviolet lamp module 12. break.

When in use, insert the end of the toothbrush 6 into the fixing bracket 4 for installation and fixation, and then snap the bottom of the cup body 2 into the slot on the top of the base 3. At this time, the upper clutch 33 and the lower clutch 32 are matched and connected; then buckle Close the cup cover 1, at this time, the pressure switch 13 on the cup cover 1 is pressed by the wall of the cup body to activate, so that the first ultraviolet lamp module 12 is powered on and starts to work, and emits ultraviolet light to the inside of the toothbrush 6 and the cup body 2. Sterilize and sterilize, control the motor 31 to work through the base control module 34, the output shaft of the motor 31 rotates and drives the lower clutch 32 to rotate, which in turn drives the upper clutch 33 to rotate, and then drives the fixed bracket 4 to rotate through the transmission shaft, and finally drives to be installed on the fixed bracket 4. The toothbrush 6 starts to rotate at a high speed, and then the water and stains in the brush head are thrown out, so that the toothbrush 6 can be quickly cleaned and dried. After sterilization and drying, as long as the motor 31 is turned off and the pressure switch 13 is not stressed, when brushing teeth, the toothbrush 6 is taken out, and the cup body 2 is removed from the base 3 as a mouthwash cup, and the teeth can be brushed. The toothbrush disinfection automatically cleans the sterile cup, which can sterilize the toothbrush 6 through the ultraviolet lamp, and can also sterilize the cup body 2 to ensure that the toothbrush and the mouthwash cup used by the user are sterile. In addition, combined with the motor 31 The installed toothbrush 6 is rotated at a high speed, and the water and stains in the brush head of the toothbrush 6 are thrown out by centrifugal force, which improves cleaning and efficiency, makes the toothbrush 6 dry quickly, and can also reduce the breeding of bacteria. In addition, if only the sterilization and disinfection treatment is required, the base 3 is not required, and the sterilization and disinfection treatment can be completed through the cup body 2 and the cup cover 1 .

Preferably, in this embodiment, a cup brush 5 is also included, and the cup brush 5 includes a cup-shaped brush body and bristles arranged outside the brush body; When the brush body is clamped on the fixing bracket 4 , the brush bristles abut on the side wall and bottom of the cup body 2 .

By setting the cup brush 5, the cup body 2 can be cleaned. When the cup body 2 needs to be cleaned, the cup brush 5 is clamped to the outside of the fixing bracket 4 for relative fixing. Specifically, a vertical boss can be provided on the outside of the fixing bracket 4, and the bottom opening of the brush body is provided with a The matching grooves will not rotate relative to each other after they are installed together; then the bottom of the cup body 2 is clamped into the groove on the top of the base 3, and the motor 31 is controlled to rotate, thereby driving the fixed bracket 4 to rotate, and the fixed bracket 4 The cup brush 5 is driven to rotate, thereby cleaning the inside of the cup body 2. This method has high cleaning efficiency and good effect, and solves the problem that the cup body is not easy to clean by hand due to the large depth and small diameter of the cup body.

Preferably, the transmission shaft at the top of the upper clutch 33 is eccentrically and fixedly connected to the fixing bracket 4 . Through the eccentric connection method, the toothbrush 6 is rotated eccentrically during operation, the centrifugal force is increased, and the effect of drying and removing stains is improved.

Preferably, in this embodiment, the cover body 11 is further provided with a dryer 14 for drying the inside of the cup body 2 , and the cover body 11 is further provided with an exhaust hole 15 . By setting the dryer 14, the toothbrush 6 and the cup body 2 can be dried, so as to speed up the drying of the toothbrush 6 and the cup body 2, and avoid the breeding of bacteria in the humid environment. The dryer can also be used to preheat the water in the cup body. When there is no hot water in winter, the cold water can be preheated by the hot air blown out of the dryer to improve the comfort during washing. Beneficial to the health of the teeth, but also protects the throat and tongue from irritation.

In another optional embodiment of the present invention, as shown in FIG. 3 , the cover body 11 is further provided with a first controller and a timer, the first ultraviolet lamp module 12 , the pressure switch 13 and the timer All are connected to the first controller, and the first controller, the first ultraviolet lamp module 12, the pressure switch 13, and the timer are all connected to the power supply. When the pressure switch 13 is under pressure, it sends a pressure signal to the first controller. The first controller sends a lamp control command to control the first ultraviolet lamp module 12 to work, and emits ultraviolet light for sterilization and disinfection. At the same time, the first controller sends a timer to the timer. Timing instruction, the timer starts timing, when the preset time is reached, the timer feeds back a timing completion signal to the first controller, and the first controller sends a lamp control instruction to control the first ultraviolet lamp module 12 to stop working, so as to realize the first ultraviolet lamp The automatic sterilization of the module 12 does not require manual intervention, which is convenient and intelligent, and at the same time, the user can be prevented from being irradiated by ultraviolet light. Optionally, it also includes an indicator light connected in series with the first ultraviolet lamp module 12, and the indicator light is arranged on the top of the cover body 11. When the first ultraviolet lamp module 12 is powered on, the indicator lights are lighted together, and the first ultraviolet lamp module When 12 loses power, the indicator light is off, which can be used to remind the user of the working state of the first ultraviolet lamp module 12 . In this embodiment, a rechargeable battery can be selected as the power source in the cup cover 11 .

Preferably, two pressure switches 13 are provided on the cover body 11 and located opposite to the place where the cup body 2 is buckled, and both of the two pressure switches 13 are connected to the first controller. The first UV lamp module can only be powered on when it is under pressure. The setting of a single pressure switch may cause the first UV lamp module to work because the user accidentally presses the pressure switch when placing it or grasping it with his hand, which is a safety risk. A UV lamp module only works, providing safety during use.

Preferably, the base control module 34 includes a second controller, a PWM speed controller, and a control panel 37, the PWM speed controller and the control panel 37 are all connected to the second controller, and the motor 31 is connected to the The PWM governor is connected, and the second controller, the PWM governor, the control panel 37, and the motor 31 are all connected to the power supply module. The user inputs control commands for different speed gears through the control panel 37, and the second controller receives the control commands and sends corresponding speed drive signals to the PWM governor, which then controls the speed of the motor. Users can choose different speed gears according to different working conditions, such as high gear when drying the toothbrush, and low gear when cleaning the cup alone.

Preferably, it also includes a second ultraviolet lamp module 35 and a timer connected to the second controller, the second ultraviolet lamp module 35 is arranged in the card slot on the top of the base 3, and the power supply module is a second ultraviolet lamp module 35. The lamp module 35 and the timer are powered; the cup body 2 is made of quartz glass. The cup body is made of quartz glass, and a second UV lamp module 35 can be set in the slot on the top of the base to irradiate ultraviolet light from the bottom and top of the cup body 2 at the same time, so as to eliminate dead spots and improve the effect of sterilization and disinfection. , combined with the timer and the second controller, can realize the timed killing of the second ultraviolet lamp module 35 , the control process of which can be referred to the above-mentioned timed control process of the first ultraviolet lamp module 12 , which will not be repeated here. During implementation, the power supply module can choose a rechargeable battery, or can choose to directly connect the external power supply for the charger.

During specific implementation, the base 3 is provided with a plurality of ventilation holes 36 to facilitate the heat dissipation of the motors 31 and the like in the base 3 and prolong the service life. The control panel 37 is a touch screen or a key combination panel. When the key combination panel is selected, it includes an ultraviolet lamp control button and a plurality of motor control buttons of different gears. It also includes an LED lighting module, which can be used for emergency lighting, and the LED lighting module is arranged on the cup cover or the base. When set on the cup cover, it is powered by the power supply in the cup cover, and when set on the base, it is powered by the power supply module in the base. Both the first UV lamp module and the second UV lamp module include two UVC LED lamp beads, and both the first controller and the second controller are PLC programmable controllers.

It can be understood that, the same or similar parts in the above embodiments may refer to each other, and the content not described in detail in some embodiments may refer to the same or similar content in other embodiments.

The toothbrush disinfection automatic cleaning sterile cup provided by the utility model has the following advantages:

1. By setting the first UV lamp module on the cup cover, the toothbrush and the cup body can be sterilized and disinfected at the same time, ensuring that the toothbrush and the cup body used by the user are sterile and safe to use;

2. By controlling the rotation of the motor to drive the toothbrush to rotate at a high speed, the water and stains in the brush head can be thrown out, improving the cleaning efficiency, and at the same time drying the toothbrush as soon as possible to avoid the growth of bacteria;

3. It can also be used for disinfection of baby products such as pacifiers and spoons. It only needs to put the pacifier and spoon into the cup body, and use the first ultraviolet lamp module on the cup cover to sterilize;

4. The cup body can be used as a mouthwash cup or a water cup;

5. Equipped with a cup brush, which can automatically clean the inside of the cup body, with high cleaning efficiency and good effect, which solves the problem that the cup body is not easy to clean by hand due to the large depth of the cup body and the small diameter;

6. There is no need to replace the toothbrush frequently, saving the cost of living;

7. Simple structure, easy to carry on business trips.

The above descriptions are only preferred embodiments of the present invention, and are not intended to limit the present invention. For those skilled in the art, the present invention may have various modifications and changes. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the protection scope of the present invention.

Claims (10)

1. A toothbrush disinfection automatic cleaning aseptic cup, characterized in that it comprises a cup body, a cup cover, a fixed bracket, a base, a lower clutch and an upper clutch matched with the lower clutch; the fixing bracket is arranged on the inner bottom of the cup body; The base is provided with a motor and a base control module and a power supply module connected to it, the top of the base is provided with a slot that is convenient for the bottom of the cup body to be clamped, the lower clutch is installed on the output shaft of the motor, and all the The lower clutch is arranged in the card slot; The transmission shaft on the top of the upper clutch penetrates through the bottom of the cup body and is fixedly connected with the fixing bracket; The cup cover includes a cover body, a power supply disposed in the cover body, a first ultraviolet lamp module disposed at the bottom of the cover body, and a pressure force located on the cover body and at the place where the cup body is buckled. A switch, the power supply is used to supply power to the first ultraviolet lamp module and a pressure switch, and the pressure switch is used to control the power supply of the first ultraviolet lamp module on and off. 2 . The aseptic cup for toothbrush disinfection and automatic cleaning according to claim 1 , further comprising a cup brush, the cup brush comprising a cup-shaped brush body and bristles arranged outside the brush body; the brush The bottom of the body is provided with an opening for clamping with the fixing bracket, and when the brush body is clamped on the fixing bracket, the bristles abut on the side wall and the bottom of the cup body. 3. The aseptic cup for toothbrush disinfection and automatic cleaning according to claim 1 or 2, wherein the drive shaft on the top of the upper clutch is eccentrically and fixedly connected to the fixing bracket. 4. The aseptic cup for toothbrush disinfection and automatic cleaning according to claim 1 or 2, wherein the cover body is further provided with a dryer for drying the cup body, and the cover body is also provided with a dryer. There are vent holes. 5. The toothbrush disinfection automatic cleaning sterile cup according to claim 1 or 2, characterized in that, the cover body is also provided with a first controller, a timer, the first ultraviolet lamp module, a pressure switch, a timer The first controller, the first UV lamp module, the pressure switch and the timer are all connected to the power supply. 6. The aseptic cup for toothbrush disinfection and automatic cleaning according to claim 5, characterized in that, two pressure switches are provided on the cover body and located opposite to the place where the cup body is buckled, and the two pressure switches are connected to the first controller. 7. The toothbrush disinfection automatic cleaning sterile cup according to claim 1 or 2, wherein the base control module comprises a second controller, a PWM governor, and a control panel, and the PWM governor, control The panels are all connected to the second controller, the motor is connected to the PWM governor, and the second controller, the PWM governor, the control panel, and the motor are all connected to the power supply module. 8. The toothbrush disinfection automatic cleaning sterile cup according to claim 7, characterized in that, further comprising a second ultraviolet lamp module and a timer connected with the second controller, the second ultraviolet lamp module being arranged on the in the slot on the top of the base; the cup body is made of quartz glass. 9 . The aseptic cup for toothbrush disinfection and automatic cleaning according to claim 7 , wherein a plurality of ventilation holes are provided on the base. 10 . 10. The aseptic cup for toothbrush disinfection and automatic cleaning according to claim 7, wherein the control panel is a touch screen or a key combination panel.
