Abstract

The utility model relates to an intelligent cabinet with a socket, comprising: a cabinet body and a socket; one end of the cabinet body is provided with a storage slot, the socket is arranged in the storage slot, and one side wall of the storage slot is provided with A first wire hole, the first wire hole communicates with the outside of the cabinet. In one embodiment, the first wire hole includes a wire outlet sub-hole and an object outlet sub-hole that are communicated with each other, and the width of the material outlet sub-hole is greater than the width of the wire outlet sub-hole. By arranging a storage slot in the cabinet, the socket can be arranged in the storage slot, avoiding the exposure of the socket, and effectively avoiding the safety hazard of children playing with the socket. In addition, the wires of external mobile phones or electrical appliances can be inserted into the storage slot through the wire hole. In this way, the wires can be stored in the storage slot, which avoids the messy arrangement of wires on the outside of the cabinet, and makes the use of the cabinet more orderly.

Description

Smart Cabinets with Sockets

technical field

The utility model relates to the technical field of intelligent furniture, in particular to an intelligent cabinet with sockets.

Background technique

With the continuous development of the economy, people's living standards have been continuously improved, and the functional requirements of furniture are also getting higher and higher. For example, a socket panel is provided on the bedside table, so that the user does not need to add additional sockets. In this way, the socket on the bedside table can be used to charge mobile phones, tablets or other electrical appliances, so that the functions of the bedside table are diversified and the user's charging is more convenient. However, the sockets of the current furniture such as bedside tables are all set on the top surface of the cabinet. When the user charges or takes electricity, the wires are exposed outside the cabinet, resulting in a messy arrangement of the wires outside the cabinet. On the other hand, the exposure of the socket is easy Make children play, there is a safety hazard.

Utility model content

Based on this, it is necessary to provide a smart cabinet with a socket.

An intelligent cabinet with a socket, comprising: a cabinet body and a socket;

One end of the cabinet is provided with a storage slot, the socket is arranged in the storage slot, and a side wall of the storage slot is provided with a first wire hole, and the first wire hole is connected to the outside of the cabinet. Connected.

In one embodiment, the first wire hole includes a wire outlet sub-hole and an object outlet sub-hole that are communicated with each other, and the width of the object outlet sub-hole is greater than the width of the wire outlet sub-hole.

In one embodiment, the cabinet has a bottom and a top, and the first line hole is opened in a side wall of the storage slot on a side close to the top of the cabinet.

In one embodiment, the socket is disposed on a side wall of the storage slot on a side close to the bottom of the cabinet.

In one embodiment, the storage slot is opened at a position of the cabinet body close to the top of the cabinet body.

In one embodiment, the cabinet body has a first end and a second end, and the storage slot penetrates the first end of the cabinet body and the second end of the cabinet body.

In one embodiment, the cabinet is provided with a drawer, the drawer is pulled out toward the first end of the cabinet, and the socket is disposed in the storage slot at a position close to the second end of the cabinet .

In one embodiment, a baffle is arranged in the storage slot, and the baffle divides the storage slot into a first storage sub-slot and a second storage sub-slot, and the first storage sub-slot is located in the cabinet The first end of the cabinet, the second storage sub-slot is located at the second end of the cabinet body, and the socket is arranged in the second storage sub-slot.

In one embodiment, the baffle plate is provided with a second wire hole, and the first object storage sub-slot and the second object storage sub-slot communicate with each other through the second wire hole.

In one embodiment, the socket is provided with a jack, and the jack includes at least one of three jacks, two jacks and a USB interface; the second end of the cabinet is provided with an external power supply interface, so The external interface of the power supply is electrically connected to the socket, and the external interface of the power supply is used for connecting with the external mains of the cabinet.

The beneficial effect of the utility model is that: by arranging a storage slot in the cabinet, the socket can be arranged in the storage slot, so as to avoid the exposure of the socket, and effectively avoid the hidden danger of children playing with the socket. The wire hole is inserted into the socket in the storage slot, so that the wires can be stored in the storage slot, which avoids the messy arrangement of the wires on the outside of the cabinet, and makes the use of the cabinet more orderly.

Description of drawings

In order to more clearly illustrate the embodiments of the present utility model or the technical solutions in the prior art, the following briefly introduces the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description These are just some embodiments of the present invention, and for those of ordinary skill in the art, other drawings can also be obtained from these drawings without creative labor.

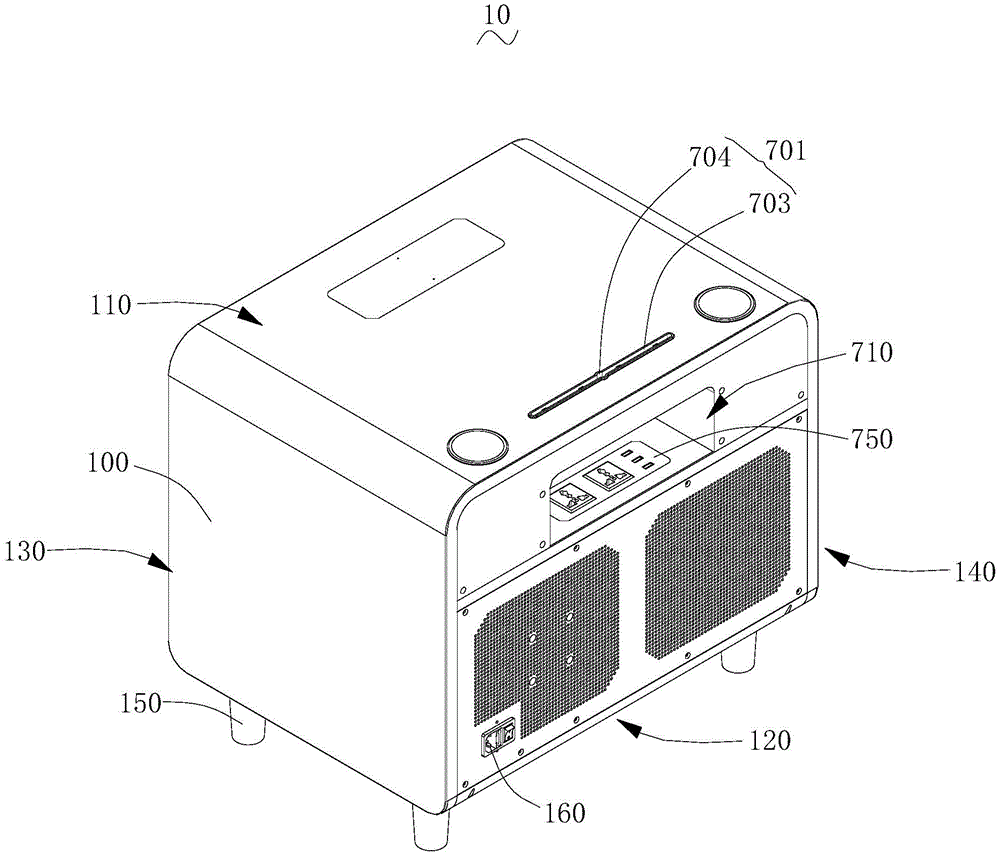

FIG. 1 is a schematic structural diagram of a smart cabinet with a socket in one direction according to an embodiment;

2 is a schematic structural diagram of a smart cabinet with a socket in another direction according to an embodiment;

FIG. 3 is a schematic structural diagram of a smart cabinet with a socket in another direction according to an embodiment.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

It should be understood that the cabinet in this application can be applied to different types of cabinets. For example, the cabinet can be a bedside cabinet, a file cabinet, a bookcase, or a TV cabinet, or other household or office use. cabinet. In the following embodiments, the cabinet is applied to a bedside table for further explanation.

As shown in FIG. 1 and FIG. 2 , it is a smart cabinet 10 with sockets according to an embodiment of the present invention, including: a cabinet body 100 and a socket 750 ; The socket 750 is disposed in the storage slot 710 . A side wall of the storage slot 710 defines a first wire hole 701 , and the first wire hole 701 communicates with the outside of the cabinet 100 .

Specifically, the storage slot 710 is used to place items, and can also be used to accommodate wires. The storage slot 710 communicates with the outside of the cabinet 100 through the first wire hole 701 , so that the straps of mobile phones, tablets or other electrical appliances outside the cabinet 100 The wire with the plug can be inserted into the socket 750 in the storage slot 710 through the first wire hole 701 . On the one hand, the socket 750 is prevented from being exposed, which effectively avoids the potential safety hazard of children playing with the socket 750. Being stored in the storage slot 710 avoids the disorderly arrangement of the wires on the outside of the cabinet 100 , so that the cabinet 100 can be used in a more orderly manner.

In one embodiment, as shown in FIG. 1 and FIG. 2 , the first wire hole 701 includes a wire outlet sub-hole 703 and an outlet sub-hole 704 that communicate with each other, and the outlet sub-hole 704 is wider than the outlet wire The width of the sub-hole 703. In this embodiment, the wire outlet sub-hole 703 is used to pass through the wire, and the outlet sub-hole 704 is used to make the width of the Type-C plug, lighting connector, USB (Universal Serial Bus, Universal Serial Bus) plug or other plugs wider than The wire objects pass through, for example, the wire outlet sub-hole 703 is arranged in the shape of a long slit, the wire outlet sub-hole 704 is located in the middle of the wire outlet sub-hole 703, and the length of the wire outlet sub-hole 703 is greater than the length of the outlet sub-hole 704, so that the The overall main width of the first wire hole 701 is small, which prevents other objects from passing through and improves safety, and the outlet sub-hole 704 in the middle can allow Type-C plugs and lighting connectors to pass through, making the insertion of the charging cable more convenient , In addition, since the wire outlet sub-hole 703 has a larger length, the wire can be moved laterally in the wire outlet sub-hole 703, so that the movement of the wire is more flexible. It should be understood that the shape of the cross-section of the material outlet sub-hole may be a circle, a square, a triangle or a polygon, and the cross-sectional shape is not limited in this application. In one embodiment, the shape of the cross-section of the material outlet sub-hole 704 is round.

In one embodiment, referring to FIG. 1 and FIG. 2 , the cabinet 100 has a bottom 120 and a top 110 , and the first line hole 701 is opened in the storage slot 710 near the cabinet 100 . Sidewall of one side of the top 110 . Specifically, the bottom 120 of the cabinet 100 is provided with four cabinet feet 150, the cabinet feet 150 are used to support the cabinet 100, the end of the cabinet 100 away from the cabinet feet 150 is the top 110, and the top 110 of the cabinet 100 is flat. The top 110 of the cabinet 100 is used to place items, such as a charging mobile phone or tablet. In this embodiment, the first wire hole 701 penetrates through the top 110 of the cabinet 100 , so that the charging wire can pass through the storage slot 710 The mobile phone or tablet placed on the top 110 of the cabinet 100 is connected through the first wire hole 701 to make charging more convenient.

In one embodiment, as shown in FIG. 1 , the socket 750 is disposed on the side wall of the storage slot 710 on the side close to the bottom 120 of the cabinet 100 . In this embodiment, a side wall of the storage slot 710 close to the bottom 120 of the cabinet 100 is provided with an installation slot, that is to say, an installation slot is opened at the bottom of the storage slot 710, and the socket 750 is embedded in the installation slot. The installation of the socket 750 is more convenient, and the plug inserted in the socket 750 is more stable, and is not easy to fall off under the action of gravity.

In one embodiment, as shown in FIG. 1 , the storage slot 710 is opened at a position of the cabinet body 100 close to the top 110 of the cabinet body 100 . In this embodiment, the storage slot 710 is disposed near the top 110 of the cabinet 100 , so that the socket 750 is close to the top 110 of the cabinet 100 , which is convenient for charging, and avoids that the distance between the socket 750 and the top 110 of the cabinet 100 is too large. This leads to the problem that the charging cable is not long enough.

In one embodiment, referring to FIG. 1 and FIG. 2 , the cabinet body 100 has a first end and a second end, and the storage slot 710 penetrates the first end of the cabinet body 100 and the first end of the cabinet body 100 . second end. In this embodiment, the storage slot 710 runs through both ends of the cabinet body 100, so that both ends of the storage slot 710 can communicate with the outside of the cabinet body 100, so that the user can hold the socket 750 to enter from both ends of the storage slot 710, The plug can be easily inserted into the socket 750 in the storage slot 710 .

In one embodiment, as shown in FIG. 2 , the cabinet 100 is provided with a drawer 170 , the drawer 170 is pulled out toward the first end of the cabinet 100 , and the socket 750 is disposed in the storage slot 710 A position close to the second end of the cabinet body 100 in the cabinet. The first wire hole 701 is opened at a position close to the second end of the cabinet body 100 . In this embodiment, the cabinet body 100 is provided with a drawer 170, and the drawer 170 is used for accommodating articles, so that the cabinet body 100 has the function of storing articles, so that the functions of the cabinet body 100 are more diverse. In this embodiment, for ease of understanding, please refer to FIG. 1 and FIG. 2 , the pull-out direction of the drawer 170 is defined as the front end 130 of the cabinet body 100 , and the push-in direction of the drawer 170 is defined as the rear end 140 of the cabinet body 100 , therefore, the first end of the cabinet body 100 is the front end 130, and the second end of the cabinet body 100 is the rear end 140. In this embodiment, the storage slot 710 runs through the front end 130 and the rear end 140 of the cabinet body 100. The plug is inserted into the socket 750 in the storage slot 710 from the front end 130 or the rear end 140 of the cabinet 100 , respectively. Since the socket 750 is disposed in the storage slot 710 near the rear end 140 of the cabinet 100 , and the rear end 140 of the cabinet 100 is generally against the wall during use, the socket 750 is kept away from the cabinet 100 . The front end 130 improves the concealment of the socket 750, effectively prevents children from touching the socket 750, and further improves the safety.

In one embodiment, as shown in FIG. 2 , the drawer 170 is disposed at a position close to the bottom 120 of the cabinet body 100 , that is, in this embodiment, the storage slot 710 is located above the drawer 170 , thus, It is helpful for the mobile phone on the top 110 to be inserted into the socket 750 in the storage slot 710 through the wire.

In some embodiments, the drawer 170 and the storage compartment are arranged side by side. In another embodiment, the drawer 170 may be disposed near the top of the cabinet, and the storage slot may be disposed near the bottom of the cabinet.

In one embodiment, referring to FIG. 2 and FIG. 3 , a baffle 720 is arranged in the storage slot 710 , and the baffle 720 divides the storage slot 710 into a first storage sub-slot 711 and a second storage slot The first storage sub-slot 711 is located at the first end of the cabinet body 100, the second storage sub-slot 712 is located at the second end of the cabinet body 100, and the socket 750 is disposed at the first end of the cabinet body 100. The two objects are placed in the sub-slot 712 . In this embodiment, the baffle 720 is linked with each side wall of the storage slot 710, and the front end 130 and the rear end 140 of the storage slot 710 are separated by the baffle 720. The front end 130 is the first storage sub-slot 711, and the rear end 140 is the second storage sub-slot 712, the first line hole 701 is opened on the side wall of the second storage sub-slot 712 near the top of the cabinet 100, so that the first storage sub-slot 711 can store articles, and the second storage sub-slot 711 The sub-slot 712 can improve the charging of the socket 750. Since the first storage sub-slot 711 and the second storage sub-slot 712 are separated by the baffle plate 720, children are further prevented from touching the socket 750, and the safety is further improved.

In one embodiment, as shown in FIG. 3 , the baffle plate 720 is provided with a second wire hole 702 , and the first storage sub-slot 711 and the second storage sub-slot 712 communicate with each other through the second wire hole 702 . In this embodiment, the second wire hole 702 can adopt the same structure as the first sub-slot. For example, the width of the middle portion of the second wire hole 702 is larger than the width of both ends, and the width of the middle portion is larger, which is conducive to the passage of plugs. In this embodiment, by opening the second wire hole 702 on the baffle plate 720, the electric wire can pass through the second wire hole 702 from the second storage sub-slot 712 and enter the first storage sub-slot 711, so that the charging electrical appliance such as the mobile phone can be placed Charging is performed in the first storage sub-slot 711 without occupying the space on the top 110 of the cabinet 100 , which makes the use of the cabinet more convenient, and makes the arrangement of items on the top 110 of the cabinet more concise and orderly.

In one embodiment, the socket 750 is provided with jacks, and the jacks include at least one of three jacks, two jacks, and a USB interface. In this embodiment, the socket 750 is provided with a plurality of jacks, and the jacks include three jacks, two jacks and a USB interface, so that different types of plugs can be inserted into the jack 750 for charging, and the three jacks conform to the British system , Japanese and American regulations, making the compatibility higher.

In one embodiment, as shown in FIG. 1 and FIG. 3 , the second end of the cabinet body 100 is provided with an external power supply interface 160 , the rear end 140 of the cabinet body 100 is provided with an external power supply interface 160 , and the external power supply interface 160 is connected to the socket 750 . For electrical connection, the external power supply interface 160 is connected to the external mains power of the cabinet body 100 , so that the cabinet body 100 can be connected to the mains power supply through the external power supply interface 160 , thereby supplying power to the socket 750 . In one embodiment, the external power supply interface 160 is provided with a switch, and the switch is used to control the on-off of the external power supply interface 160 , so that the power supply of the socket 750 can be controlled through the switch, thereby improving safety. The cabinet of the present application can also be provided with electrical equipment such as a desk lamp, a Bluetooth speaker, and a wireless charging module, which are not described one by one in this embodiment.

In the above-mentioned embodiments, by arranging the storage slot 710 in the cabinet 100, the socket 750 can be arranged in the storage slot 710, so as to prevent the socket 750 from being exposed, and effectively avoid the potential safety hazard of children playing with the socket 750. The wires of the electrical appliance can be inserted into the socket 750 in the storage slot 710 through the wire hole, so that the wires can be stored in the storage slot 710, which avoids the messy arrangement of the wires on the outside of the cabinet 100, and makes the cabinet 100 more usable. to order.

The technical features of the above-described embodiments can be combined arbitrarily. For the sake of brevity, all possible combinations of the technical features in the above-described embodiments are not described. However, as long as there is no contradiction between the combinations of these technical features, All should be regarded as the scope described in this specification.

The above-mentioned embodiments only represent several embodiments of the present utility model, and the descriptions thereof are specific and detailed, but should not be construed as a limitation on the scope of the utility model patent. It should be pointed out that for those of ordinary skill in the art, some modifications and improvements can be made without departing from the concept of the present invention, which all belong to the protection scope of the present invention. Therefore, the protection scope of the patent for this utility model shall be subject to the appended claims.

Claims (10)

1. An intelligent cabinet with a socket, comprising: a cabinet body and a socket;

the improved multifunctional cabinet is characterized in that a storage groove is formed in one end of the cabinet body, the socket is arranged in the storage groove, a first wire hole is formed in one side wall of the storage groove, and the first wire hole is communicated with the outside of the cabinet body.

2. The intelligent cabinet with socket of claim 1, wherein the first line hole comprises an outlet line hole and an outlet line hole which are communicated with each other, and the width of the outlet line hole is larger than that of the outlet line hole.

3. The intelligent cabinet with socket according to claim 1, wherein the cabinet body has a bottom and a top, and the first wire hole is opened in a side wall of the storage slot near a side of the top of the cabinet body.

4. The intelligent cabinet with the socket according to claim 3, wherein the socket is disposed on a side wall of one side of the storage groove close to the bottom of the cabinet body.

5. The intelligent cabinet with the socket according to claim 3, wherein the storage slot is opened at a position of the cabinet body close to the top of the cabinet body.

6. The intelligent cabinet with socket according to claim 1, wherein the cabinet body has a first end and a second end, and the storage slot extends through the first end of the cabinet body and the second end of the cabinet body.

7. The intelligent cabinet with the socket according to claim 6, wherein the cabinet body is provided with a drawer which is pulled out towards the first end of the cabinet body, and the socket is arranged in the storage groove at a position close to the second end of the cabinet body.

8. The intelligent cabinet according to claim 6, wherein a baffle is disposed in the storage tank, the baffle divides the storage tank into a first storage sub-tank and a second storage sub-tank, the first storage sub-tank is located at the first end of the cabinet body, the second storage sub-tank is located at the second end of the cabinet body, and the socket is disposed in the second storage sub-tank.

9. The intelligent cabinet with the socket according to claim 8, wherein the baffle plate is provided with a second wire hole, and the first article holding sub-groove and the second article holding sub-groove are communicated through the second wire hole.

10. The intelligent cabinet with a socket according to any one of claims 1 to 9, wherein the socket is provided with a jack, and the jack comprises at least one of a triple jack, a double jack and a USB interface; the second end of the cabinet body is provided with a power external interface, the power external interface is electrically connected with the socket, and the power external interface is used for being connected with commercial power outside the cabinet body.
