Abstract

The utility model discloses a matching structure of a rolling window frame and a rear-view mirror reinforcing plate, which comprises a vehicle door inner panel and a vehicle door front panel which are arranged in an integrated structure, and a B-pillar is fixedly connected to one side of a window opened on the upper part of the vehicle door inner panel. Rolled window frame, and the upper side of the window opened on the inner panel of the vehicle door is fixedly connected with the rolled window frame, one side of the inner panel of the vehicle door is fixedly installed with a connecting plate, and one end of the connecting plate is provided with a plug part, the The plug part is fixedly inserted into the socket, one side of the front panel of the vehicle door is fixedly connected with a glass guide rail, the upper end of the glass guide rail is fixedly connected with the lower part of the rolled window frame, and the inner side of the rolled window frame is fixedly connected with a glass guide rail. A rear-view mirror reinforcing plate, one end of the connecting plate is provided with a connecting portion, and the connecting portion is fixedly connected with the rear-view mirror reinforcing plate. The matching structure of the rolled window frame and the rear-view mirror reinforcing plate of the utility model can effectively prepare for the subsequent remodeling of models, and reduce the cost of remodeling of car models.

Description

A matching structure of rolled window frame and rearview mirror reinforcement plate

technical field

The utility model relates to the technical field of automobile window frames, in particular to a matching structure of a rolled window frame and a rear-view mirror reinforcing plate.

Background technique

At present, most car companies are reducing costs and remodeling models one or two years after the launch of a certain model. If there is a bright strip on the rolled window frame of the original model, the bright strip will be cancelled in the later model change, resulting in leakage of the rearview mirror reinforcement plate of the original window frame and the joint of the window frame. At this time, the rearview mirror reinforcement plate, The interior door panels have undergone design changes. Costs for mold changes and wasted project time. Now, a structure is invented to achieve the effect that the reinforcing plate of the rearview mirror does not leak out after the bright strip of the window frame is cancelled.

At present, most models are equipped with rolled window frames with bright strips butt-jointed with rear-view mirror reinforcement panels, and do not extend directly to the inner door panels. As a result, the bright strips were canceled for the later remodeled models, the rear-view mirror reinforcement plate of the original window frame leaked out, the window frame structure could no longer be used, or the replacement of the rear-view mirror reinforcement plate and the door inner plate mold was expensive. Therefore, we propose a matching structure between the rolled window frame and the rearview mirror reinforcing plate.

Utility model content

The purpose of the utility model is to provide a matching structure of a rolled window frame and a rear-view mirror reinforcing plate, changing the traditional structure, and the matching structure of the rolled window frame and the rear-view mirror reinforcing plate can effectively prepare for the subsequent model changes, To reduce the cost of vehicle model remodeling, the problems raised in the above background art can be solved.

To achieve the above object, the utility model provides the following technical solutions:

A rolling window frame and a rear-view mirror reinforcing plate matching structure, comprising a vehicle door inner panel and a vehicle door front panel arranged as an integral structure, a B-pillar rolled window frame is fixedly connected to one side of a window opened on the upper part of the vehicle door inner panel, A rolling window frame is fixedly connected to the upper side of the window opened on the upper part of the inner panel of the vehicle door; A plug part is provided, the plug part is fixedly inserted into the socket, a glass guide rail is fixedly connected to one side of the front panel of the vehicle, and the upper end of the glass guide rail is fixedly connected to the lower part of the rolling window frame, and the rolling A rear-view mirror reinforcing plate is fixedly connected to the inner side of the window frame, one end of the connecting plate is provided with a connecting portion, and the connecting portion is fixedly connected with the rear-view mirror reinforcing plate.

Preferably, the lower part of the glass guide rail is arranged between the connecting plate and the front panel of the vehicle door.

Preferably, a groove portion is provided on one side of the rear-view mirror reinforcing plate, and an installation through opening is opened inside the groove portion.

Preferably, a protruding plate is fixedly connected to the lower part of the rear-view mirror reinforcing plate, and a threaded blind hole is formed on the protruding plate.

Preferably, an extension portion is provided at one end of the rolled window frame, and the extension portion surrounds the rear-view mirror reinforcing plate and is fixedly connected with the front panel of the vehicle door.

Preferably, the rear-view mirror reinforcing plate is fixed to the rolled window frame by welding.

Preferably, one side of the glass guide rail is fixed on the rear-view mirror reinforcing plate by spot welding.

Compared with the prior art, the beneficial effects of the present utility model are:

The utility model abandons the original docking mode with the rear-view mirror reinforcing plate, and adopts a window frame to surround the rear-view mirror reinforcing plate and extend to the inner panel of the vehicle door. The bright strip and the window frame are pasted and snapped together, which reduces the cost of changing the door inner panel and rearview mirror reinforcement plate of the model without the bright strip, as well as the cost of changing the rolled window frame. The matching structure of the rolled window frame and the rear-view mirror reinforcing plate of the utility model can effectively prepare for the follow-up model change, and reduce the cost of the model change of the car company.

Description of drawings

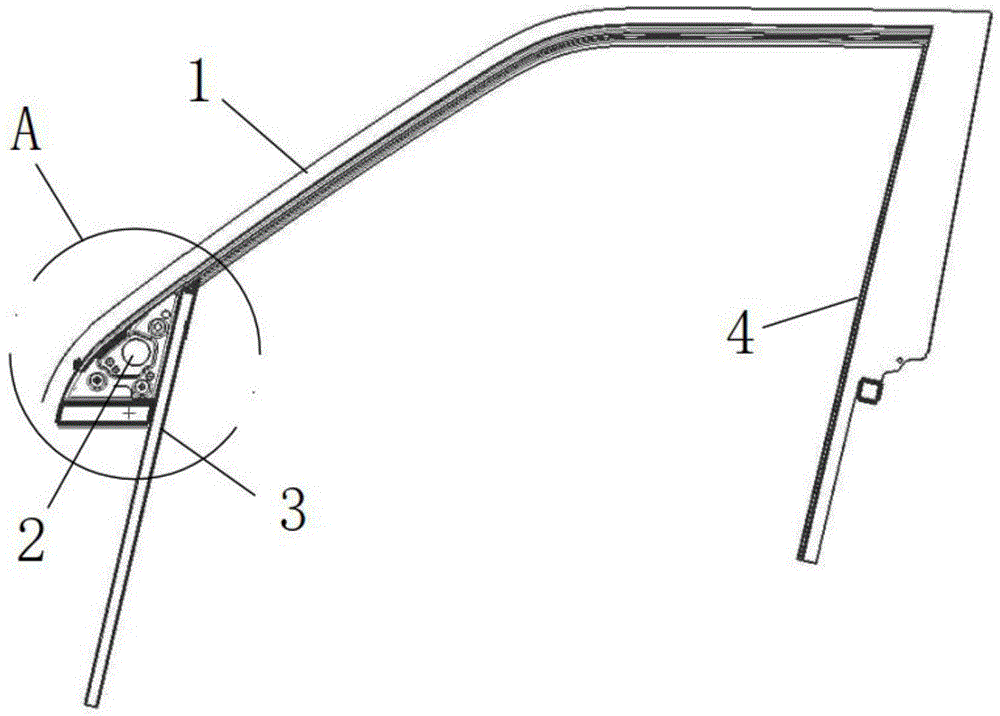

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the partial structure schematic diagram of the present utility model;

FIG. 3 is a schematic structural diagram of part A in FIG. 1 of the present utility model.

In the picture: 1. Rolled window frame; 2. Reinforcement plate of rearview mirror; 3. Glass guide rail; 4. Rolled window frame of B-pillar; 5. Extension; 6. Connecting plate; 7. Door inner panel; 8. Door front panel; 9, socket; 10, plug part; 11, connecting part; 12, bolt; 13, groove part; 14, mounting hole; 15, protruding plate; 16, threaded blind hole.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIGS. 1-3, the present utility model provides a technical solution: the matching structure of the rolled window frame and the rear-view mirror reinforcement plate includes a door inner panel 7 and a door front panel 8 arranged as an integral structure. One side of the window opened on the upper part of the plate 7 is fixedly connected with the B-pillar rolled window frame 4, and the upper side of the window opened on the upper part of the door inner plate 7 is fixedly connected with the rolled window frame 1, and one side of the door inner plate 7 is fixedly installed There is a connecting plate 6, a socket 9 is opened on one side of the door front plate 8, and one end of the connecting plate 6 is provided with a plug part 10, the plug part 10 is fixedly inserted into the socket 9, and the door front plate One side of 8 is fixedly connected with a glass guide rail 3, the upper end of the glass guide rail 3 is fixedly connected to the lower part of the rolled window frame 1, and the inner side of the rolled window frame 1 is fixedly connected with a rear-view mirror reinforcing plate 2, and the One end of the connecting plate 6 is provided with a connecting portion 11 , and the connecting portion 11 is fixedly connected with the rear-view mirror reinforcing plate 2 .

The lower part of the glass guide rail 3 is arranged between the connecting plate 6 and the door front plate 8 . A groove portion 13 is provided on one side of the rear-view mirror reinforcing plate 2 , and an installation through hole 14 is opened inside the groove portion 13 . A protruding plate 15 is fixedly connected to the lower part of the rear-view mirror reinforcing plate 2 , and a threaded blind hole 16 is opened on the protruding plate 15 . One end of the rolled window frame 1 is provided with an extension portion 5 , and the extension portion 5 surrounds the rear-view mirror reinforcing plate 2 and is fixedly connected with the door front panel 8 . The rear-view mirror reinforcing plate 2 is fixed to the rolled window frame 1 by welding. One side of the glass guide rail 3 is fixed on the rearview mirror reinforcing plate 2 by spot welding.

The utility model abandons the original docking mode with the rear-view mirror reinforcing plate, and adopts a window frame to surround the rear-view mirror reinforcing plate and extend to the inner panel of the vehicle door. The bright strip and the window frame are pasted and snapped together, which reduces the cost of changing the door inner panel and rearview mirror reinforcement plate of the model without the bright strip, as well as the cost of changing the rolled window frame. The matching structure of the rolled window frame and the rear-view mirror reinforcing plate of the utility model can effectively prepare for the follow-up model change, and reduce the cost of the model change of the car company.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. The utility model provides a roll window frame and rear-view mirror reinforcing plate matching structure, includes door inner panel (7) and door front bezel (8) that set up as a body structure, its characterized in that: one side of a window arranged at the upper part of the vehicle door inner plate (7) is fixedly connected with a B-pillar rolling window frame (4), and the upper side of a window opening arranged at the upper part of the vehicle door inner plate (7) is fixedly connected with a rolling window frame (1), a connecting plate (6) is fixedly arranged on one side of the vehicle door inner plate (7), a socket (9) is arranged on one side of the vehicle door front plate (8), one end of the connecting plate (6) is provided with a plug part (10), the plug part (10) is fixedly inserted in the socket (9), one side of the front plate (8) of the vehicle door is fixedly connected with a glass guide rail (3), the upper end of the glass guide rail (3) is fixedly connected with the lower part of the rolling window frame (1), the inner side of the rolling window frame (1) is fixedly connected with a rearview mirror reinforcing plate (2), one end of the connecting plate (6) is provided with a connecting part (11), and the connecting part (11) is fixedly connected with the rearview mirror reinforcing plate (2).

2. The rolled window frame and rearview mirror reinforcing plate matching structure as claimed in claim 1, wherein: the lower part of the glass guide rail (3) is arranged between the connecting plate (6) and the front plate (8) of the vehicle door.

3. The rolled window frame and rearview mirror reinforcing plate matching structure as claimed in claim 1, wherein: one side of the rearview mirror reinforcing plate (2) is provided with a groove part (13), and a mounting through hole (14) is formed in the groove part (13).

4. The rolled window frame and rearview mirror reinforcing plate matching structure as claimed in claim 1, wherein: the lower part of the rearview mirror reinforcing plate (2) is fixedly connected with a protruding plate (15), and the protruding plate (15) is provided with a threaded blind hole (16).

5. The rolled window frame and rearview mirror reinforcing plate matching structure as claimed in claim 1, wherein: one end of the rolling window frame (1) is provided with an extension part (5), and the extension part (5) surrounds the rearview mirror reinforcing plate (2) and is fixedly connected with the vehicle door front plate (8).

6. The rolled window frame and rearview mirror reinforcing plate matching structure as claimed in claim 1, wherein: the rearview mirror reinforcing plate (2) is fixed with the rolled window frame (1) through welding.

7. The rolled window frame and rearview mirror reinforcing plate matching structure as claimed in claim 1, wherein: one side of the glass guide rail (3) is welded and fixed on the rearview mirror reinforcing plate (2) through spot welding.
