CN212219345U - A bonding operation device for composite board for polyurethane board - Google Patents

Abstract

The utility model discloses a bonding operation device for a composite sheet for a polyurethane board, which comprises a processing table and a top plate, a casing is fixed on both sides of the processing table, a sliding sleeve is slidably installed in the casing, and the sliding The upper end of the sleeve is fixed with a side plate, and the side plate is located outside the sliding sleeve. There are two side plates in total, and a plastic box and a glue roller are installed between the two side plates. The upper end surface of the processing table is on both sides. Both fixed blocks are fixed, and a roller is installed equidistantly between the two fixed blocks. The plate body is placed on the roller, and the outer side of the fixed block is rotated and installed with a spring clip, and the spring clip is clamped on the outside of the plate body. One side of the lower end surface of the top plate is fixed on the processing table through a support rod, a drive box is fixed on the end surface of the top plate, and a sliding plate is slidably installed in the middle of the lower end surface of the top plate through a sliding rail. The utility model has the advantages of reducing labor consumption, improving production efficiency, uniform gluing, and ensuring product quality.

Description

A bonding operation device for composite board for polyurethane board

technical field

The utility model relates to the technical field of sheet metal processing, in particular to a bonding operation device for a composite sheet used for a polyurethane sheet.

Background technique

Polyurethane board refers to a polyurethane sandwich panel made entirely of PU, or a composite of PU and color steel plates. It is mainly used in the external thermal insulation system of industrial and civil buildings, and has become the most widely used product system of PU. Plywood refers to a board composed of two or more materials. In fact, the concept and production method of composite panels are also different for panels of different materials. In daily life, metal composite panels, wood-plastic composite panels and glass fiber reinforced plastic composite panels are often used.

The existing polyurethane board composite board processing equipment is relatively inconvenient to use, and the bonding operation of the board is mostly performed manually, which is inefficient and prone to deviation, which affects the quality of the finished board; and the existing equipment cannot guarantee the glue coating operation. The glue is applied evenly, and it is easy to cause a bubble layer inside the board during the sticking process, the overall quality of the board is reduced, and long-term use is easy to cause the composite surface to fall off.

Utility model content

The purpose of the utility model is to provide a bonding operation device for a composite sheet for a polyurethane board, which has the advantages of reducing labor consumption, improving production efficiency, uniform gluing, ensuring product quality, and solving the problem of low production efficiency and poor product quality of existing equipment. The problem.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a bonding operation device for a composite sheet for a polyurethane board, comprising a processing table and a top plate, the two sides of the processing table are fixed with a casing, and the casing slides inside. A sliding sleeve is installed, the upper end of the sliding sleeve is fixed with a side plate, and the side plate is located outside the sliding sleeve. There are two side plates in total, and a plastic box and a glue roller are installed between the two side plates. A fixed block is fixed on both sides of the upper end surface of the processing table, and a roller is installed equidistantly between the two fixed blocks. The card is clamped on the outer side of the plate body, the lower end surface of the top plate is fixed on the processing table through a support rod, and the drive box is fixed on the upper end surface of the top plate.

Preferably, a sliding plate is slidably installed in the middle of the lower end surface of the top plate through a sliding rail, telescopic rods are fixed on both sides of the lower end surface of the sliding plate, and vacuum suction cups are fixed at the lower ends of the telescopic rods.

Preferably, legs are fixed on the lower end surface of the processing table, there are four legs in total, and the four legs are distributed in an array, and the lower ends of the legs are sleeved with anti-skid pads.

Preferably, a screw rod is rotatably installed inside the casing, and the screw rod penetrates the sliding sleeve, one end of the casing is fixed with a motor, and the output shaft of the motor is connected with the screw rod.

Preferably, the gluing roller is rotatably installed on the side plate, and the gluing roller is located on the lower side of the plastic box. There is a connecting pipe, and the glue box and the glue roller are located on the upper side of the processing table.

Preferably, there are four supporting rods in total, and the four supporting rods are respectively fixed at the four corners of the upper end surface of the processing table, and top rods are fixed at both ends of the side of the lower end surface of the top plate facing away from the supporting rods.

Preferably, the positions of the sliding plate and the gluing roller are both corresponding to the plate body, and the sliding plate is connected to the inside of the drive box.

Compared with the prior art, the beneficial effects of the present utility model are as follows:

In the utility model, the sliding plate and the glue roller are arranged, the composite material is placed on the cart, the cart is moved to the lower side of the telescopic rod, the external power supply is powered, the device is started, and the staff slides the plate body on the roller, and rotates The spring clip is fixed to the plate body, and the feeding device guides the hot-melt glue into the plastic box through the connecting pipe. The lower end of the plastic box is opened to make the glue drip on the glue roller, start the motor, and the output shaft drives the screw to rotate, so that the sliding The sleeve is placed in the shell to realize sliding, and the sliding sleeve drives the side plate to move, so that the glue roller on the inner side of the side plate rolls on the upper end face of the plate body, so that the glue is evenly spread on the plate body. The rod is lowered to make the vacuum suction cup fit the surface of the composite material, and the external vacuum pump is activated to dry the air inside the vacuum suction cup through the connecting pipe, so that the vacuum suction cup can fix the composite material. The composite material corresponds to the board body, start the electric telescopic rod to descend, so that the composite board is pressed against the upper end face of the board body, and is fixed by glue. After the operation is completed, the vacuum suction cup is released and then reset. Continuous operation, reduce labor consumption, improve production efficiency, ensure uniform application through gluing rollers, and improve processing quality.

Description of drawings

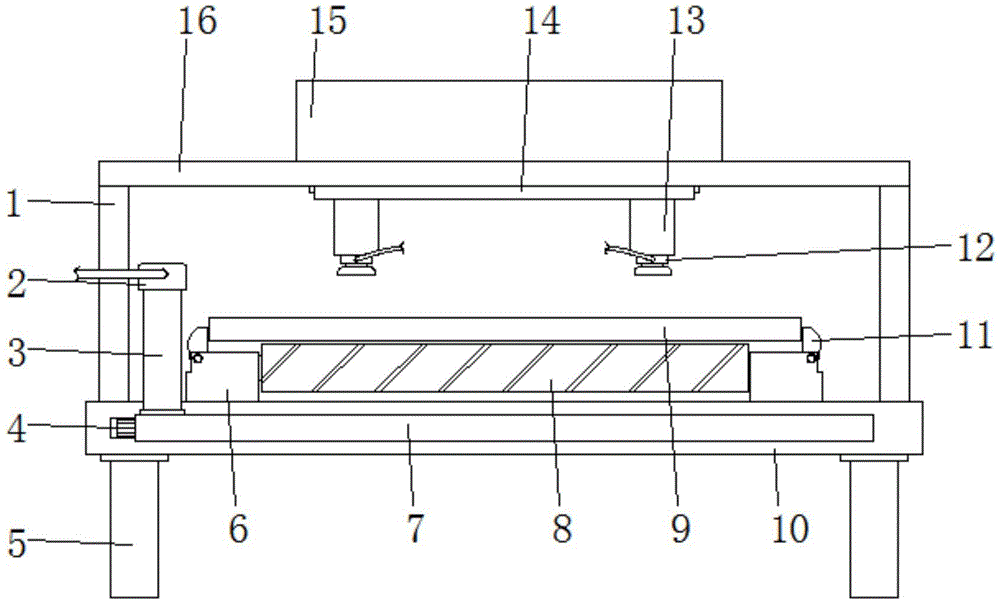

Fig. 1 is the front view structure schematic diagram of the utility model;

Fig. 2 is the side view structure schematic diagram of the utility model;

FIG. 3 is a schematic view of the housing structure of the present invention.

In the picture: 1. Support rod; 2. Plastic box; 3. Side plate; 4. Motor; 5. Outrigger; 6. Fixed block; 7. Shell; 8. Roller; 9. Plate body; 10. Processing table ;11, spring clip; 12, vacuum suction cup; 13, telescopic rod; 14, sliding plate; 15, drive box; 16, top plate; 17, glue roller; 18, ejector rod; 19, sliding sleeve; 20, screw rod .

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "two ends", "one end", "the other end" The orientation or positional relationship indicated by "" etc. is based on the orientation or positional relationship shown in the accompanying drawings, and is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation, so as to The specific orientation configuration and operation is therefore not to be construed as a limitation of the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

In the description of the present utility model, it should be noted that, unless otherwise expressly specified and limited, the terms "installed", "provided with", "connected", etc., should be understood in a broad sense, for example, "connected" may be a fixed The connection can also be a detachable connection, or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection, or an indirect connection through an intermediate medium, and it can be internal communication between two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

Please refer to FIG. 1 to FIG. 3 , an embodiment provided by the present invention: a bonding operation device for a composite sheet for polyurethane board, comprising a processing table 10 and a top plate 16 , and a leg 5 is fixed on the lower end surface of the processing table 10 There are four outriggers 5 in total, and the four outriggers 5 are distributed in an array. The lower ends of the outriggers 5 are sleeved with anti-skid pads. Both sides of the processing table 10 are fixed with a casing 7, and the casing 7 is slidably installed There is a sliding sleeve 19 , a screw rod 20 is rotatably installed inside the casing 7 , and the screw rod 20 penetrates the sliding sleeve 19 .

The upper end of the sliding sleeve 19 is fixed with a side plate 3, and the side plate 3 is located outside the sliding sleeve 19. There are two side plates 3 in total, and a glue box 2 and a glue application roller 17 are installed between the two side plates 3 to apply glue. The roller 17 is rotatably installed on the side plate 3, and the glue application roller 17 is located on the lower side of the plastic box 2. The lower end face of the plastic box 2 is provided with a feeding opening, and the outer sides of the plastic box 2 and the vacuum suction cup 12 are installed with connecting pipes. Both the glue box 2 and the glue application roller 17 are located on the upper side of the processing table 10 .

A fixed block 6 is fixed on both sides of the upper end surface of the processing table 10, and a roller 8 is installed equidistantly between the two fixed blocks 6. A plate body 9 is placed on the roller 8, and a spring clip 11 is rotated and installed on the outer side of the fixed block 6. , and the spring clip 11 is clamped on the outside of the plate body 9, and the lower end face of the top plate 16 is fixed on the processing table 10 through the support rod 1. There are four support rods 1, and the four support rods 1 are respectively fixed on the processing table 10. At the four corners of the upper end surface of the processing table 10 , the lower end surface of the top plate 16 is fixed with ejector rods 18 at both ends of the side away from the support rod 1 .

A drive box 15 is fixed on the upper end surface of the top plate 16 , a sliding plate 14 is slidably installed in the middle of the lower end surface of the top plate 16 through a sliding rail, and a telescopic rod 13 is fixed on both sides of the lower end surface of the sliding plate 14 , and the lower end of the telescopic rod 13 is fixed with a The positions of the vacuum suction cup 12, the sliding plate 14 and the glue roller 17 are all corresponding to the plate body 9, and the sliding plate 14 is connected with the inside of the drive box 15, the composite material is placed on the cart, and the cart is moved to the telescopic rod 13. On the lower side, the external power supply is powered, and the device is started. The staff slides the plate body 9 on the roller 8, rotates the spring clip 11 to fix the plate body 9, and the feeding equipment introduces the hot-melt glue into the glue through the connecting pipe. Box 2, the lower end of the plastic box 2 is opened so that the glue drips onto the glue roller 17, the motor 4 is started, and the output shaft drives the screw 20 to rotate, so that the sliding sleeve 19 can slide in the casing 7, and the sliding sleeve 19 drives the side plate 3. Move, make the glue roller 17 inside the side plate 3 roll on the upper end face of the plate body 9, so that the glue is evenly spread on the plate body 9, after the application is completed, start the electric telescopic rod 13 and the drive box 15, the electric telescopic rod 13 is lowered to make the vacuum suction cup 12 is attached to the surface of the composite material, and the external vacuum pump is activated to dry the air inside the vacuum suction cup 12 through the connecting pipe, so that the vacuum suction cup 12 can fix the composite material. Make the composite material correspond to the board body 9, start the electric telescopic rod 13 to descend, so that the composite board is pressed against the upper end face of the board body 9, and fixed by glue, after the operation is completed, the vacuum suction cup 12 is released and then reset. , reclaiming and bonding operations, while reducing labor consumption, improve production efficiency, and ensure uniform application through gluing roller 17 to improve processing quality.

Working principle: During the operation of the utility model, the composite material cart is moved to the lower side of the telescopic rod 13, the external power supply is supplied, and the device is started. The plate body 9 is fixed, and the feeding device introduces the hot-melted glue into the plastic box 2 through the connecting pipe. The lower end of the plastic box 2 is opened so that the glue drips onto the glue roller 17, and the motor 4 is started, and the output shaft drives the screw 20 to rotate, so that the The sliding sleeve 19 realizes sliding in the casing 7, and the sliding sleeve 19 drives the side plate 3 to move, so that the glue roller 17 inside the side plate 3 rolls on the upper end surface of the plate body 9, so that the glue is evenly spread on the plate body 9, and the application is completed. Activate the electric telescopic rod 13 and the drive box 15, the electric telescopic rod 13 is lowered to make the vacuum suction cup 12 fit the surface of the composite material, and the external vacuum pump is started to dry the air inside the vacuum suction cup 12 through the connecting pipe, so that the vacuum suction cup 12 can fix the composite material, and the electric telescopic After the rod 13 rises, the drive box 15 controls the sliding plate 14 to move in the sliding rail, so that the composite material corresponds to the board body 9, and starts the electric telescopic rod 13 to descend, so that the composite board is pressed against the upper end face of the board body 9, and is fixed by glue. After the operation is completed, the vacuum suction cup 12 is released and each structure is reset. The above is the working principle of the utility model.

It will be apparent to those skilled in the art that the present invention is not limited to the details of the above-described exemplary embodiments, and that the present invention can be implemented in other specific forms without departing from the spirit or essential characteristics of the present invention. Therefore, the embodiments are to be considered in all respects as exemplary and not restrictive, and the scope of the present invention is defined by the appended claims rather than the foregoing description, and it is therefore intended that the All changes within the meaning and range of the required equivalents are embraced within the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

Claims (7)

1. A bonding operation device for a composite sheet for a polyurethane board, comprising a processing table (10) and a top plate (16), characterized in that: both sides of the processing table (10) are fixed with a shell (7), A sliding sleeve (19) is slidably installed in the casing (7), a side plate (3) is fixed on the upper end of the sliding sleeve (19), and the side plate (3) is located outside the sliding sleeve (19). There are two side plates (3) in total, and a glue box (2) and a glue application roller (17) are installed between the two side plates (3), and both sides of the upper end surface of the processing table (10) are fixed with A fixed block (6), and a roller (8) is installed equidistantly between the two fixed blocks (6), a plate body (9) is placed on the roller (8), and the outer side of the fixed block (6) rotates A spring clip (11) is installed, and the spring clip (11) is clipped on the outer side of the plate body (9), and the lower end face of the top plate (16) is fixed on the processing table (10) through a support rod (1). , a drive box (15) is fixed on the upper end surface of the top plate (16). 2 . The bonding operation device for a composite sheet for a polyurethane board according to claim 1 , wherein a sliding board ( 14 ) is slidably installed in the middle of the lower end surface of the top board ( 16 ) through a sliding rail, so the Telescopic rods (13) are fixed on both sides of the lower end surface of the sliding plate (14), and vacuum suction cups (12) are fixed at the lower ends of the telescopic rods (13). 3 . The bonding operation device for a composite sheet for a polyurethane board according to claim 1 , wherein: the lower end surface of the processing table ( 10 ) is fixed with a leg ( 5 ), and the leg ( 5 ) is fixed. 4 . ) is provided with a total of four, and the four legs (5) are distributed in an array, and the lower ends of the legs (5) are sleeved with anti-skid pads. 4 . The bonding operation device for a composite sheet for a polyurethane board according to claim 1 , wherein a screw rod ( 20 ) is rotatably installed inside the casing ( 7 ), and the screw rod ( 20 ) Passing through the sliding sleeve (19), a motor (4) is fixed at one end of the housing (7), and the output shaft of the motor (4) is connected to the lead screw (20). 5. A bonding operation device for a composite sheet for polyurethane board according to claim 1, characterized in that: the gluing roller (17) is rotatably mounted on the side plate (3), and the gluing roller (17) is rotatably mounted on the side plate (3). ) is located on the lower side of the plastic box (2), the lower end face of the plastic box (2) is provided with a feeding opening, and the outside of the plastic box (2) and the vacuum suction cup (12) are provided with connecting pipes. Both the glue box (2) and the glue application roller (17) are located on the upper side of the processing table (10). 6 . The bonding operation device of a composite sheet for a polyurethane board according to claim 1 , characterized in that: there are four supporting rods ( 1 ) in total, and the four supporting rods ( 1 ) are respectively fixed on the At the four corners of the upper end surface of the processing table (10), a top rod (18) is fixed at both ends of the side of the lower end surface of the top plate (16) facing away from the support rod (1). 7 . The bonding operation device for a composite sheet for a polyurethane board according to claim 2 , wherein the positions of the sliding plate ( 14 ) and the gluing roller ( 17 ) are in the same direction as the sheet body ( 9 ). 8 . Correspondingly, and the sliding plate (14) is connected with the inside of the drive box (15).
