CN212216543U - A dust collection box for paper production - Google Patents

Abstract

The utility model discloses a dust collection box for paper production, which belongs to the field of dust collection boxes. A control button is fixedly installed, a motor A is fixedly installed on the left outer wall of the upper end of the dust collection box, a screw A is rotatably connected to the lower end of the motor A through the dust collection box, and a screw sleeve A is rotatably sleeved on the outer wall of the screw A, A bearing sleeve A is fixedly sleeved on the outer wall of the screw sleeve A, a filter screen is fixedly installed on the outer wall of the right end of the bearing sleeve A, and a sliding rod is fixedly installed inside the upper end of the right side of the dust collecting box. By arranging the rotating structure and the embedded sliding structure, the dust treatment effect of the collection box is improved, the internal sewage is convenient to be discharged directly, and the practicability of the collection box is improved.

Description

A dust collection box for paper production

technical field

The utility model relates to the technical field of dust collection boxes, in particular to a dust collection box for paper production.

Background technique

The harmful substances in the air of the sealed operation workshop are generally divided into two types: visible substances and invisible substances. The particles of visible substances are relatively large, which mainly affect the visibility in the workshop, which affects the operation of workers in the workshop and the supervision of management personnel. At the same time, visible particles often greatly reduce the service life of air conditioning systems and equipment in the workshop. In addition, invisible particles, which mainly affect the health of operators, enter the lungs through breathing, and even enter the retina through the eyes. Long-term inhalation of these particles can cause retinal blur, lung dysfunction, and even lung cancer, so a collection box is required to collect the dust.

Patent CN201320392773.X discloses a dust collection box with an external vacuum cleaner. The collection box is often built-in for existing dust collection box vacuum cleaners. Because the dust collection box has a small space, there is a lot of dust in the space, and the vacuum cleaner is Built-in, so the dust in the vacuum cleaner will gradually increase, which is extremely easy to burn out the vacuum cleaner. By placing the vacuum cleaner on the side of the dust collection box through the triangular support plate, the vacuum cleaner is outside the dust collection box, so the vacuum cleaner will not be adsorbed. more dust, thus greatly reducing the possibility of damage to the dust collection box.

The above-mentioned dust collection box has some shortcomings: 1. A part of the above-mentioned dust collection device will be emitted to the outside air to pollute the outside air, and the above-mentioned dust collection device cannot effectively handle the dust after collecting the dust, but just floats on the water surface, which is inconvenient for later stages. Treatment will affect the later process, the process is complicated, and the practicability of the collection box is reduced. 2. After long-term use, the water inside the dust collection box will remain a lot of dirt, and it is inconvenient to replace the inner water. It is necessary to extract the inner water through other pumping devices, which increases the cost and reduces the practicability of the collection box.

Utility model content

The utility model provides a dust collection box for paper production, which aims to adopt a rotating structure. When the dust collection box is used to collect dust, the dust is sucked into the dust collection box from a suction duct. Because the dust is light, a part of it will still float. In the air, press the control button to control the operation of the motor A, drive the screw A to rotate, and drive the outer wall screw sleeve A to rotate on the outer wall of the screw A through the outer wall thread to move down on the outer wall of the screw A, and drive the outer wall fixed socket A to move down, This drives the filter screen fixedly installed on the right side to move down, thereby driving the sliding sleeve fixedly installed on the right end to move down smoothly on the outer wall of the slide bar, so that the filter screen moves down smoothly, and the floating dust in the air is pressed down into the dust. In the water in the collection box, the dust enters the water, and is soaked by water and no longer floats in the air, which is more convenient to handle, improves the treatment effect of the dust collection box, and increases the practicability of the collection box.

Through the rotating structure, when the internal water needs to be discharged, press the control button to control the motor B to drive the left end rod to rotate, thereby driving the screw block A fixedly installed at the left end to rotate, and the screw block B is driven to rotate through the thread. The rotation of B drives the lower end screw B to rotate, and the outer wall thread drives the screw sleeve B to rotate and move upward on the outer wall of the screw B, which drives the bearing sleeve B fixedly connected to the outer wall to move upward, thereby driving the fixed connecting rod at the right end to move upward, thereby driving the right end The rotating wheel installed vertically moves upward in the sliding groove, and drives the rubber block fixedly installed at the lower end to move upward from the through hole, so that the through hole is opened, and the water in the dust collection box can be directly released, which improves the work efficiency. Increased utility of dust collection boxes.

The concrete technical scheme that the utility model provides is as follows:

A dust collection box for paper production provided by the utility model comprises a dust collection box, a suction pipe is fixedly installed on the outer wall of the upper side of the right end of the dust collection box, and a control button is fixedly installed on the outer wall of the lower end of the left end of the dust collection box, so A motor A is fixedly installed on the left outer wall of the upper end of the dust collection box, and a screw A is rotatably connected to the lower end of the motor A through the dust collection box. A bearing sleeve A is fixedly sleeved, a filter screen is fixedly installed on the outer wall of the right end of the bearing sleeve A, a sliding rod is fixedly installed inside the upper end of the right side of the dust collection box, and a sliding sleeve is movably sleeved on the outer wall of the sliding rod. The outer wall of the left side of the sliding sleeve is fixedly connected to the filter screen, the outer wall of the lower end of the right side of the dust collection box is fixedly installed with a motor B, the left end of the motor B is rotatably connected to the dust collection box, and a rotating rod is fixedly installed on the outer wall of the left end of the rotating rod. Block A, the lower part of the left side of the screw block A is fixedly and rotatably installed with a screw block B, the lower end of the screw block B is rotatably mounted with a screw B, and the outer wall of the screw B is rotatably sleeved with a screw sleeve B, and the screw sleeve The outer wall of B is fixedly sleeved with a bearing sleeve B, the right end of the bearing sleeve B is fixedly installed with a connecting rod, the inner wall of the lower end of the right side of the dust collection box is fixedly installed with a fixed block, and a sliding groove is fixedly installed inside the fixed block. A runner is rotatably installed at the right end of the connecting rod through the sliding groove, a rubber block is fixedly installed on the outer wall of the lower end of the connecting rod, and a through hole is fixedly installed on the side wall of the lower end of the dust collecting box.

Optionally, the outer wall of the screw rod A is fixedly installed with threads, and the inner wall of the screw sleeve A is fixedly installed with threads that match the threads of the outer wall of the screw rod A to form a rotating structure.

Optionally, the outer wall of the screw B is fixedly installed with threads, and the inner wall of the screw sleeve B is fixedly installed with threads matching the threads of the outer wall of the screw B to form a rotating structure.

Optionally, the right end of the connecting rod is rotatably installed with a wheel matched with the sliding groove to form an embedded sliding structure.

Optionally, the input end of the control button is electrically connected to the external power supply through wires, the output end of the control button is electrically connected to the input ends of the motor A and the motor B through wires, and the output end of the motor A is connected to the screw rod. A's rotary input is connected.

The beneficial effects of the present utility model are as follows:

1. The embodiment of the present utility model provides a dust collection box for paper production. Through the rotating structure, when the dust collection box is used to collect dust, the dust is sucked into the dust collection box from the suction duct. Because the dust is light, there will be a part of the dust collection box. Still floating in the air, press the control button to control the motor A to run, drive the screw A to rotate, and drive the outer wall screw sleeve A to rotate on the outer wall of the screw A through the outer wall thread. Move, thereby driving the filter screen fixedly installed on the right side to move down, thereby driving the sliding sleeve fixedly installed on the right end to move down smoothly on the outer wall of the sliding rod, so that the filter screen moves down smoothly, and the floating dust in the air is pressed down. Into the water in the dust collection box, so that the dust enters the water, and is soaked by water and no longer floats in the air, which is more convenient to handle, improves the treatment effect of the dust collection box, and increases the practicability of the collection box.

2. Through the rotating structure, when the internal water needs to be discharged, press the control button to control the motor B to drive the left end of the rotating rod to rotate, thereby driving the screw block A fixedly installed at the left end to rotate, and the screw block B is driven to rotate through the thread. The rotation of the screw block B drives the lower end screw B to rotate, and the outer wall thread drives the screw sleeve B to rotate and move upward on the outer wall of the screw B, which drives the bearing sleeve B fixedly sleeved on the outer wall to move upward, thereby driving the fixed connecting rod at the right end to move upward, thereby It drives the rotating wheel installed at the right end to move vertically upward in the sliding groove, and drives the rubber block fixedly installed at the lower end to move upward from the through hole, so that the through hole is opened, and the water in the dust collection box can be directly released, which improves the work efficiency. efficiency, increasing the practicality of the dust collection box.

Description of drawings

In order to illustrate the technical solutions in the embodiments of the present invention more clearly, the following briefly introduces the accompanying drawings used in the description of the embodiments. Obviously, the drawings in the following description are only some implementations of the present invention. For example, for those of ordinary skill in the art, other drawings can also be obtained based on these drawings without any creative effort.

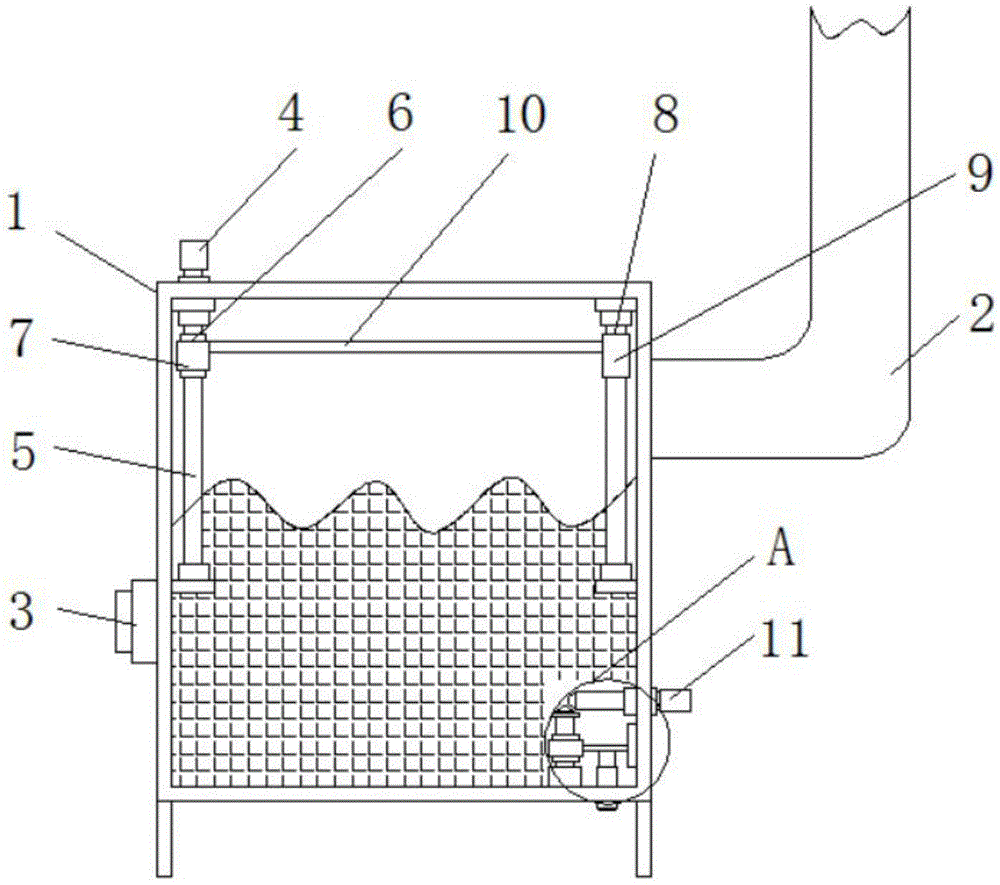

Fig. 1 is the front sectional structure schematic diagram of a kind of dust collection box for paper production according to the embodiment of the utility model;

FIG. 2 is an enlarged structural schematic diagram of part A in FIG. 1 of a dust collection box for paper production according to an embodiment of the present invention.

FIG. 3 is a partial top-view cross-sectional structural schematic diagram of a dust collection box for paper production according to an embodiment of the present invention.

4 is a schematic diagram of a circuit structure of a dust collection box for paper production according to an embodiment of the present invention.

In the picture: 1. Dust collection box; 2. Air suction pipe; 3. Control button; 4. Motor A; 5. Screw A; 6. Screw sleeve A; 7. Bearing sleeve A; 8. Slide rod; 9. Sliding sleeve; 10, filter screen; 11, motor B; 12, rotating rod; 13, screw block A; 14, screw block B; 15, screw B; 16, screw sleeve B; 17, bearing sleeve B; 18, connecting rod; 19, fixed block; 20, sliding groove; 21, runner; 22, rubber block; 23, through hole.

Detailed ways

In order to make the purpose, technical solutions and advantages of the present utility model clearer, the present utility model will be further described in detail below with reference to the accompanying drawings. Obviously, the described embodiments are only a part of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

A dust collection box for paper production according to an embodiment of the present invention will be described in detail below with reference to FIGS. 1 to 4 .

Referring to Figure 1, Figure 2, Figure 3 and Figure 4, a dust collection box for paper production provided by the embodiment of the present invention includes a dust collection box 1, and a suction pipe is fixedly installed on the outer wall of the upper side of the right end of the dust collection box 1 2. The control button 3 is fixedly installed on the outer wall of the left lower end of the dust collection box 1, and the motor A4 is fixedly installed on the left outer wall of the upper end of the dust collection box 1. The lower end of the motor A4 runs through the dust collection box 1 and is rotatably connected with a screw A5, and the outer wall of the screw A5 rotates with a sleeve A screw sleeve A6 is connected, the outer wall of the screw sleeve A6 is fixedly connected with a bearing sleeve A7, the outer wall of the right end of the bearing sleeve A7 is fixedly installed with a filter screen 10, and the upper right end of the dust collection box 1 is fixedly installed with a sliding rod 8, sliding rod 8 The outer wall is movably sleeved with a sliding sleeve 9, the left outer wall of the sliding sleeve 9 is fixedly connected to the filter screen 10, the outer wall of the right lower end of the dust collection box 1 is fixedly installed with a motor B11, and the left end of the motor B11 runs through the dust collection box 1 and is connected to a rotating rod 12. A screw block A13 is fixedly installed on the outer wall of the left end of the rotating rod 12, and a screw block B14 is fixed and rotated at the lower left side of the screw block A13. The outer wall of the sleeve B16 is fixedly sleeved with the bearing sleeve B17, the right end of the bearing sleeve B17 is fixedly installed with the connecting rod 18, the inner wall of the lower right end of the dust collection box 1 is fixedly installed with a fixed block 19, and the fixed block 19 is fixedly installed with a sliding groove 20 inside, and the connecting rod A runner 21 is rotatably installed at the right end of the 18 through the sliding groove 20 , a rubber block 22 is fixedly installed on the outer wall of the lower end of the connecting rod 18 , and a through hole 23 is fixedly installed on the lower end side wall of the dust collecting box 1 .

Referring to Figure 1, the outer wall of the screw A5 is fixedly installed with threads, and the inner wall of the screw sleeve A6 is fixedly installed with threads that match the threads of the outer wall of the screw A5 to form a rotating structure. The suction pipe 2 is sucked into the dust collection box 1. Due to the light dust, a part of it will still float in the air. Press the control button 3 to control the motor A4 to run, drive the screw A5 to rotate, and drive the outer wall screw sleeve A6 to rotate through the outer wall thread. The outer wall of the screw A5 moves downward, which drives the bearing sleeve A7 that is fixedly sleeved on the outer wall to move downward, thereby driving the filter screen 10 fixedly installed on the right side to move downward, thereby driving the sliding sleeve 9 fixedly installed at the right end to move smoothly on the outer wall of the sliding rod 8 Move down to make the filter screen 10 move down smoothly, and press down the floating dust in the air into the water in the dust collection box 1, so that the dust enters the water and is soaked in water and no longer floats in the air. It is more convenient to handle, improves the processing effect of the dust collecting box 1, and increases the practicability of the collecting box.

Referring to Figures 1 and 2, the outer wall of the screw B15 is fixedly installed with threads, and the inner wall of the screw sleeve B16 is fixedly installed with threads that match the threads of the outer wall of the screw B15 to form a rotating structure. When the internal water needs to be discharged, press Move the control button 3, control the motor B11, and drive the left end rotating rod 12 to rotate, thereby driving the screw block A13 fixedly installed at the left end to rotate, and driving the screw block B14 to rotate through the thread. The rod sleeve B16 rotates and moves upward on the outer wall of the screw B15, which drives the bearing sleeve B17 fixedly sleeved on the outer wall to move upward, thereby driving the connecting rod 18 fixedly installed at the right end to move upward, thereby driving the right end to rotate and install the runner 21 in the sliding groove 20. Moving vertically upwards, driving the rubber block 22 fixedly installed at the lower end to move upwards from the through hole 23, so that the through hole 23 is opened, and the water in the dust collection box 1 can be directly released, which improves the work efficiency and increases the dust collection box 1. practicability.

Referring to Figures 1 and 3, the right end of the connecting rod 18 is rotatably installed with a runner 21 that matches the sliding groove 20 to form an embedded sliding structure. When the internal water needs to be discharged, press the control button 3 to control the The motor B11 drives the left end rotating rod 12 to rotate, thereby driving the screw block A13 fixedly installed at the left end to rotate, and drives the screw block B14 to rotate through the thread. The outer wall of B15 moves upward, which drives the bearing sleeve B17 that is fixedly sleeved on the outer wall to move upward, thereby driving the connecting rod 18 fixedly installed at the right end to move upward, thereby driving the rotating wheel 21 installed at the right end to move vertically upward in the sliding groove 20, driving the The rubber block 22 fixedly installed at the lower end moves upwards from the through hole 23, so that the through hole 23 is opened, and the water in the dust collecting box 1 can be directly released, which improves the work efficiency and increases the practicability of the dust collecting box 1.

Referring to Figure 4, the input end of the control button 3 is electrically connected with the external power supply through wires, the output end of the control button 3 is electrically connected with the input ends of the motor A4 and the motor B11 through wires, and the output end of the motor A4 is connected with the screw A5. Rotate the input to connect.

Among them, motor A4, motor B11 and control button 3 are products of the prior art. The model of motor A4 and motor B11 is HD2401-24, the manufacturer is Yaskawa, the model of control button 3 is LA38-11DN, and the manufacturer is Missi. Repeat.

The embodiment of the present invention provides a dust collection box for paper production. When the dust collection box 1 is used to collect dust, the dust is sucked into the dust collection box 1 from the suction duct 2. Since the dust is light, a part of it still floats in the dust collection box 1. In the air, press the control button 3 to control the operation of the motor A4, drive the screw A5 to rotate, and drive the outer wall screw sleeve A6 to rotate through the outer wall thread. Thereby, the filter screen 10 fixedly installed on the right side is driven to move downward, thereby driving the sliding sleeve 9 fixedly installed at the right end to move down smoothly on the outer wall of the sliding rod 8, so that the filter screen 10 moves smoothly downward, and the floating dust in the air is moved downward. Press down into the water in the dust collection box 1, so that the dust enters the water and is soaked in water and no longer floats in the air. When the water inside needs to be discharged, press the control button 3 to control the motor B11 to drive the The left end rotating rod 12 rotates, thereby driving the screw block A13 fixedly installed at the left end to rotate, and driving the screw block B14 to rotate through the thread. , drive the bearing sleeve B17 fixedly sleeved on the outer wall to move upward, thereby driving the connecting rod 18 fixedly installed at the right end to move upward, thereby driving the rotating wheel 21 installed at the right end to move vertically upward in the sliding groove 20, and driving the fixed installation of the lower end to move upward. The rubber block 22 moves upward from the through hole 23 to open the through hole 23, so that the water in the dust collecting box 1 can be directly released.

It should be noted that the present utility model is a dust collection box for paper production, including a motor A4, a motor B11 and a control button 3. The components are general standard parts or components known to those skilled in the art, and its structure and principle are as follows: Those skilled in the art can know it through technical manuals or through routine experimental methods.

Obviously, those skilled in the art can make various changes and modifications to the embodiments of the present invention without departing from the spirit and scope of the embodiments of the present invention. Thus, if these modifications and variations of the embodiments of the present utility model fall within the scope of the claims of the present utility model and their equivalents, the present utility model is also intended to include these modifications and variations.

Claims (5)

1. A dust collection box for paper production, characterized in that the collection box comprises a dust collection box (1), wherein a suction pipe (2) is fixedly installed on the outer wall of the upper right end of the dust collection box (1) , a control button (3) is fixedly installed on the outer wall of the left lower end of the dust collection box (1), a motor A (4) is fixedly installed on the left outer wall of the upper end of the dust collection box (1), and the motor A (4) A screw A(5) is rotatably connected to the lower end of the dust collecting box (1), the outer wall of the screw A(5) is rotatably sleeved with a screw sleeve A(6), and the outer wall of the screw sleeve A(6) is fixedly sleeved There is a bearing sleeve A(7), a filter screen (10) is fixedly installed on the outer wall of the right end of the bearing sleeve A(7), and a sliding rod (8) is fixedly installed inside the upper end of the right side of the dust collection box (1). The outer wall of the sliding rod (8) is movably sleeved with a sliding sleeve (9), the left outer wall of the sliding sleeve (9) is fixedly connected to the filter screen (10), and the outer wall of the lower right end of the dust collecting box (1) is fixedly installed with a motor B(11), the left end of the motor B(11) penetrates the dust collection box (1) and is rotatably connected with a rotating rod (12), and the outer wall of the left end of the rotating rod (12) is fixedly installed with a screw block A(13), the said rotating rod (12) A screw block B (14) is fixedly and rotatably mounted on the lower left side of the screw block A (13), a screw B (15) is rotatably mounted on the lower end of the screw block B (14), and the outer wall of the screw B (15) is rotatably sleeved with a screw A screw sleeve B (16), the outer wall of the screw sleeve B (16) is fixedly sleeved with a bearing sleeve B (17), the right end of the bearing sleeve B (17) is fixedly installed with a connecting rod (18), the dust A fixing block (19) is fixedly installed on the inner wall of the lower end of the right side of the collection box (1), a sliding groove (20) is fixedly installed inside the fixing block (19), and the right end of the connecting rod (18) rotates through the sliding groove (20). A runner (21) is installed, a rubber block (22) is fixedly installed on the outer wall of the lower end of the connecting rod (18), and a through hole (23) is fixedly installed on the side wall of the lower end of the dust collecting box (1). 2. A dust collection box for paper production according to claim 1, wherein the outer wall of the screw A (5) is fixedly installed with threads, and the inner wall of the screw sleeve A (6) is fixedly installed with the screw A (5) The thread matched with the thread of the outer wall constitutes a rotating structure. 3. The dust collection box for paper production according to claim 1, wherein the outer wall of the screw B (15) is fixedly installed with threads, and the inner wall of the screw sleeve B (16) is fixedly installed with the screw. B(15) The thread matched with the thread of the outer wall constitutes a rotating structure. 4 . The dust collection box for paper production according to claim 1 , wherein the right end of the connecting rod ( 18 ) is rotatably installed with a runner ( 21 ) matched with the sliding groove ( 20 ) to form an embedded sliding structure. 5. The dust collection box for paper production according to claim 1, wherein the input end of the control button (3) is electrically connected to an external power supply through a wire, and the output end of the control button (3) is electrically connected. It is electrically connected with the input ends of the motor A (4) and the motor B (11) through wires, and the output end of the motor A (4) is connected with the rotation input end of the screw A (5).
