Abstract

The utility model discloses a transforming humidifier, comprising a humidifier body, an atomizing nozzle, a ring plate and a protective cavity. The upper end of the humidifier body is provided with an air inlet and a liquid discharge port, and the lower part of the humidifier body is provided with There is an air outlet on one side, the atomizing nozzle is arranged in the upper part of the humidifier body, the atomizing nozzle is connected to the nozzle through the support port, the ring plate is arranged on the inner wall of the humidifier body, and the ring plate is closely attached to the inner wall of the humidifier. The protective cavity is arranged in the lower part of the body of the humidifier, and the protective cavity is in a bucket-shaped structure that gradually closes from top to bottom. The utility model makes the deoxygenated water sprayed on the inner wall of the humidifier body flow to the On the ring plate, it flows to the packing layer to contact with the shift gas, which improves the effect of humidifying and cooling the shift gas, and has the advantages of energy saving, consumption reduction and high economic benefit.

Description

A transforming humidifier

technical field

The utility model relates to the technical field of chemical production, in particular to a transforming humidifier.

Background technique

In chemical production, the shift humidifier is to humidify and cool the shift gas to meet the reaction requirements of the shift gas in the subsequent shift furnace.

When the existing shift humidifier is working normally, part of the deoxygenated water will be sprayed directly onto the inner wall of the humidifier after being atomized by the nozzle, and discharged from the liquid outlet, which not only causes waste of deoxygenated water, but also increases the amount of shift gas. The humidification effect is poor. Therefore, the present invention proposes a transforming humidifier that can solve the above problems.

Utility model content

The purpose of the present invention is to provide a transforming humidifier, which solves the problems raised in the above-mentioned background technology by means of a ring plate arranged on the inner wall of the humidifier body.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a transforming humidifier, comprising a humidifier body, the upper end of the humidifier body is provided with an air inlet, the lower end is provided with a liquid outlet, the humidifier body is provided with There is an air outlet on one side of the lower part of the body of the humidifier; the atomizing nozzle is arranged in the upper part of the humidifier body, and the atomizing nozzle is connected to the nozzle through the support port; the ring plate is arranged on the humidifier body. On the inner wall of the humidifier body, the ring plate is closely attached to the inner wall of the humidifier; a protective cavity, the protective cavity is arranged in the lower part of the humidifier body, and the protective cavity is in the shape of a bucket gradually closing from top to bottom structure.

As a preferred technical solution of the present invention, the lower end of the humidifier body is provided with a support base.

As a preferred technical solution of the present invention, the humidifier body is filled with stainless steel filler.

As a preferred technical solution of the present invention, an inspection port is provided on one side of the humidifier body, and a sealing cover is installed on the inspection port.

As a preferred technical solution of the present invention, the upper side of the ring plate has a downward inclination angle.

As a preferred technical solution of the present invention, a de-foaming net is arranged on the side wall of the protective cavity, and the de-foaming net is connected to the side wall of the humidifier body.

As a preferred technical solution of the present invention, a temperature measuring sleeve is installed on the humidifier body.

Compared with the prior art, the beneficial effects of the present utility model are as follows: the utility model is a transforming humidifier, through the provided ring plate, the deoxygenated water sprayed on the inner wall of the humidifier body flows to the ring plate, and then the deoxidized water sprayed on the inner wall of the body of the humidifier flows to the ring plate, and then the humidifier has the following advantages. It flows to the packing layer and contacts with the shift gas, which improves the effect of humidifying and cooling the shift gas, and has the advantages of energy saving, consumption reduction and high economic benefit.

Description of drawings

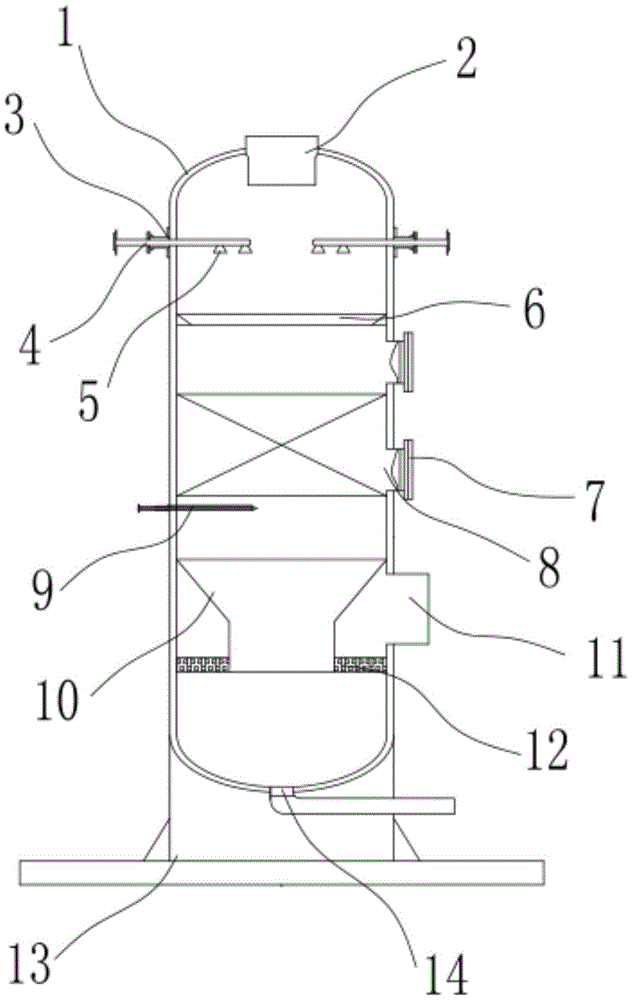

Fig. 1 is the overall structure schematic diagram of the present utility model;

FIG. 2 is a schematic diagram of the overall ring plate structure of the present utility model;

In the figure: 1. Humidifier body; 2. Air inlet; 3. Support port; 4. Nozzle; 5. Atomizing nozzle; 6. Ring plate; 7. Sealing cover; 8. Inspection port; 8. Ring Plate; 9. Temperature measuring sleeve; 10. Protective cavity; 11. Air outlet; 12. De-foaming net; 13. Base; 14. Liquid outlet.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the description of the present invention, it should also be noted that, unless otherwise expressly specified and limited, the terms "arrangement", "installation", "connection" and "connection" should be understood in a broad sense, for example, it may be a fixed connection It can also be a detachable connection or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection, or an indirect connection through an intermediate medium, or the internal communication between the two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood according to specific situations.

1-2, the present utility model provides a technical solution: a transforming humidifier, comprising a humidifier body 1, the upper end of the humidifier body 1 is provided with an air inlet 2, and the lower end is provided with a liquid outlet 14 , the lower side of the humidifier body 1 is provided with an air outlet 11, and the form of changing air to enter and exit from the top is humidified and cooled in the humidifier. A sealing cover 7 is installed on the port 8. When the humidifier needs to be repaired, the maintenance personnel can open the sealing cover 7 and enter the inside of the humidifier body 1 through the inspection port 8, which is convenient for all-round inspection of the humidifier and improves the work efficiency. Efficiency; preferably, the lower end of the humidifier body 1 is provided with a support base 13, and the set support base 13 ensures that the humidifier maintains a stable working state; the atomizing nozzle 5 is arranged in the upper part of the humidifier body 1, and the The nozzle 5 is connected to the nozzle 4 through the support port 3, and the nozzle 4 is connected to a solution pump, which is not shown in the figure. , to humidify and cool the shift gas entering in the air inlet 2, and the support port 3 is arranged on the humidifier body 1 to fix and seal the nozzle 4 to prevent the shift gas from leaking. Preferably, the humidifier body 1 is filled with stainless steel fillers, and the stainless steel fillers make the shift gas fully contact with the atomized deoxygenated water to improve the humidification and cooling effects of the shift gas. Preferably, a temperature measuring sleeve 9 is installed on the humidifier body 1, and the temperature measuring sleeve 9 is a means of the prior art. When measuring the temperature of the transformed gas, the temperature measuring sleeve 9 can resist the internal temperature of the humidifier body 1. Pressure and corrosion, protect the thermometer.

The ring plate 6 is arranged on the inner wall of the humidifier body 1, and the ring plate 6 is closely attached to the inner wall of the humidifier. Preferably, the upper side of the ring plate 6 has a downward inclination angle. After the water is atomized, it is sprayed onto the inner wall of the humidifier body 1, and the deoxidized water can be prevented from continuing to flow along the inner wall to the bottom of the humidifier body 1 through the provided ring plate 6, and the deoxidized water will circulate along the inner wall. The accumulation on the plate 6, along the inclination angle of the ring plate 6, then flows to the packing layer to contact with the shift gas, further humidifies and cools the shift gas, efficiently utilizes the deoxygenated water, reduces the unnecessary waste of the deoxygenated water, and has the advantages of The characteristics of energy saving and consumption reduction have improved economic benefits. The protective cavity 10 is arranged in the lower part of the humidifier body 1, and the protective cavity 10 has a bucket-shaped structure that gradually closes from top to bottom. It protects the humidifier body 1 and prolongs the working life of the shift gas. Preferably, a defoaming net 12 is provided on the side wall of the protective cavity 10 . The defoaming net 12 is a means of the prior art. The defoaming net 12 is connected to the side wall of the humidifier body 1 , and the humidified transformed gas passes through the protective cavity 10 Reaching the lower part of the humidifier body 1, the liquid carried by the shift gas is separated on the defoaming net 12 by the defoaming net 12, which reduces the entrained liquid foam and makes the shift gas distribution more uniform.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. a transforming humidifier, is characterized in that, comprises: the humidifier body, the upper end of the humidifier body is provided with an air inlet, the lower end is provided with a liquid outlet, and the lower side of the humidifier body is provided with an air outlet; an atomizing nozzle, the atomizing nozzle is arranged in the upper part of the humidifier body, and the atomizing nozzle is connected to a nozzle through a support port; a ring plate, the ring plate is arranged on the inner wall of the humidifier body, and the ring plate is closely fitted with the inner wall of the humidifier; The protective cavity is arranged in the lower part of the body of the humidifier, and the protective cavity is in a bucket-shaped structure that gradually closes from top to bottom. 2 . A transforming humidifier according to claim 1 , wherein a support base is provided at the lower end of the humidifier body. 3 . 3 . The transforming humidifier according to claim 1 , wherein the humidifier body is filled with stainless steel filler. 4 . 4 . The transforming humidifier according to claim 1 , wherein an inspection port is provided on one side of the humidifier body, and a sealing cover is installed on the inspection port. 5 . 5 . The transforming humidifier according to claim 1 , wherein the upper side of the ring plate has a downward inclination angle. 6 . 6 . The transforming humidifier according to claim 1 , wherein a de-foaming net is provided on the side wall of the protective cavity, and the de-foaming net is connected to the side wall of the humidifier body. 7 . 7 . The transforming humidifier according to claim 1 , wherein a temperature measuring sleeve is installed on the humidifier body. 8 .
